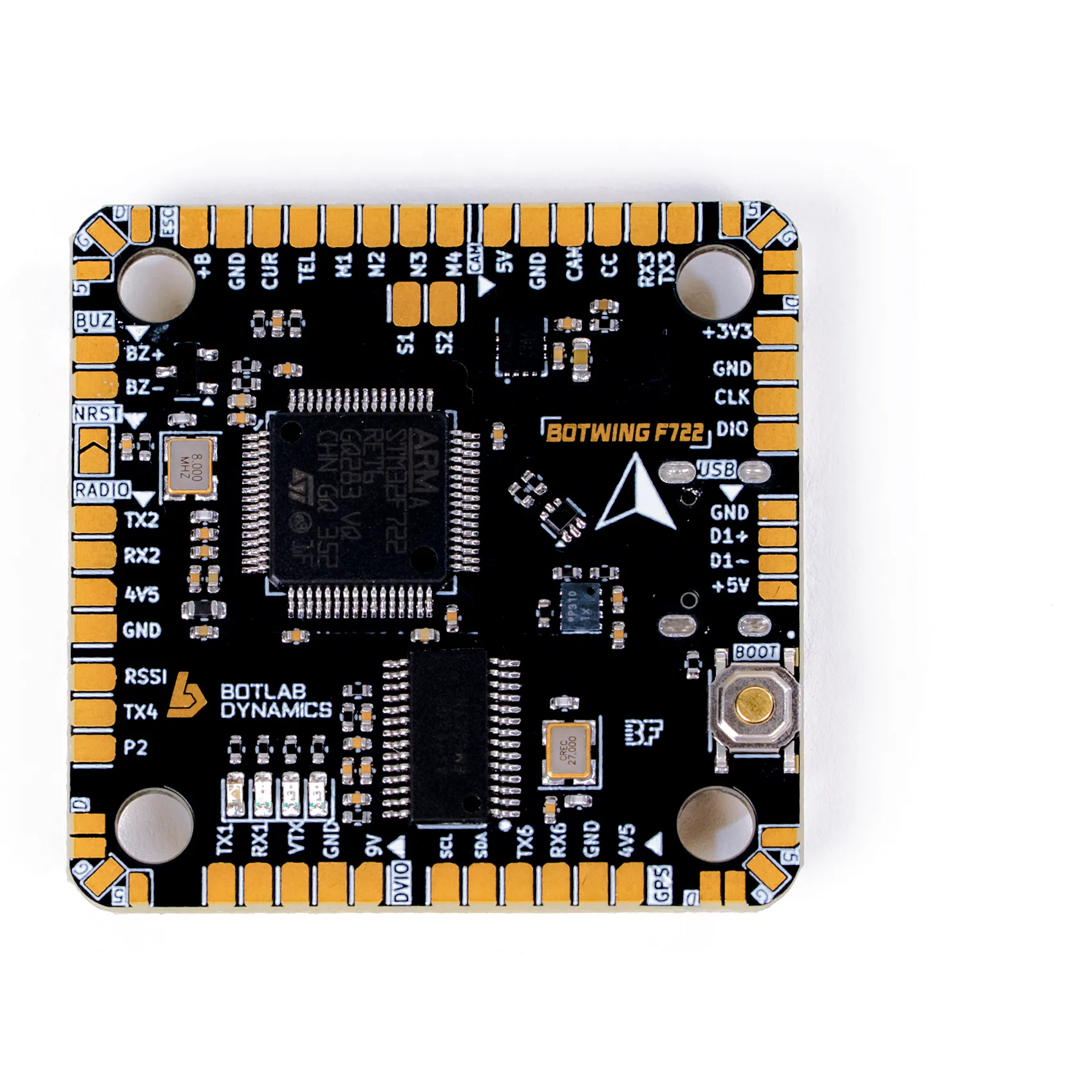

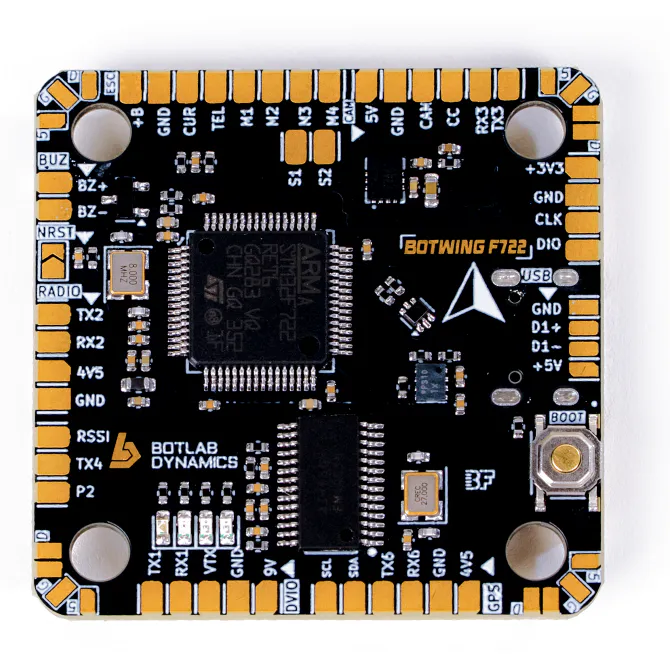

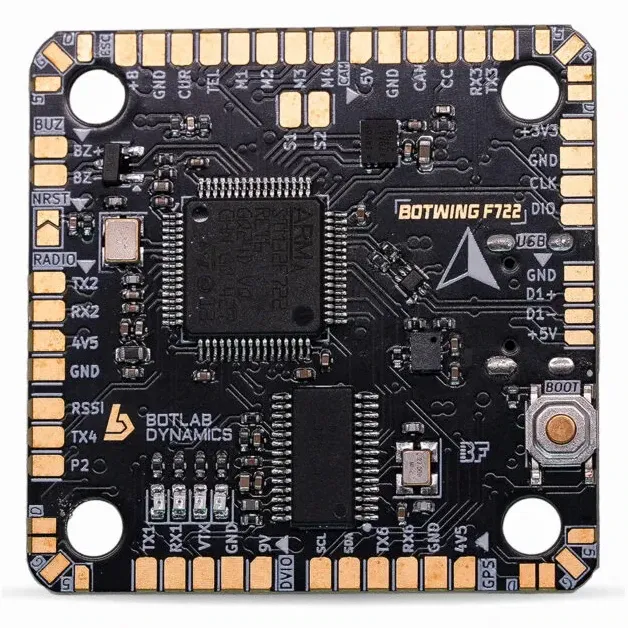

Botlab Dynamics BotWing F722 Flight Controller (Fully Solderless Design)

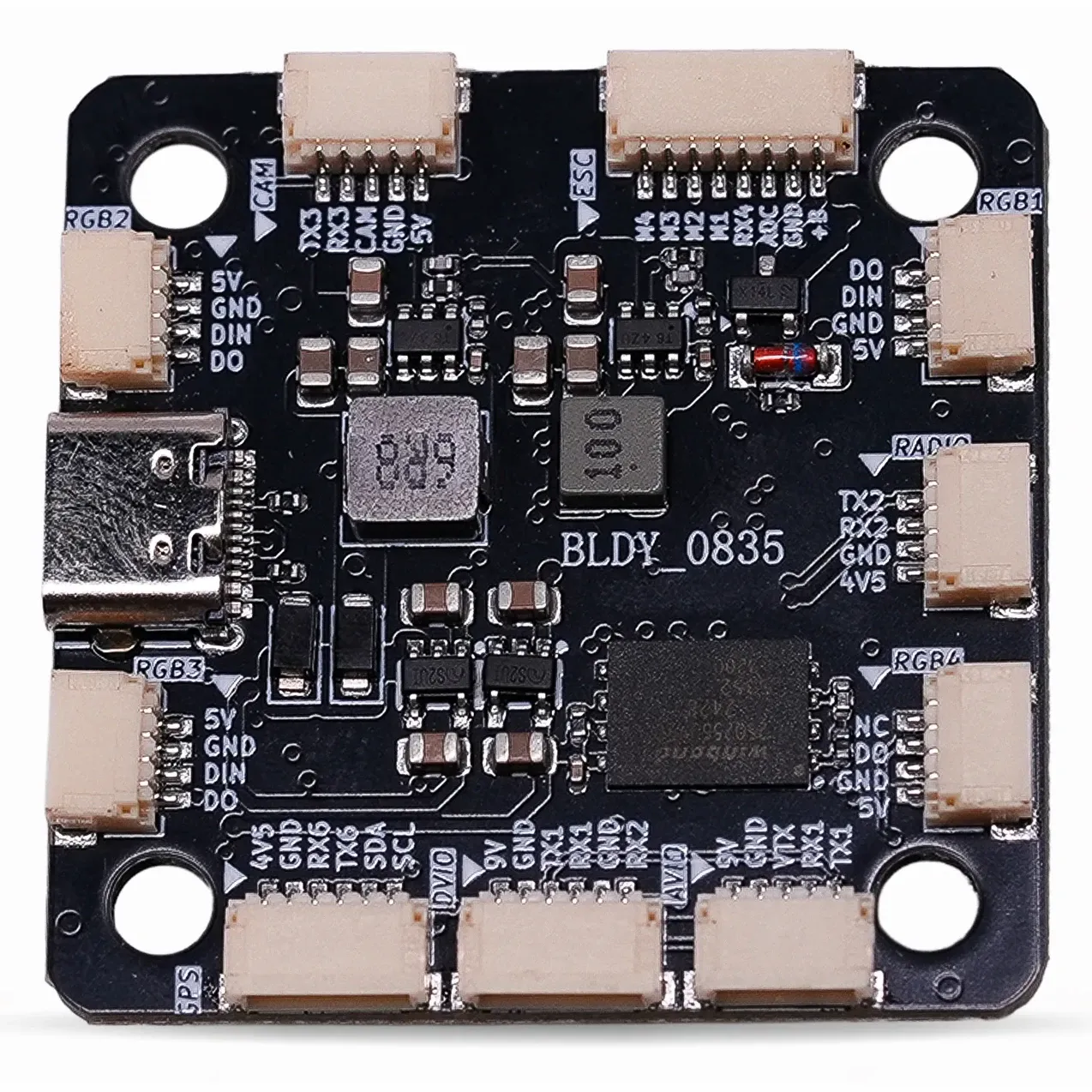

The Botlab Dynamics BotWing F722 is an Indian-engineered flight controller built around a fully solderless, plug-and-play architecture. Designed for rapid assembly, fleet maintenance, and educational setups, it routes all peripherals—from the 4-in-1 ESC and radio receiver to the video transmitter and camera—through dedicated surface-mount connectors, completely eliminating the need for a soldering iron.

Key features

• STM32F722 MCU: Delivers fast loop times and robust processing headroom for modern flight firmware.

• 100% plug-and-play layout: Prevents solder bridging and thermal damage to the PCB during assembly.

• Pre-configured headers: Dedicated ports for all primary flight components ensure fast, error-free wiring.

• Swarm-tested heritage: Engineered by Botlab Dynamics, an Indian manufacturer specialising in large-scale drone fleet operations.

Specifications

• Processor: STM32F722

• Gyro: ICM42688P

• OSD: AT7456E

• Blackbox: 32MB flash

• Input voltage: 3-6S LiPo

• Outputs: 4 motors + 2 servos

• HD video: 6-pin plug-and-play DJI Air Unit port

• USB: Type-C

• Mounting: 30.5x30.5mm (4 mm holes)

• Board size: 40 x 40 mm

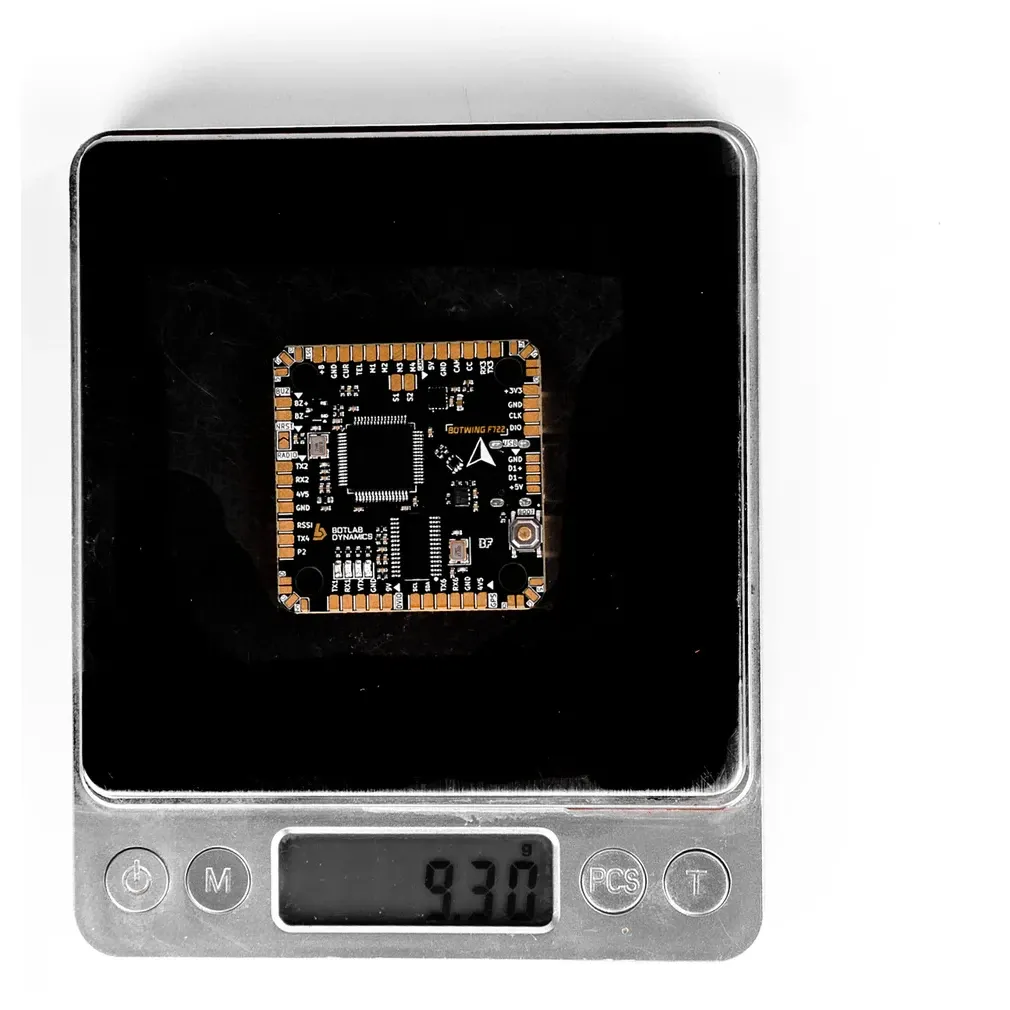

• Weight: 9 g

• Supported firmware: Betaflight, INAV (target BOTWINGF722)

• Assembly style: Fully solderless / connector-based

• Origin: Made in India

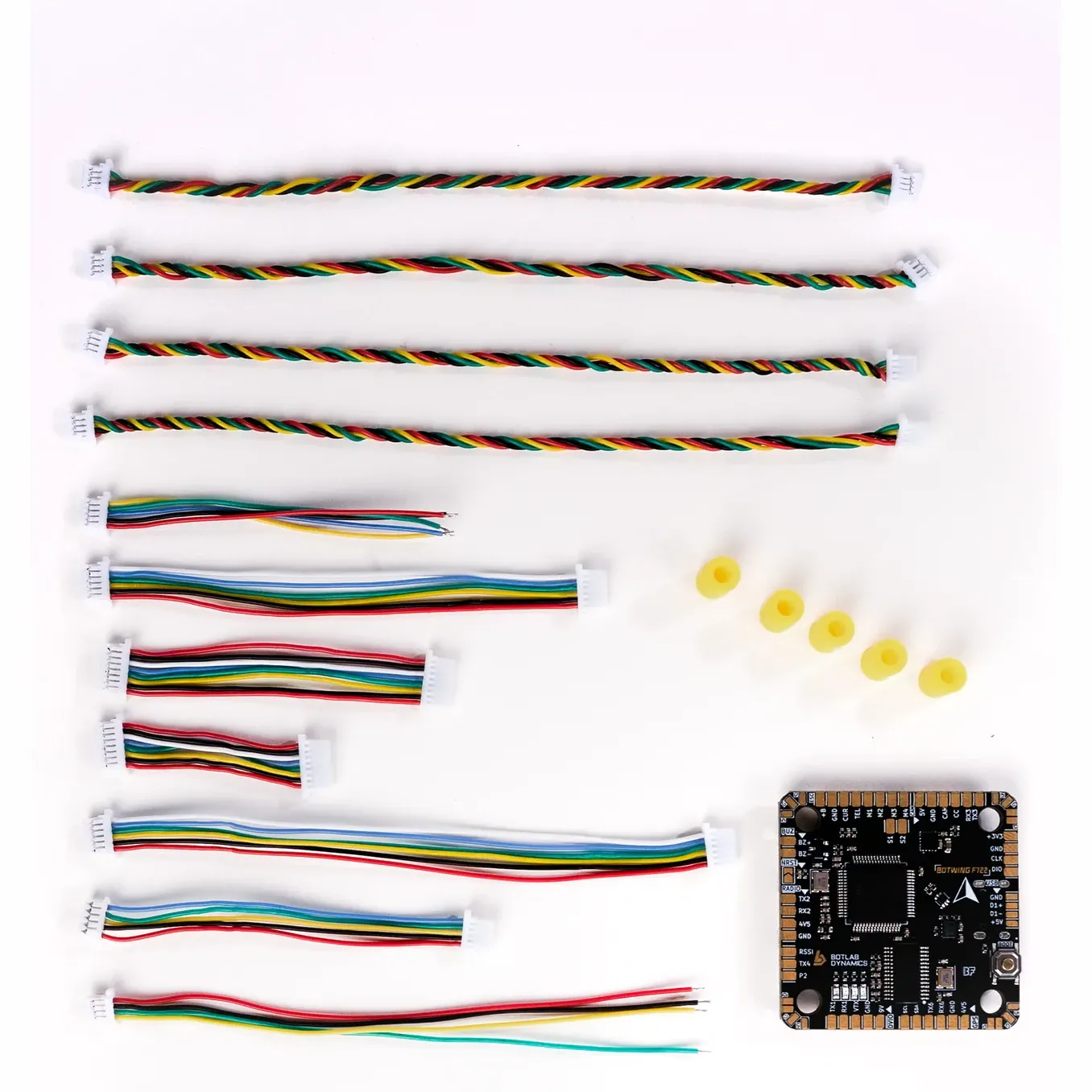

• In the box: flight controller, 10 connector cables, 6 M3 rubber grommets, silicone USB protector

Because this board relies exclusively on physical connectors, builders must use compatible pre-crimped wire harnesses for their specific ESC, receiver, and video setups. It is best suited for clean, spacious frames rather than ultra-compact micro builds where direct-soldered pads are required to save vertical space and weight.
