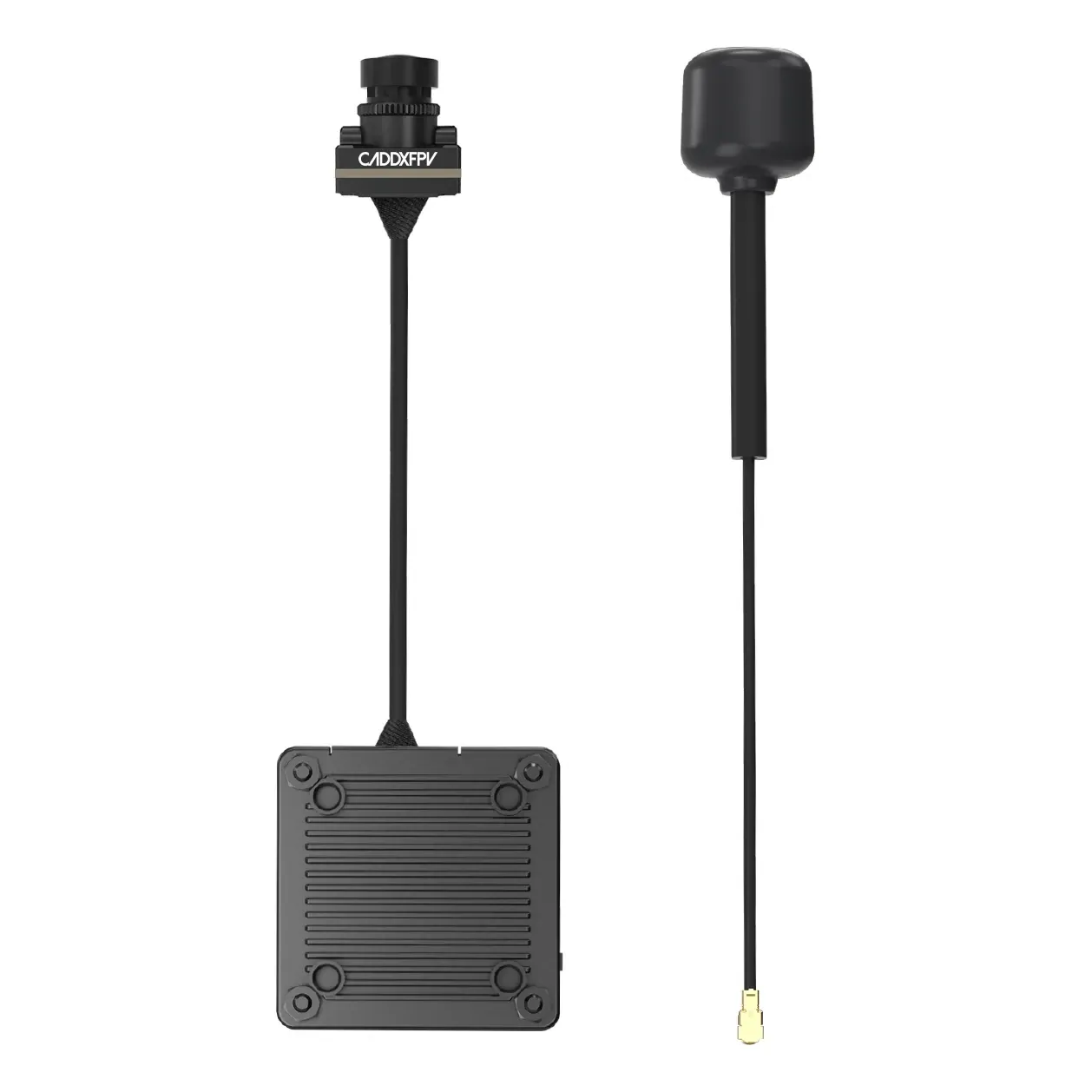

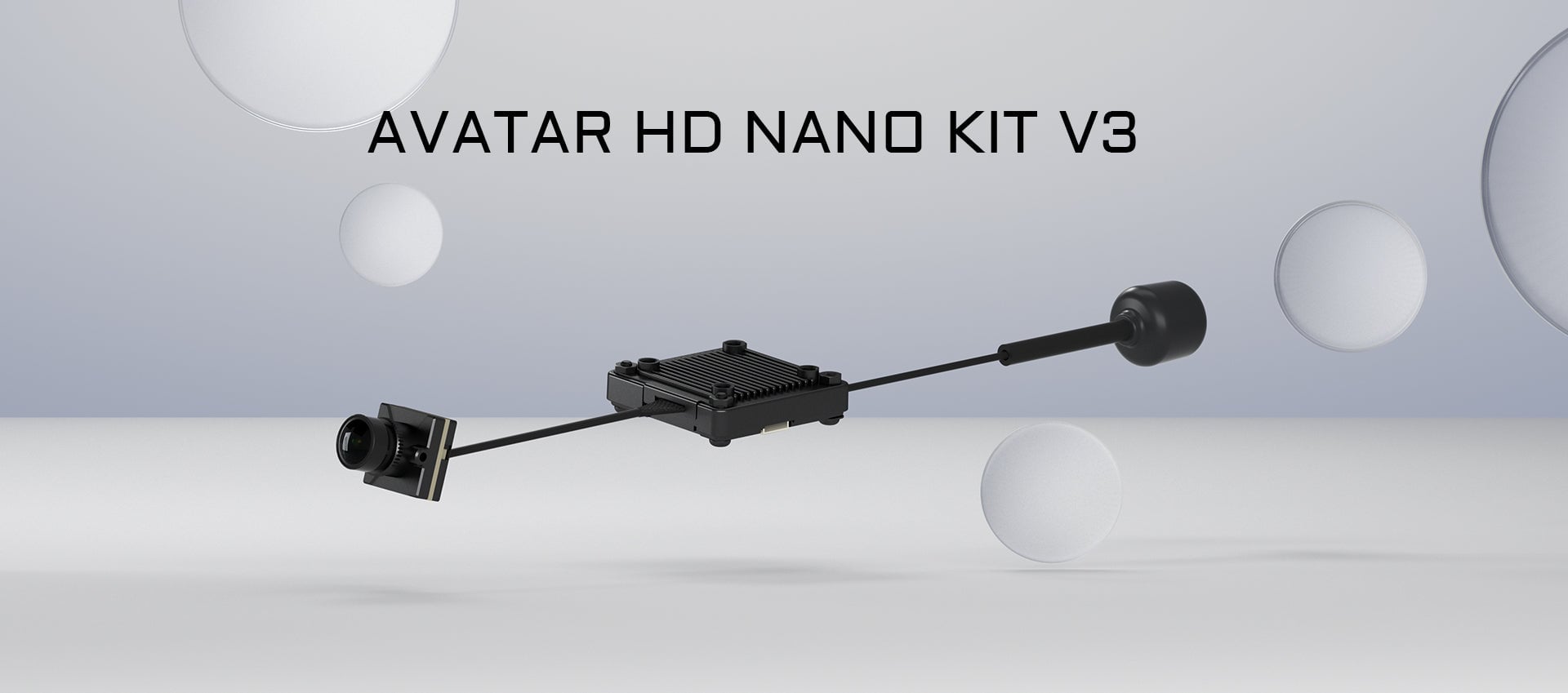

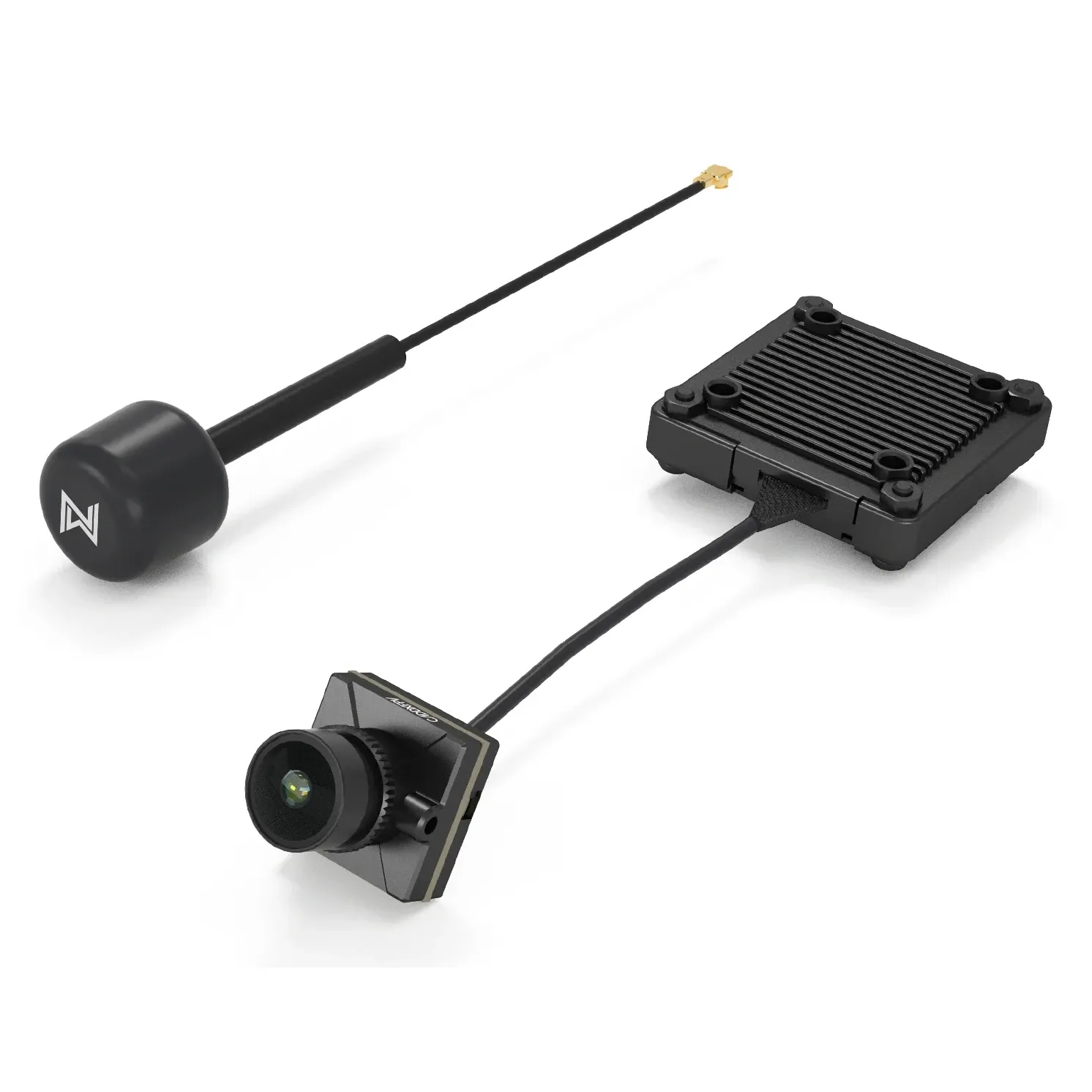

Caddx Walksnail Avatar HD Nano Kit V3

The Caddx Walksnail Avatar HD Nano Kit V3 is a compact digital video transmitter system for lightweight freestyle drones and cinewhoops using the Walksnail Avatar HD ecosystem.

Key features

• Nano-size hardware helps reduce the space required inside smaller frames.

• Provides a digital FPV video link for compatible Walksnail Avatar HD goggles and equipment.

• Suited to lightweight builds where a compact video system is needed.

• Useful for freestyle and cinewhoop installations with suitable camera, power and mounting provisions.

• 14 x 14 mm Nano Camera V3 weighs 3 g and pairs a 1/3.2-inch 4MP native 4:3 sensor with a 2.1 mm lens and 160-degree field of view.

• 32GB of built-in storage records 1080p flight footage without an SD card.

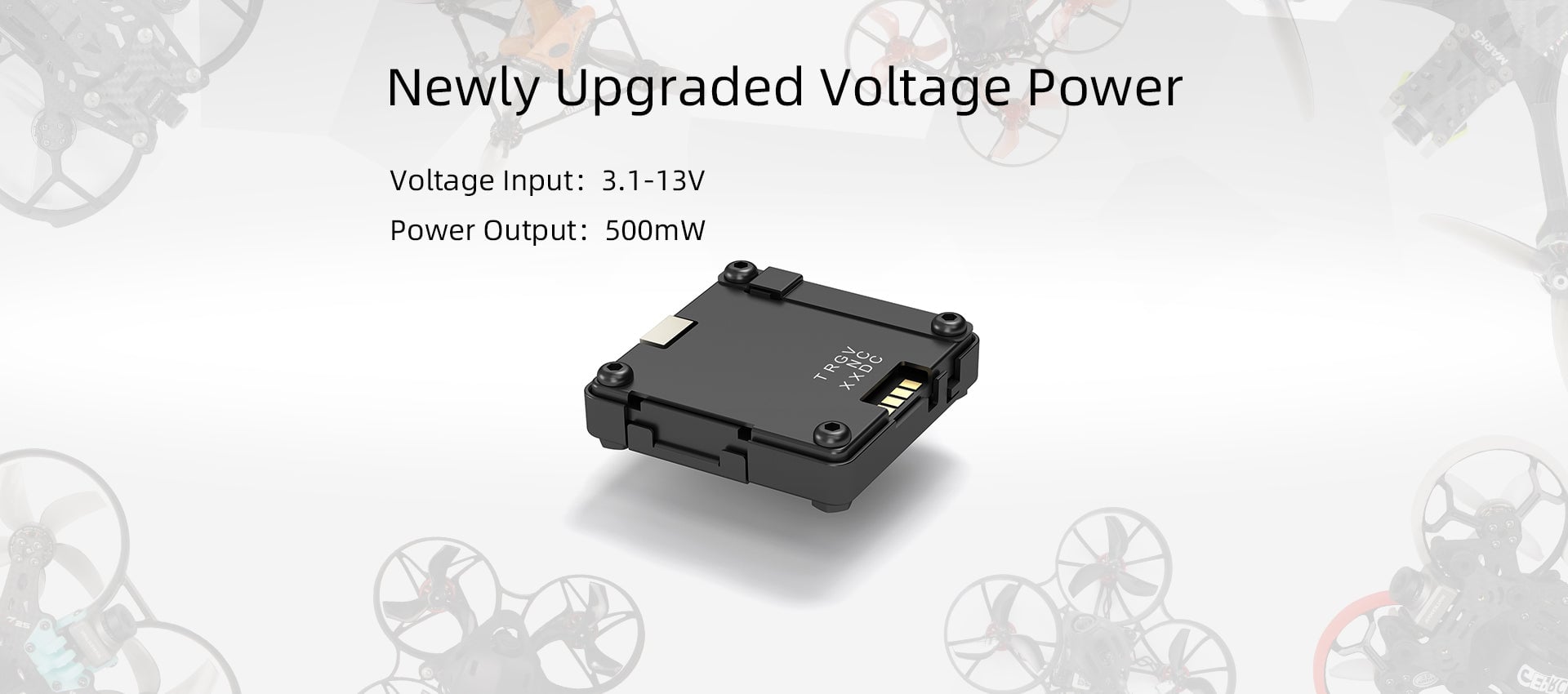

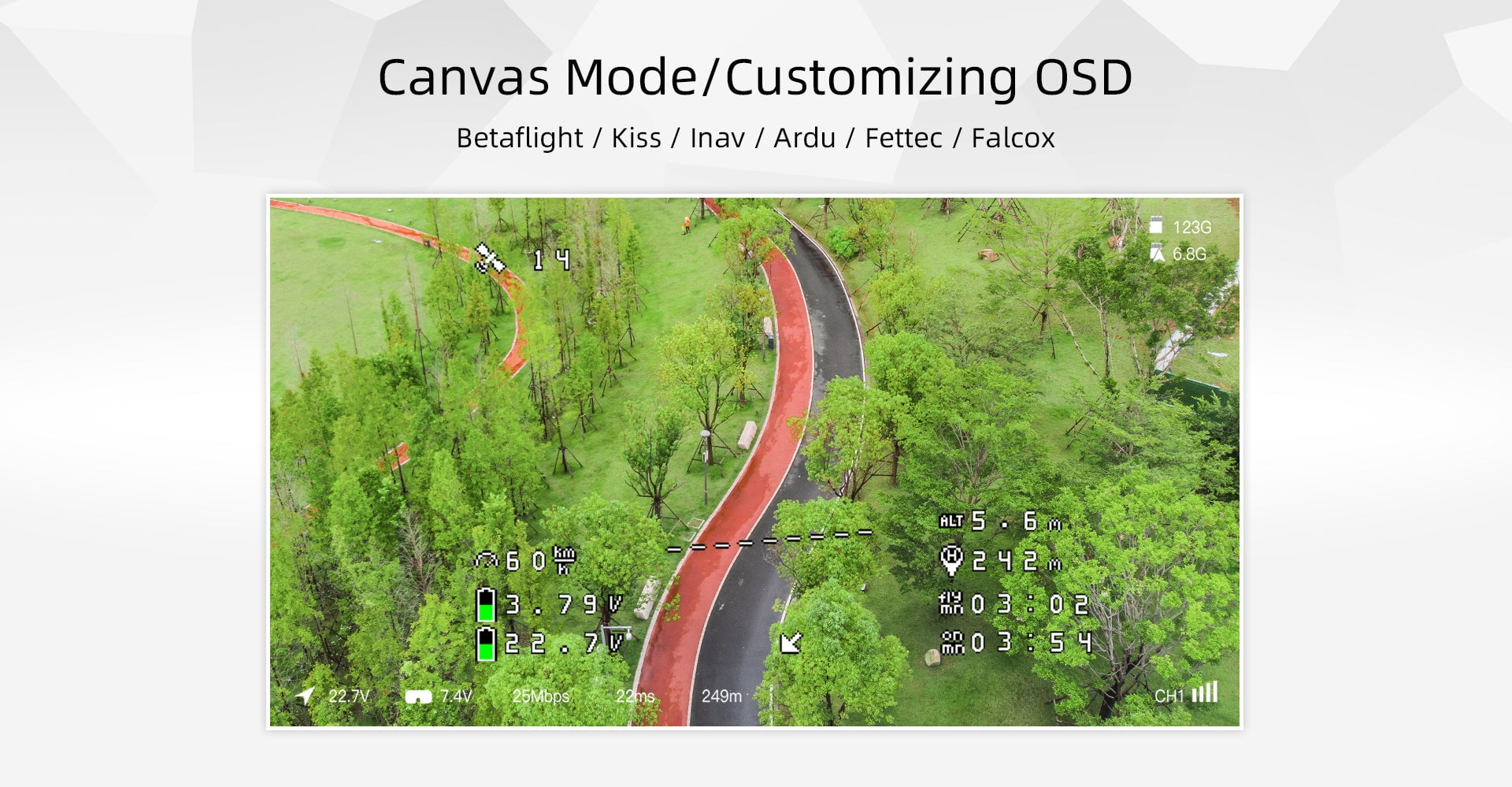

• 3.1-13 V input and up to 500 mW output, with Canvas-mode OSD for Betaflight, INAV, KISS and ArduPilot.

Specifications

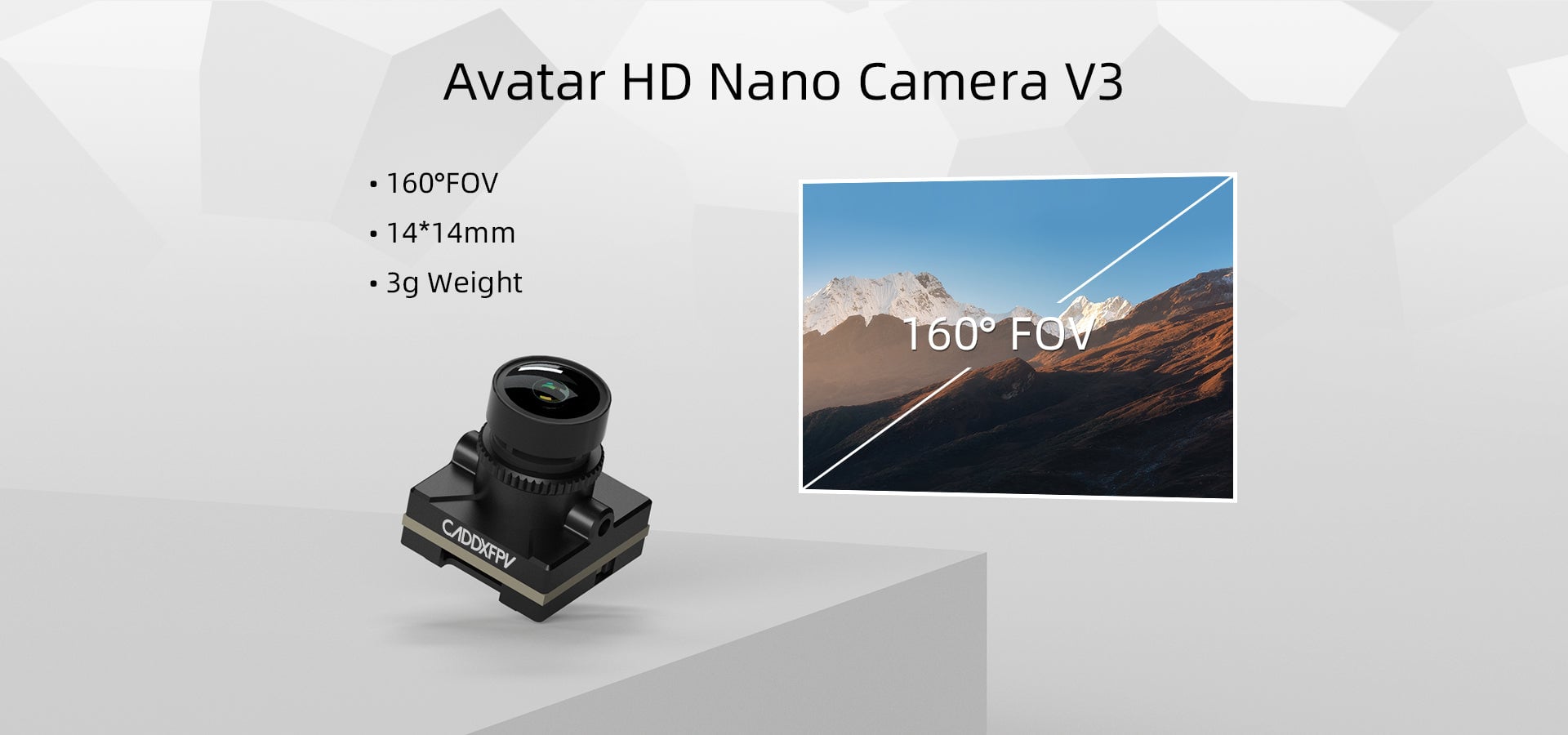

• Camera: Avatar HD Nano Camera V3, 1/3.2-inch 4MP sensor, 2.1 mm F2.0 lens, 160 degree FOV

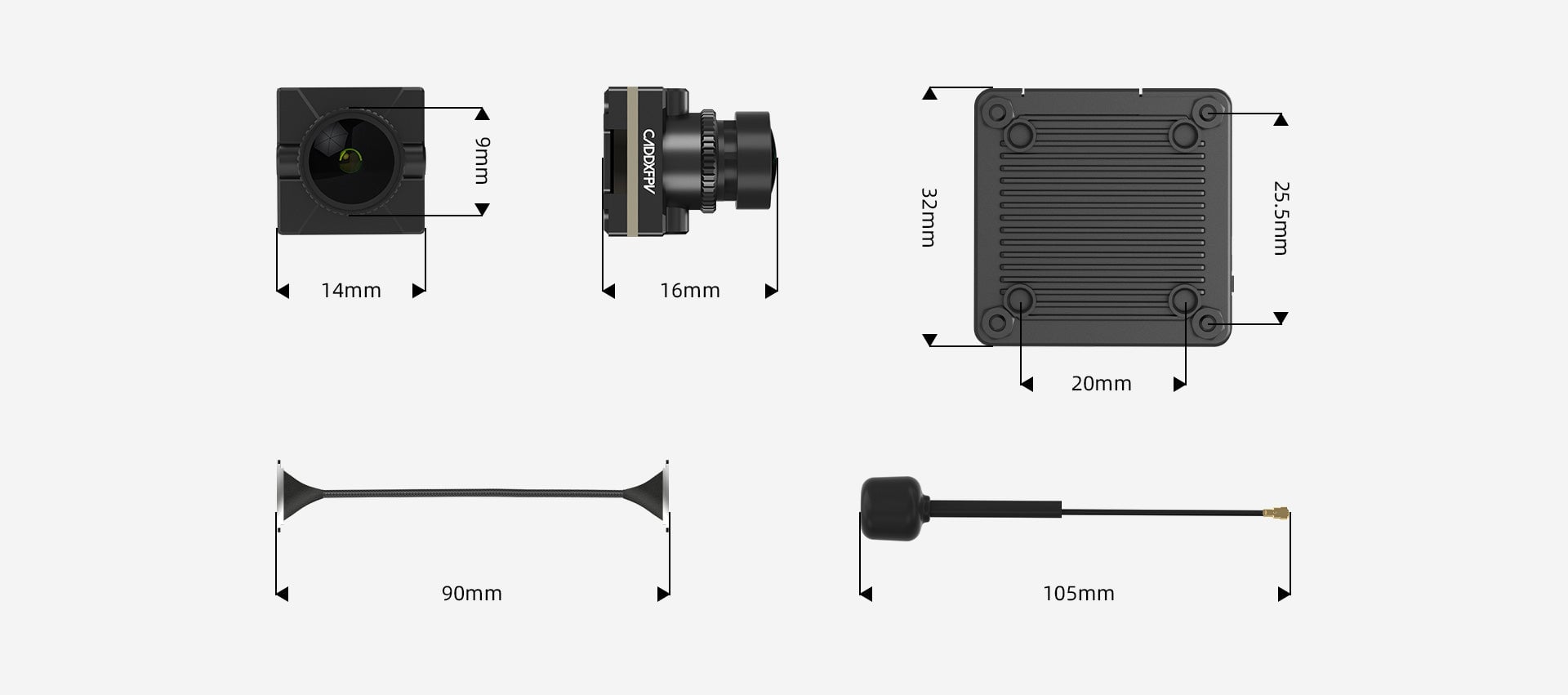

• Camera size and weight: 14 x 14 x 16.8 mm, 3 g (without cable)

• Video: 1080p/60fps, 720p/120fps, 720p/60fps; 4:3 native or 16:9

• VTX: Avatar HD Mini VTX V3, 31.5 x 31.5 x 9.4 mm, 13.4 g

• Frequency: 5.725-5.850 GHz, 8 channels

• Output power: up to 500 mW

• Input voltage: 3.1-13 V

• Mounting holes: 25.5 x 25.5 mm (M2) and 20 x 20 mm (M3)

• Storage: 32GB built-in

• Latency: average 22 ms

• Antenna: single IPEX-1 (U.FL), LHCP, 1.9 dBi

• Supported FC firmware: Betaflight, INAV, Fettec, KISS, ArduPilot

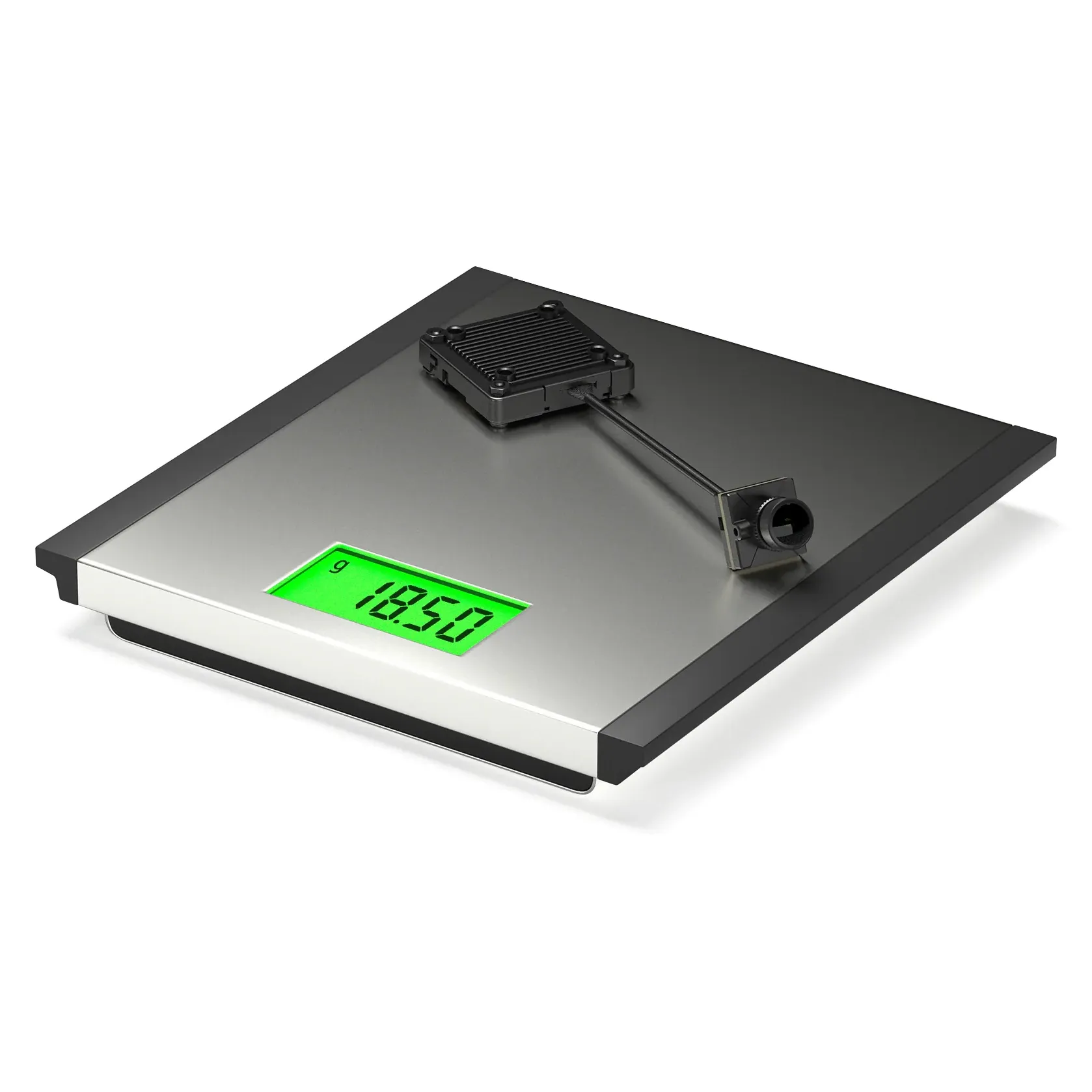

• Kit weight: 18.5 g

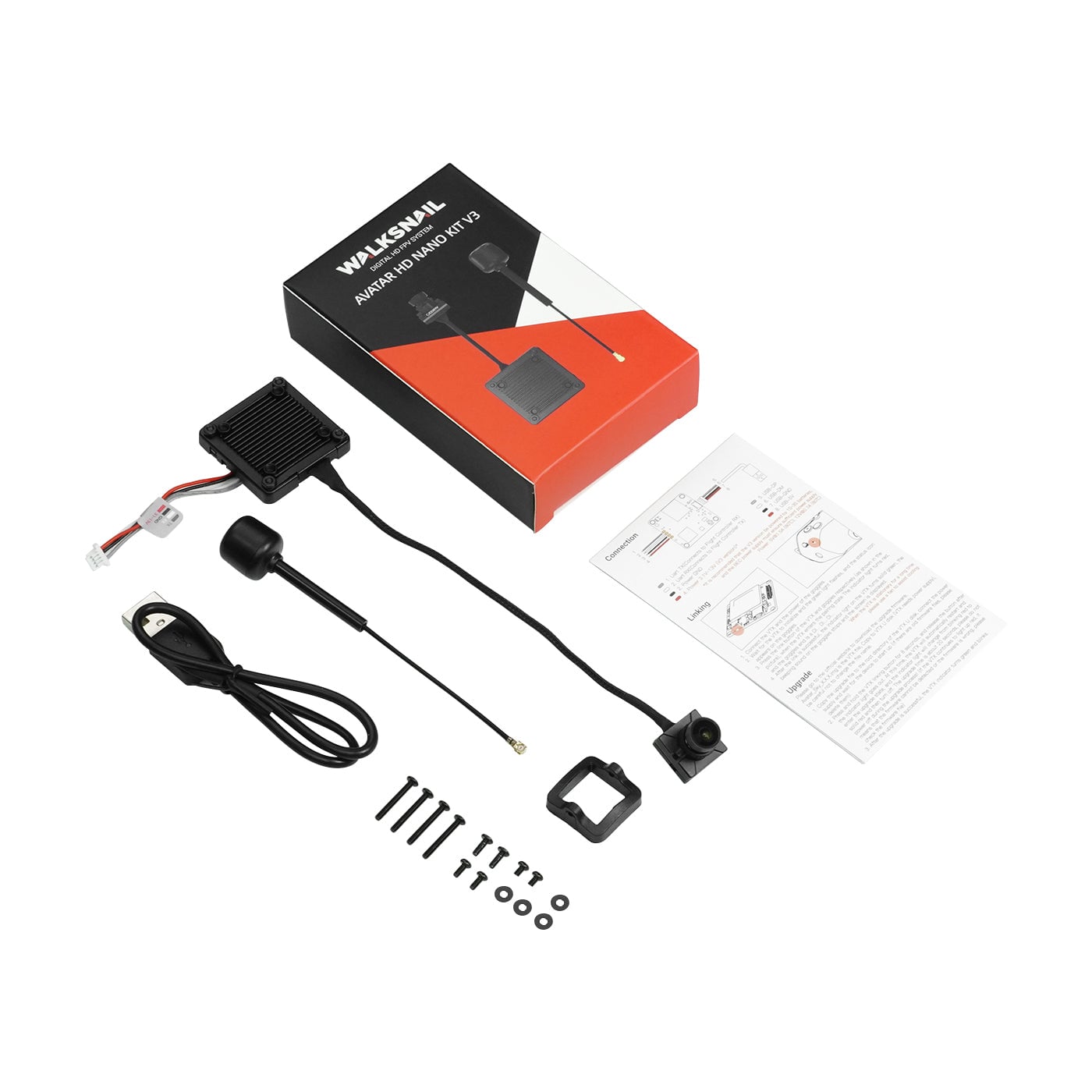

• In the box: Nano Kit V3, 4-pin USB and power cables, screws, washers and gaskets, 14 mm to 19 mm camera bracket

Verify receiver and goggle compatibility within the Walksnail Avatar HD system before completing the build.
