Walksnail Moonlight Kit — 4K FPV System

The Walksnail Moonlight Kit bridges the gap between high-definition cinematic recording and low-latency digital FPV transmission. Designed for cinewhoops, freestyle rigs, and dedicated cinematic builds, this system eliminates the need for a heavy secondary action camera by recording stabilised 4K footage directly to the video transmitter.

Key features

• 4K/60fps onboard recording with built-in electronic image stabilisation and full Gyroflow data support.
• Starlight camera sensor for superior low-light performance and improved dynamic range.
• Dual-antenna VTX design delivering a robust 1080p/60fps video link with transmission power up to 1200mW.
• Built-in micro SD card slot supporting up to 256GB storage for extended flight sessions.
• Versatile VTX board with both 20x20mm and 25.5x25.5mm mounting patterns to fit a wide variety of frames.

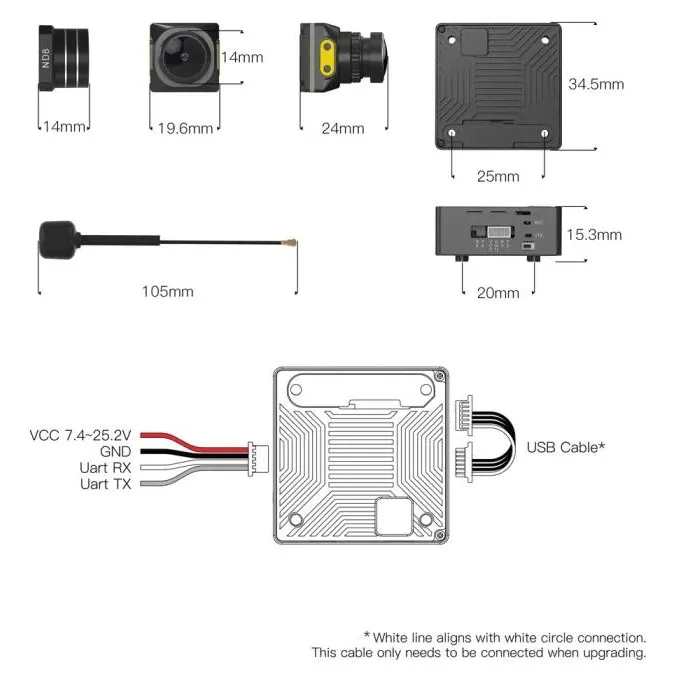

Specifications

• Input voltage: 2-6S (7.4-25.2V)
• Max VTX power: 1200mW
• Recording resolution: 4K 30/60fps, 2.7K 30/60fps, 1080p 60/100fps, 720p 60fps
• Camera size: 19x19mm
• VTX dimensions: 34.5 x 34.5 x 15.3 mm
• VTX mounting: 20x20mm, 25.5x25.5mm
• Antenna connectors: 2x U.FL
• Field of view: 160 degrees
• Aperture: F2.1
• Latency: average 22 ms
• Weight: 38.5g

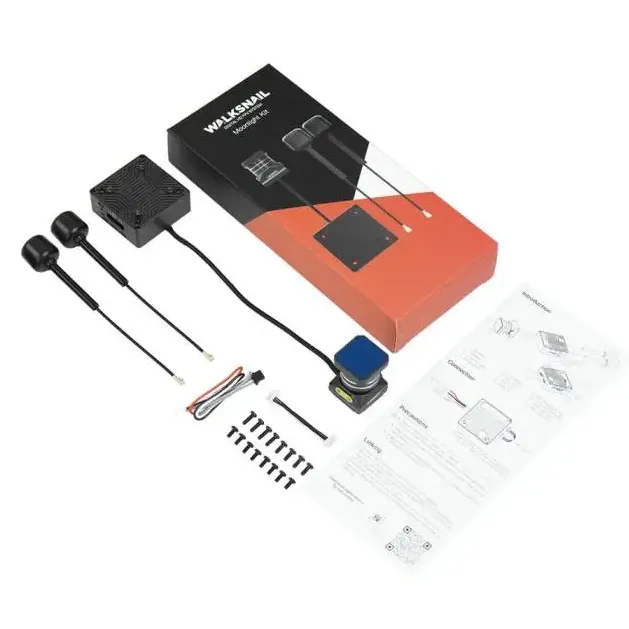

• In the box: VTX with camera, two antennas, ND8 filter, wiring harness, mounting hardware
• Compatible goggles: Walksnail Avatar Goggles X, Avatar HD goggles, Walksnail VRX
• Camera compatibility: the Moonlight VTX works only with the Moonlight camera

Ensure adequate airflow over the VTX when bench testing or waiting on the grid, as the high-power 4K processing board generates significant heat during operation.
