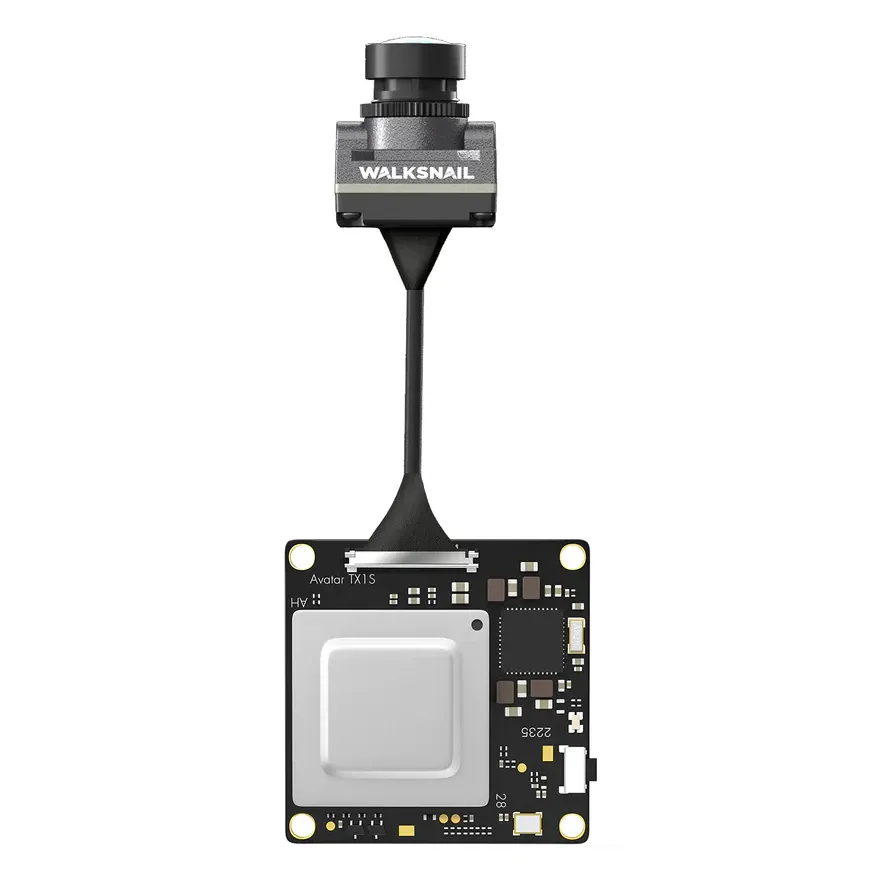

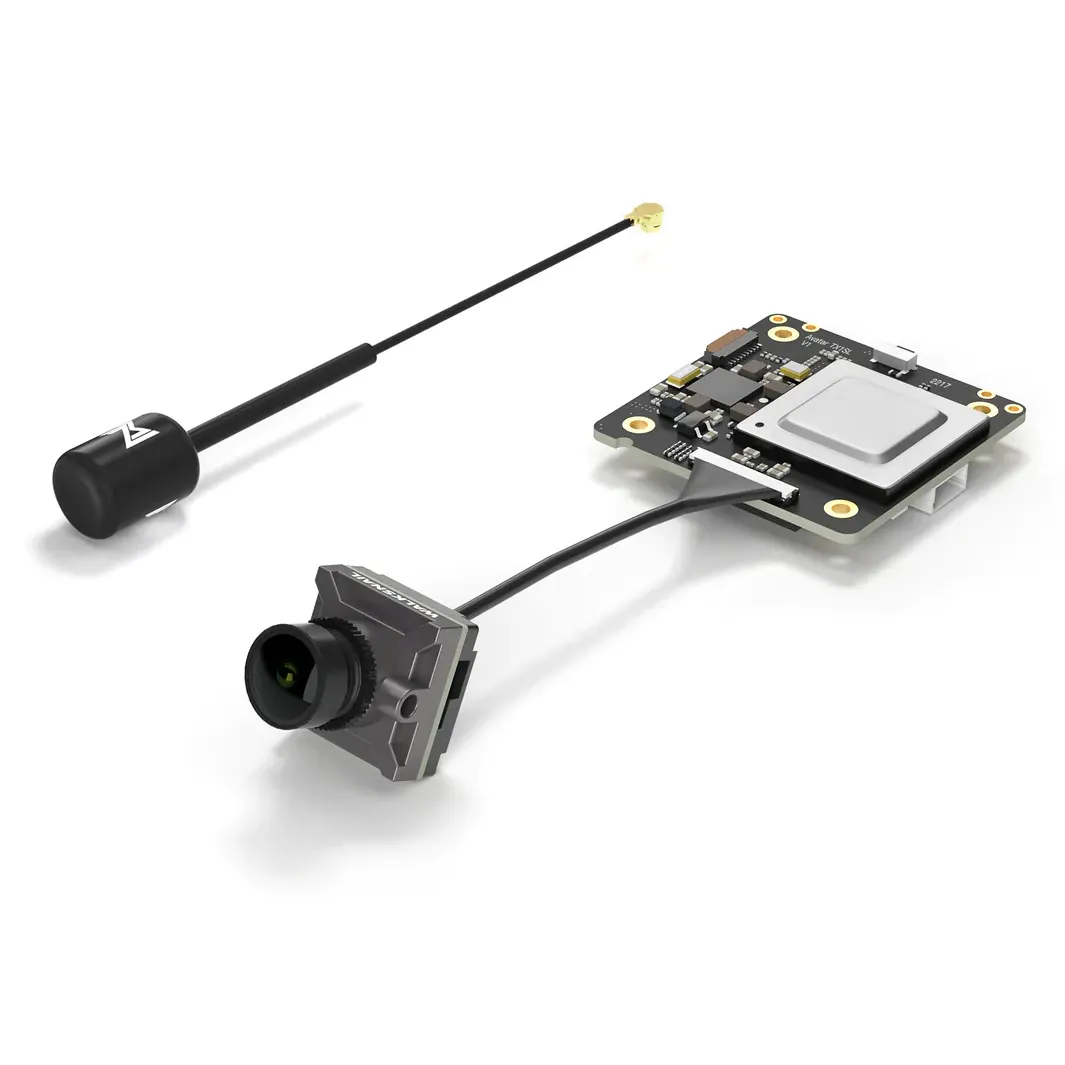

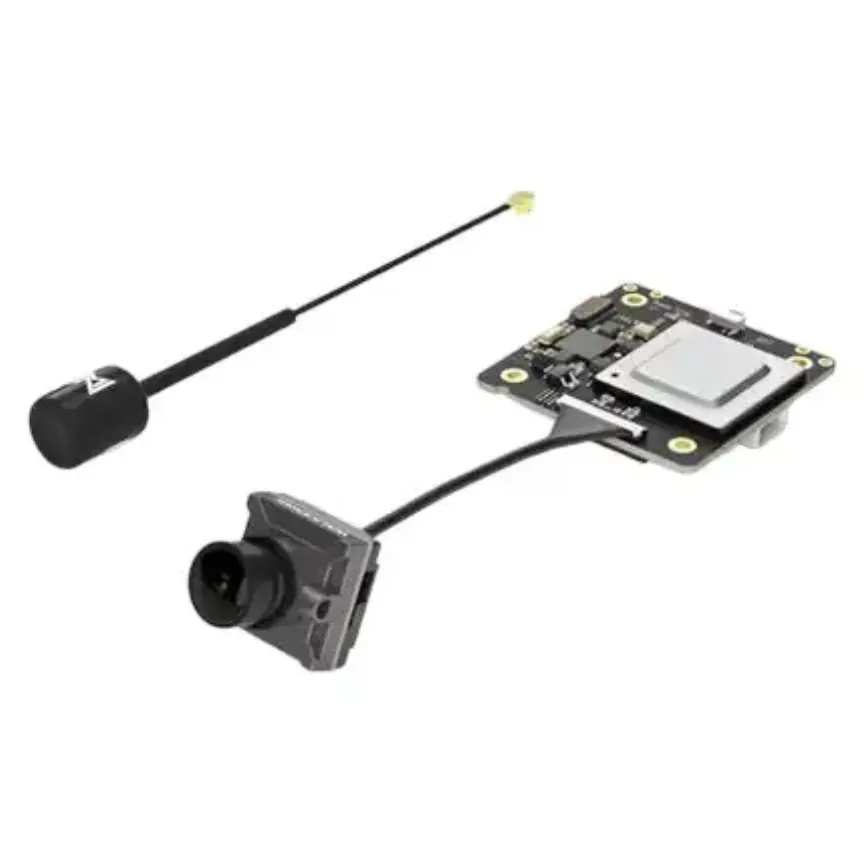

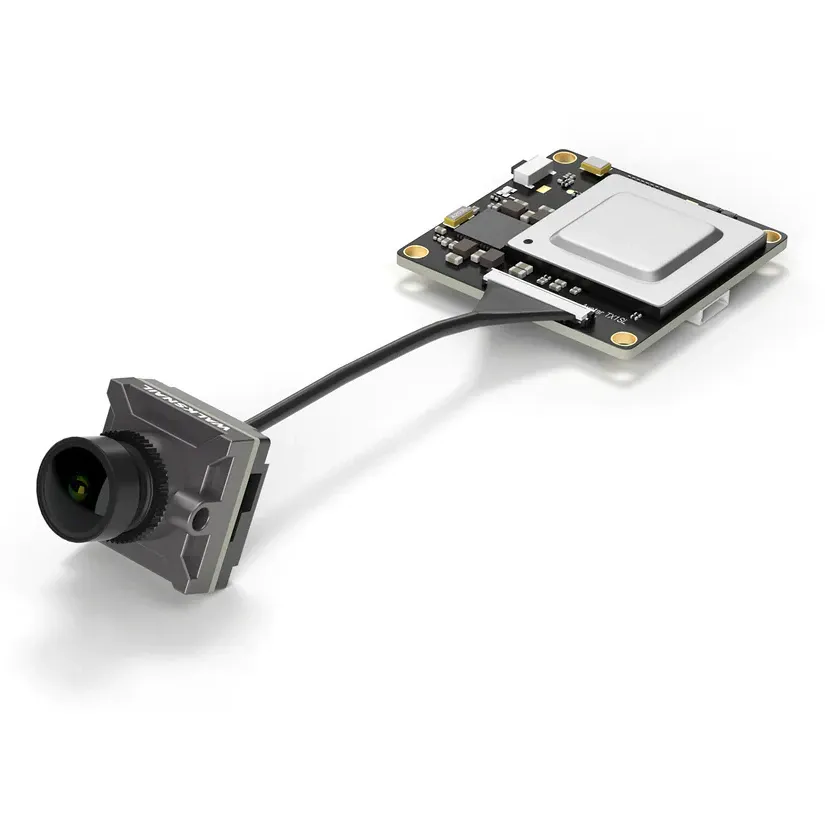

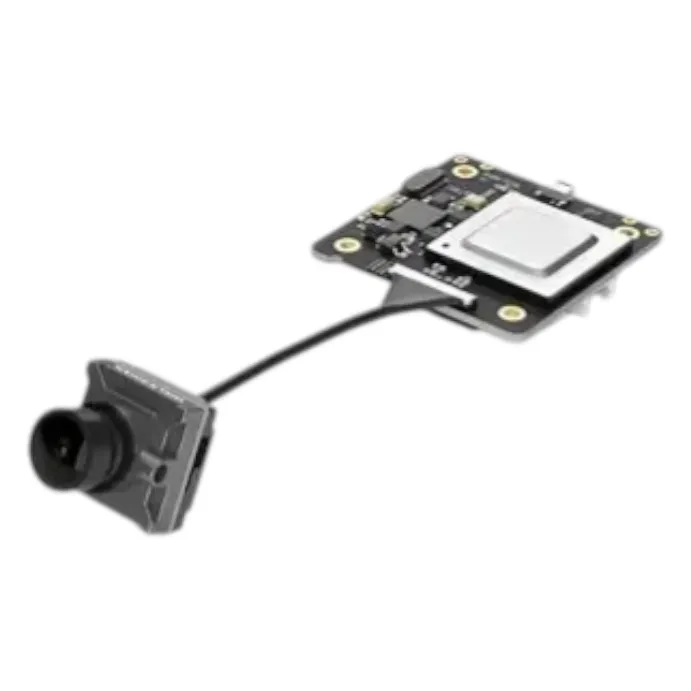

Walksnail Avatar HD Mini 1S Kit with Nano Camera

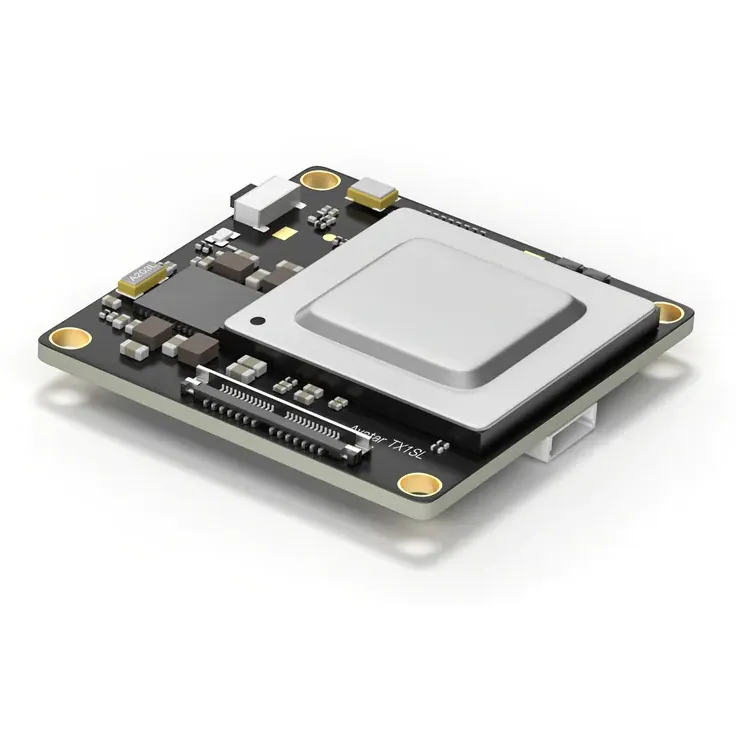

The Walksnail Avatar HD Mini 1S Kit pairs a 6.8 g digital VTX with the 3.5 g Avatar Nano camera, giving 1S whoops and 75 mm quads 1080p HD video in place of analog. The VTX fits the standard 25.5×25.5 mm whoop mounting pattern and records onboard, so you get HD flight footage without carrying an action camera.

Key features

• 1080p/60fps or 720p/120fps with H.265 encoding and about 22 ms average latency in high-frame-rate mode
• Current V3 board takes 3.1–13 V (1S to 3S) and records to 32 GB of built-in storage; earlier V2 boards ran on 3.1–5 V with 8 GB
• Avatar Nano camera: 1/2.7" sensor, 2.1 mm F2.0 lens, 170° field of view, 14 mm form factor
• Canvas-mode OSD with Betaflight, INAV, FETtec, KISS and ArduPilot

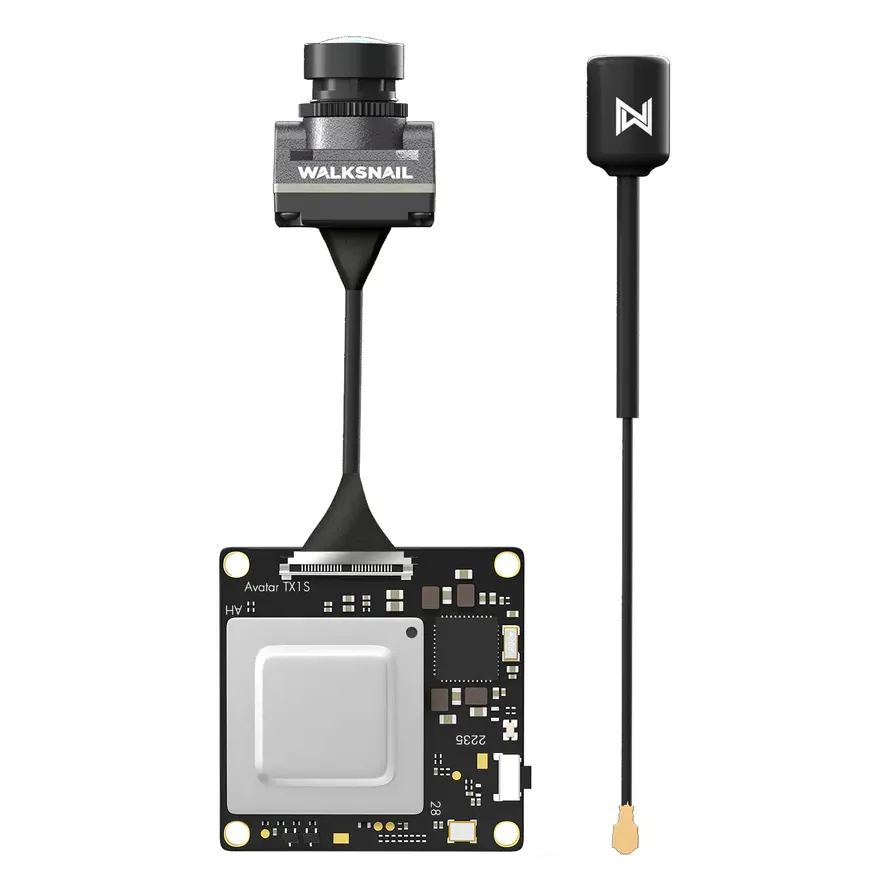

• LHCP polar antenna (2 dBi) on a U.FL connector

Specifications

• Frequency: 5.725–5.850 GHz
• Transmit power (EIRP): below 25.5 dBm FCC (about 350 mW)
• VTX weight: 6.8 g

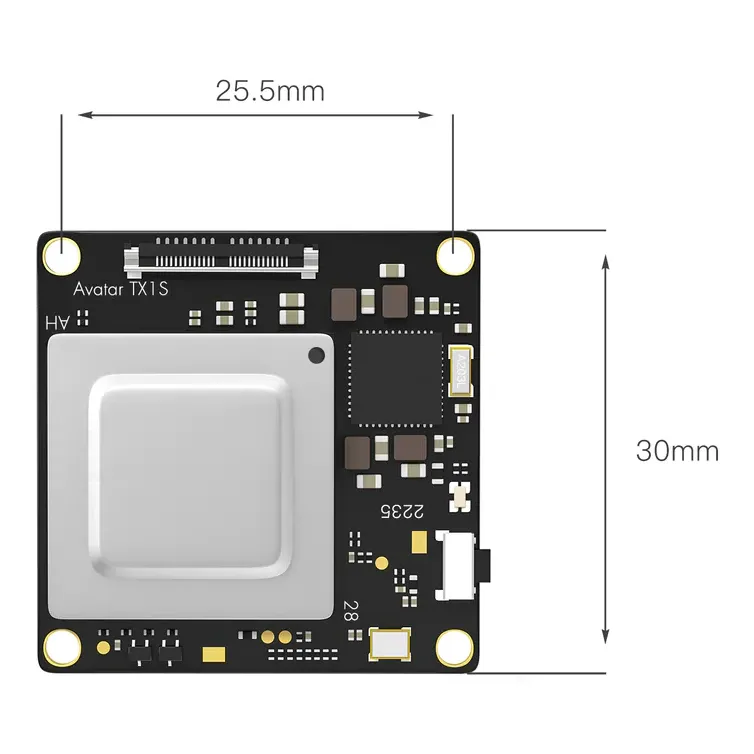

• VTX dimensions: 30 × 30 × 6.5 mm
• Mounting holes: 25.5×25.5 mm
• Connectors: JST 1.0 6-pin power, JST 0.8 4-pin USB
• Bitrate: 25 or 50 Mbps
• Channels: 8
• Camera modes: 1080p60, 720p120, 720p60
• Camera size: 14 × 14 × 17 mm, 3.5 g
• Operating temperature: −20 to 40 °C

Only the V3 board accepts more than 5 V, so confirm the revision before wiring the VTX to a 2S or 3S lead. For viewing, pair it with Walksnail Avatar goggles or the Avatar HD VRX.
