Walksnail Avatar HD VTX V2 Module (Dual Antennas) 32GB storage

The Walksnail Avatar HD VTX V2 Dual Antenna Module is engineered for FPV pilots who demand maximum video link reliability in dense, high-interference environments. By leveraging two antennas, this digital HD transmitter drastically improves multipathing rejection and overall signal penetration. It is an excellent upgrade for long-range cruisers, bando-bashing freestyle quads, and heavy-lift cinelifters that cannot afford video dropouts.

Key features

• Dual antenna architecture eliminates dead zones and bolsters long-range signal stability.
• Selectable RF output power pushing up to 1200mW for extreme penetration.
• Processes H.265 encoding to deliver crisp 1080p 120fps video with a latency as low as 22ms.
• Integrated TVS diode protects sensitive components against voltage spikes during battery plug-in or crashes.

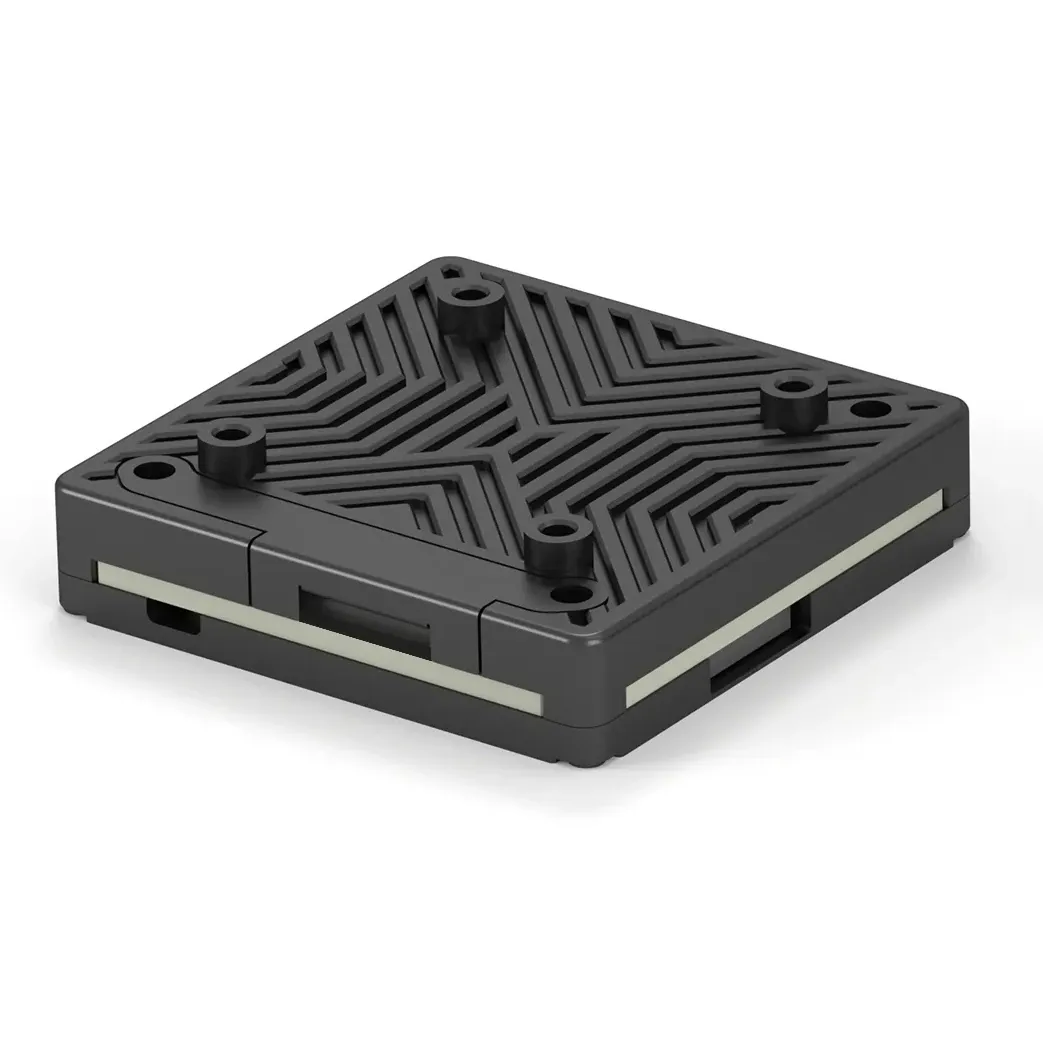

• Machined heatsink housing features dual hole spacing to fit multiple flight stack standards seamlessly.

Specifications

• Frequency band: 5.8GHz
• Input voltage: 6V to 25.2V (2-6S LiPo)
• Output power: 25 / 200 / 500 / 1000 / 1200mW

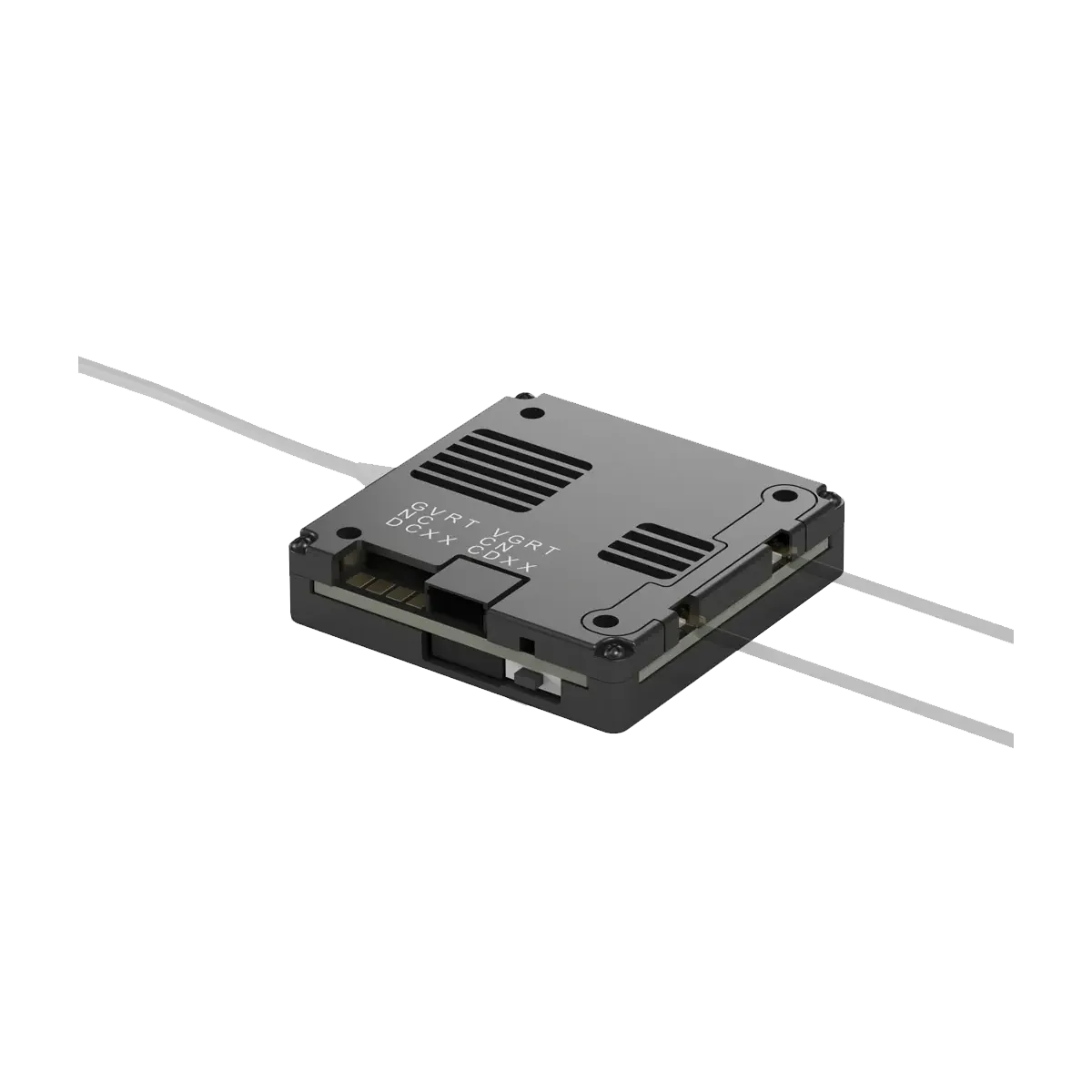

• Antenna connectors: 2x U.FL

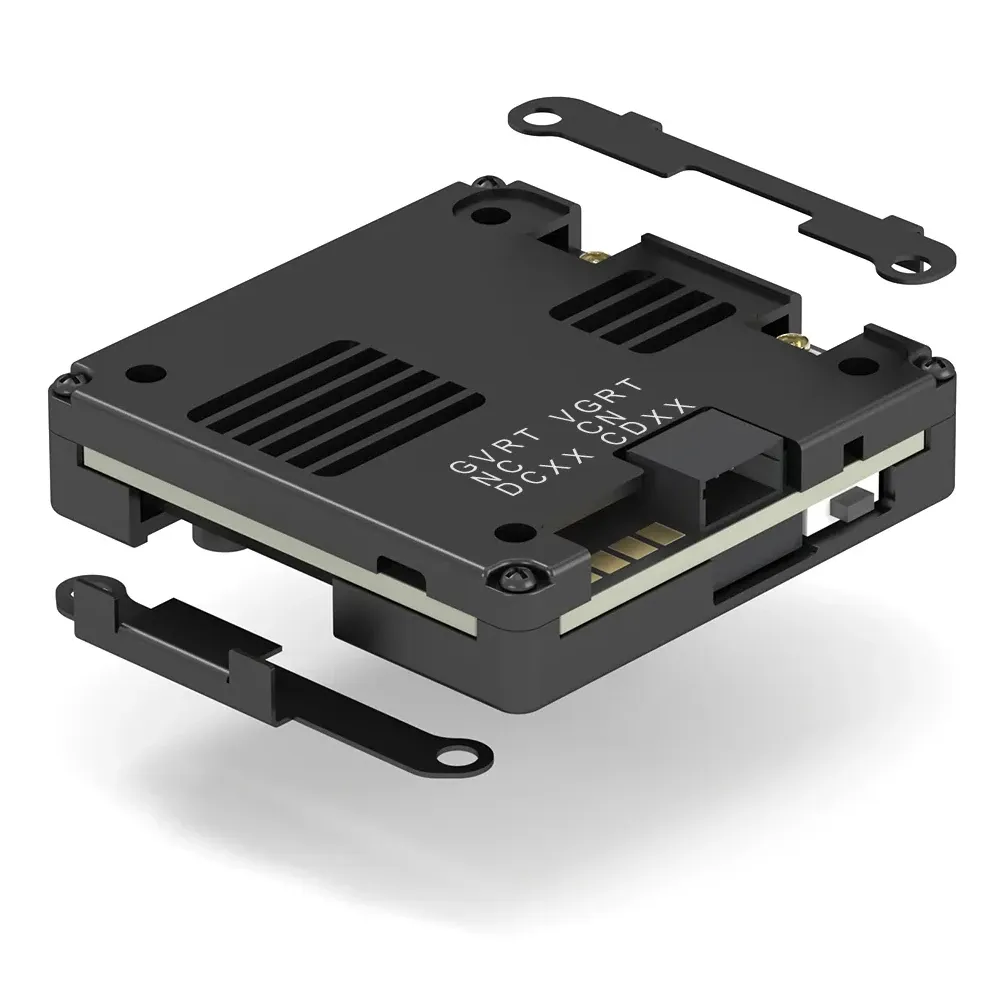

• Mounting spacing: 25.5x25.5mm, 20x20mm (M2)
• OSD protocol: Canvas Mode
• Video encoding: H.265

Always ensure both antennas are securely seated onto the U.FL connectors before applying battery power. Digital transmitters generate substantial heat at higher power levels; ensure your frame layout allows adequate prop wash over the VTX heatsink to prevent thermal throttling mid-flight.
