Caddx Walksnail Avatar HD Pro Kit — Dual Antenna (32G, Gyroflow)

The Walksnail Avatar HD Pro Kit pairs the low-light capable Pro camera with a dual-antenna V2 video transmitter. Designed for freestyle, long-range, and cinematic FPV builds, this system delivers digital 1080p 120fps video with enhanced signal penetration and redundancy. The onboard 32GB storage captures high-definition flight footage directly on the VTX, complete with embedded IMU data for seamless post-stabilisation in Gyroflow.

Key features

• Sony 1/1.8-inch Starvis Ⅱ sensor and F/1.6 aperture for superior low-light and night flying performance.

• Dual U.FL antenna configuration improves signal redundancy and range in high-interference environments.

• 32GB internal VTX storage records 1080p video directly, bypassing transmission dropouts and DVR compression.

• Built-in IMU logs gyro data automatically, providing native compatibility with Gyroflow stabilisation software.

• Supports 1080p 120fps high-framerate mode for ultra-low latency control.

Specifications

• Camera sensor: 1/1.8-inch Sony Starvis Ⅱ (8MP)

• Resolution: 1080p/120fps, 1080p/60fps, 720p/120fps, 720p/60fps

• Field of view (FOV): 160°

• Camera dimensions: 19x19x24mm (Micro size)

• Camera weight: 9.5 g

• VTX input voltage: 6V–25.2V (2-6S LiPo)

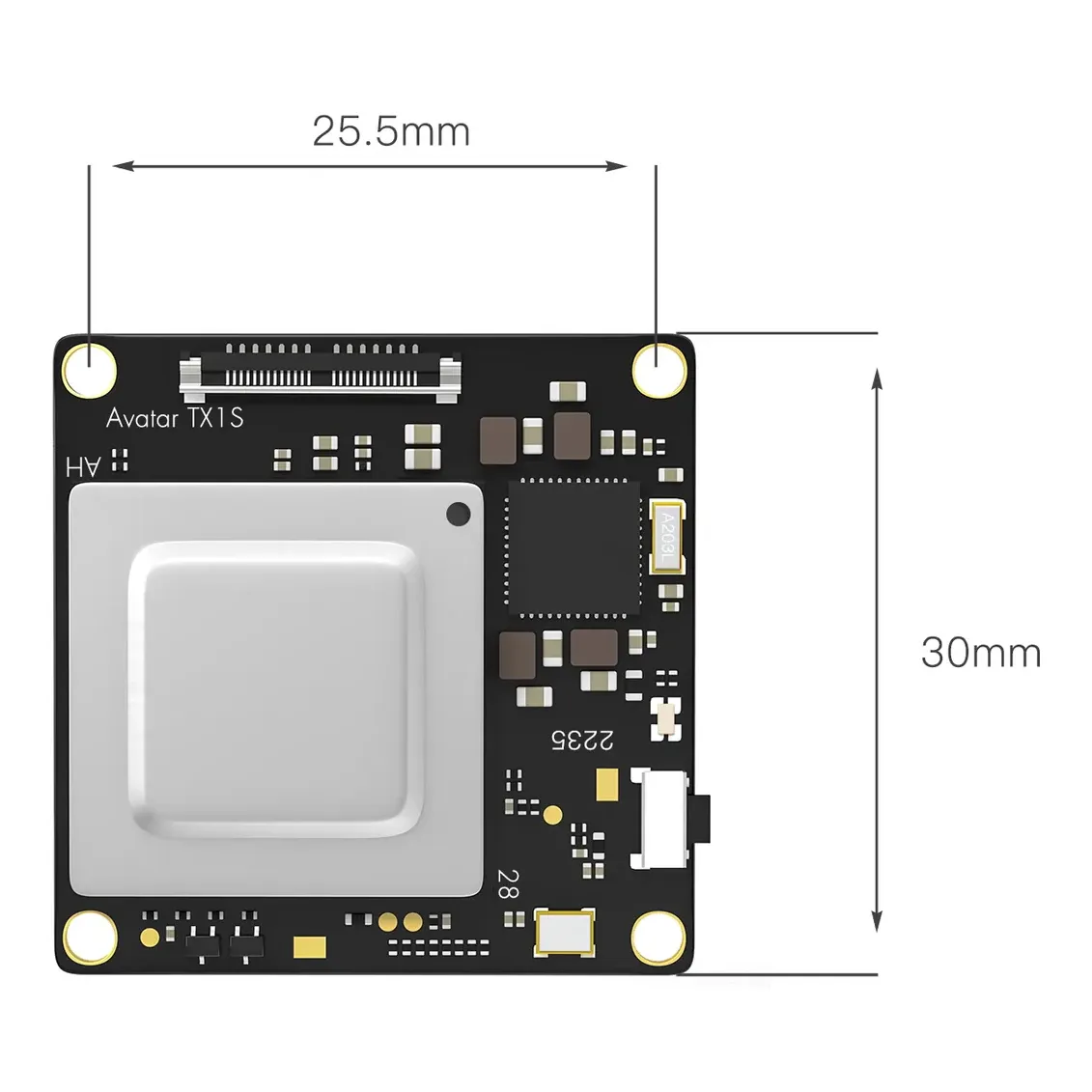

• VTX mounting: 25.5x25.5mm and 20x20mm (M2)

• VTX dimensions: 33.5 x 33.5 x 10.5 mm

• VTX weight: 15.4 g

• Channels: 8

• Latency: average 22 ms

• Supported flight controller firmware: Betaflight, INAV, ArduPilot, KISS, FETtec

• Storage: 32GB internal

• Antenna connectors: 2x U.FL

The dual-antenna VTX takes direct 2-6S battery voltage and mounts natively to modern 20x20mm or 25.5x25.5mm drone stacks. Ensure both included antennas are securely mounted on your frame for optimal signal diversity.
