Caddx Walksnail Ascent Lite VTX Kit

The Caddx Walksnail Ascent Lite is a lightweight digital air unit kit for tiny whoops such as the Meteor75 Pro, pairing a compact HD camera with a low-power VTX in a single 6g package.

Key features

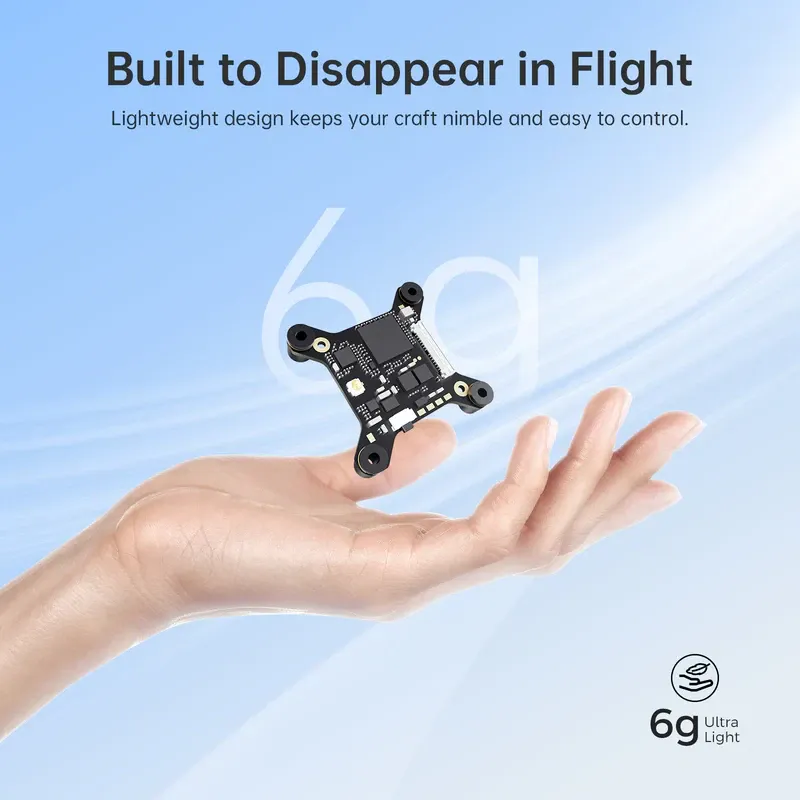

• Weighs just 6g with roughly 30% lower power draw than other Walksnail units, so it barely dents whoop flight time
• 1/2.8" image sensor records 1080p/60fps or 720p/100fps for smooth, detailed HD footage

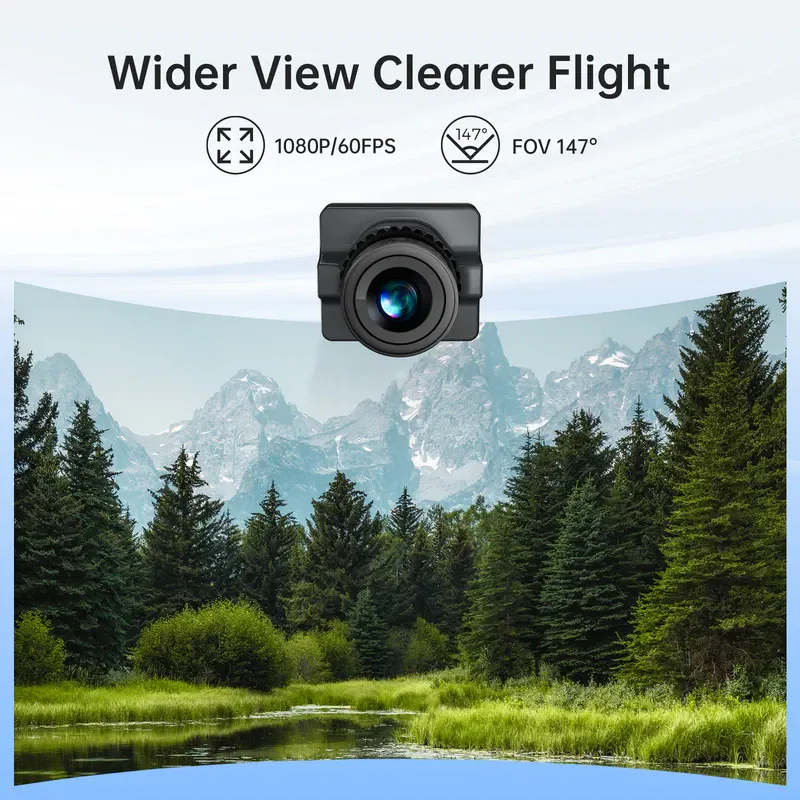

• 147° field of view on a 16:9 frame gives a wide, immersive picture with about 35ms of latency
• VTX output switches between 25mW and 100mW with automatic frequency hopping, connecting over a 4-pin UART to F4/F7/H7 flight controllers running Betaflight, INAV or Ardupilot

Specifications

• Weight: 6g
• Image sensor: 1/2.8"
• Video: 1080p/60fps, 720p/100fps
• Field of view: 147° (16:9)
• Latency: approx. 35ms
• VTX output: 25mW / 100mW, frequency hopping
• Frequency: 5.730-5.815 GHz, 3 channels
• Interface: 4-pin UART
• Antenna connector: MMCX

Built for sub-2-inch whoops and toothpicks where a standard Walksnail Avatar VTX is too heavy; range extends to about 3km, well beyond typical indoor and backyard whoop flying.
