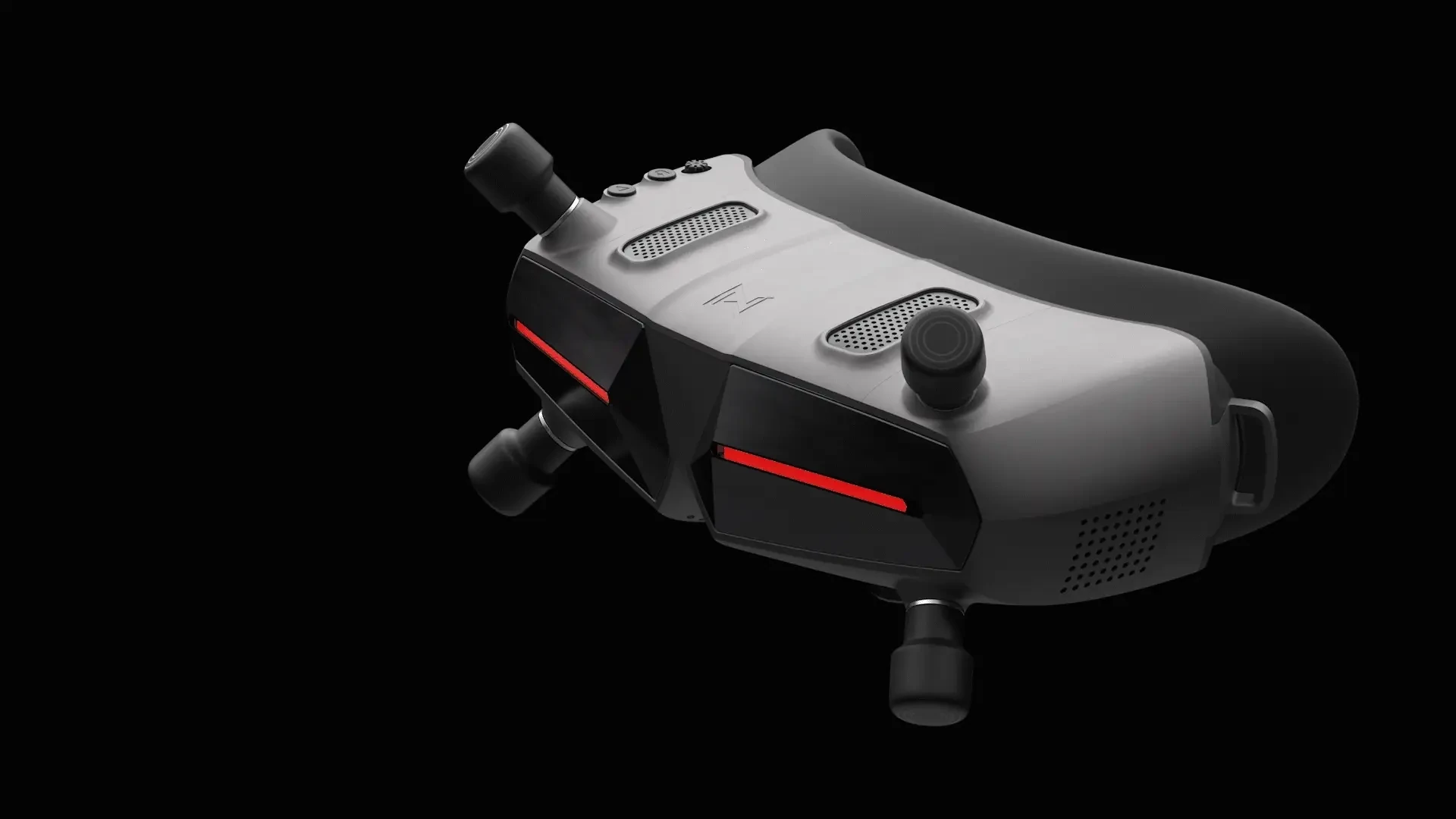

Caddx Walksnail Avatar HD Goggles X

The Walksnail Avatar HD Goggles X are digital FPV goggles built for the Avatar HD system, giving racers, freestyle and cinematic pilots a sealed, box-free view with wide face coverage. This entry-level model drops the module bay of the Pro version while keeping the core Avatar video pipeline.

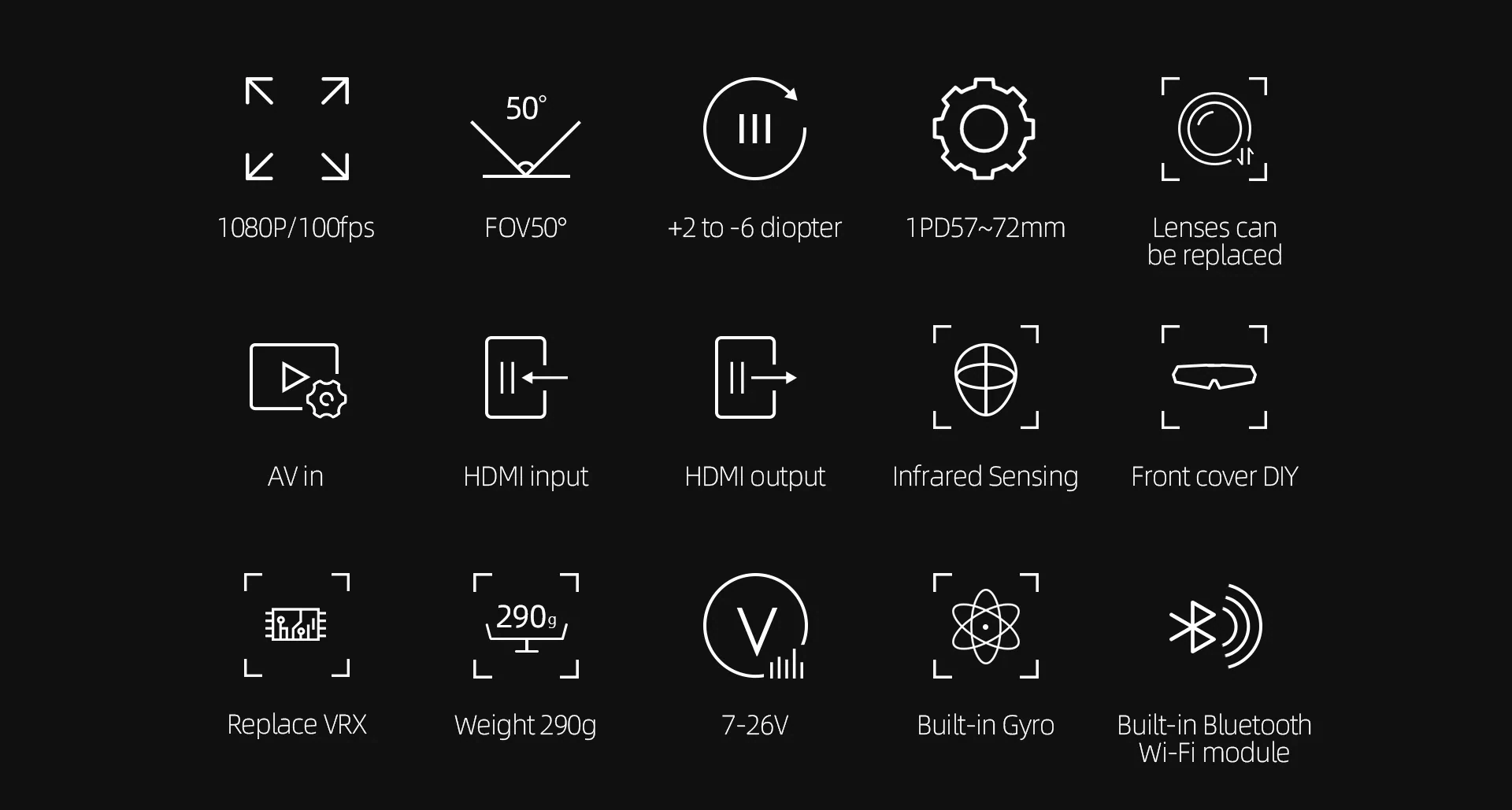

Key features

• H.265 video decoding delivers up to 1080p/100fps with roughly 22ms average latency and over 4km transmission range.

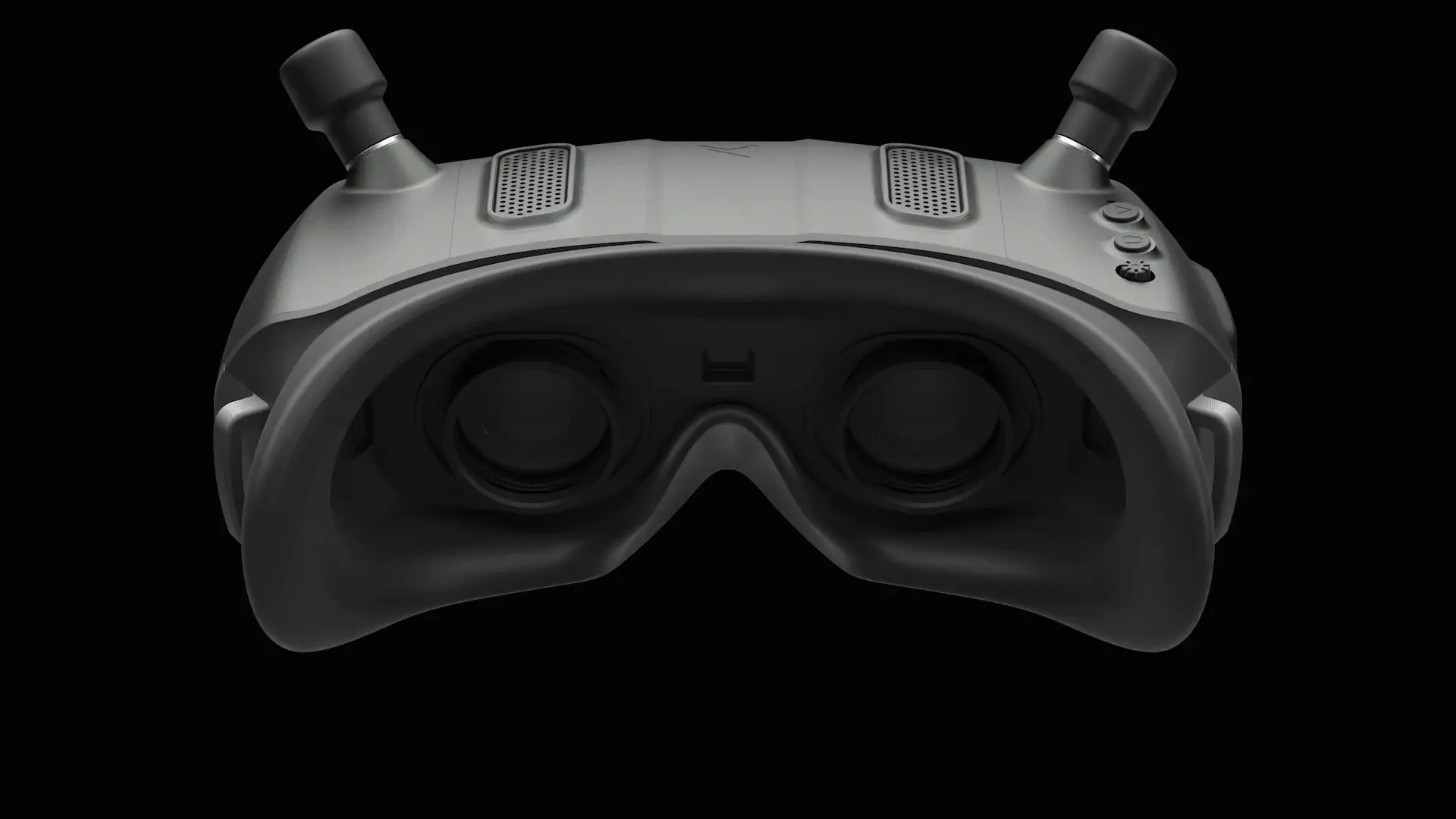

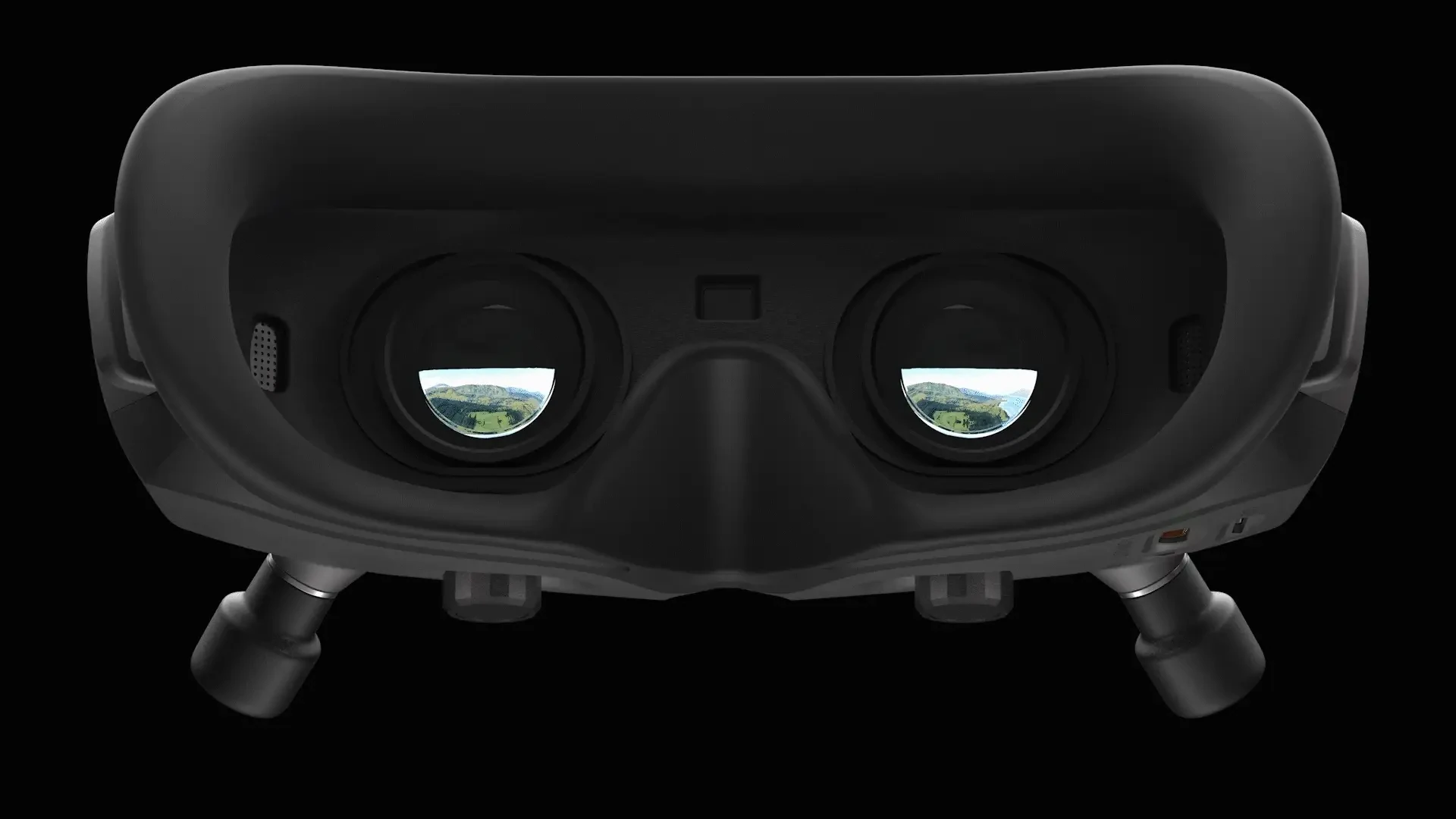

• Diopter adjustment from +2.0 to −6.0 and an IPD range of 57–72mm let most pilots fly glasses-free.
• 50° field of view on a 1920x1080 OLED display for a sharp, immersive picture.

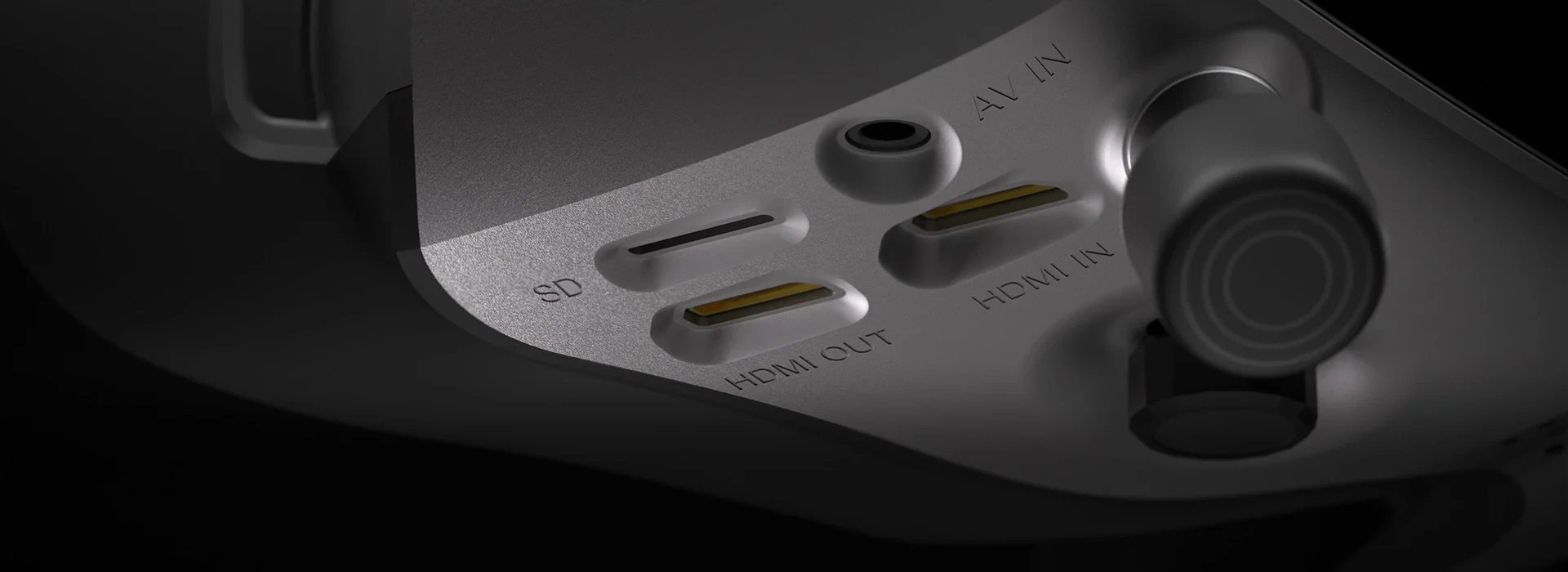

• HDMI input and output plus an AV-in port for analog feeds, so the headset works with both digital and analog feeds.

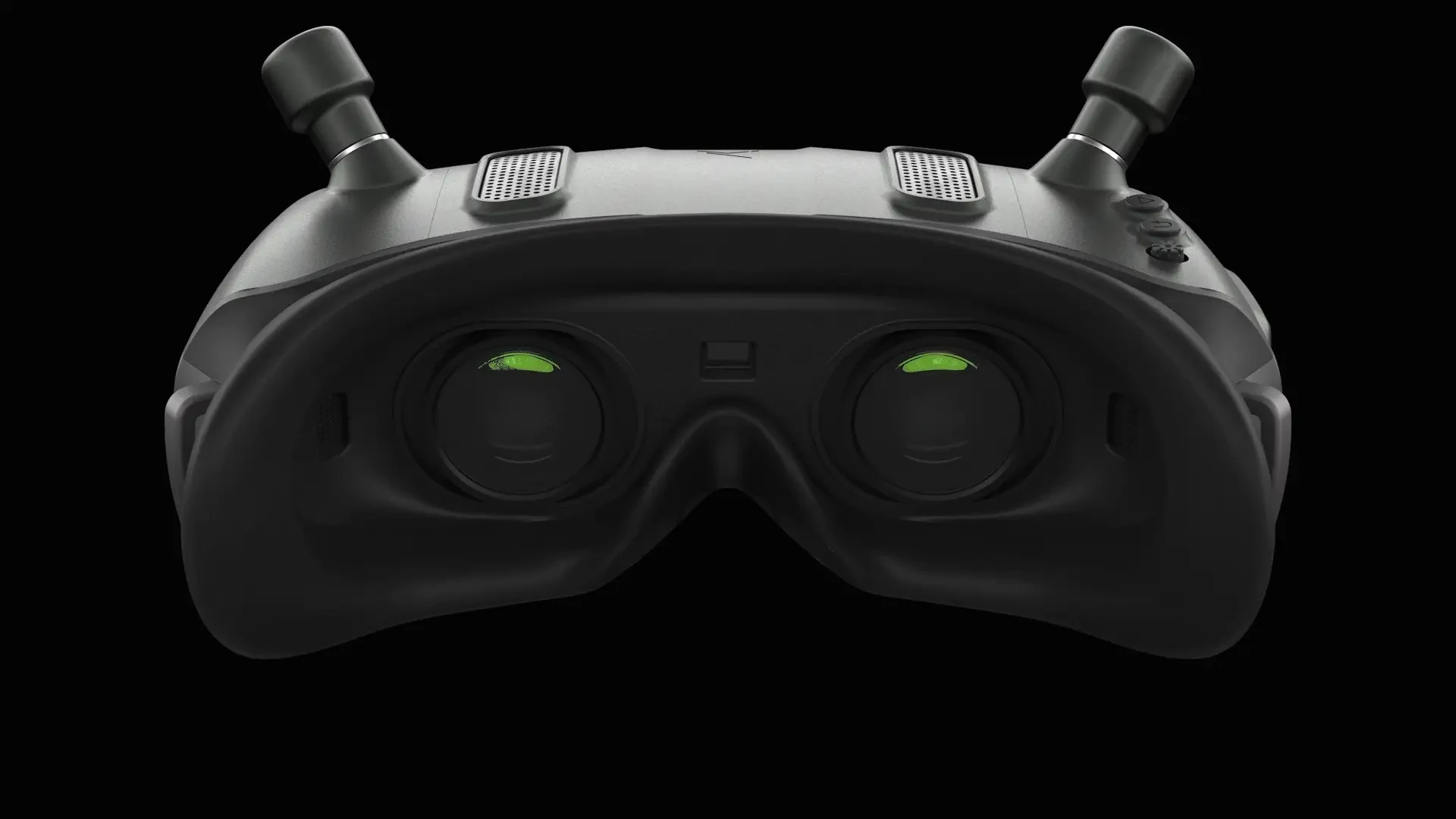

• Infrared sensing switches the screen on and off automatically when the goggles are worn.

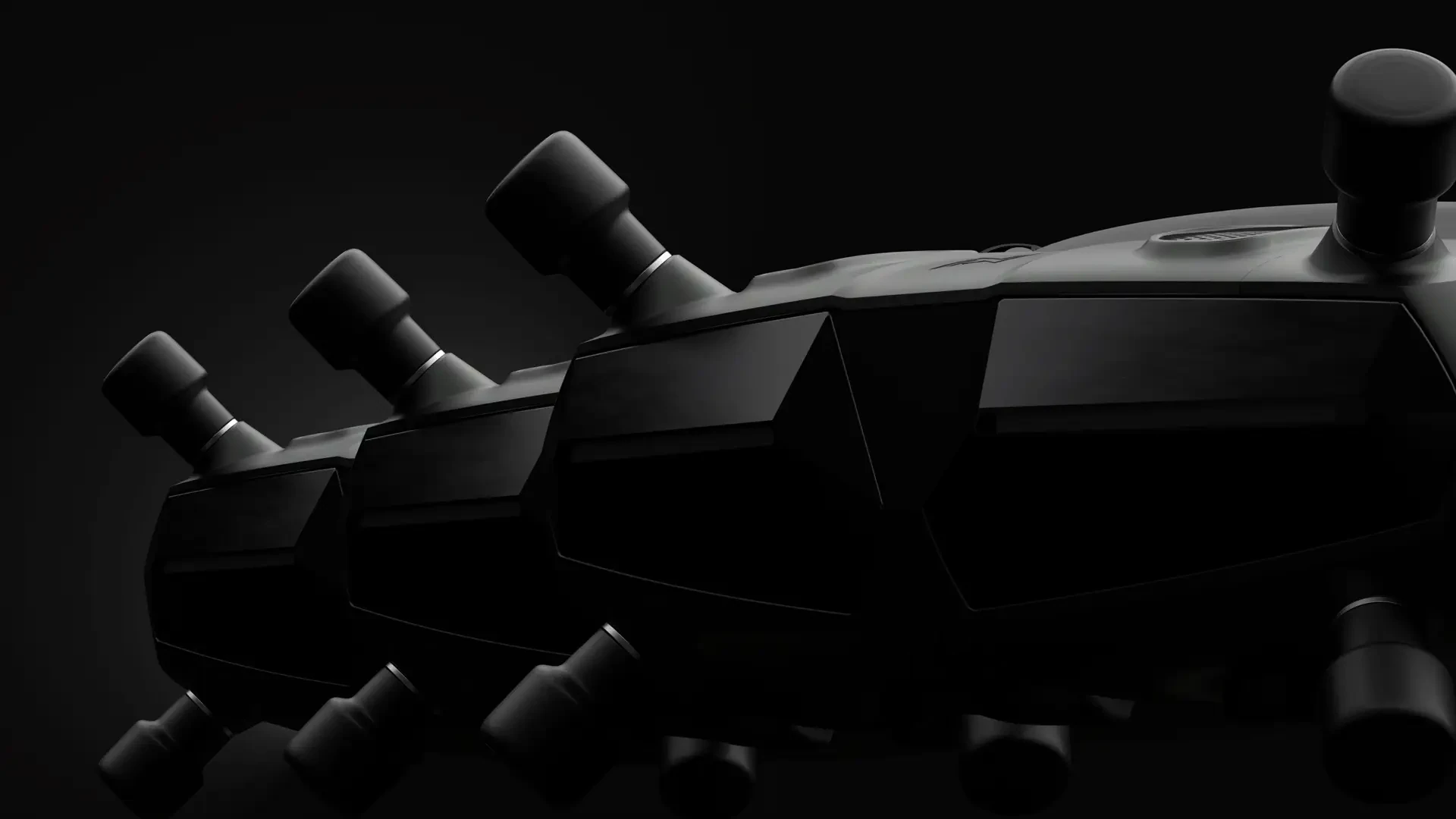

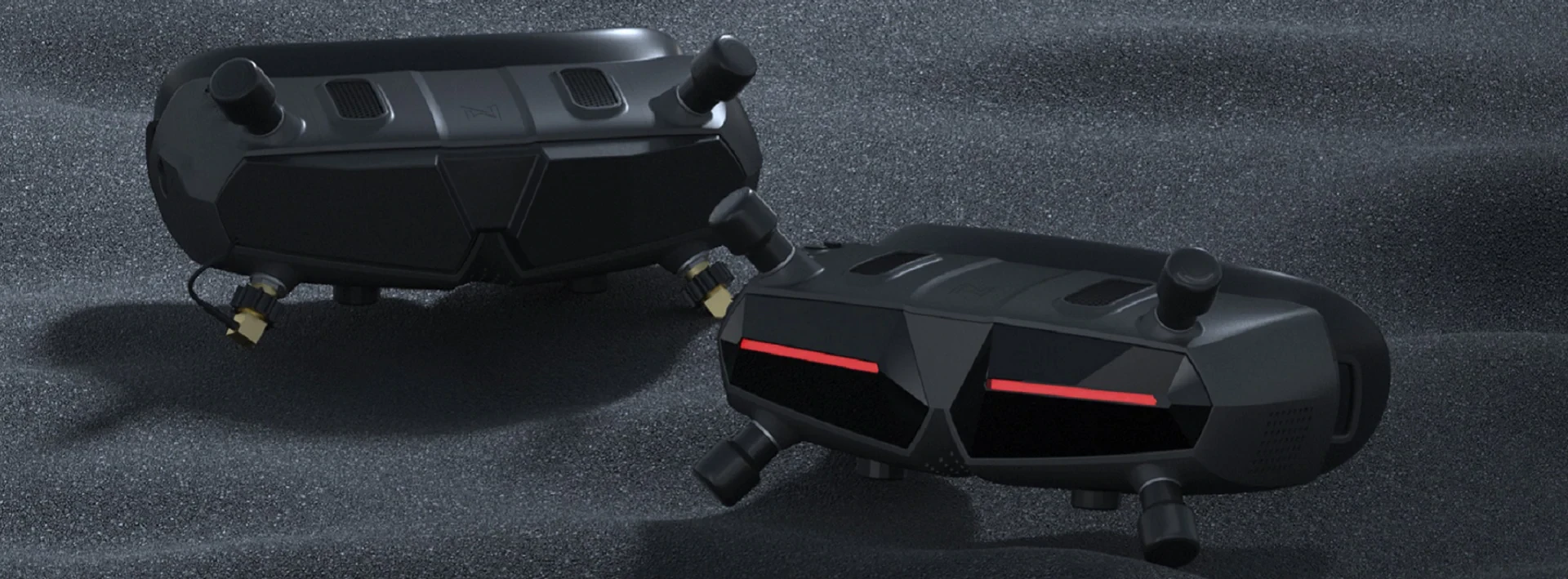

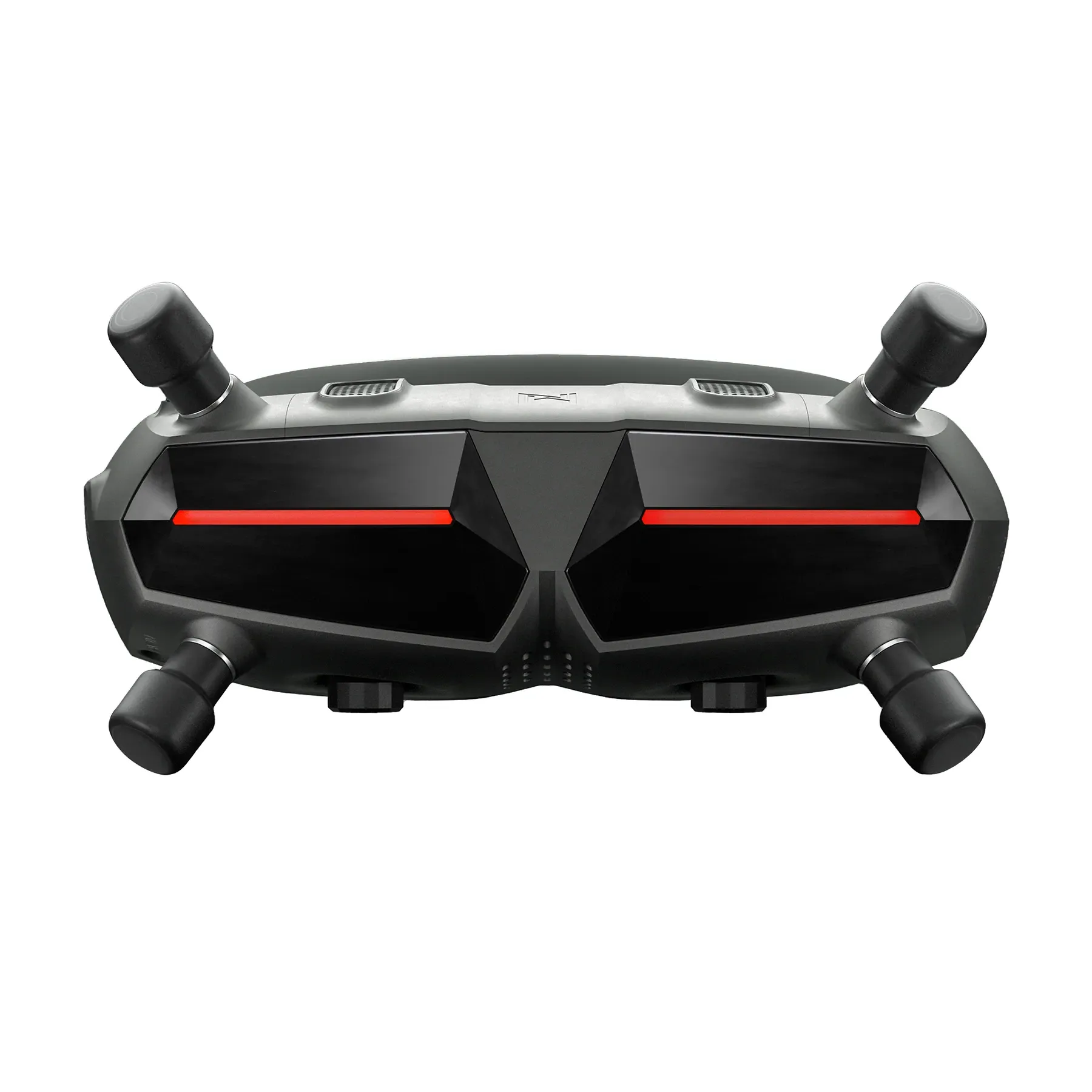

• Interchangeable front cover doubles as the antenna housing, so a swap changes both look and aerials.

Specifications

• Frequency: 5.725–5.850GHz
• Weight: 290 g
• Power input: 7–25.2V (2S–6S)
• Storage: microSD up to 256GB
• Built-in gyro: Yes

Powers directly from a 2S–6S pack via the goggles' DC input, and the built-in gyro lets the headset double as a head tracker for compatible setups.
