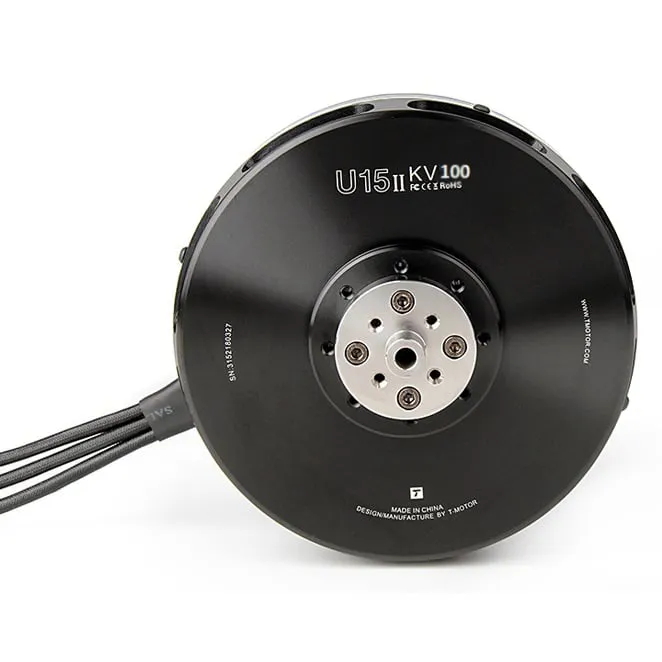

T Motor U15Ⅱ KV100 BLDC Drone Motor

The T-Motor U15 II 100KV is an industrial-grade brushless motor engineered for heavy-lift multirotors, agricultural drones, and large-scale commercial rigs. Designed to handle massive payloads, this motor pairs with 36-inch to 40-inch propellers and 12-24S power systems to deliver up to 35.5kg of maximum thrust.

Key features

• 36N42P high-torque, low-KV winding optimised for extreme payloads and stable hovering
• Industrial-grade waterproof and dustproof construction with large bearings for a rated MTBF of around 1,000 hours
• Handmade high-temperature enamelled winding resists heat and ageing under sustained high current draw
• Precision coil winding reduces copper loss and improves efficiency across the throttle range

Specifications

• Brand: T-Motor
• Model: U15 II
• KV: 100
• Configuration: 36N42P
• Motor dimensions: 147.5 x 55mm
• Shaft diameter: 20mm
• Weight (with cables): 1740g
• Input voltage: 12S-24S LiPo
• Max thrust: 35.5kg
• Recommended propellers: 36 to 40 inches

This motor is perfectly suited for custom heavy-lift builds where maximum thrust, thermal efficiency, and long service life under continuous industrial use are strict requirements.
