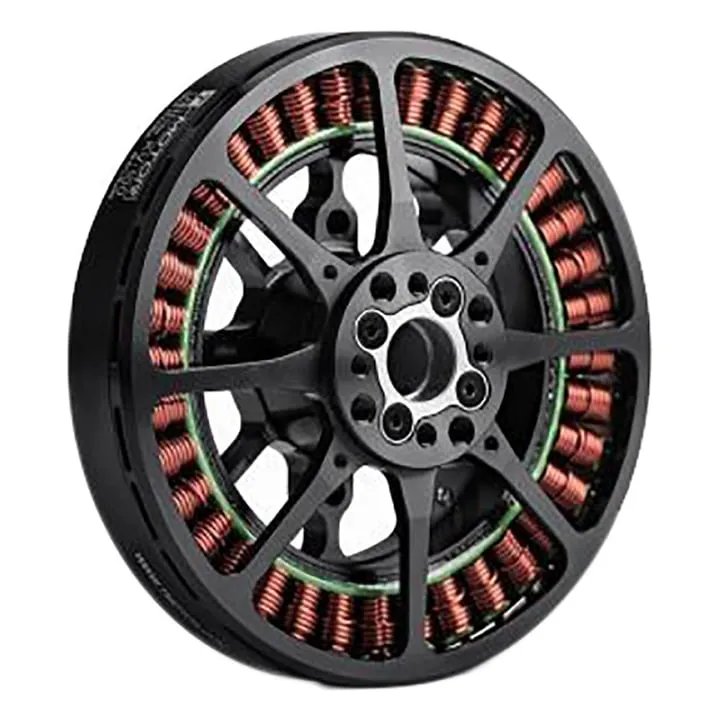

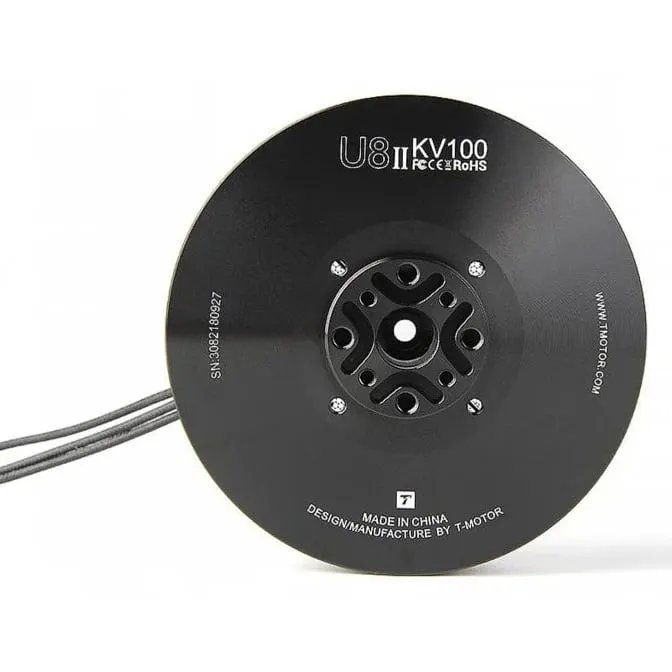

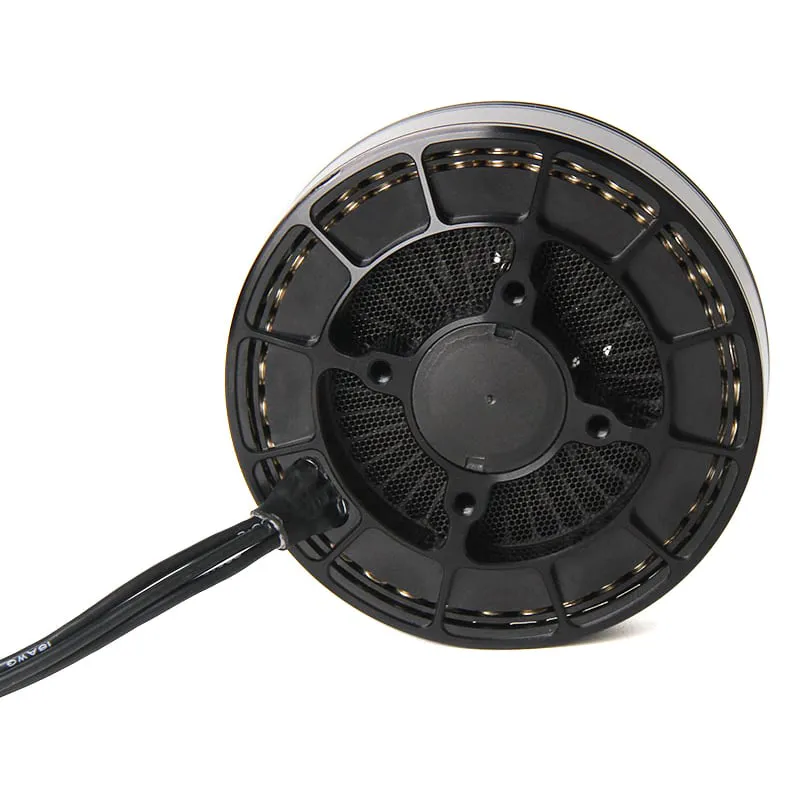

T-Motor U8II KV100 12S Heavy-Lift Drone Motor

The T-Motor U8 II KV100 is a 12S motor for heavy-lift multirotors running 27-28 inch propellers, from industrial inspection platforms to professional camera ships. Each motor weighs 272 g with cable and produces up to 7.3 kg of thrust.

Key features

• Silver stator windings and specially designed curved magnets for faster, more precise speed response.

• Efficiency: T-Motor quotes a 15% efficiency gain, better temperature behaviour and about 5% longer flight time.

• IP55 protection against dust and water spray for outdoor work.

• Long service life: rated for about 1500 flights of 40 minutes each.

Specifications

• Rated voltage: 12S LiPo

• KV: 100

• Weight: 272 g incl. cable

• Idle current (18 V): 0.7 A

• Peak current (180 s): 29.3 A

• Internal resistance: 170 ± 5 mΩ

• Max thrust: 7.3 kg

• Protection: IP55

• Recommended props: 27-28 inch

Pair it with a 12S ESC rated comfortably above the 29.3 A peak and 27-28 inch carbon props; one motor is supplied per order.
