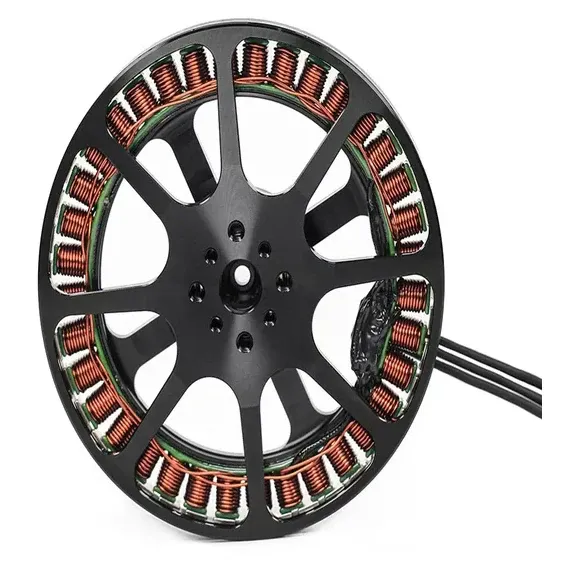

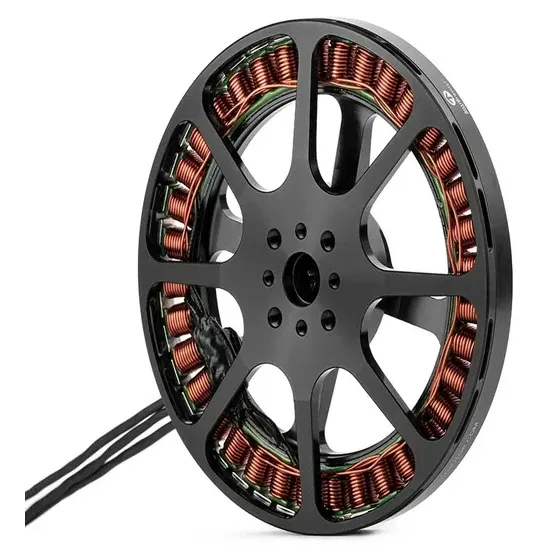

T-Motor Antigravity MN1005 V2.0 90KV UAV Motor

The T-Motor Antigravity MN1005 V2.0 is a large, low-KV motor for 12S heavy-lift and long-endurance multirotors swinging 30–32 inch props. At 282 g it produces up to 9.3 kg of thrust, and T-Motor rates it for a 1000-hour service life, which suits survey, mapping and inspection airframes that log long sorties every day.

Key features

• Efficiency of up to 11.5 g/W at 3 kg thrust, the cruise band endurance airframes spend most of their time in
• 9.3 kg maximum thrust on T-Motor G30×10.5 or G32×11 carbon props
• Housing machined from imported German 7075 aviation aluminium
• 1500 W peak power for 180 seconds, giving headroom for climbs and gusts at full payload

Specifications

• KV: 90
• Rated voltage: 12S LiPo (44.4 V nominal)
• Configuration: 36N42P
• Dimensions: 107 × 23 mm (diameter × height)
• Weight: 282 g including cable
• Internal resistance: 168 mΩ
• Idle current: 0.9 A at 10 V
• Peak current: 32 A (180 s)
• Max power: 1500 W (180 s)
• Max thrust: 9.3 kg
• Recommended props: G30×10.5, G32×11
• Recommended ESC: T-Motor Flame 60A 12S V2.0

Pair it with a 12S ESC rated comfortably above the 32 A peak, such as the Flame 60A 12S V2.0. Holding each motor near 3 kg of thrust keeps it in its most efficient band, so a quad on four MN1005 motors flies most efficiently at around 12 kg all-up weight.
