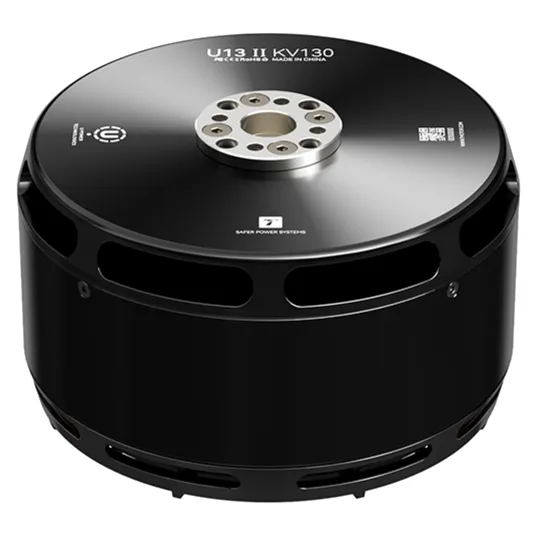

T-Motor U13II 130KV 10-14S Heavy-Lift Drone Motor

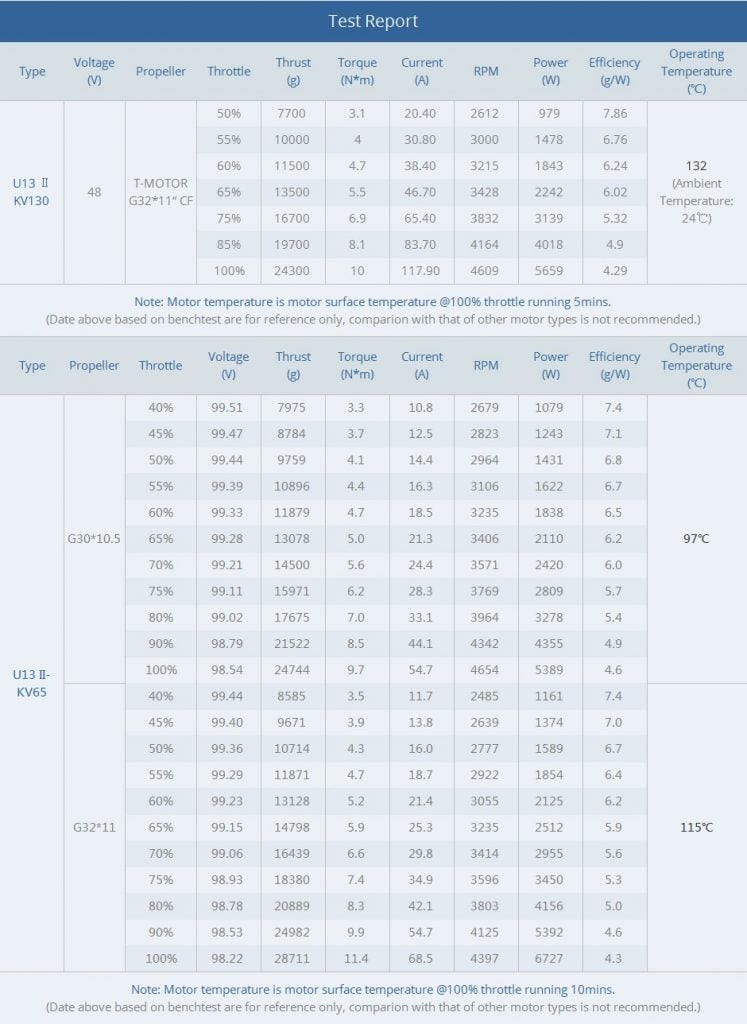

The T-Motor U13 II KV130 is an industrial-grade heavy-lift motor for multirotors that need large thrust from 10-14S packs. It produces up to 24.3 kg of thrust on a T-Motor G32 × 11 propeller, making it a fit for cargo, spraying and heavy-payload airframes.

Key features

• Serious power: 5659 W max power and 118 A peak current over 180 s.

• Large 36N42P motor in a Φ100 × 60 mm housing on a 15 mm shaft.

• Redesigned iron core: more room for copper at a lower overall weight, which T-Motor credits for extra payload capacity.

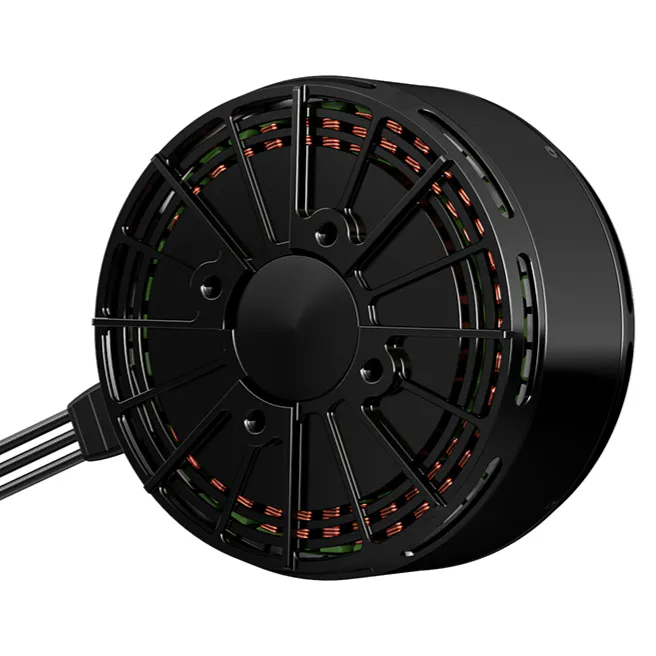

• Built for the field: waterproof, dustproof, low-noise construction with an airflow design that keeps the motor cool under heavy load.

• Service life of about 1000 hours on T-Motor's rating.

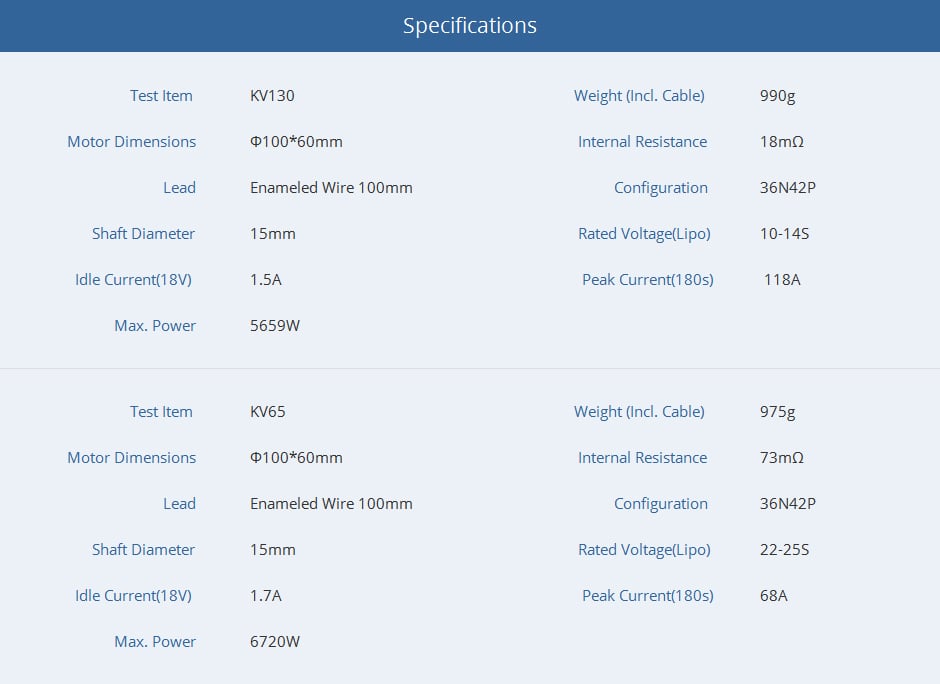

Specifications

• Rated voltage: 10-14S LiPo

• KV: 130

• Configuration: 36N42P

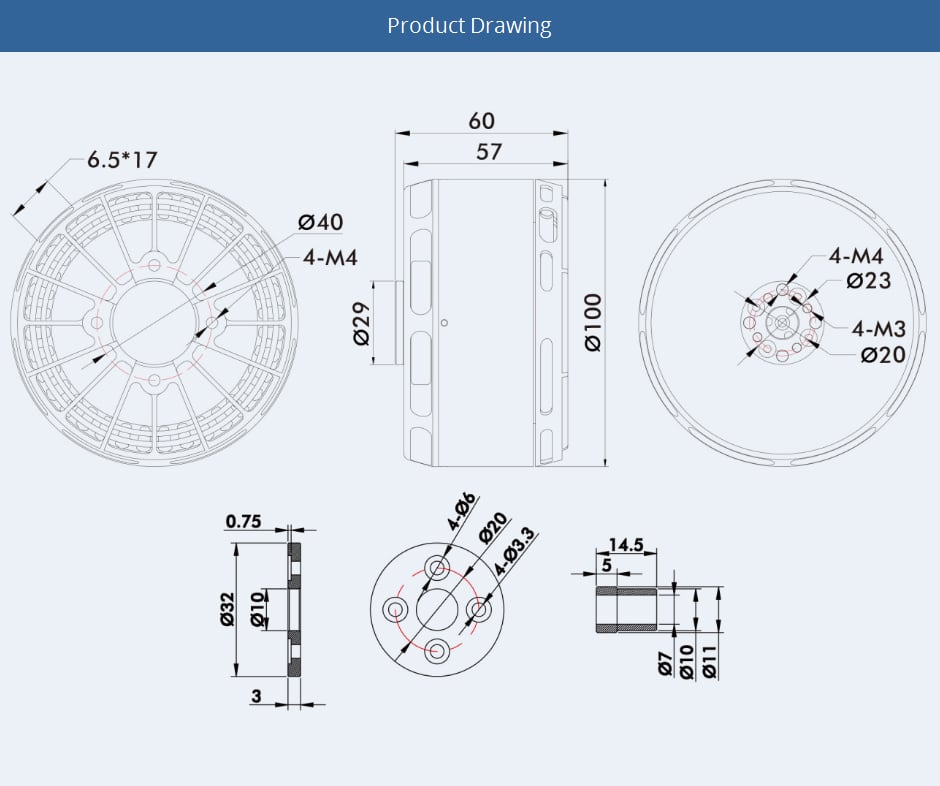

• Motor size: Φ100 × 60 mm

• Shaft: 15 mm

• Weight: 990 g incl. cable

• Idle current (18 V): 1.5 A

• Peak current (180 s): 118 A

• Max power: 5659 W

• Internal resistance: 18 mΩ

• Max thrust: 24.3 kg

• Recommended prop: T-Motor G32 × 11

At 118 A peak, each motor needs a high-current ESC rated for your 10-14S pack and heavy-gauge power wiring along the arm, so plan the power distribution before you build.
