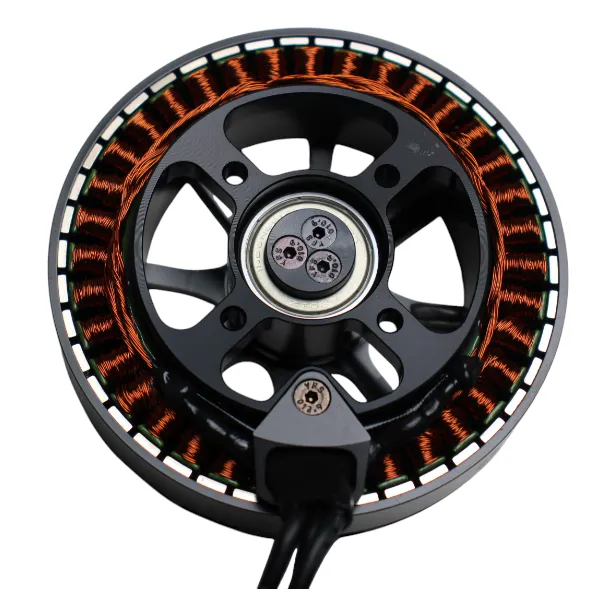

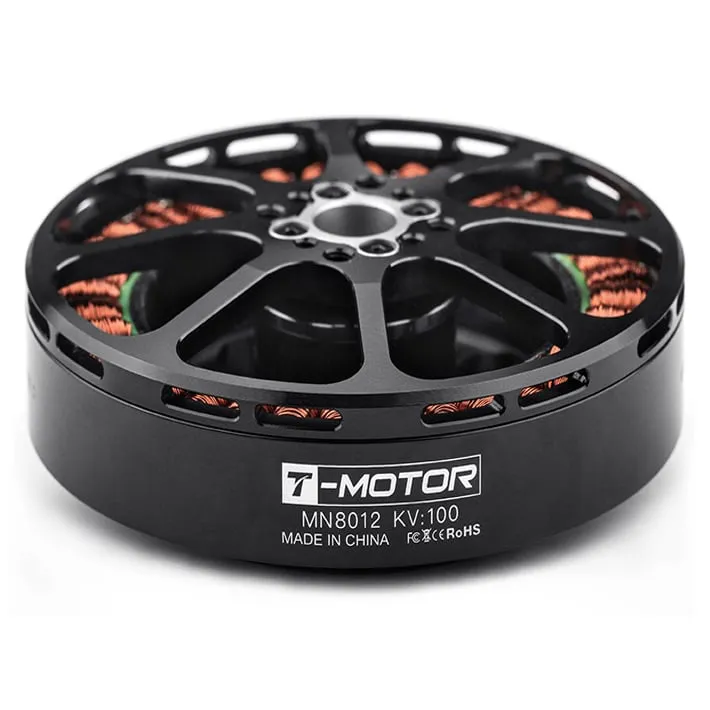

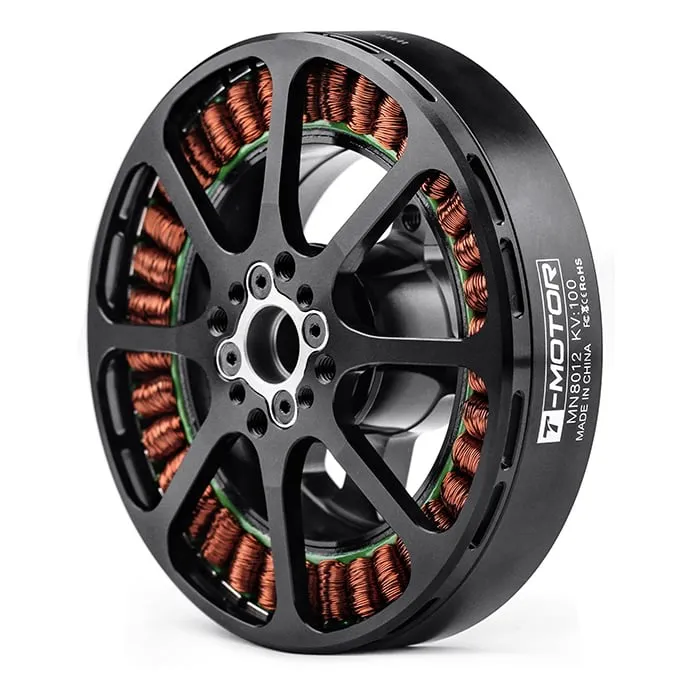

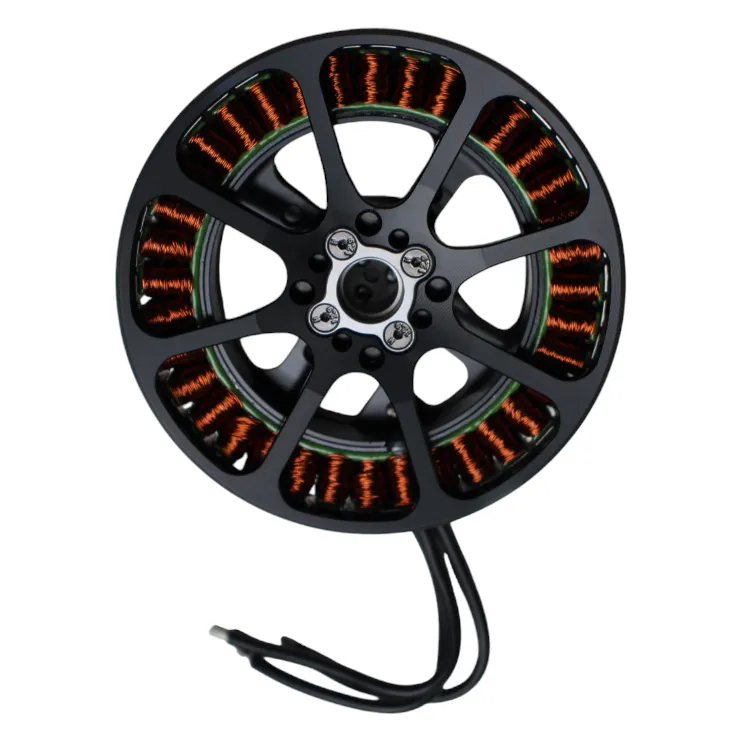

T-Motor Antigravity MN8012 KV100 Motor

The T-Motor Antigravity MN8012 KV100 is a 12S heavy-lift motor for 29–30 inch props, built for long-endurance and payload-carrying multirotors. It produces up to 11.8 kg of thrust at a motor weight of 351 g, a thrust-to-weight ratio of about 34:1.

Key features

• IP35-rated against water jets and small debris for outdoor industrial work

• Lead wires rated to 220 °C and an anti-rust stator with a 180 °C high-temperature coating

• 36N42P configuration with coils insulation-tested at 1000 V

• Rotor dynamically balanced to 15 mg for low vibration with large props

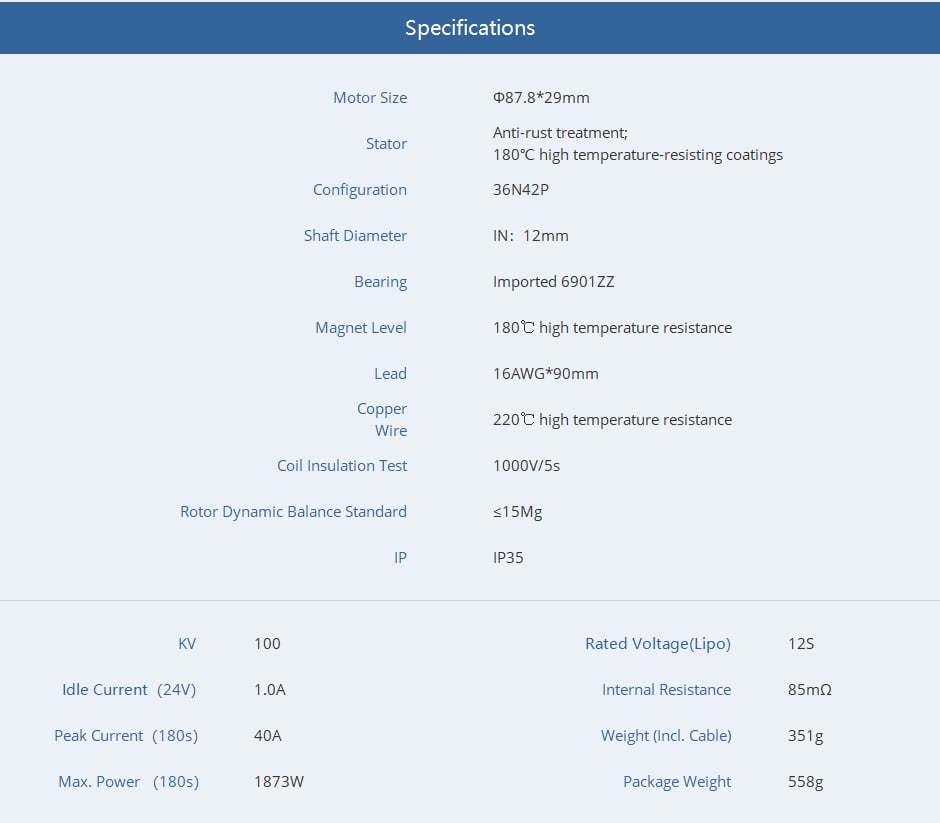

Specifications

• KV: 100

• Rated voltage: 12S LiPo (44.4 V nominal)

• Configuration: 36N42P

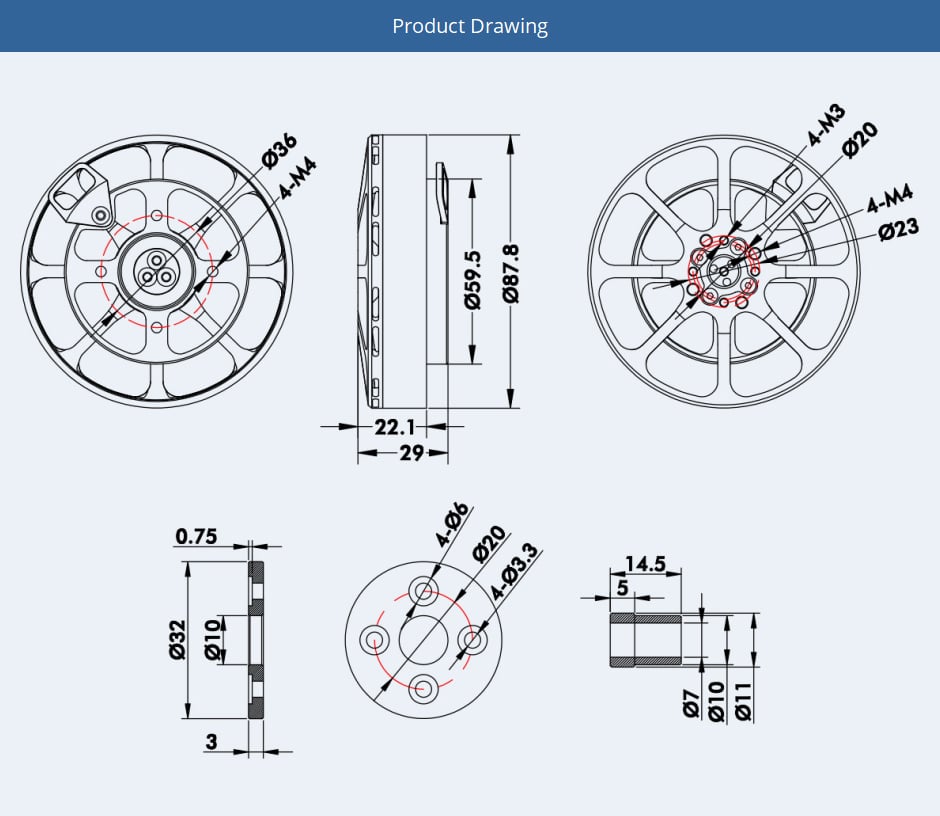

• Dimensions: 87.8 × 29 mm (diameter × height)

• Inner shaft: 12 mm, 6901ZZ bearings

• Weight: 351 g including cable

• Internal resistance: 85 mΩ

• Idle current: 1.0 A at 24 V

• Peak current: 40 A (180 s)

• Max power: 1873 W (180 s)

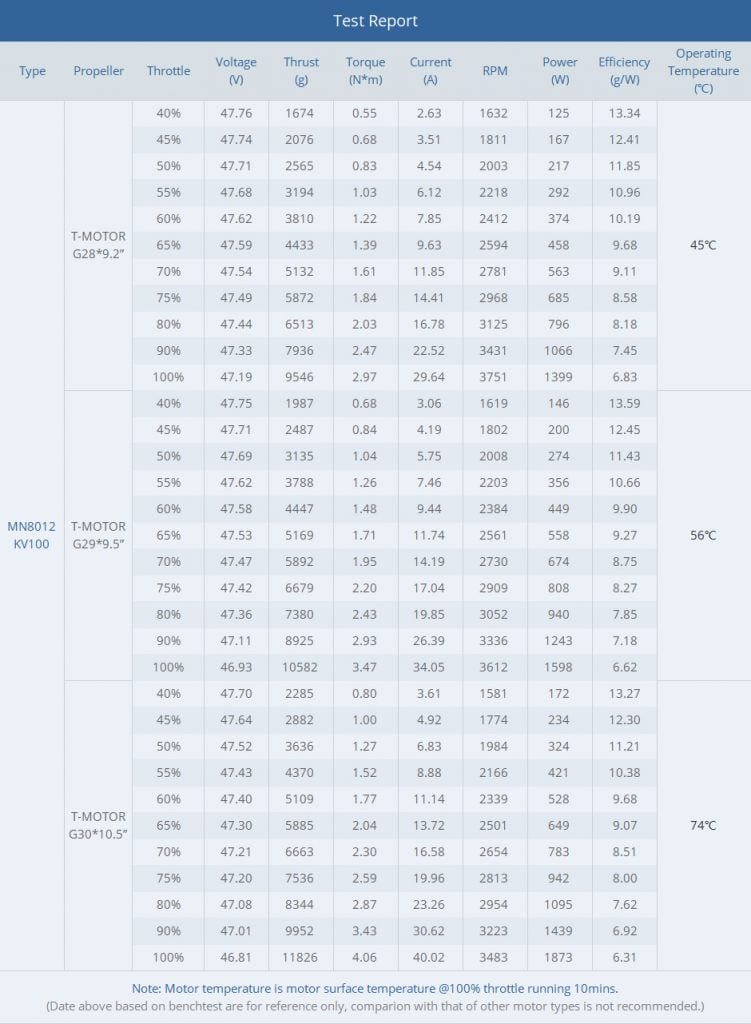

• Max thrust: 11.8 kg

• Recommended props: G29×9.5, G30×10.5

• Protection: IP35

Choose a 12S ESC with a continuous rating comfortably above the 40 A peak. Four MN8012 motors give about 47 kg of total maximum thrust, so keep a loaded quad under half that figure to leave control margin.
