T-Motor Antigravity MN4004 KV400 Motor (Pair)

A pair of T-Motor Antigravity MN4004 KV400 motors for lightweight 4–6S multirotors on 13–17 inch props, such as aerial-photography quads and long-endurance mapping platforms. Each motor weighs 53 g with its lead, helped by an ultra-thin rotor machined from high-strength aluminium.

Key features

• Single thick copper strand winding to reduce energy loss in the coils

• Built-in ventilation path cools the windings, and each motor is dynamically tested for smooth acceleration and stable running

• EZO bearings and a finely balanced rotor for low vibration under camera payloads

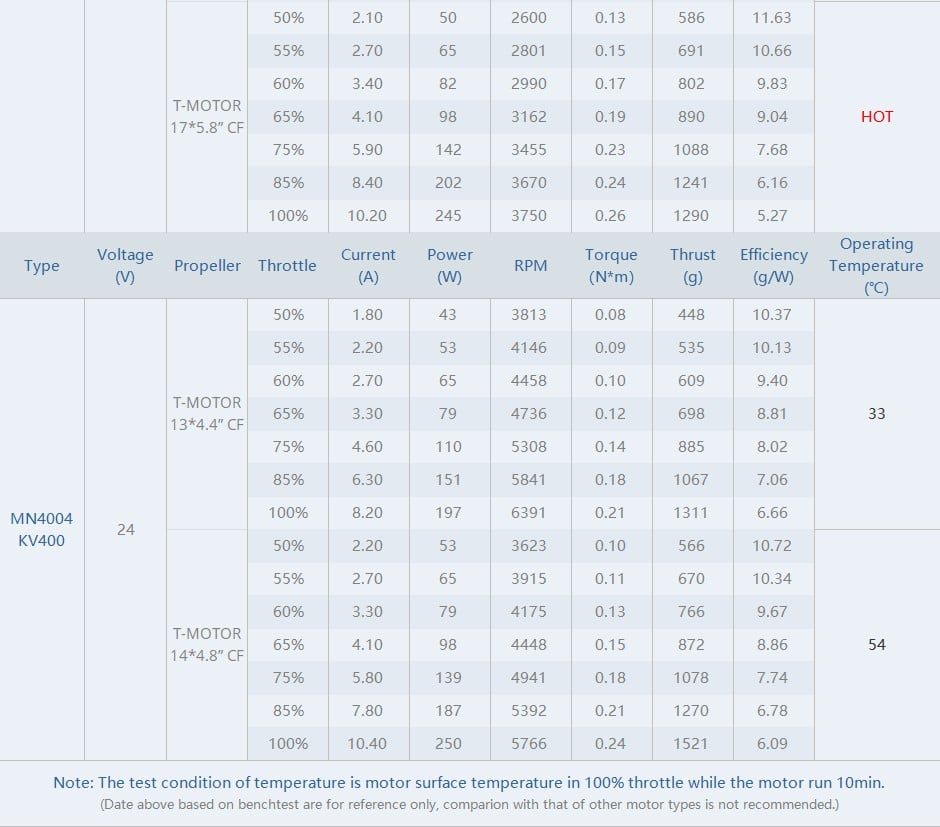

• Up to about 1.29 kg thrust per motor on a 17×5.8 prop at 24 V

• One CW and one CCW prop adapter included with the pair

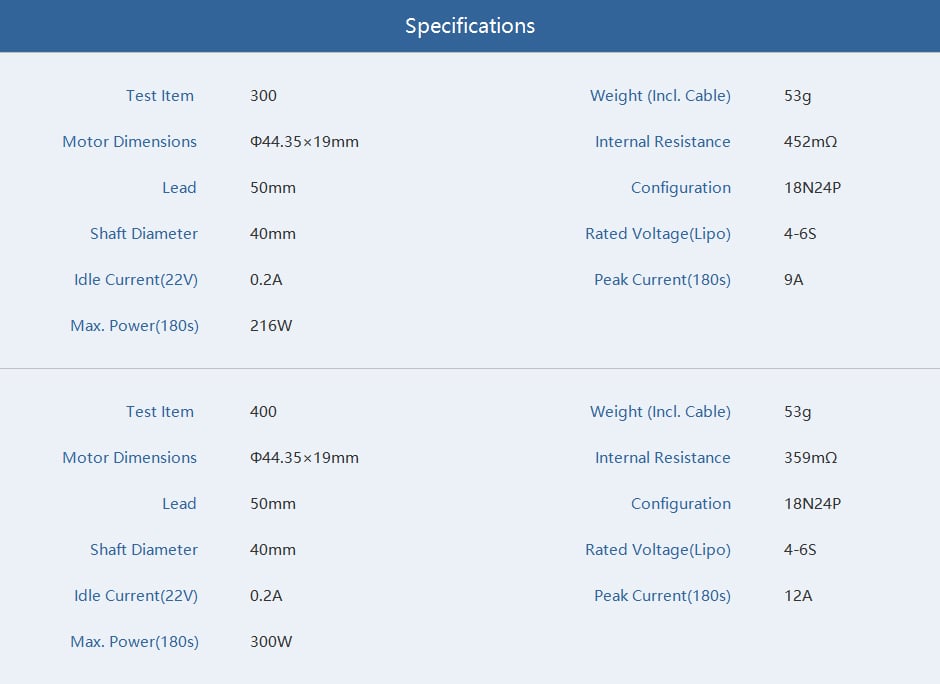

Specifications

• KV: 400

• Rated voltage: 4–6S LiPo

• Configuration: 18N24P

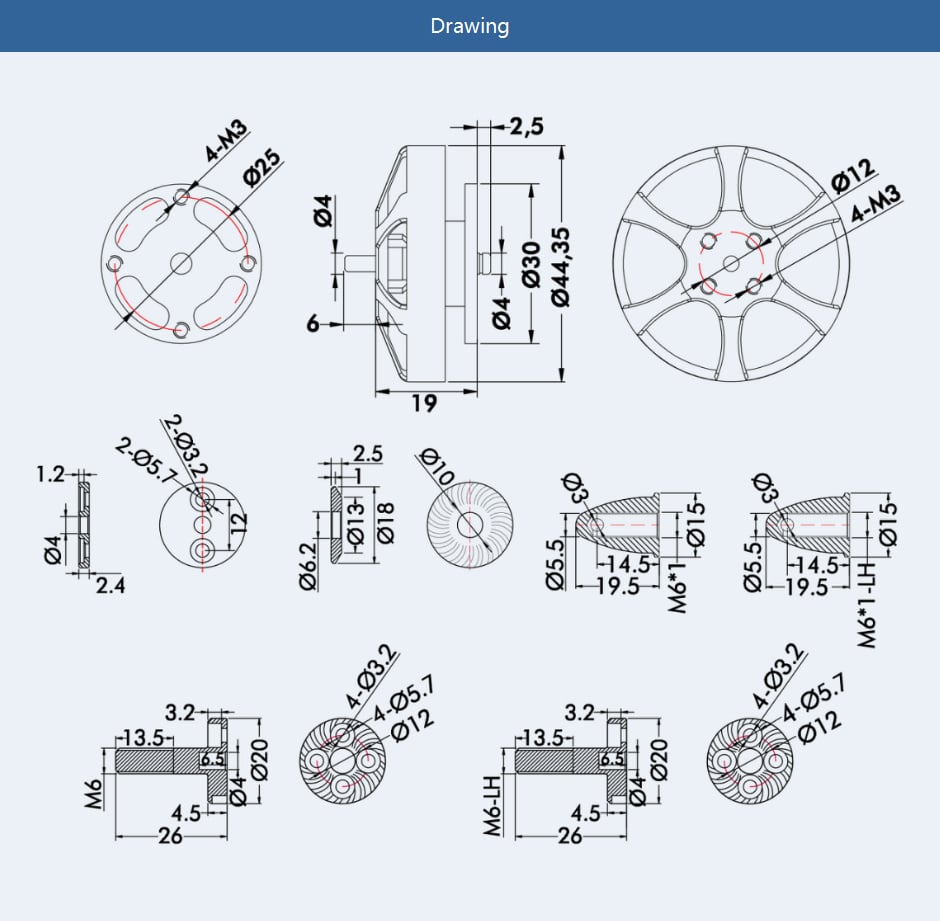

• Dimensions: 44.35 × 19 mm (diameter × height)

• Shaft: 4 mm

• Weight: 53 g each, including cable

• Internal resistance: 359 mΩ

• Idle current: 0.2 A at 22 V

• Peak current: 12 A (180 s)

• Max power: 300 W (180 s)

• Lead length: 50 mm

• Recommended props: 13×4.4 to 17×5.8 (T-Motor 16×5.4 carbon suggested)

• Recommended ESC: T-Motor AIR 40A

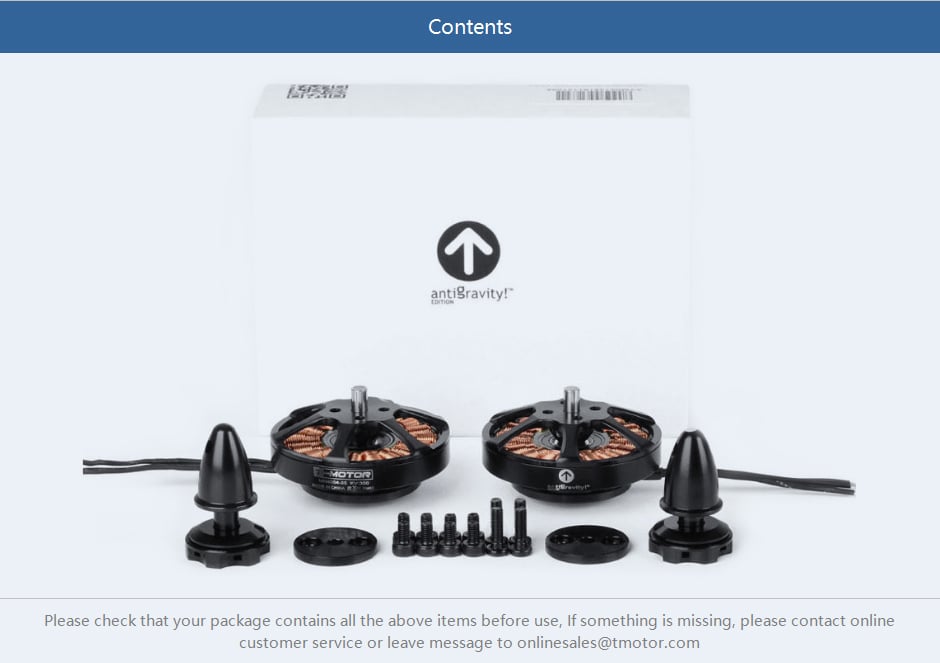

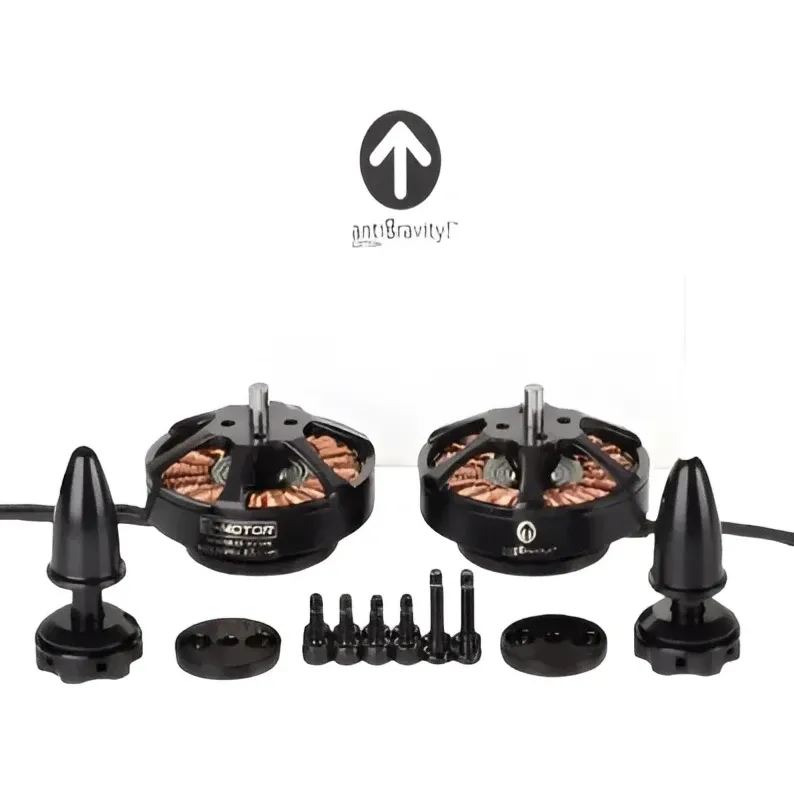

• In the box: 2 motors, 1 CW and 1 CCW prop adapter

Order two pairs for a quad or three for a hexa. A 40 A-class ESC such as the T-Motor AIR 40A covers the 12 A peak with ample headroom.
