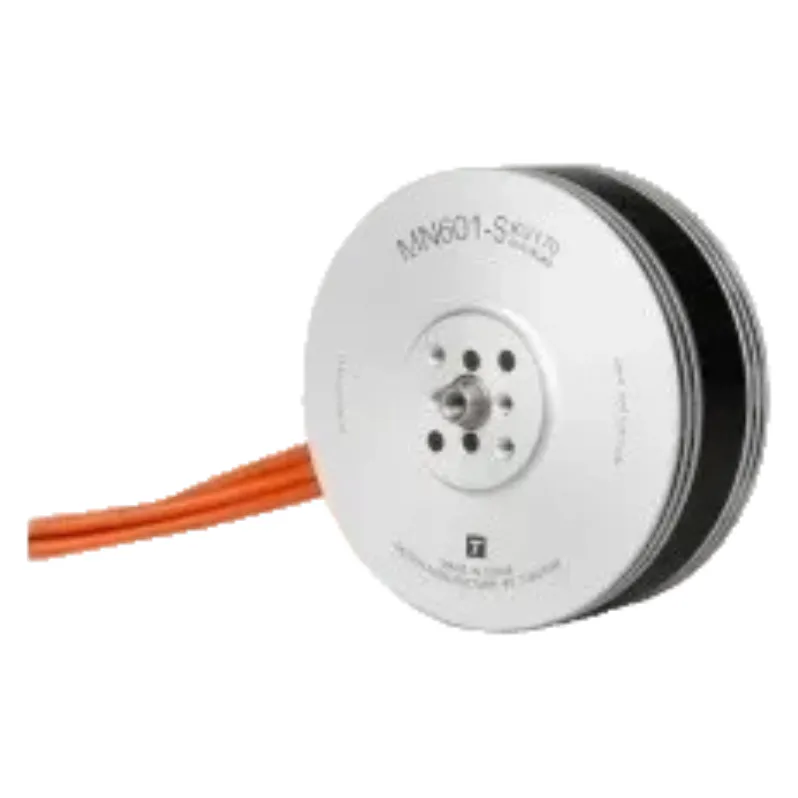

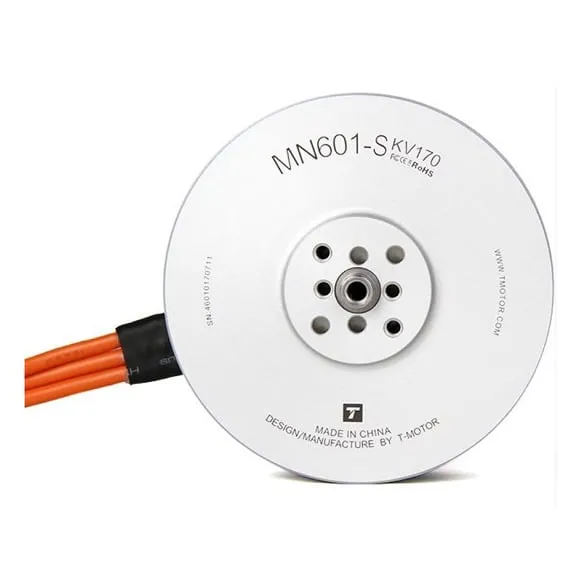

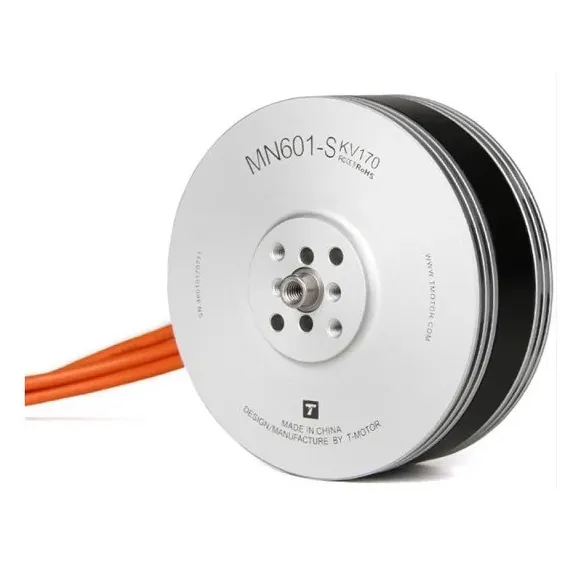

T-Motor Navigator MN601-S Waterproof Motor 170KV/320KV (2PCS/Set)

The T-Motor Navigator MN601-S is a semi-enclosed, waterproof motor for large multirotors used in aerial photography, monitoring and mapping, sold as a set of two. Pick the 320KV for 6S builds or the 170KV for 6–12S; both are matched to 20–21 inch T-Motor fixed or folding carbon-fibre props.

Key features

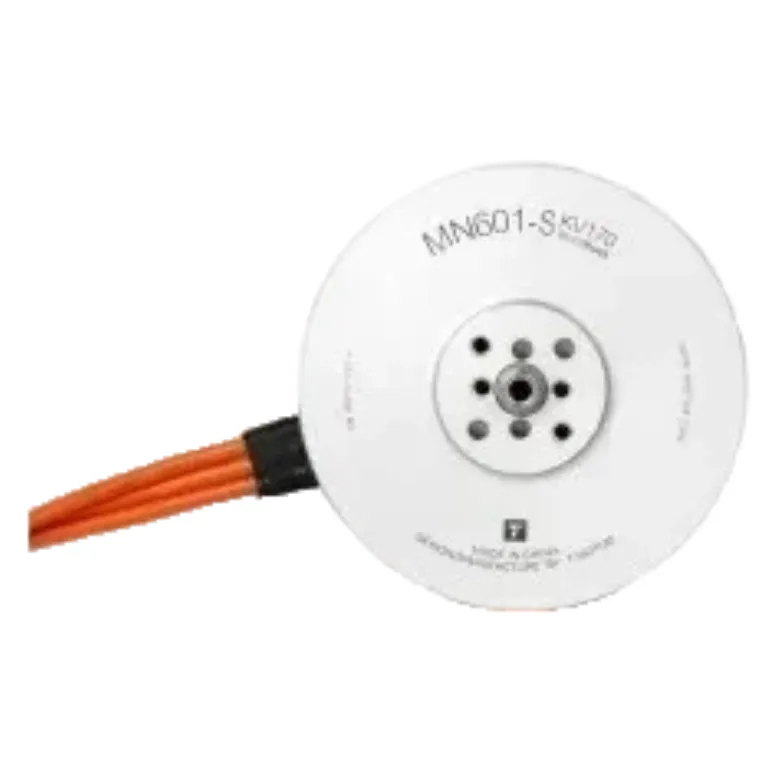

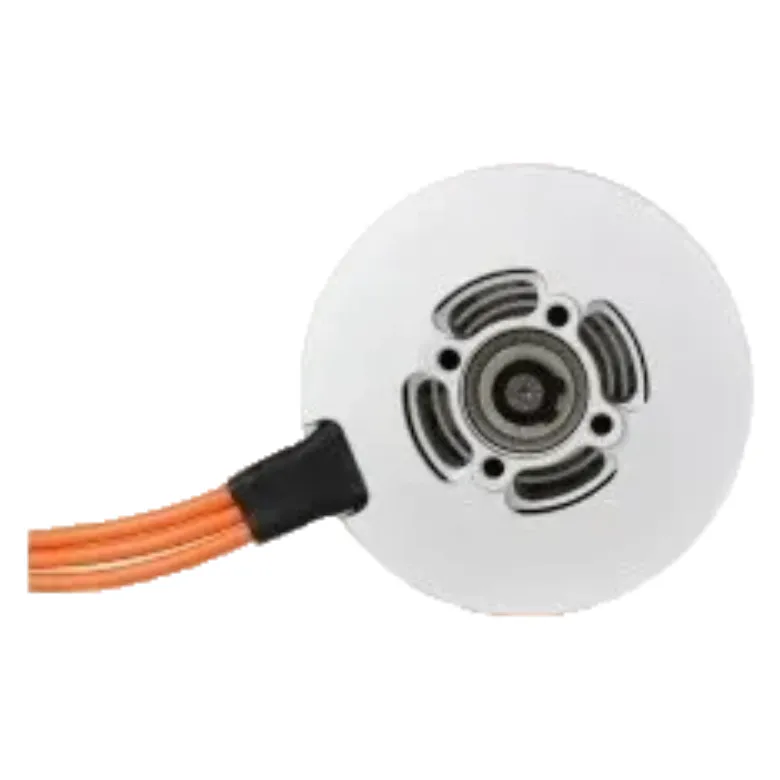

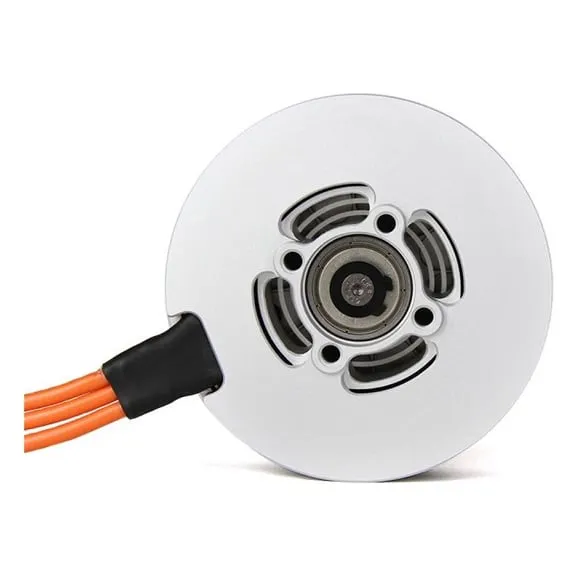

• Semi-closed design: a grid-patterned bell cap and grid inlet holes in the base block debris while letting air through, even when the motor is mounted upside down.

• IP45 protection: dust- and water-resistant, with anti-rust, anti-corrosion treatment and 150°C-rated magnets.

• Centrifugal cooling: a built-in fan pulls air through the motor to improve heat dissipation.

• Burn-out protection: high-temperature windings cope better with a trapped prop or overload.

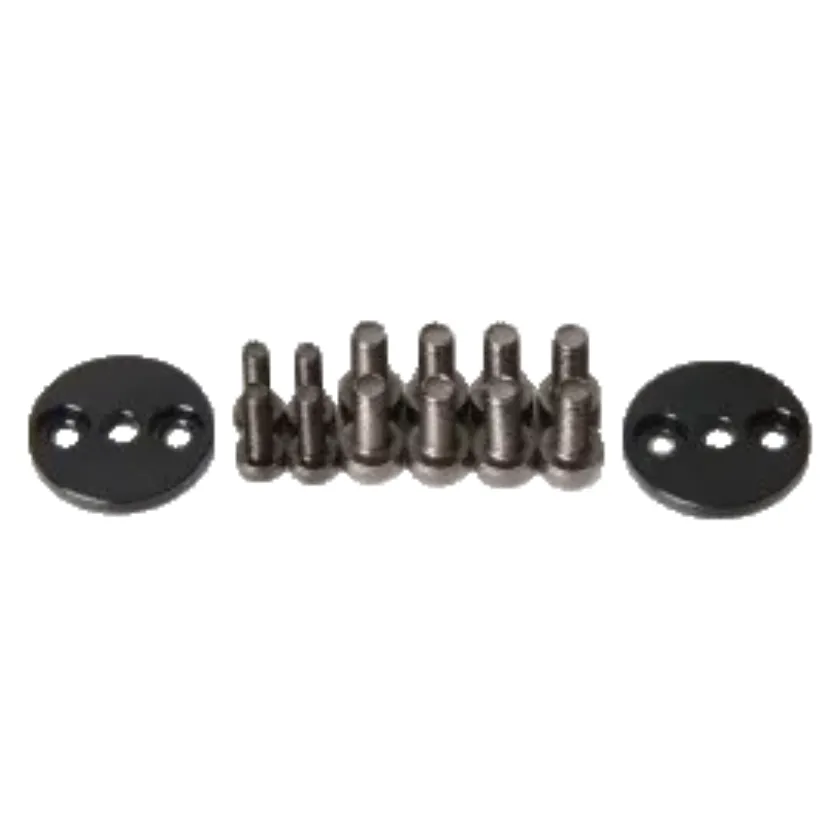

• Secure rotor: the T-shaped internal shaft is fixed with a clip and screw.

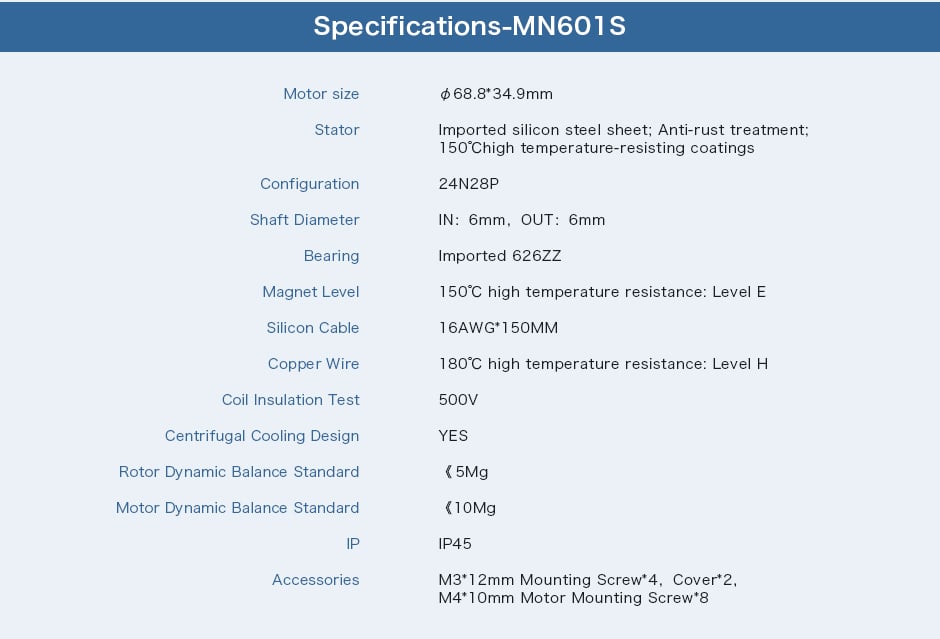

Specifications

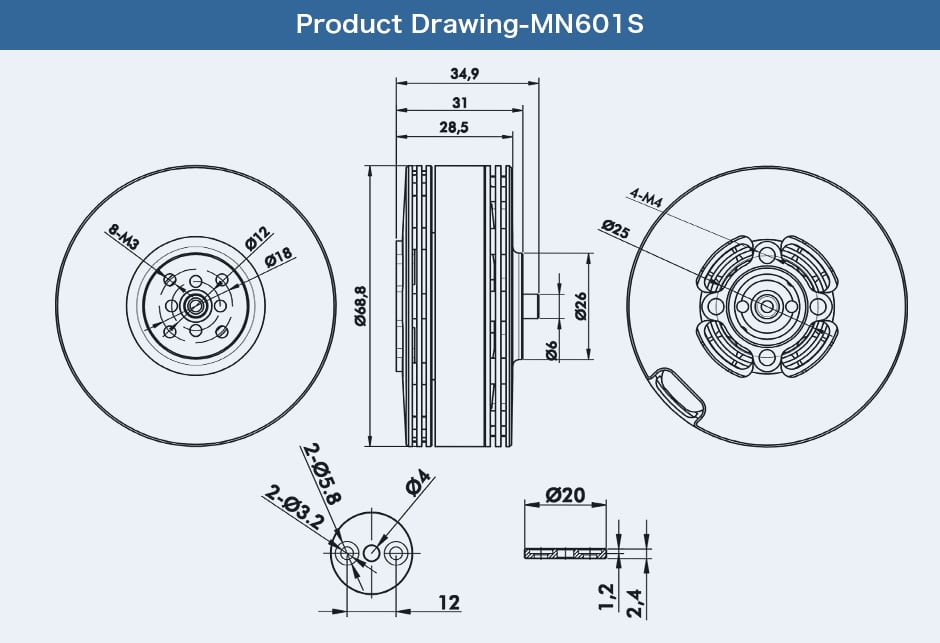

• Motor size: Ø68.8 × 34.9 mm

• Configuration: 24N28P

• Shaft: 6 mm

• Bearings: 626ZZ

• Leads: 16AWG, 150 mm

• Protection: IP45

• Weight per motor: 246 g (320KV), 250 g (170KV)

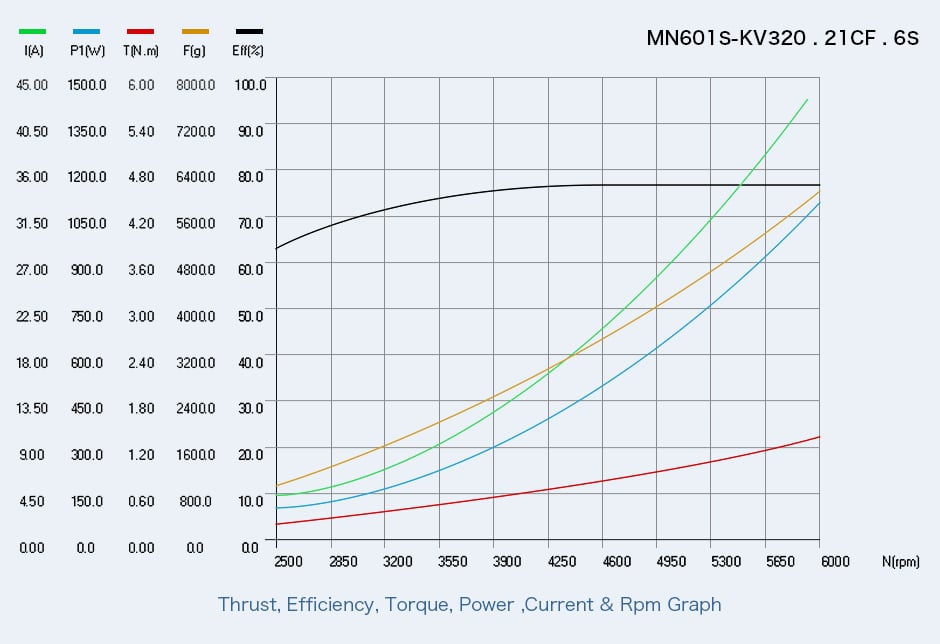

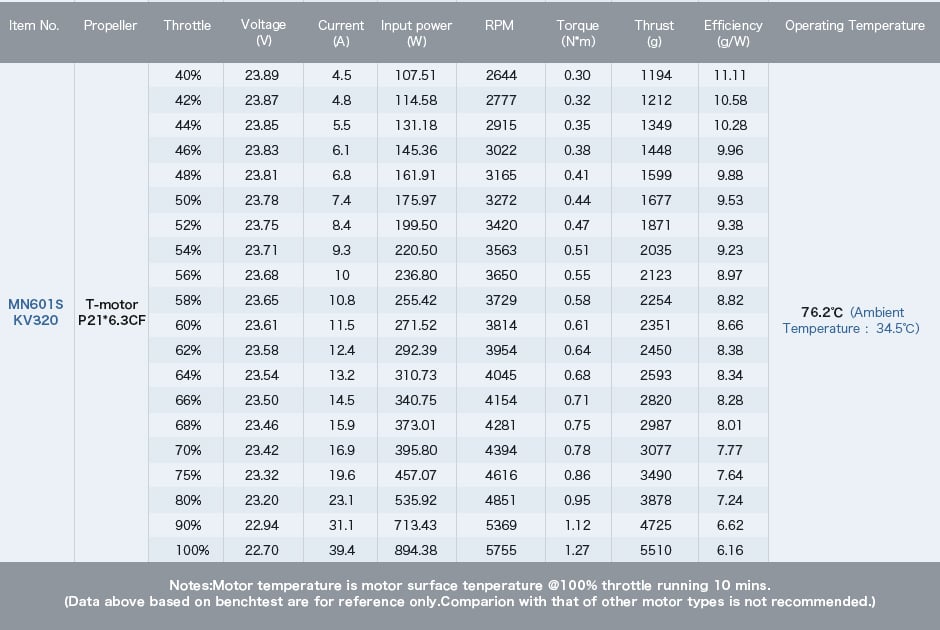

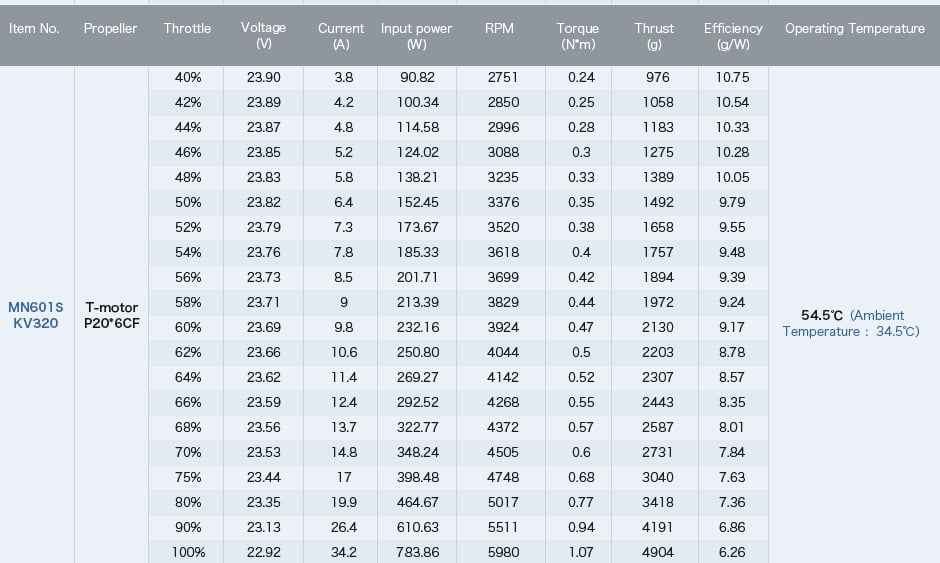

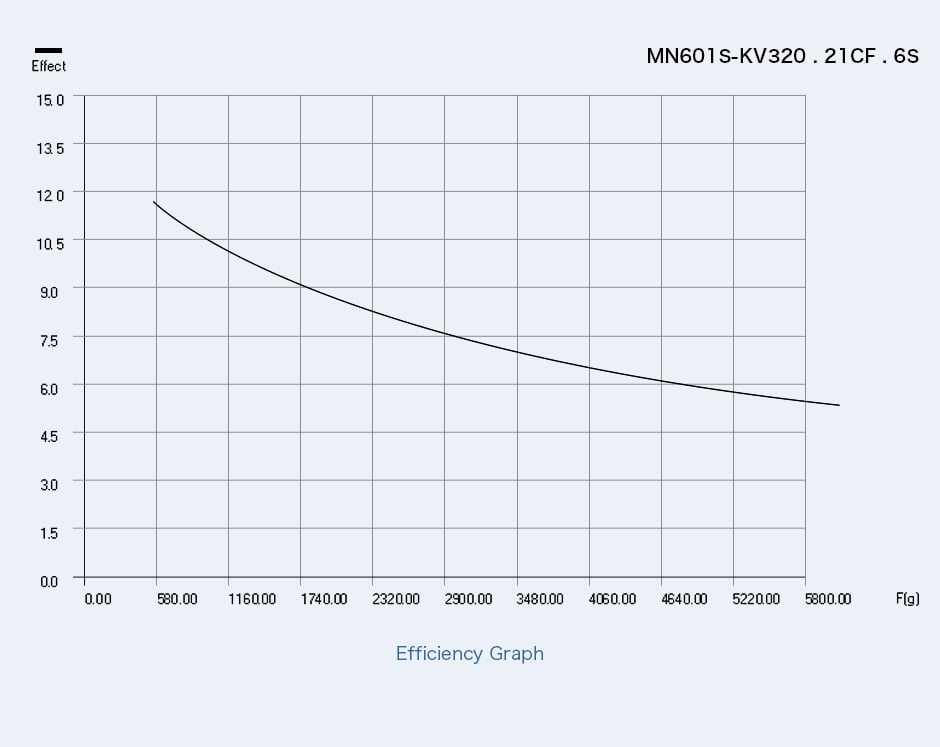

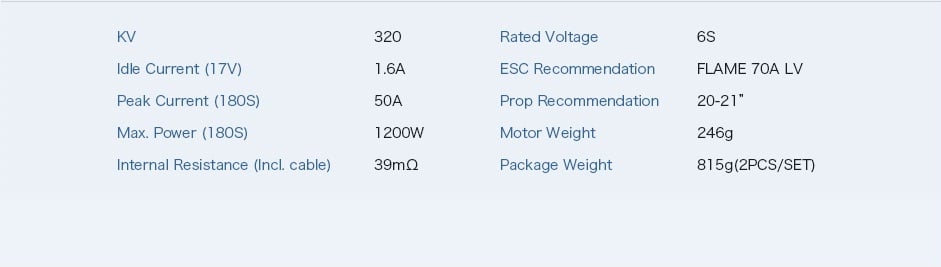

• 320KV: 6S, 1.6 A idle at 17 V, 39 mΩ, 50 A / 1,200 W peak (180 s), about 5.5 kg max thrust, FLAME 70A 6S ESC recommended

• 170KV: 6–12S, 0.8 A idle at 20 V, 115 mΩ, 30 A / 1,500 W peak (180 s), about 6.6 kg max thrust, FLAME 60A 12S ESC recommended

• Pack: 2 motors

A quad needs two sets and a hexa three. Running the 170KV on 12S delivers similar power at far lower current, which eases ESC, wiring and connector sizing on bigger airframes.
