T-Motor Flame 100A 6S Heavy-Lift Multirotor ESC

₹8,559Incl. GST

SKU TMOTOR-FLAME-100A-6S

ESC Current: 100 AInput Voltage: 4–6SESC Firmware: ProprietaryMade in India: No

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

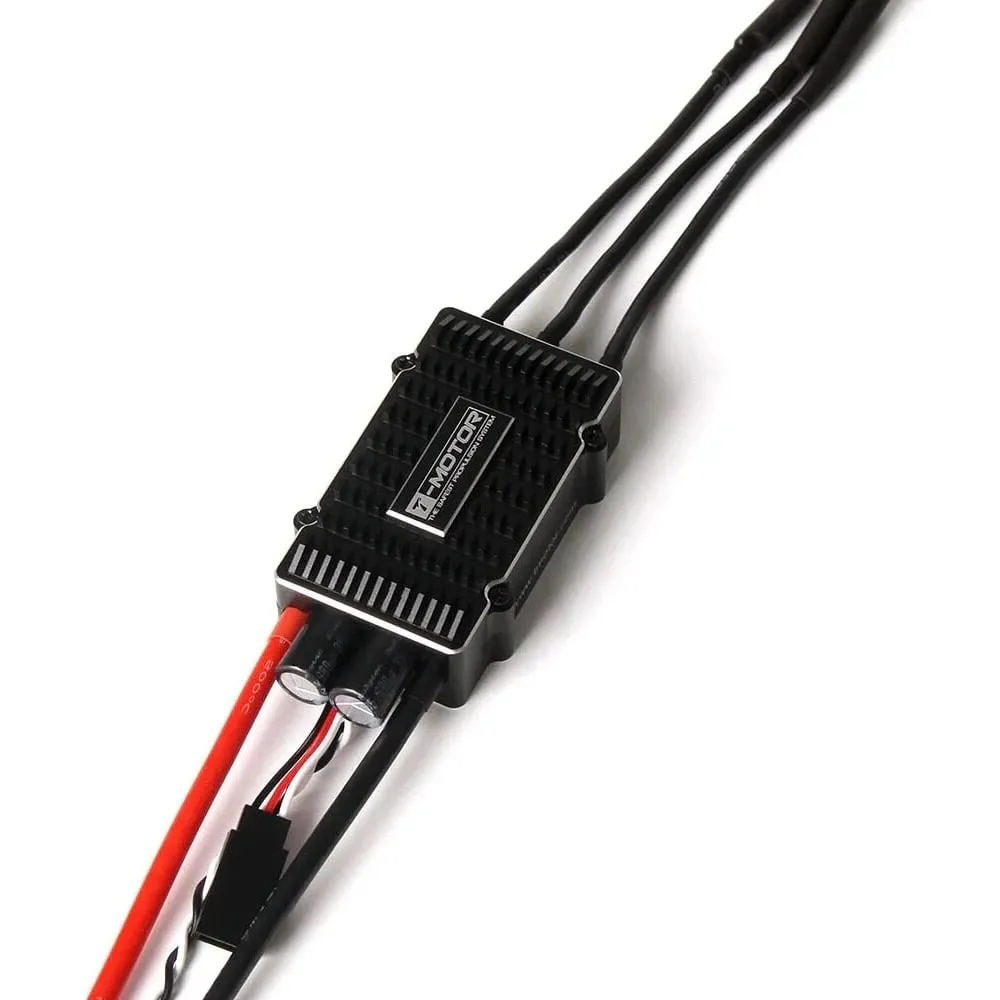

The T-Motor Flame 100A 6S is a single-motor ESC for large multirotors and industrial UAVs, built into a CNC-machined aluminium case with a nano-coated, IP55-rated PCB. It runs on 4–6S LiPo, and its multirotor-specific firmware is optimised for disc-type motors such as the T-Motor U7 280KV, 420KV and 490KV.

Key features

  • 100 A continuous and 120 A peak for up to 10 seconds

  • Layered internal structure and aluminium enclosure spread heat; IP55 dust and water resistance suits agriculture and search-and-rescue work

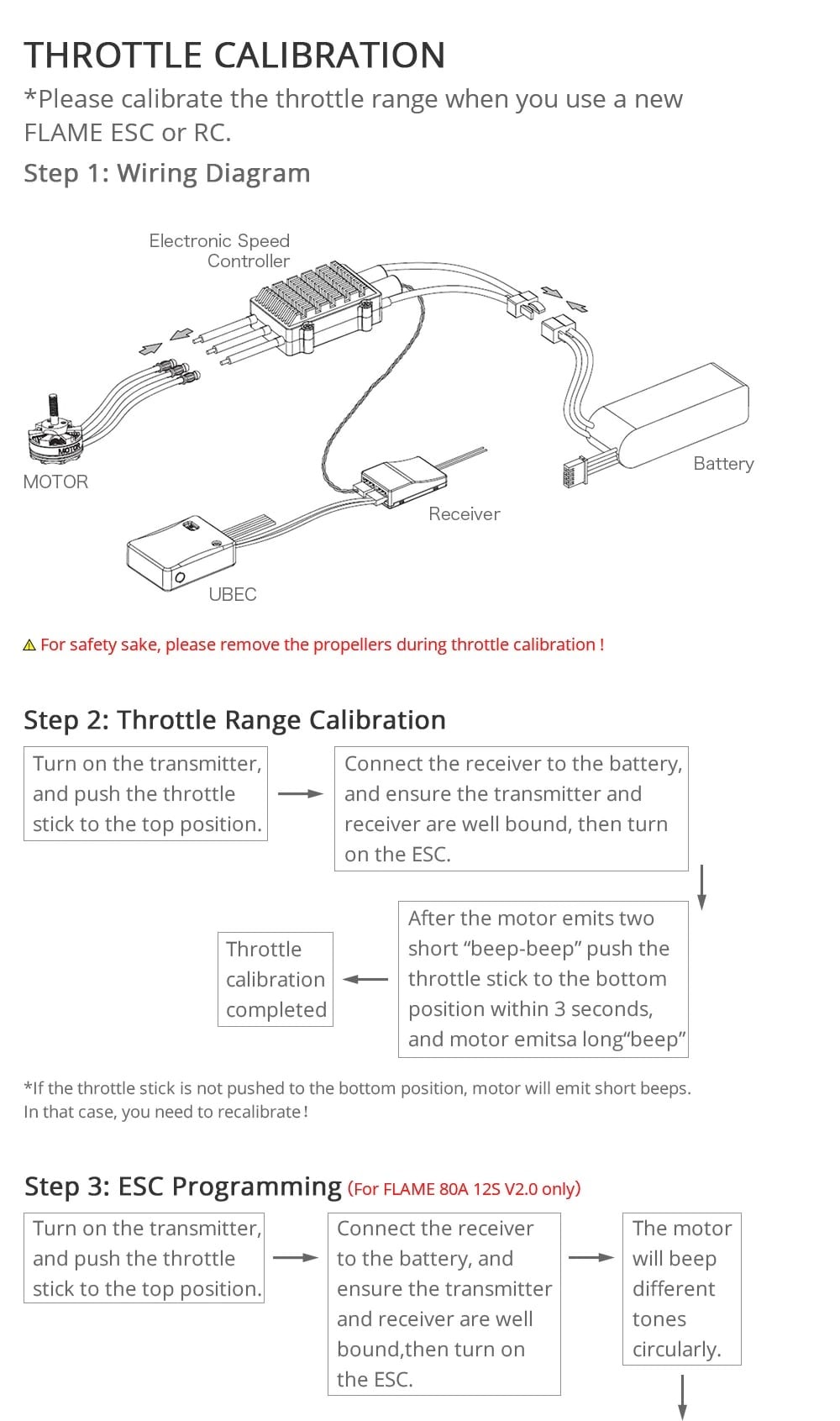

  • Quick, linear throttle response with throttle-signal input up to 600 Hz; the throttle range calibrates to any transmitter

  • Dedicated regulator IC for the microcontroller improves resistance to interference

  • Low-voltage cut-off, over-temperature and throttle-signal-loss protection

  • Firmware updates through a USB adapter; settings adjustable with a program card

Specifications

  • Continuous current: 100 A

  • Peak current: 120 A (10 s)

  • Input: 4–6S LiPo (14.8–22.2 V nominal)

  • Signal frequency: up to 600 Hz

  • Protection rating: IP55

  • BEC: None

  • Enclosure: CNC aluminium alloy

As there is no BEC, power the flight controller from a separate regulator or power module. For 12S power systems, choose an ESC rated for that voltage instead.
