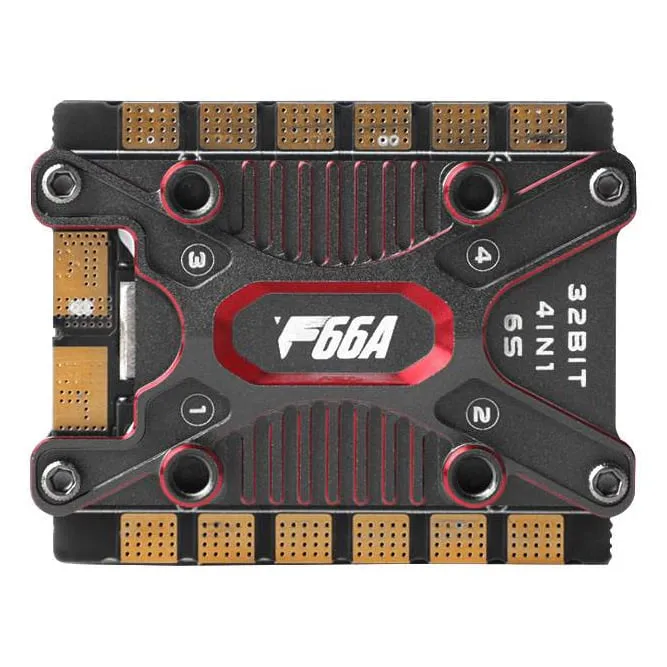

T-Motor F66A Mini 66A 6S 4-in-1 ESC
₹18,199Incl. GST
SKU T-MOTOR-F66A-MINI-66A-6S
Mounting Size: 20x20ESC Current: 66 AInput Voltage: 3–6SESC Firmware: BLHeli_32
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor F66A Mini is a compact 4-in-1 ESC for 3-6S FPV stacks, aimed at racing and freestyle builds that need high current in a small footprint.
Key features

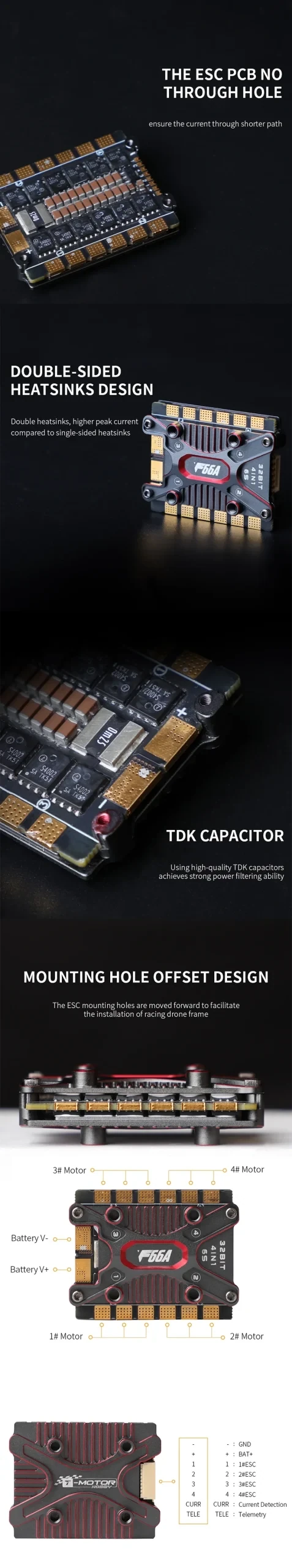

- Double-sided heatsinks and a high-quality TDK capacitor support sustained high current with strong power filtering.
- Offset mounting holes, moved forward from centre, ease installation on tight racing-frame stacks.
- 66A continuous current with a 77A peak rating covers most 3-6S racing and freestyle motor combinations.
- BLHeli_32 firmware at a 16-48kHz PWM frequency gives fine-grained throttle control on supported flight controllers.
- 20x20mm M3 mounting pattern fits standard mini-format flight stacks.
Specifications
- Current: 66A continuous, 77A peak
- Input voltage: 3-6S LiPo
- Firmware: BLHeli_32
- Mounting: 20x20mm, M3
- Size: 43 x 34 x 13.5mm
- Weight: 21g
Check the mounting clearance and signal harness on your flight controller before fitting this stack.
| Mounting Size | 20x20 |
|---|---|
| ESC Current | 66 A |
| Input Voltage | 3–6S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | T-Motor |
| Weight | 21 g |
| Current Sensor | Yes |
