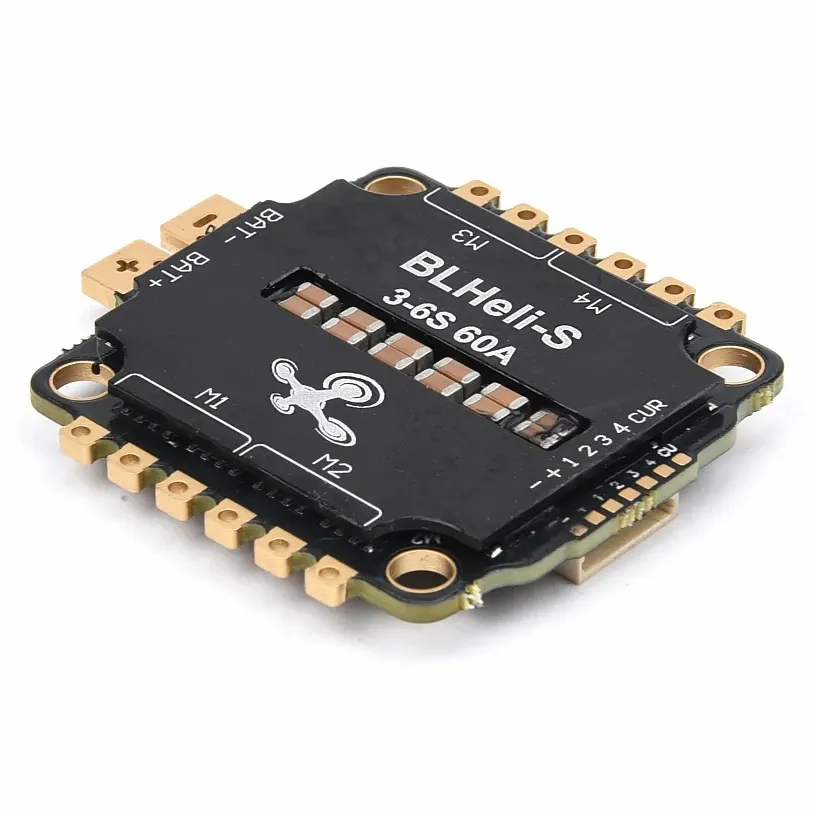

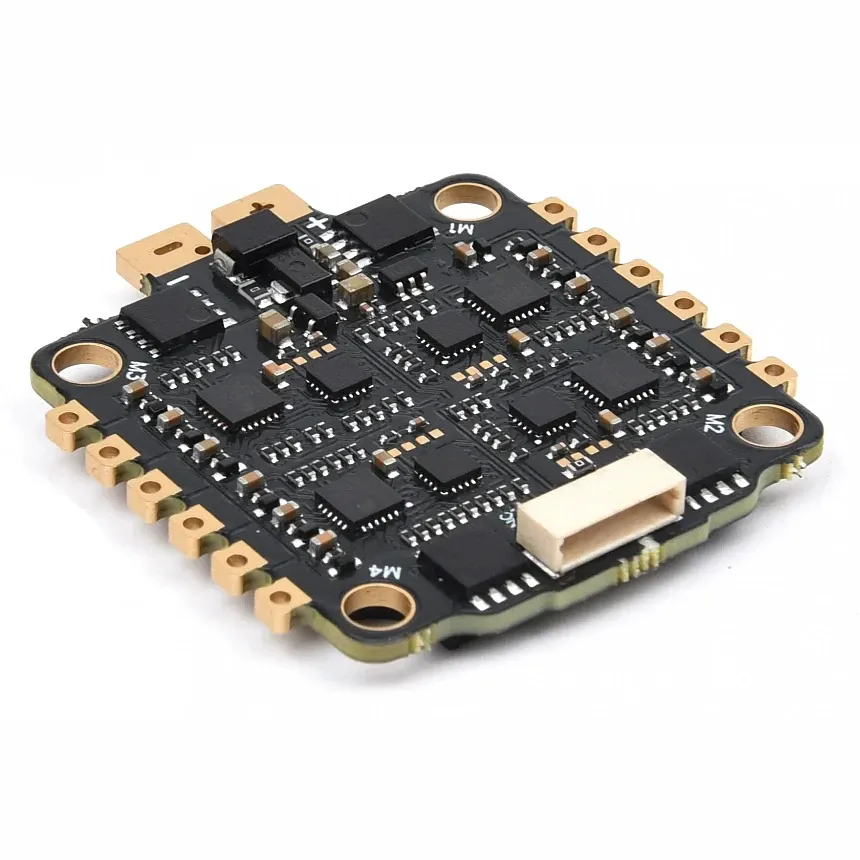

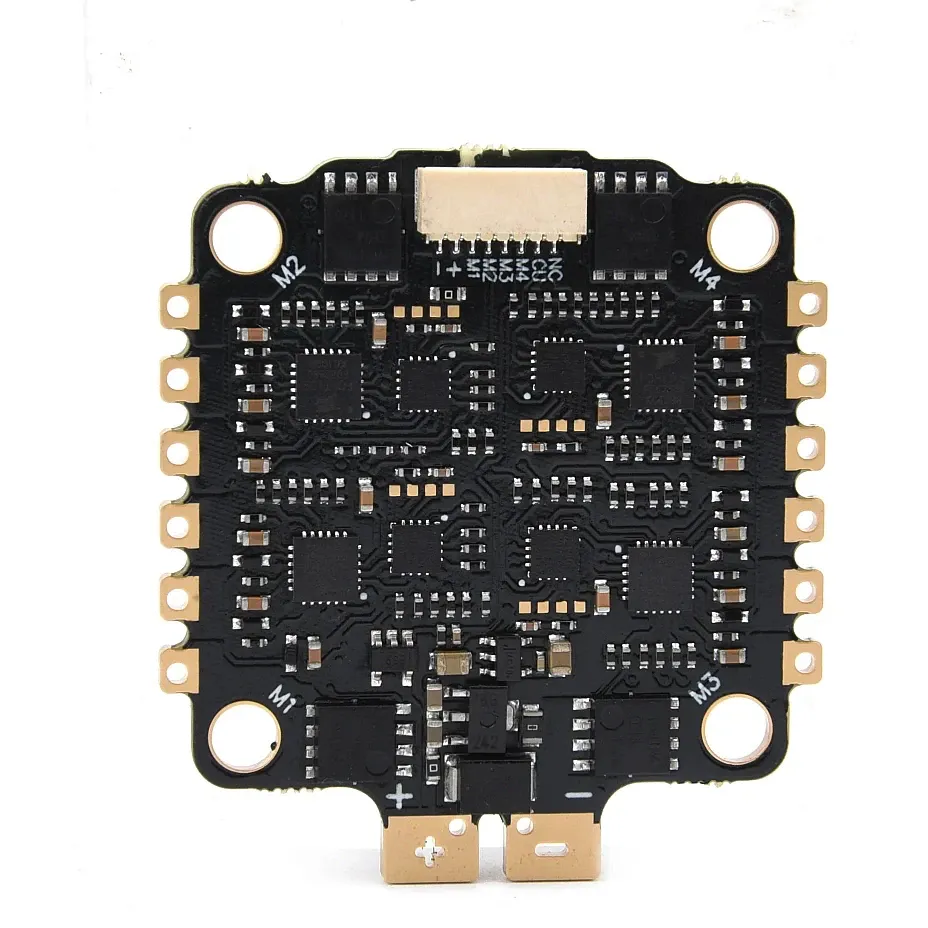

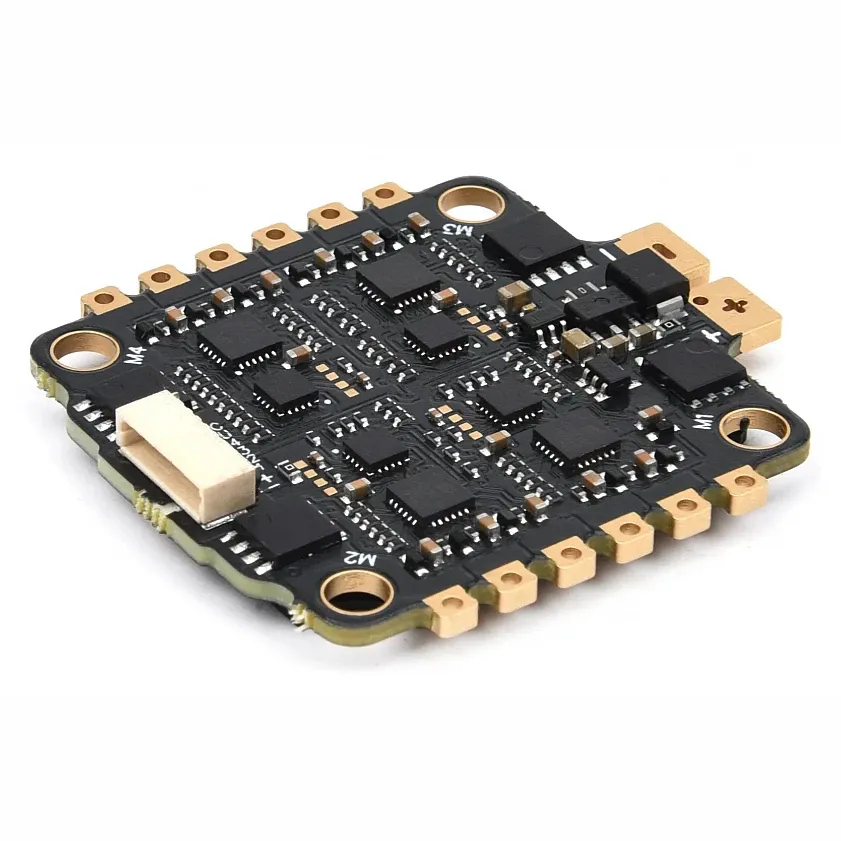

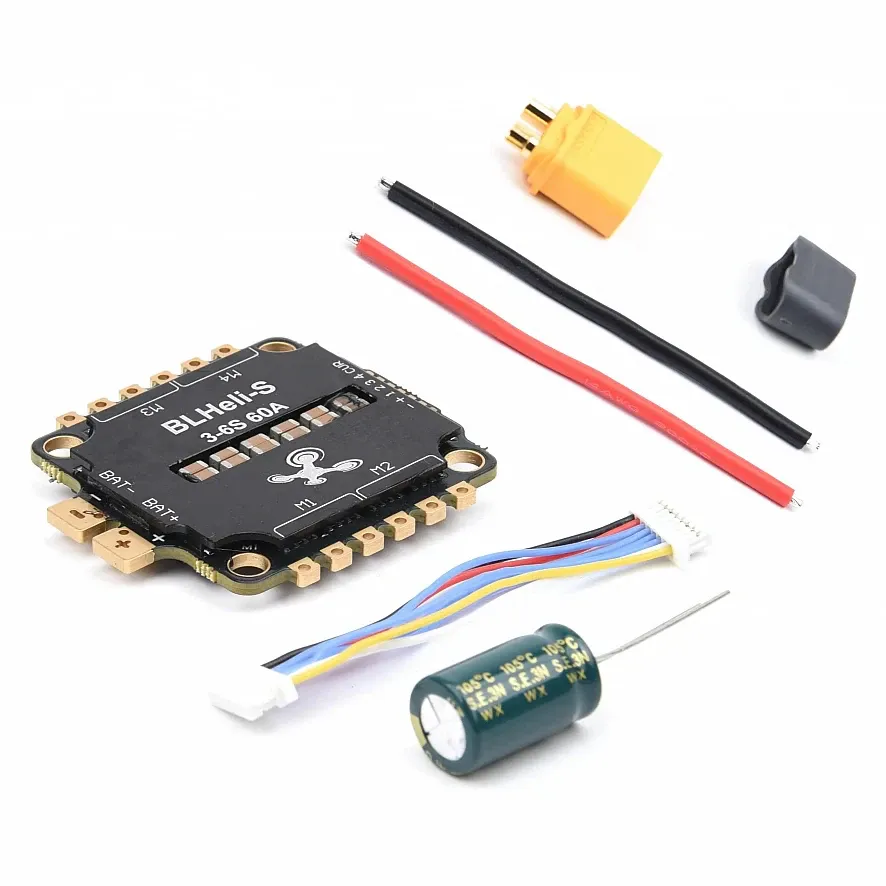

60A BLHeli_S 4-in-1 3-6S Brushless ESC

A 4-in-1 brushless ESC rated 60 A per channel, running BLHeli_S firmware and built for 3–6S quadcopters on the standard 30.5 × 30.5 mm stack pattern. One board drives all four motors, which keeps wiring short and the frame tidy on 5- to 7-inch freestyle and long-range builds.

Key features

• 4-in-1 layout: four ESC channels on one board — no arm-mounted ESCs or separate distribution board to wire.
• BLHeli_S firmware: motor direction, timing and startup behaviour are set through the usual BLHeli_S configurator tools.
• Wide input range: rated 11–27 V, covering 3S to 6S LiPo packs.
• Light board: 13.8 g on a 41 × 46 mm footprint.
• No onboard BEC: the flight controller must regulate its own 5 V from battery voltage, as most 30.5 × 30.5 mm FCs do.

Specifications

• Current: 60 A × 4 channels
• Firmware: BLHeli_S
• Input voltage: 3–6S LiPo (11–27 V)
• Mounting: 30.5 × 30.5 mm, M4 holes
• Dimensions: 41 × 46 mm
• Weight: 13.8 g
• BEC: None

Before ordering, confirm your flight controller uses the 30.5 × 30.5 mm pattern and has its own 5 V regulator. At 60 A per motor the board leaves current headroom for 2207–2306 motors on 6S 5-inch quads and for 7-inch long-range setups.
