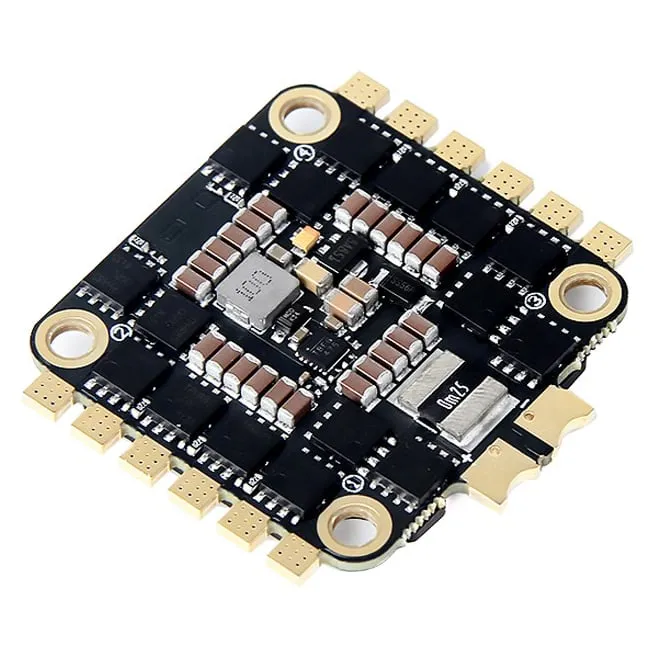

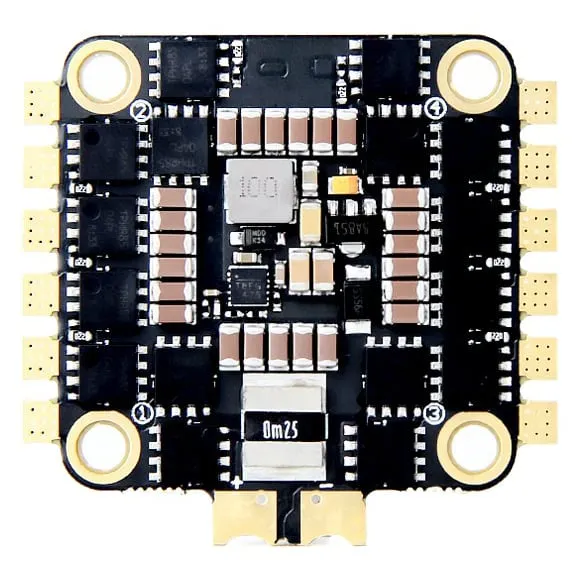

T-Motor F55A Pro II 55A 3-6S BLHeli_32 4-in-1 ESC

The T-Motor F55A Pro II is a 4-in-1 ESC rated 4 x 55A continuous and 4 x 75A burst on 3-6S, running 32-bit BLHeli_32 firmware on a 30.5x30.5 mm mount. It suits 5-inch to 7-inch freestyle, racing and long-range quads on 6S. Choose the Original, or the MCU F3 version, T-Motor's update with a faster processor aimed at demanding race use; both carry the same 55A/75A ratings and a 10V BEC.

Key features

• 10V 2A BEC onboard to power the flight controller, VTX, camera or LEDs.

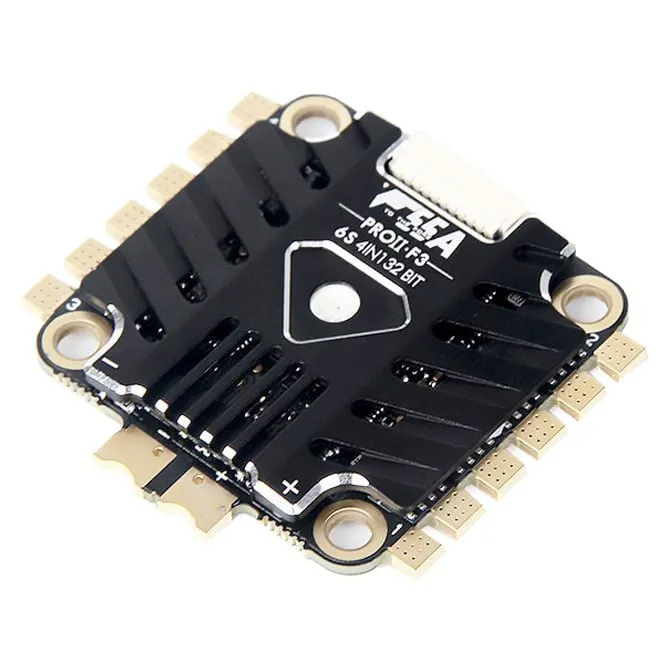

• Revised heatsink and status LED over the original F55A, with the BEC raised to 2A.

• Protocols: DShot150/300/600/1200 plus Oneshot125, Oneshot42 and Multishot, detected automatically at power-up.

• Damped light mode for regenerative braking and active freewheeling, with tunable anti-desync parameters.

• Beacon function: the ESC beeps after a set time at zero throttle to help find a downed quad.

• Ready-to-fit input lead: 12AWG 130 mm wires with an XT60 pre-soldered, plus a capacitor in the box.

Specifications

• Continuous current: 4 x 55A

• Burst current: 4 x 75A

• Input voltage: 3-6S

• Firmware: BLHeli_32 (32-bit)

• Protocols: DShot150/300/600/1200, Oneshot125, Oneshot42, Multishot

• BEC: 10V 2A

• Mounting: 30.5 x 30.5 mm

• Size: 45 x 41 x 7.3 mm (Original version)

• Weight: 17.5 g with heatsink (Original version)

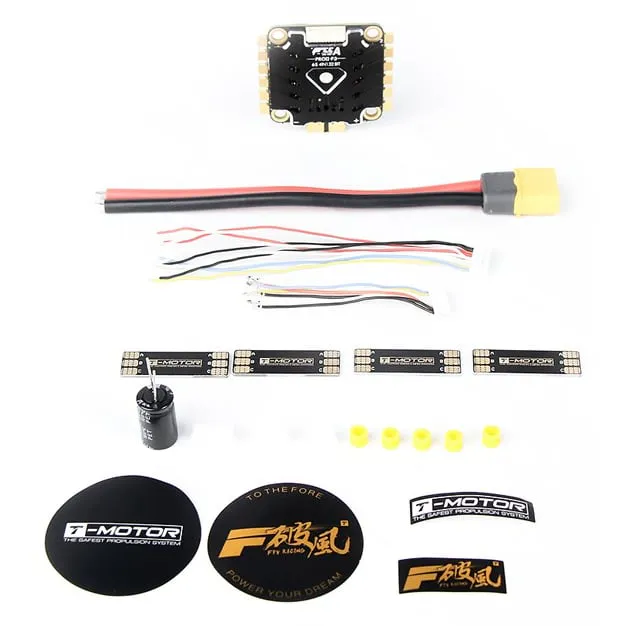

• In the box (Original version): ESC, 5 damping rubbers, 12AWG 130 mm input lead with XT60, 2 x 61 mm signal wires, 5 cable protectors, 3 SH1.0 plugs (6, 8 and 10-pin), 1 capacitor

With 55A per channel it has headroom for 2207 and 2306 motors on 6S. Mount it on the supplied damping rubbers and fit the included capacitor at the battery pads to absorb voltage spikes.
