TBS Lucid 6S 4-in-1 ESC
₹6,399Incl. GST
SKU TBS-LUCID-6S-4IN1
Mounting Size: 20x20, 30.5x30.5ESC Current: 60 AInput Voltage: 3–6SESC Firmware: AM32
Dispatched within 3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The TBS Lucid 6S 4-in-1 ESC is a single-board power stage built for racing and freestyle quads, running community-developed AM32 firmware on an 8-layer board with heavy onboard capacitance for clean, punchy power delivery.
Key features
- Rated 60A continuous (300s) and 70A peak (60s) per motor, enough headroom for aggressive 3–6S freestyle and race setups.
- Bi-directional DShot 300/600 and KISS ESC telemetry give the flight controller live RPM and current data.
- AM32 firmware, configurable through the AM32 online configurator.
- Gorilla mounting pattern (39.5 x 16.0mm) with included brackets for 20x20mm and 30.5x30.5mm stacks.
- Suits propellers up to 9 inches, with good airflow recommended above 7 inches.
Specifications
- Firmware: AM32
- Continuous current: 60A x4 (300s)
- Peak current: 70A x4 (60s)
- Input: 3–6S LiPo
- Board size: 34 x 44mm
- Weight: 13.81g bare, 19g with brackets

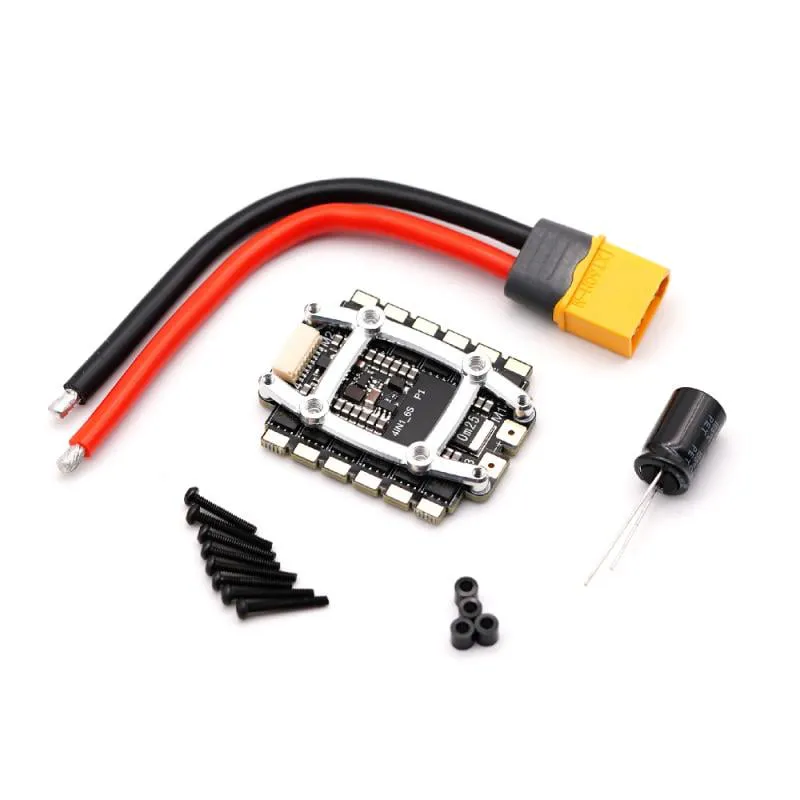

The box includes standoffs, an aluminium top bracket, an XT60 power lead and a 470uF 6S capacitor, so the ESC drops straight into a Gorilla-mount or bracket-mounted stack.
| Mounting Size | 20x20, 30.5x30.5 |
|---|---|
| ESC Current | 60 A |
| Input Voltage | 3–6S |
| ESC Firmware | AM32 |
| Made in India | No |
| Brand | TBS |
| Weight | 13.81 g |
| Battery Connector | XT-60 |
| BEC | No |
| Current Sensor | Yes |
