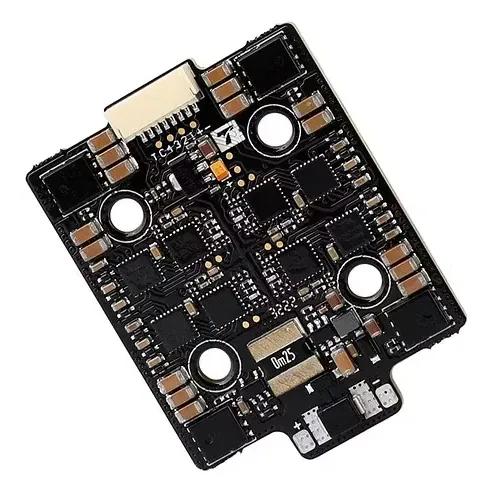

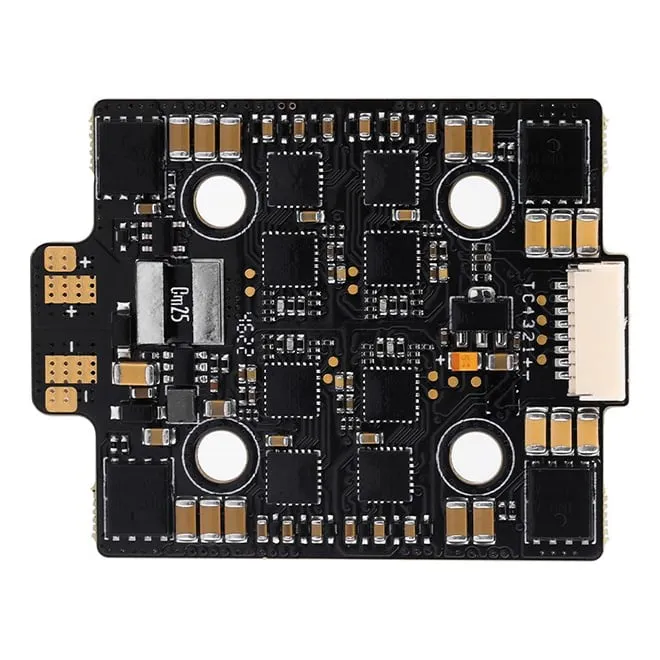

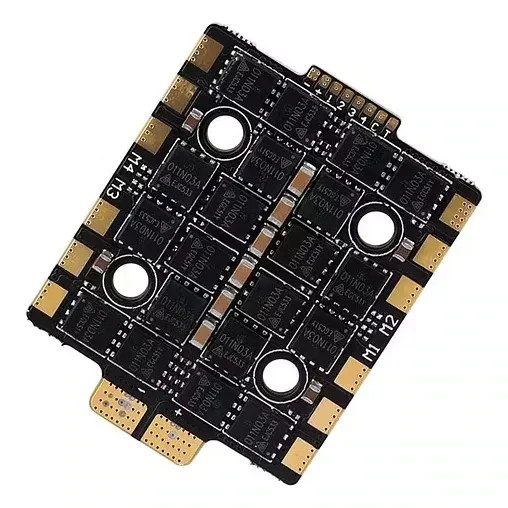

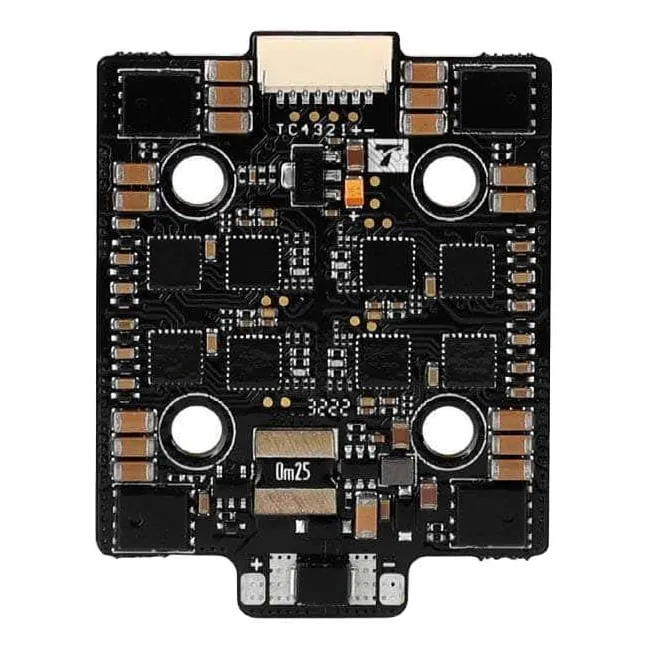

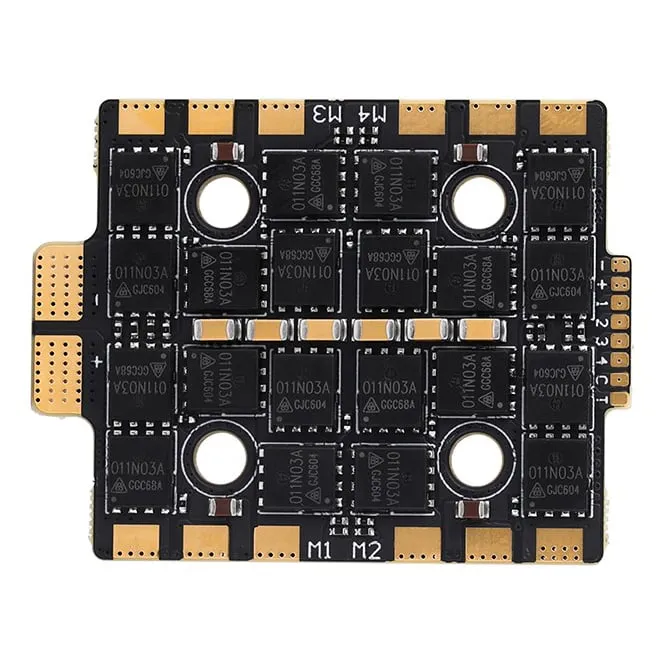

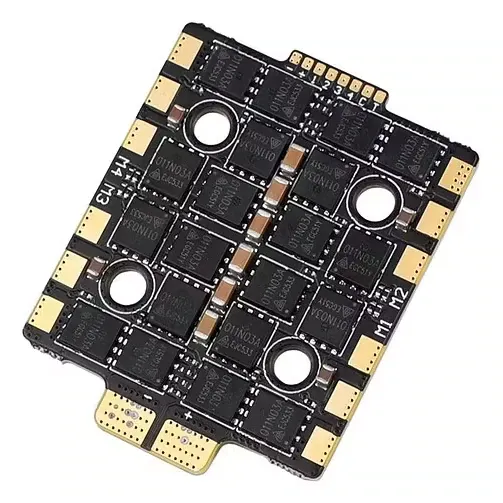

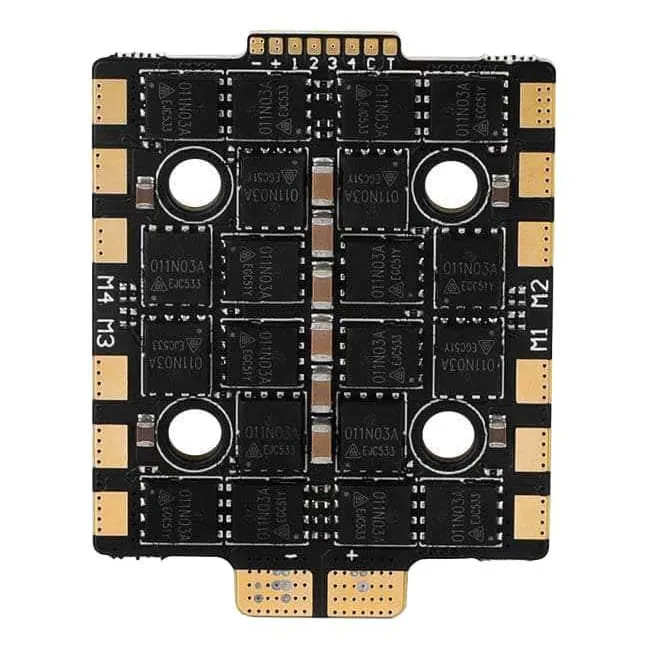

T-Motor F60A Mini 20x20 4-8S 4IN1 ESC
SKU TM-MINI-F60A-20X20
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor F60A Mini is a 20x20mm 4-in-1 ESC built for high-speed racing and aggressive freestyle, running BLHeli_32 firmware on 4-8S LiPo power.
Key features
Oversized MOSFETs increase the heat-dissipation area by more than 60% over the standard F60A for sustained hard-throttle use.
A symmetrical MOSFET layout keeps signal tracks short and consistent across all four channels.
Rated for zero desync with high-KV motors up to 2000+KV on 6S.
Built-in telemetry reports real-time current and temperature for early warning of faults.
Specifications
Input voltage: 4-8S LiPo
Continuous current: 60 A per channel
Burst current: 70 A per channel
Firmware: BLHeli_32
Mounting: 20x20 mm, 4 mm holes
Dimensions: 36 x 47 mm
MOSFETs: 40 V, 0.75 mOhm
PWM frequency: 16-96 kHz (24 kHz default)
This ESC is rated for 4-8S LiPo only; do not run it on a 3S pack despite what some listings state.
| Mounting Size | 20x20 |
|---|---|
| ESC Current | 60 A |
| Input Voltage | 4–8S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | T-Motor |
