T-Motor Antigravity MN6007II KV320 + Alpha 60A LV ESC Combo

A matched T-Motor propulsion combo pairing the Antigravity MN6007II motor in its 320KV winding with an Alpha 60A LV ESC. The motor is rated for 6S LiPo and 21–22 inch props, a common setup for camera, survey and inspection multirotors built for long flight times.

Key features

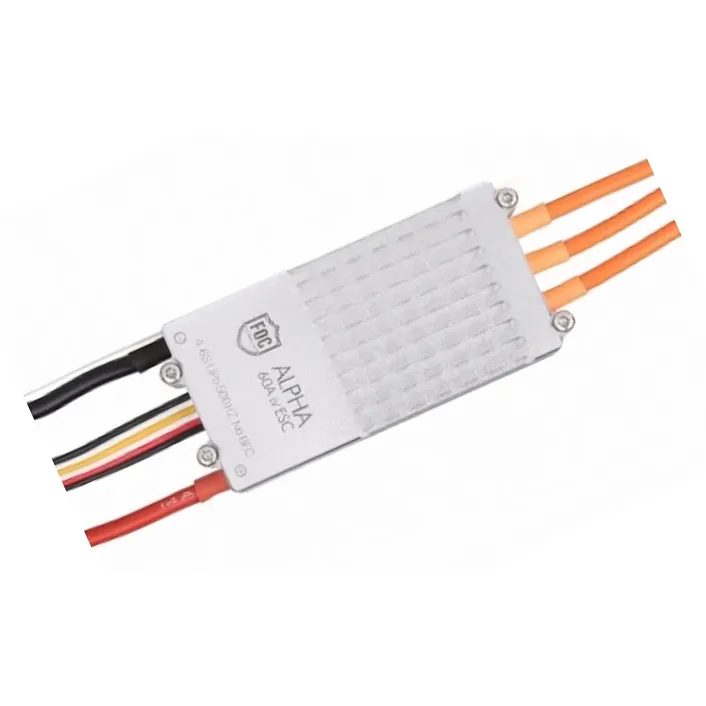

• Alpha 60A LV ESC uses FOC sine-wave drive for smooth, precise and quiet motor control

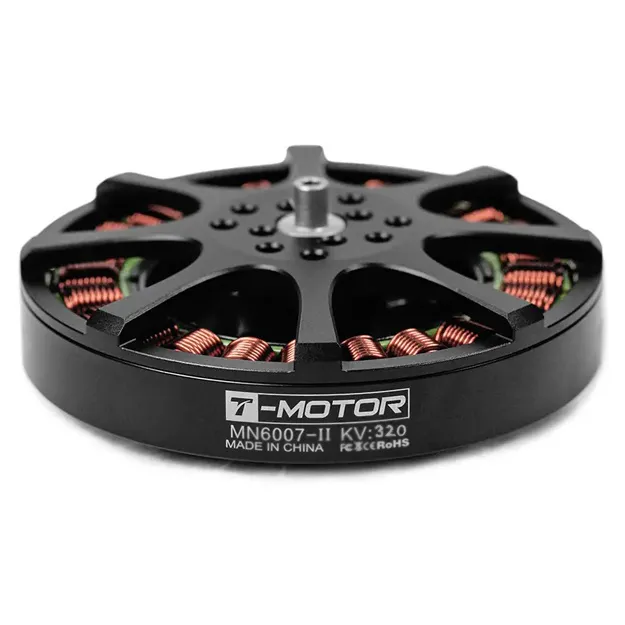

• MN6007II motor designed for sine-wave drive, with an anti-rust stator and high-temperature coatings
• 161 g motor delivering 1040 W peak power for 180 seconds
• Imported 696ZZ bearings and a rotor balanced to 15 mg or better

Specifications

• Motor: MN6007II, 320KV
• Rated voltage: 6S LiPo (22.2 V nominal)
• Configuration: 24N28P
• Dimensions: 67.2 × 26.1 mm (diameter × height)
• Shaft: 6 mm inner, 4 mm output
• Motor weight: 161 g including cable
• Internal resistance: 47.5 mΩ
• Idle current: 1.0 A at 18 V
• Peak current: 44.2 A (180 s)
• Max power: 1040 W (180 s)
• Recommended props: P21×6.3, P22×6.6
• ESC: Alpha 60A LV, FOC

Each combo covers one motor position, so order four for a quad or six for a hexa. T-Motor's recommended props for this motor are the P21×6.3 or P22×6.6 carbon props.
