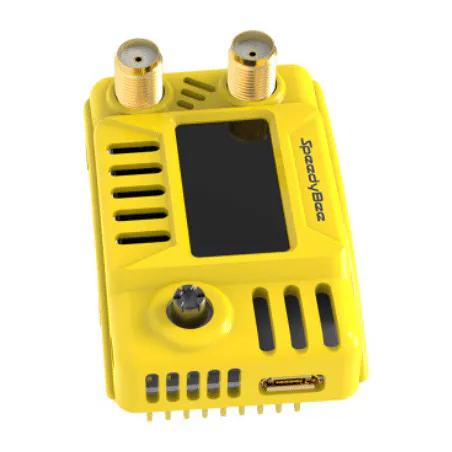

SpeedyBee 5.8GHz Diversity FPV Goggles Receiver Module

The SpeedyBee 5.8GHz Goggles Receiver is an analog diversity module for goggles with a Fat Shark-style module bay. Two built-in receivers feed an independent chip that analyses and fuses both signals in real time, holding a cleaner picture when one antenna loses the signal behind obstacles or at range.

Key features

• Dual-receiver diversity with real-time signal analysis and fusion

• 48 channels across the A, B, E, F, R and L bands, 5.3–5.9GHz, including the low race band

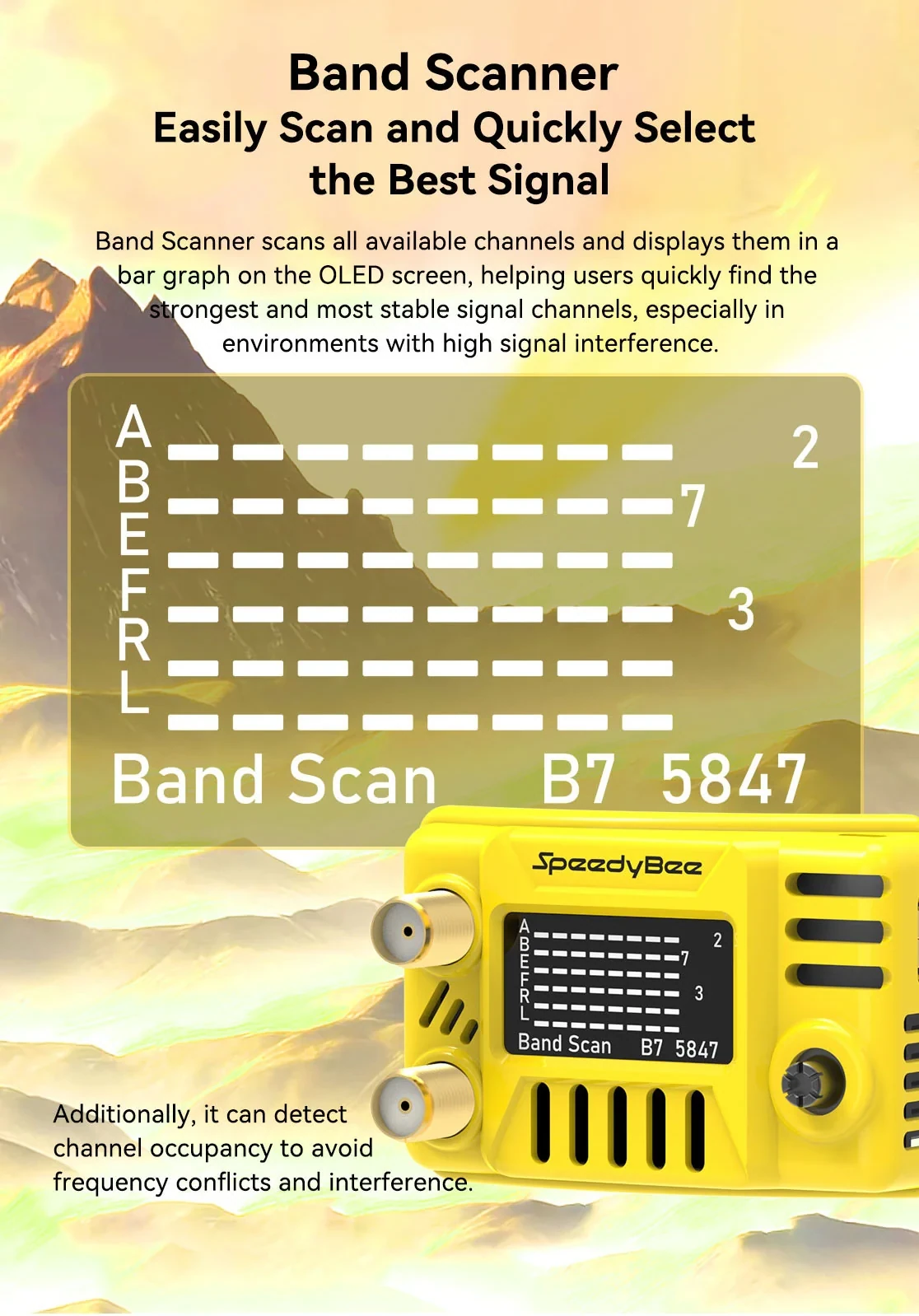

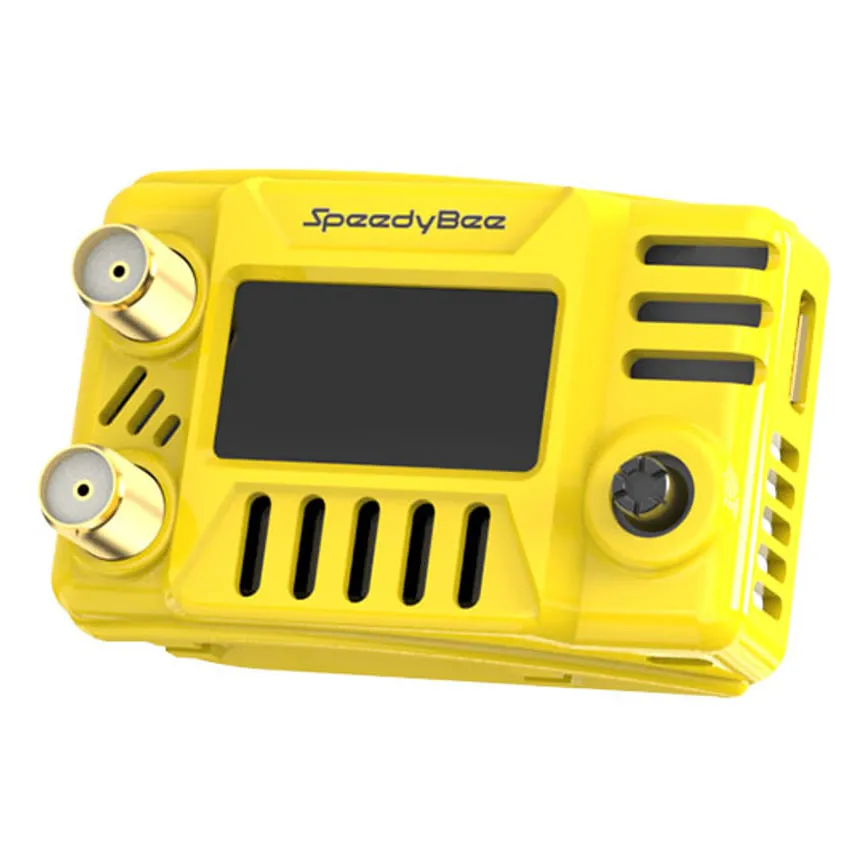

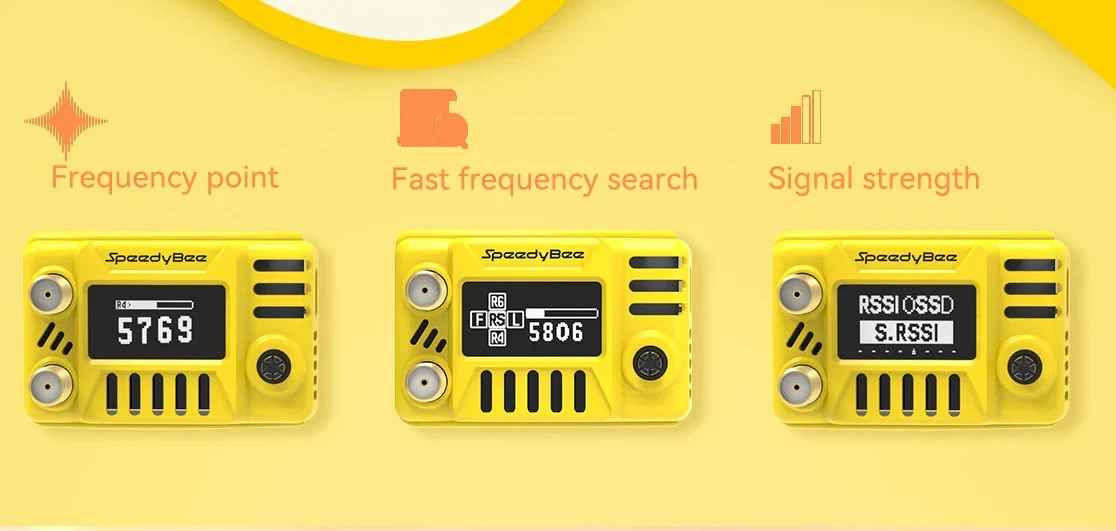

• 128 x 64 OLED screen and 5-way button for changing channels and settings on the module itself

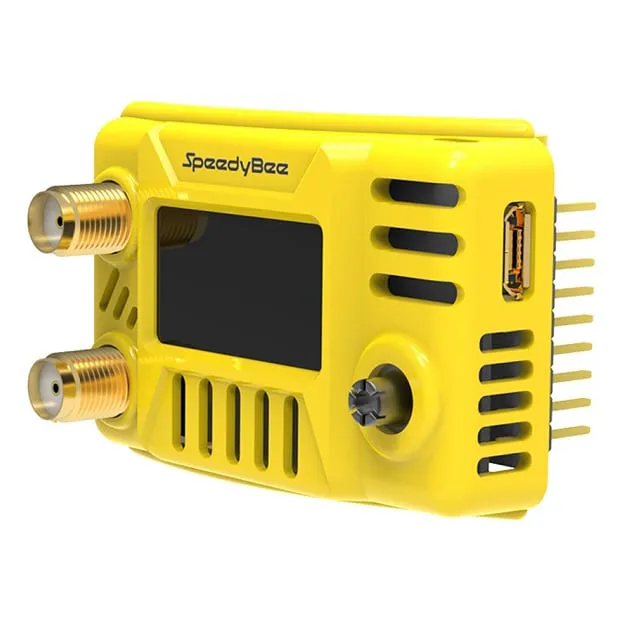

• Two SMA jack antenna ports, for antennas with an SMA plug (internal thread, centre pin)

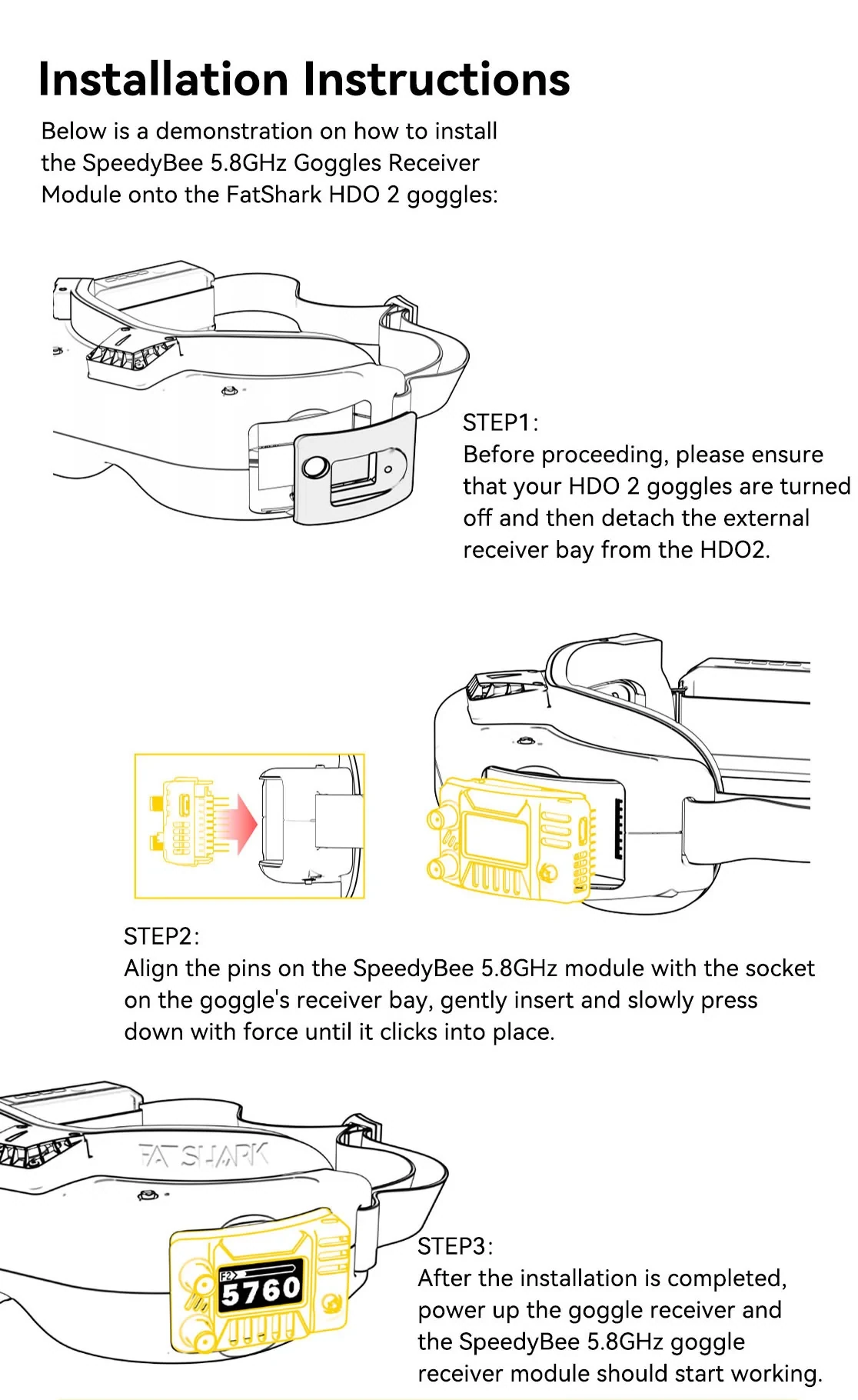

• Fits Fat Shark Dominator V1, V2, V3, SE, HD1, HD2, HD3, HDO and HDO2, and works as the analog module in HDZero goggles

• DJI Goggles V1 and V2 need an adapter board, sold separately; Orqa FPV.One goggles need a 3D-printed housing

Specifications

• Frequency range: 5.3–5.9GHz, 48 channels

• Bands: A, B, E, F, R, L

• Antenna connectors: 2 x SMA jack

• Display: 128 x 64 OLED

• Operating voltage: 5V

• Operating current: 450mA at 5V

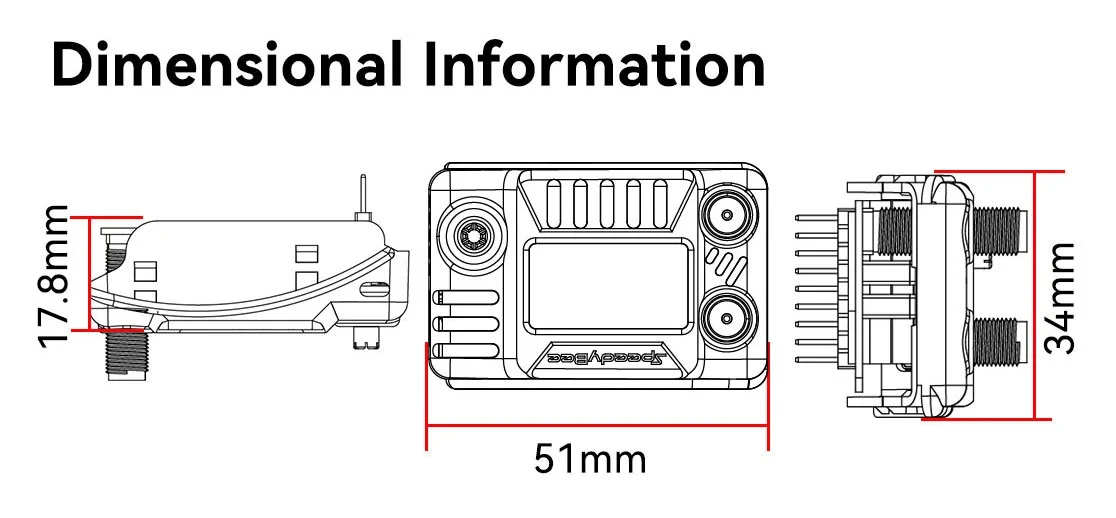

• Dimensions: 51 x 34 x 17.8mm

• Weight: 32.8g

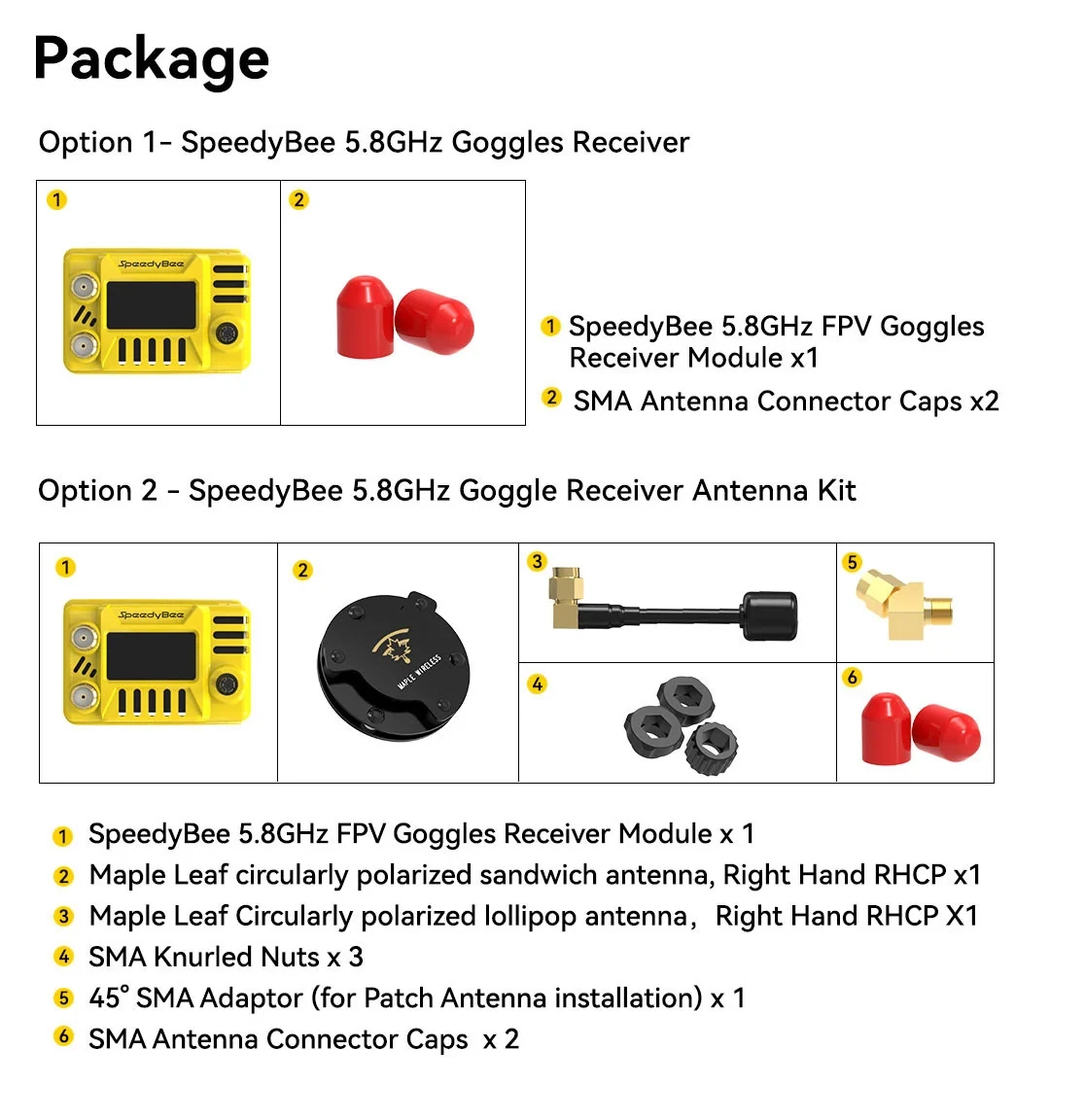

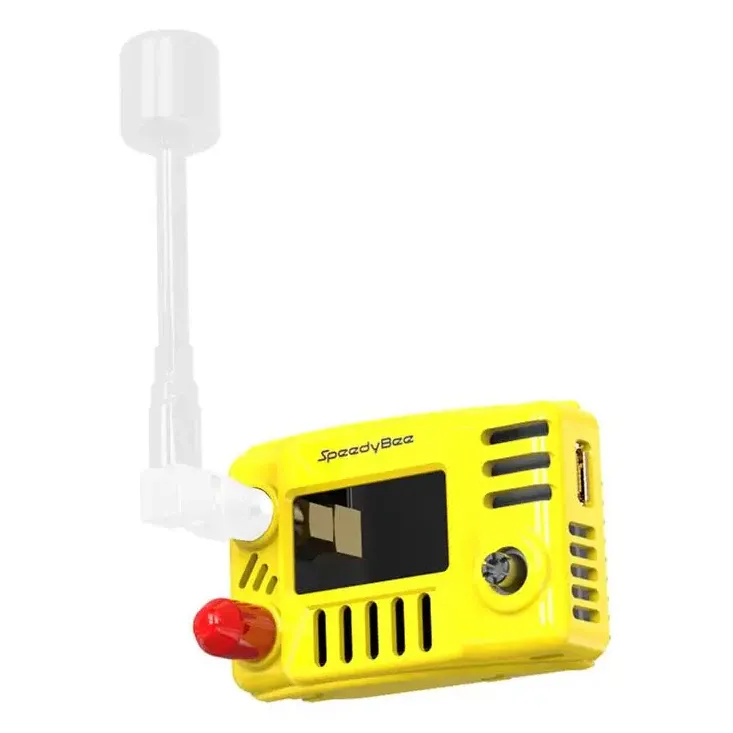

The module ships on its own, so add two SMA-plug 5.8GHz antennas; a patch plus an omni is the usual diversity pairing.
