SpeedyBee 5.8GHz FPV Antenna V2 (2-Pack)
₹1,949Incl. GST
SKU SB-ANT-58G-V2-UFL
Connector: UFL
Polarization: RHCPAntenna Connector: SMA, U.FLFrequency: 5.8GHzMade in India: No
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

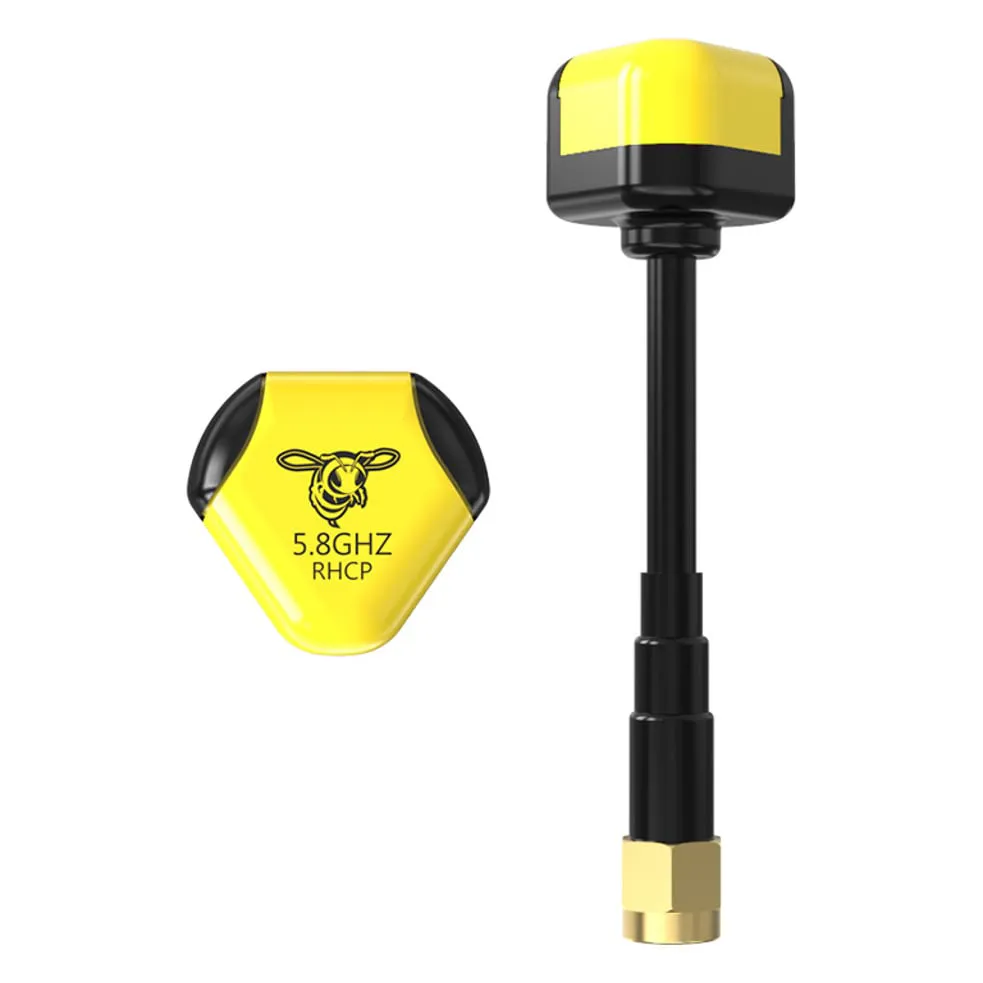

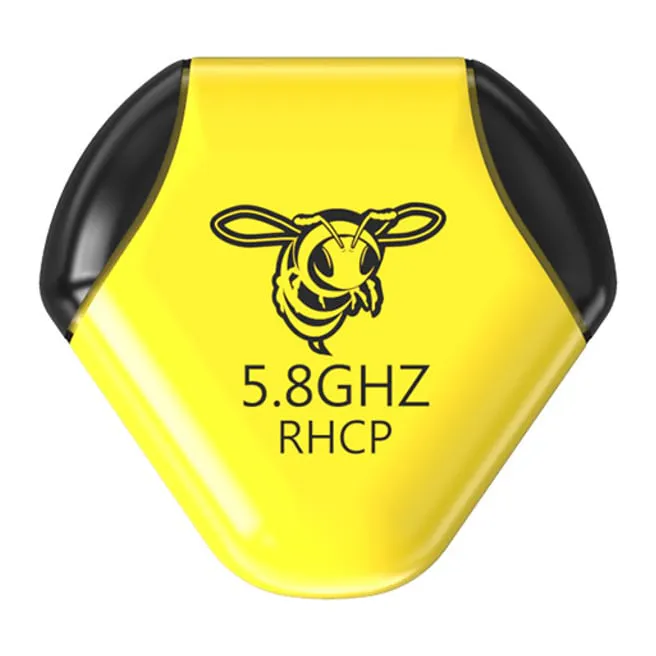

The SpeedyBee 5.8GHz FPV Antenna V2 is a matched pair of RHCP antennas for a drone's video transmitter and FPV goggle receiver, sold in SMA and U.FL connector options.
Key features
- Wide 5.5–6.0GHz bandwidth covers the full 5.8GHz analog and digital FPV band.
- 2.8dBi gain with an axial ratio under 1.0 keeps cross-polarisation loss low for a clean, consistent link.
- SWR under 1.1 at 5.8GHz for efficient power transfer with minimal reflection.
- Tough injection-moulded housing protects the antenna element through crashes.
Specifications
- Frequency range: 5.5–6.0 GHz
- Gain: 2.8 dBi
- Polarisation: RHCP
- Axial ratio: under 1.0
- SWR: under 1.1 (at 5.8GHz)
- SMA version: 20 x 70 mm, 8.2 g
- U.FL version: 20 x 87 mm, 3.7 g

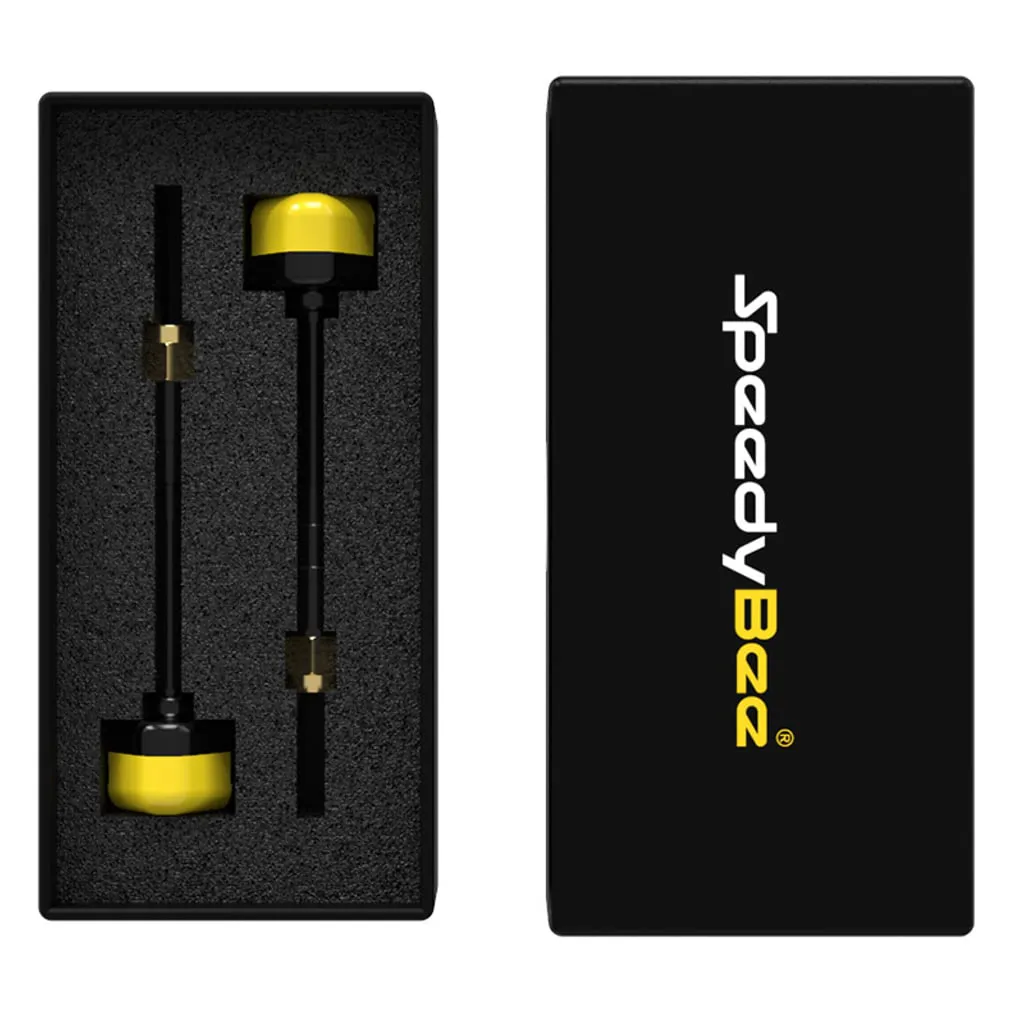

- Pack: 2 antennas
Run this matched pair on both the quad's VTX and the goggle or module receiver for a balanced RHCP link with no polarisation-mismatch loss.
| Polarization | RHCP |
|---|---|
| Antenna Connector | SMA, U.FL |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | SpeedyBee |
| Gain | 2.8 dBi |
| Antenna Type | Omni |
