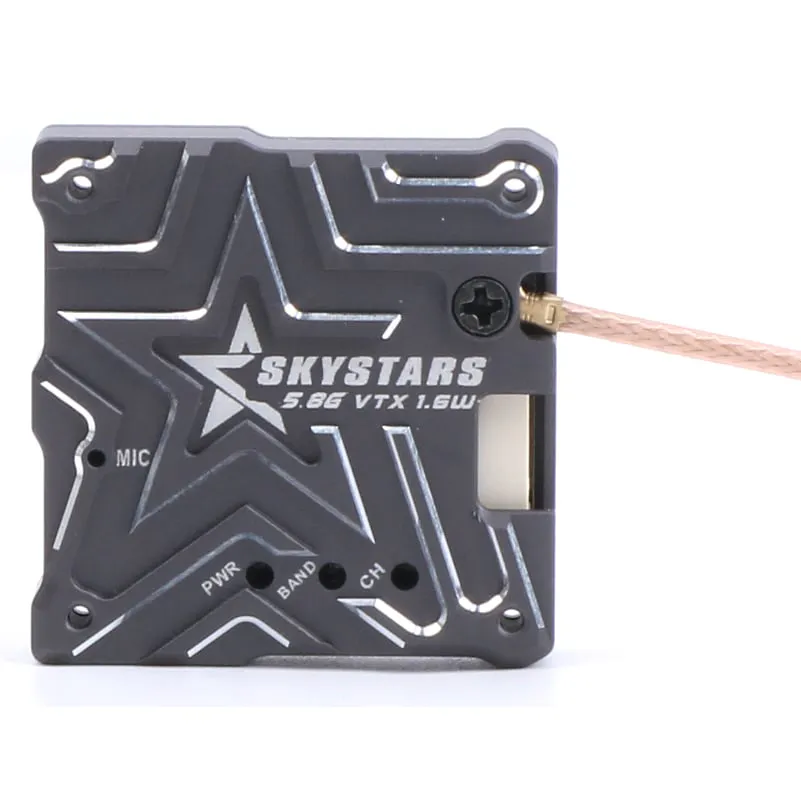

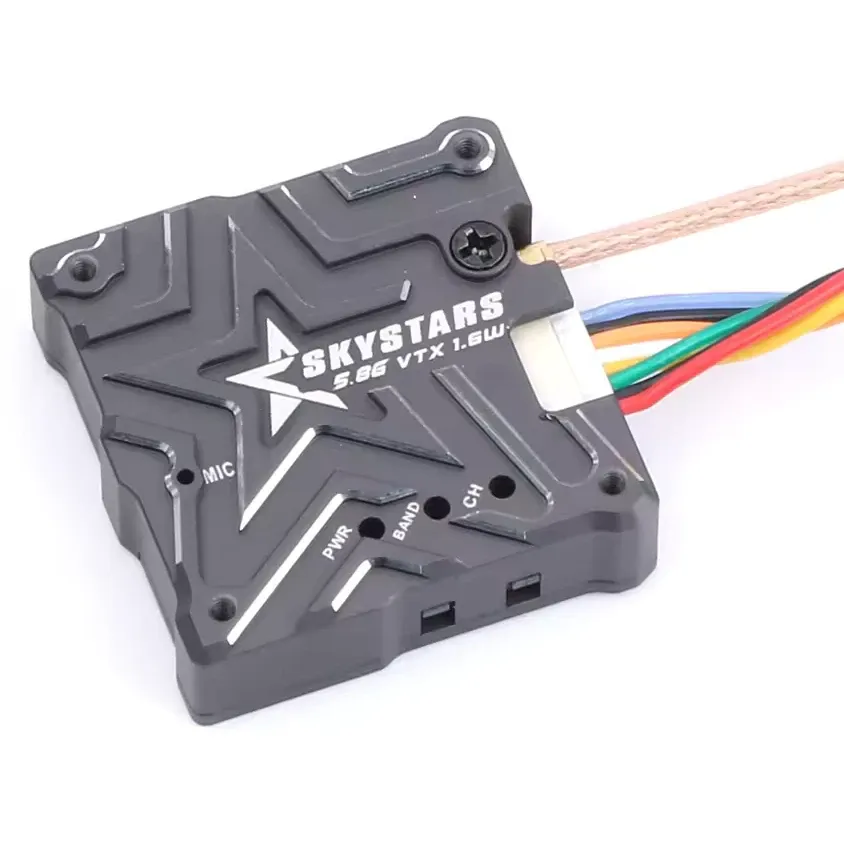

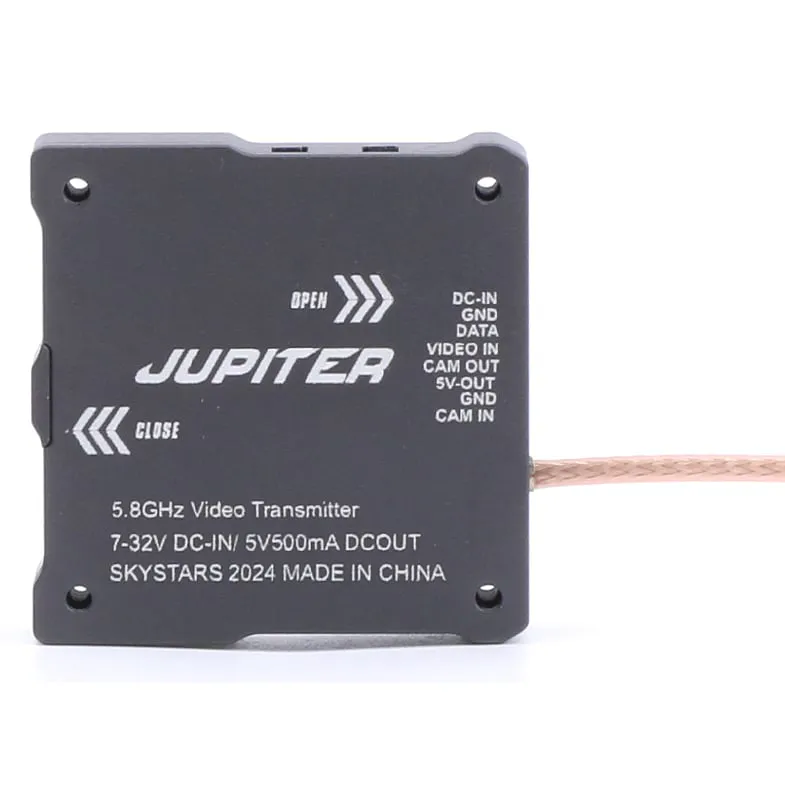

Skystars JUPITER 5.8GHz 1.6W Analog VTX

The Skystars JUPITER 5.8GHz 1.6W Analog VTX is a high-power video transmitter built for long-range FPV pilots, mountain surfers, and heavy-lift cinelifter operators who require consistent signal penetration through dense obstacles. Engineered to output up to 1600mW of RF power, it ensures a clean analog video feed at extreme distances where standard 400mW or 800mW transmitters drop out.

Key features

• Five selectable power levels (PIT, 25mW, 400mW, 800mW, and 1600mW) for versatile operation from pit-lane testing to maximum-range flight
• Full CNC aluminium alloy heatsink enclosure provides exceptional thermal dissipation and shields sensitive RF components from crash debris
• Supports IRC Tramp protocol for quick channel, band, and power adjustments directly via flight controller OSD or radio transmitter
• Wide 7–36V DC input voltage range allows direct powering from 2S to 8S LiPo flight batteries
• Integrated 5V/1A BEC provides clean regulated power to FPV cameras without overloading the flight controller 5V rail

Specifications

• Input Voltage: 7–36V DC (2–8S LiPo)
• Output Voltage (BEC): 5V @ 1A
• Output Power: PIT / 25 / 400 / 800 / 1600 mW
• Control Protocol: IRC Tramp
• Antenna Connector: MMCX
• Mounting Pattern: 30.5x30.5 mm (M3)
• Enclosure: CNC aluminium heatsink case

Due to the high thermal output at 1600mW, mount the VTX in a location that receives active airflow during flight, and always attach an MMCX-compatible 5.8GHz antenna before powering the unit on. For integration with Betaflight, INAV, or ArduPilot, connect the IRC Tramp control wire to any available flight controller UART TX pad.
