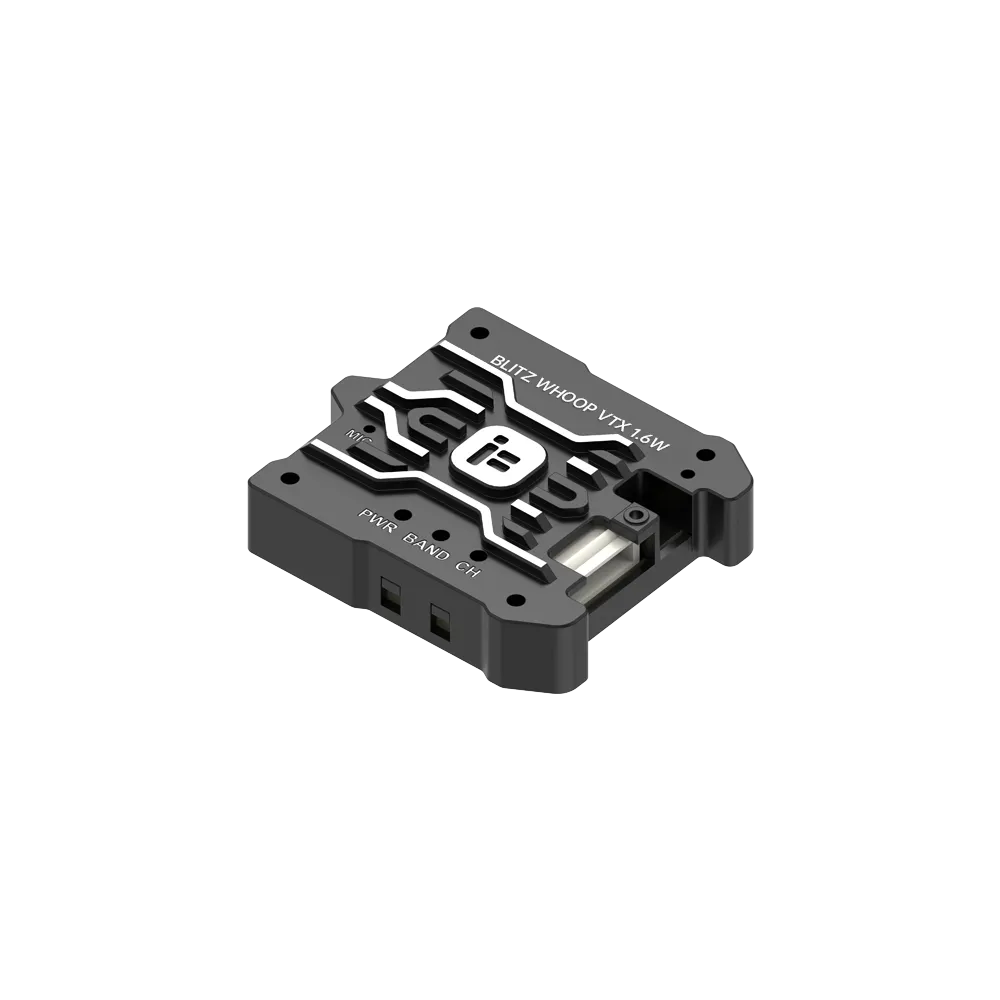

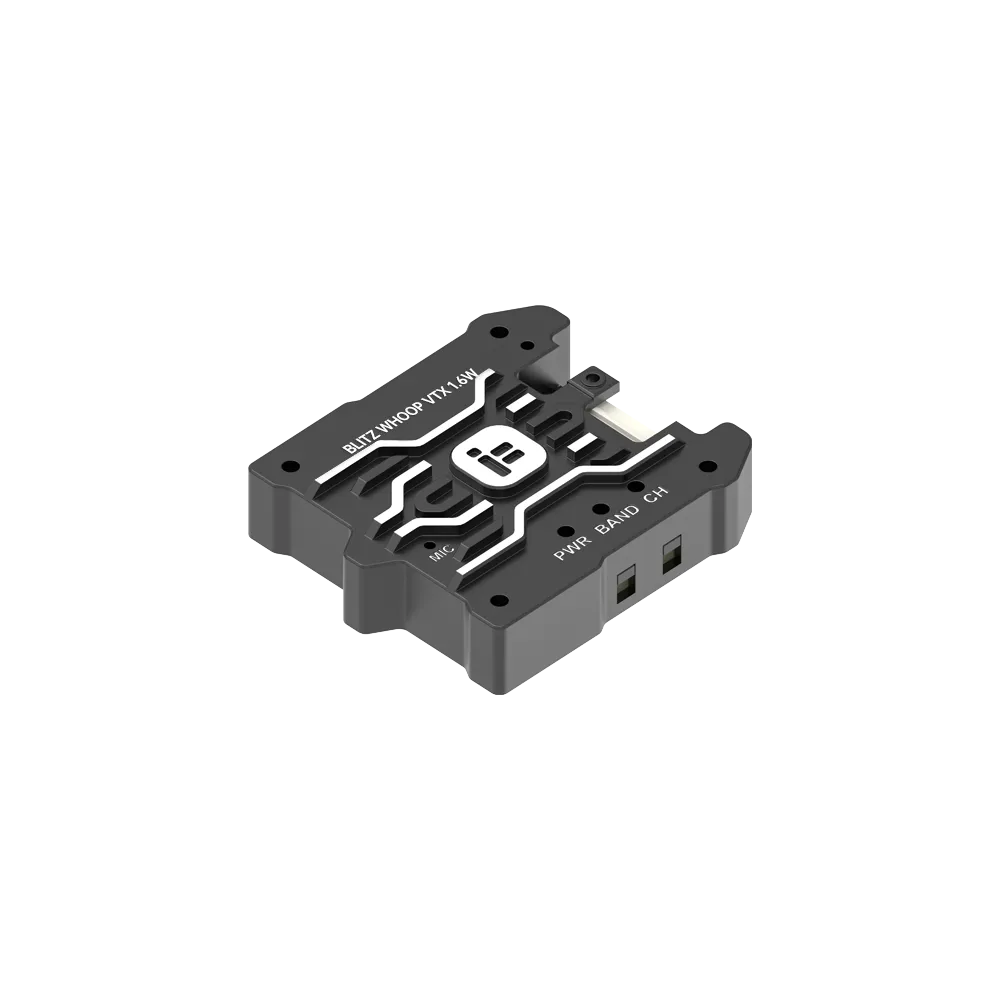

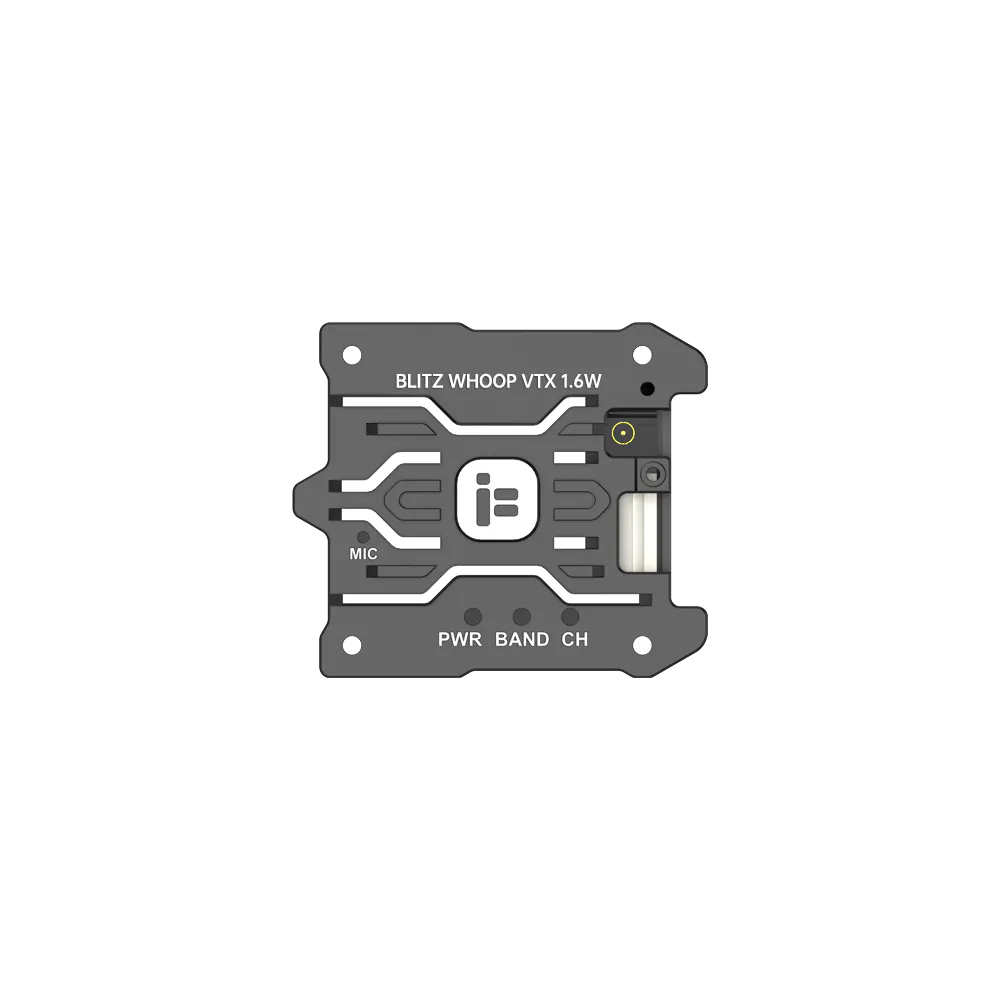

iFlight BLITZ Whoop 5.8GHz 1.6W VTX

The iFlight BLITZ Whoop 5.8GHz VTX brings high-penetration analog video transmission to cinewhoops and micro FPV builds. Outputting up to 1600mW of power, it maintains a robust video feed even when flying through dense foliage or heavy concrete structures. The board is laid out to fit directly onto standard whoop-style AIO stacks without requiring custom mounting hardware.

Key features

• Adjustable output power ranging from PIT mode up to 1600mW to suit varied flight environments.
• Drop-in 25.5x25.5mm mounting pattern designed specifically for micro drones and whoop frames.
• Integrates with Betaflight OSD via the IRC Tramp protocol for quick channel and power adjustments directly from your radio.

Specifications

• Output Power: PIT / 25mW / 400mW / 800mW / 1600mW
• Frequency Band: 5.8GHz
• Mounting: 25.5x25.5mm
• Control Protocol: IRC Tramp

When operating at the maximum 1.6W output, this VTX generates significant heat. Ensure adequate airflow during flight and utilise PIT mode or lower power settings while configuring your drone on the bench to prevent thermal throttling.
