Skydroid H16 Pro 16-Channel Android Remote Controller

The Skydroid H16 Pro is a 16-channel Android ground-station remote that carries RC control, telemetry and 1080P digital video over one 2.4 GHz link, with a range of up to 30 km, three times the 10 km of the standard H16. It is built for agricultural spraying drones and survey, mapping and inspection UAVs where the pilot needs live video and flight data on the controller itself.

Key features

• 7-inch 1920 × 1200 touchscreen at 2000 nits, readable for maps and video in direct sunlight.
• Android on a Pinecone S1 processor runs ground-station apps on the remote, with no phone or tablet needed.
• 20,000 mAh Li-ion battery charged over USB-C.
• Interfaces: HDMI and RJ45 outputs, a sensor interface, dual serial pass-through for telemetry, and SBUS.

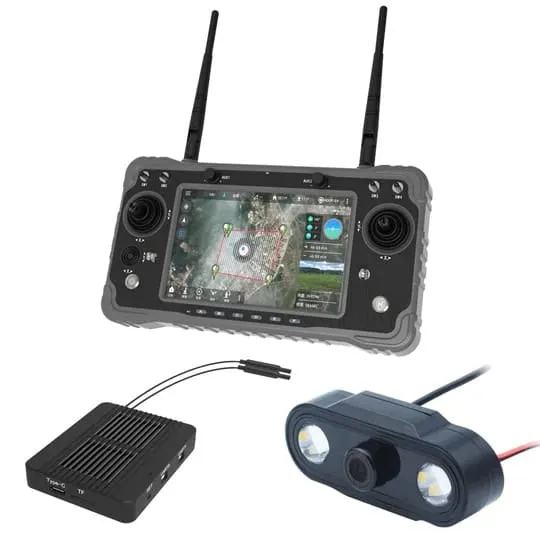

• Two packages: the remote alone, or the remote with the R16 receiver and camera for a complete air-to-ground link.

Specifications

• Channels: 16
• Frequency: 2.400–2.483 GHz, FHSS
• Range: up to 30 km
• Video: 1080P digital
• Screen: 7 inch, 1920 × 1200, 2000 nits
• Battery: 20,000 mAh Li-ion, USB-C charging
• Dimensions: 272 × 183 × 94 mm
• Weight: 1,034 g (remote)
• Operating temperature: -10 to 55 °C
• R16 receiver (receiver and camera package): 7.2–72 V input, 16 channels, 76 × 59 × 11 mm, 90 g

The remote-only package suits operators who already fly a Skydroid H16-series receiver; choose the receiver-and-camera package when equipping a new aircraft. The quoted range assumes clear line of sight and a low-interference site.
