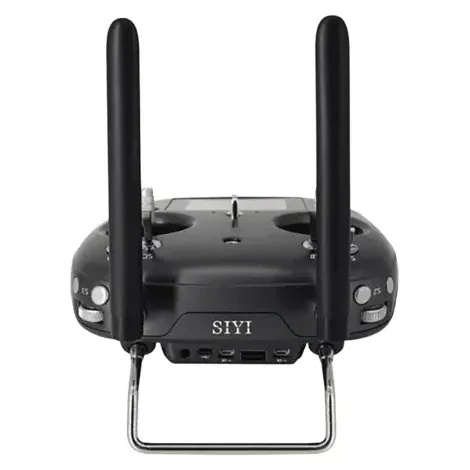

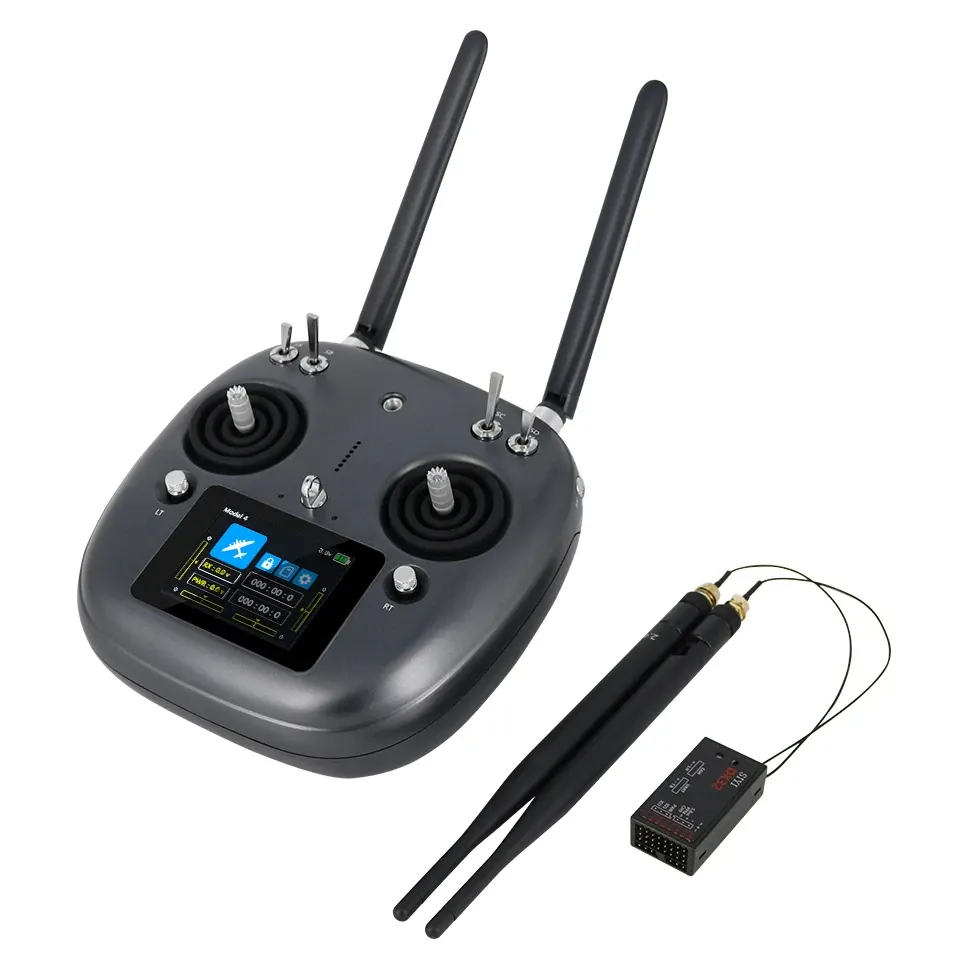

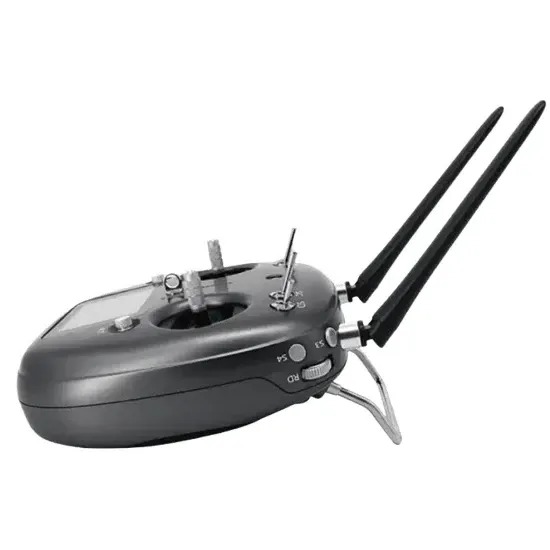

SIYI VD32 2.4GHz 16-Channel Agriculture Drone Remote Controller

The SIYI VD32 is a 3-in-1 radio for agricultural spray drones: RC control, telemetry datalink and a digital video link share one 2.4GHz system, with up to 20 km range for control and data. Live view from its 120° FOV camera appears on a mobile device through SIYI's FPV app, so the operator can watch rows, spray coverage and obstacles from the field edge.

Key features

• 16 physical channels and 16 communication channels, with 4096-step stick resolution
• One-click configuration for common agri flight controllers: open-source PIX and APM boards, BOYING Paladin V2, JIYI K3A Pro and K++, and VK-FLY V7AG
• Agriculture functions built in: one radio controlling several drones, remote-control relay, ESC calibration and voice broadcast
• Stores 64 groups of configuration data (expandable) for switching between aircraft
• Built-in battery with direct USB charging

Specifications

• Frequency band: 2.400–2.483GHz
• Channels: 16 physical, 16 communication
• Radio and datalink range: up to 20 km, unobstructed
• Receiving sensitivity: -101 dBm

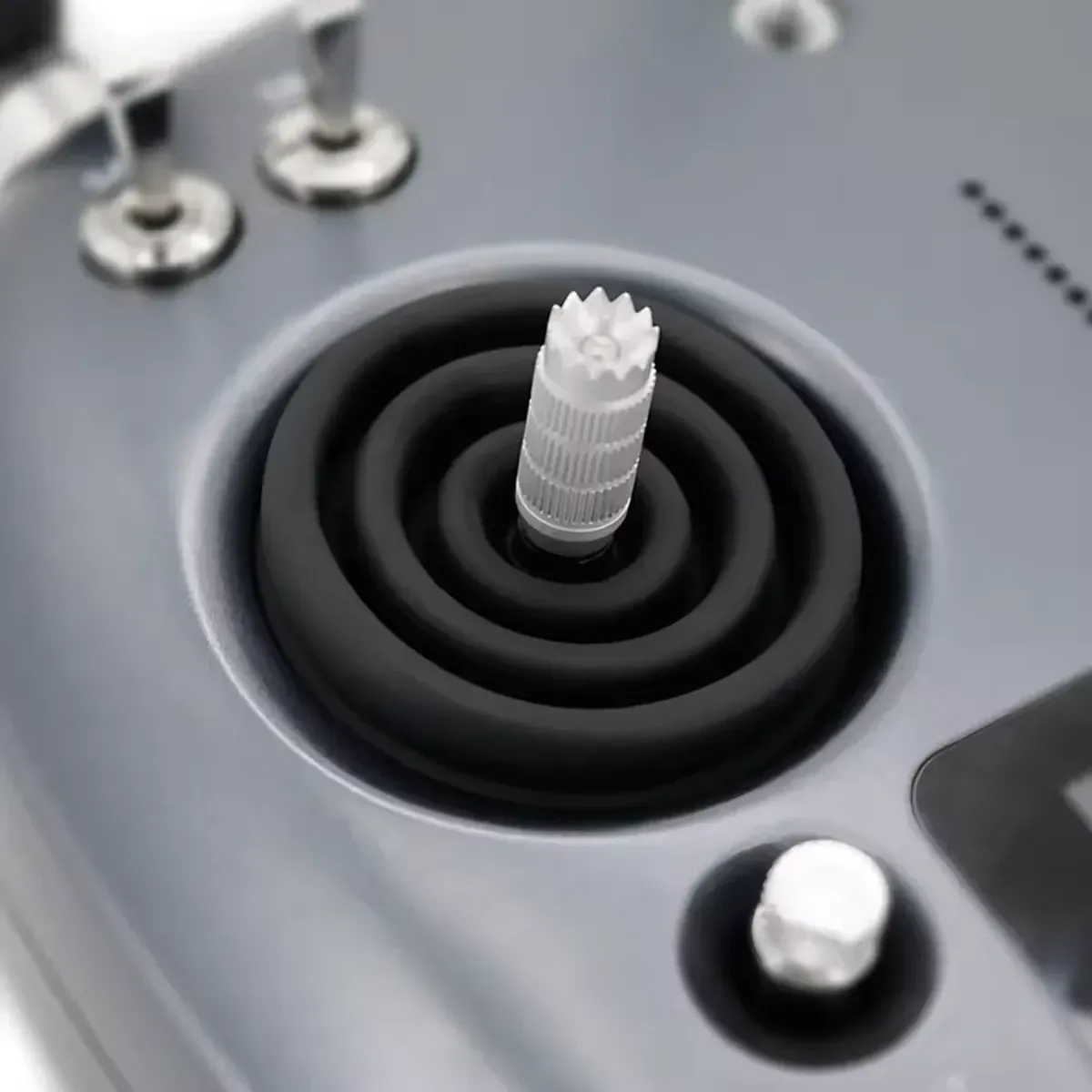

• Stick resolution: 4096 steps
• Model memory: 64 groups, expandable
• Camera field of view: 120°
• Supported models: planes, copters, gliders, multirotors, vehicles, boats, robotics
• Packed size and weight: 24 × 18 × 13 cm, 1382 g

Confirm your flight controller is on the supported list before ordering. The VD32 is built for spray and utility drones; for a small FPV quad, an ELRS radio is the simpler fit.
