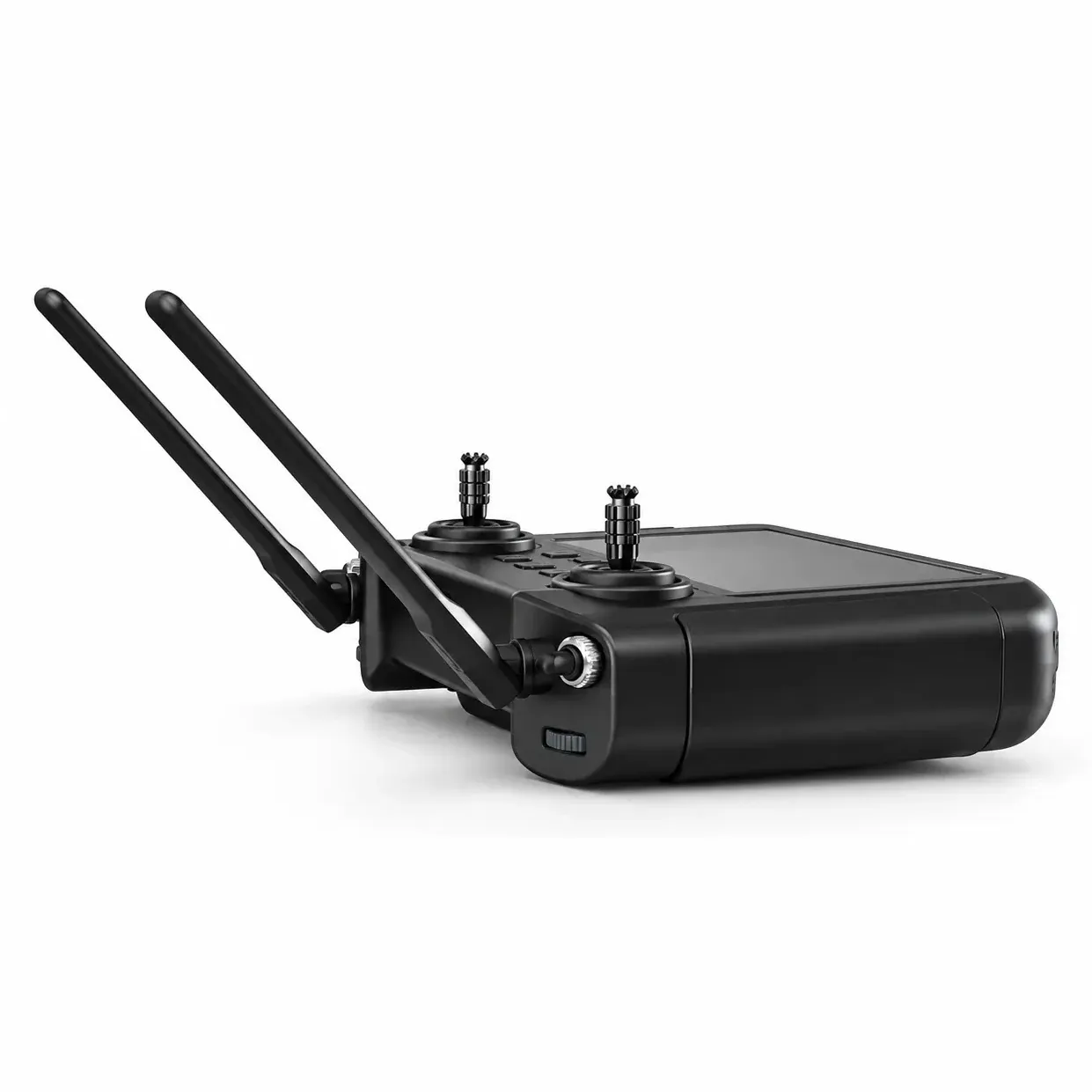

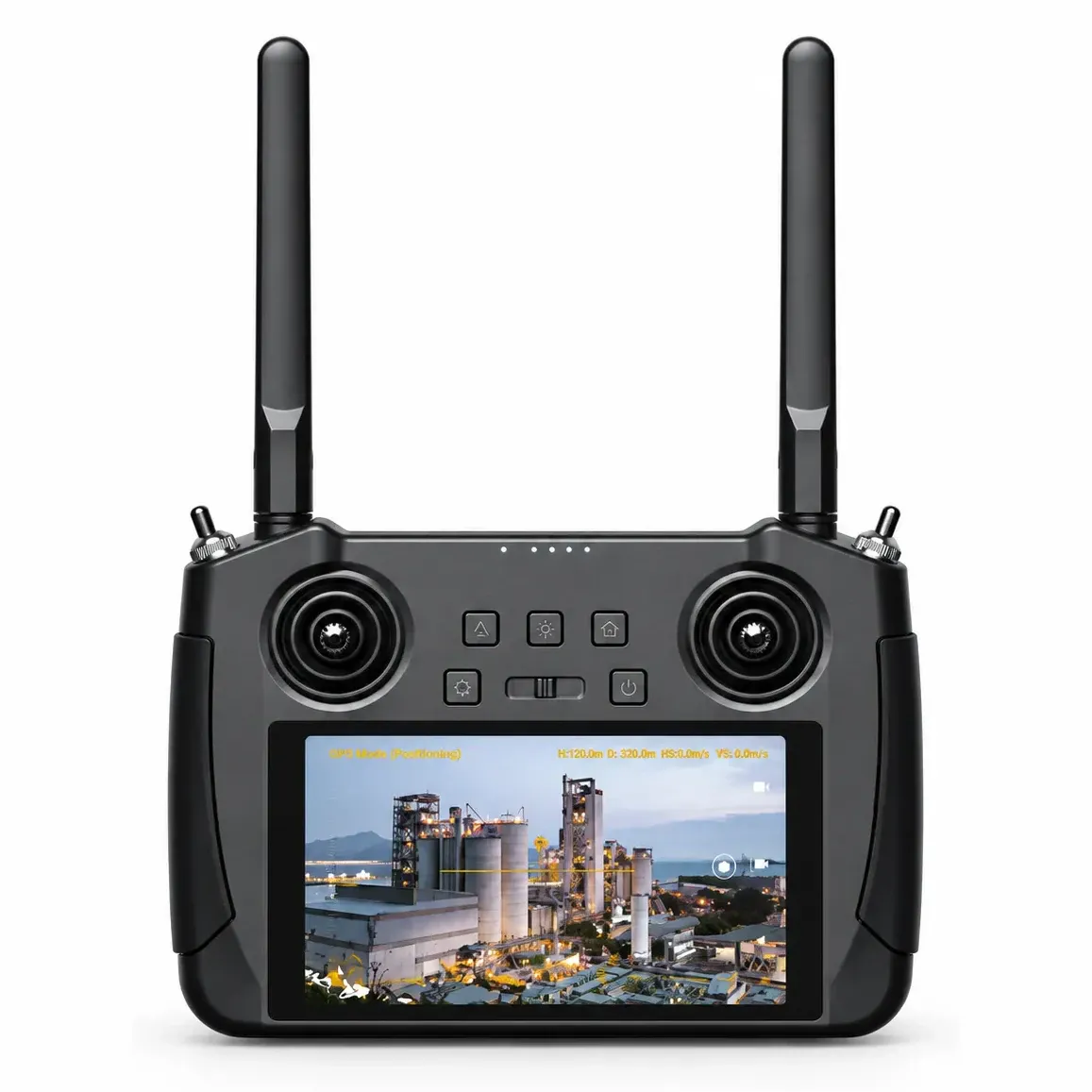

SIYI MK15 Smart Controller Combo (15km, 5.5" 1080p)

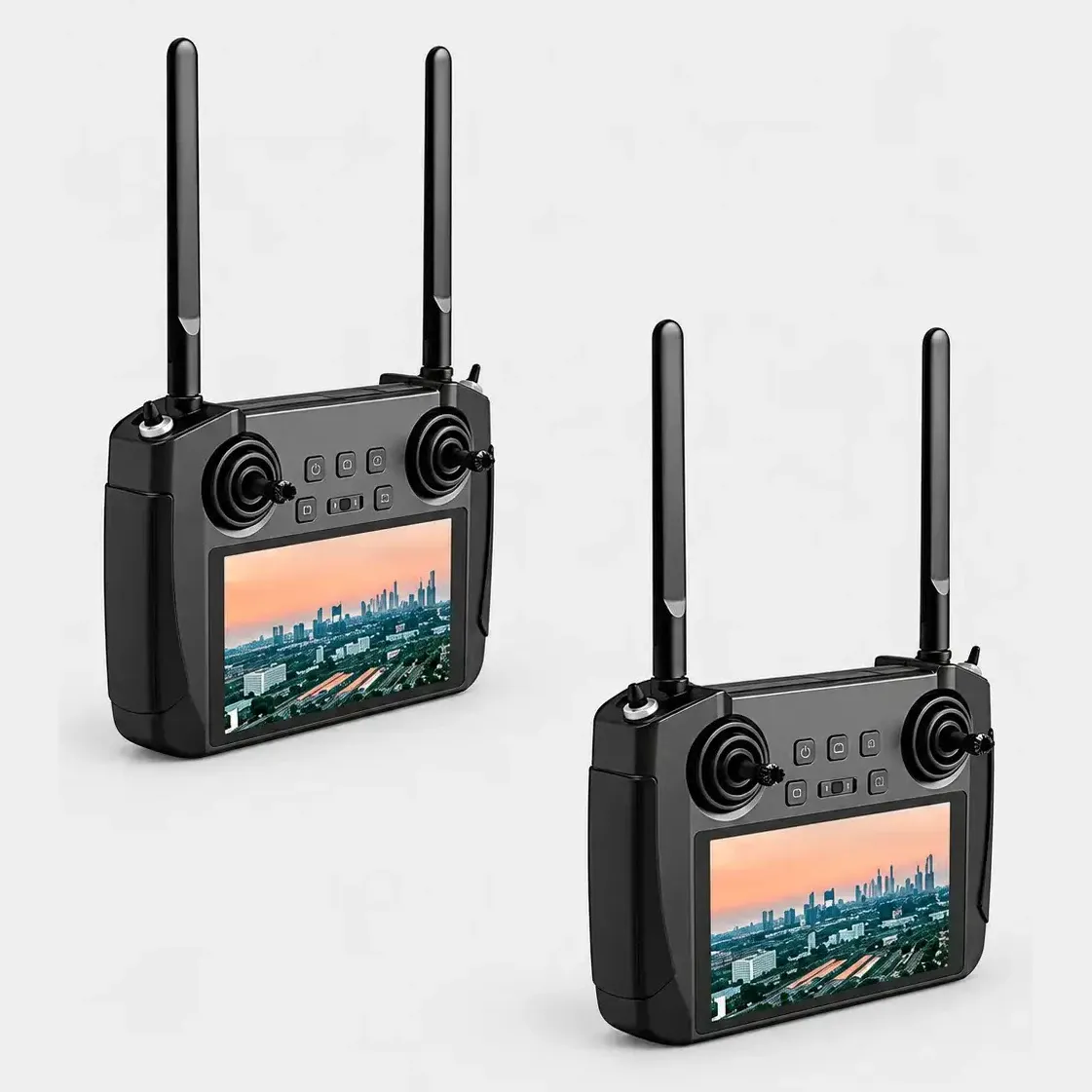

The SIYI MK15, sold here as Enterprise HDMI, Enterprise Standard, Agriculture and Dual Operator (master + slave) combos, is an all-in-one smart controller engineered for heavy-lift enterprise, agricultural, and long-range UAV platforms. Operating on a 5.8GHz HD digital transmission system, it merges radio control, telemetry, and low-latency 1080p video into a single ground station. The integrated 5.5-inch, 1000-nit high-brightness monitor runs the Android OS, allowing direct installation of ground control software like QGroundControl or Mission Planner.

Key features

• Up to 15km transmission range with integrated 5.8GHz data and HD video
• 5.5-inch 1920x1080 1000-nit LCD for clear daylight visibility
• Android 9.0 OS with an 8-core CPU for running native GCS applications
• Up to 15-hour runtime via the built-in 10200mAh battery with 30W PD fast charging
• Combo includes the Air Unit, whose Ethernet video input takes HDMI sources through the supplied HDMI input converter

Specifications

• Operating frequency: 5.1-5.8 GHz
• Display: 5.5-inch LCD (1920x1080, 1000 cd/m²)
• Max range: 15 km (FCC), 8 km (CE)
• Battery: Built-in 2S 10200mAh Li-Ion (7.4 V, 75.48 Wh)
• Battery life: Up to 15 hours
• Operating system: Android 9.0 (2GB RAM, 16GB ROM)
• Supported firmware: ArduPilot, PX4
• Video input (Air Unit): Ethernet 8-pin, with the included HDMI input converter

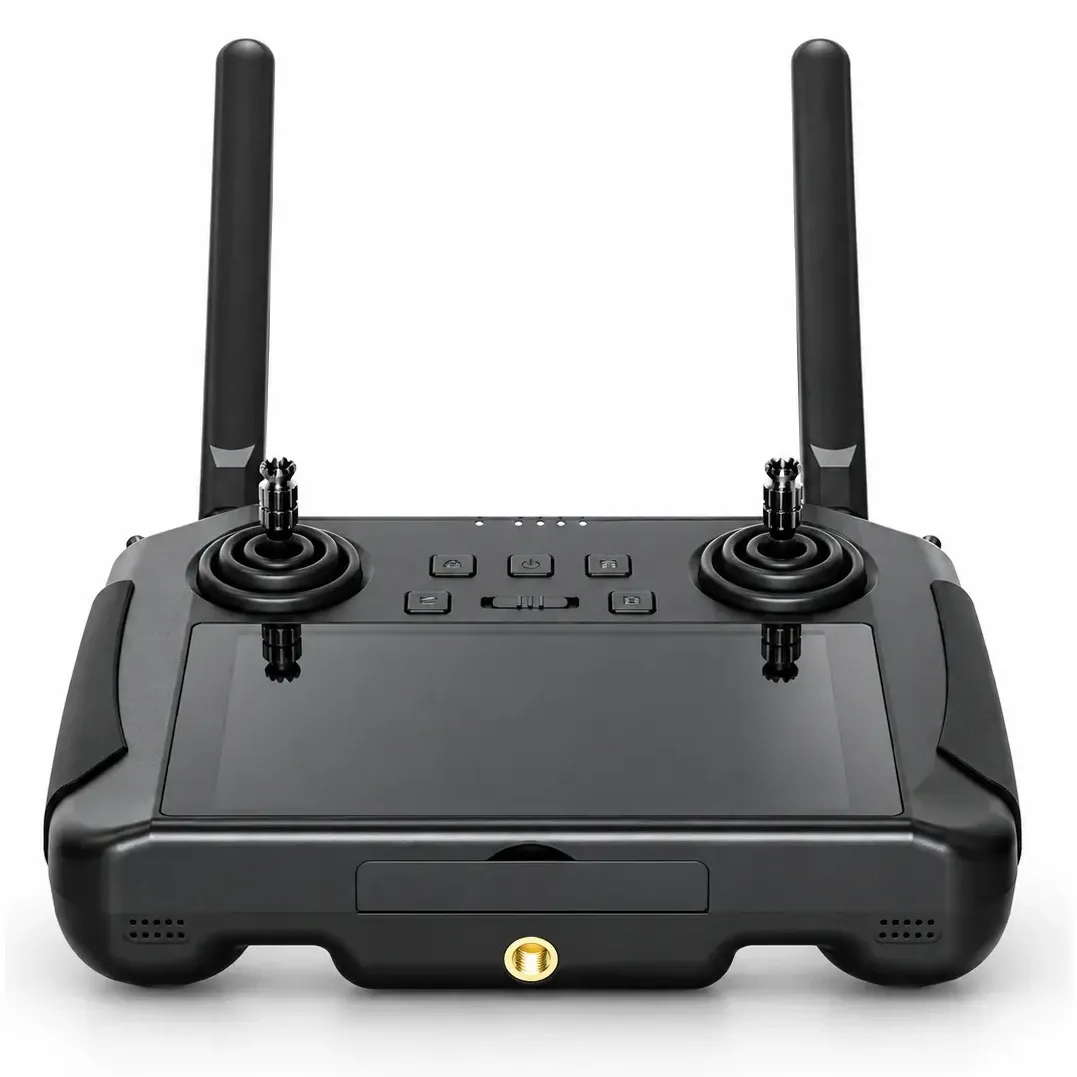

• Controller ports: USB-C charging, SIM card slot (4G/LTE), TF card slot, standard HDMI output, USB-A, 4-pin DATA ports for firmware upgrade and external RTK, 1/4-inch tripod mount
• Controller dimensions: 189 x 138 x 41 mm (antennas folded)
• Controller weight: 850 g
• Water resistance: IP53
• Operating temperature: -10 to 55 C
• Air Unit outputs: 16 channels S.BUS, 5 channels PWM, UART 4-pin datalink to the flight controller
• Air Unit power input: 14.8-58.8 V (4S-14S)
• Air Unit size and weight: 75 x 48 x 17 mm, 116 g (antennas excluded)
• Antenna gain: 5 dBi (standard omni)

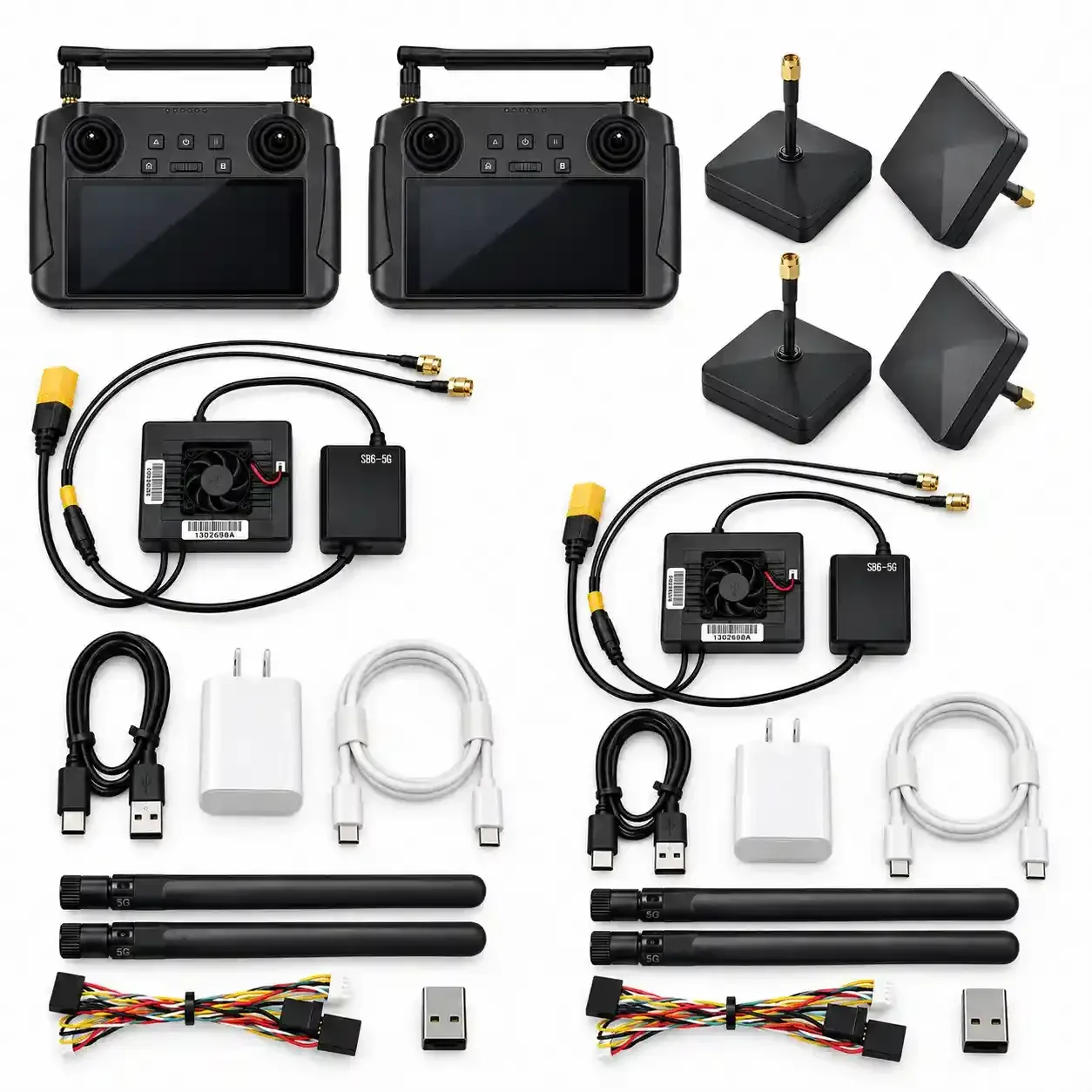

• In the box (HDMI Combo): MK15 controller, MK15 Air Unit, 4 standard omni antennas, 2 long-range antennas, HDMI input converter, 4 cables, PD fast charger with USB-C cable, USB-C to USB-A adapter, carrying case

Choose the HDMI Combo, which adds the air unit's HDMI input converter, or the Standard Combo of controller and air unit without it. Ideal for custom heavy-lift rigs, fixed-wing mappers, and agricultural drones. The included HDMI Air Unit allows seamless integration with professional payloads like mirrorless cameras or industrial gimbals, routing HD video and telemetry straight to your fingertips.
