FlySky FS-G7P 2.4GHz Transmitter + FS-R7P Receiver

The FlySky FS-G7P is a 7-channel 2.4GHz transmitter supplied with the matching FS-R7P receiver, built for RC car, boat and robotics projects rather than aircraft.

Key features

• 7 channels of control with 1024-step resolution on both transmitter and receiver
• PWM, PPM, i-BUS and S.BUS outputs cover most car, boat and robot electronics
• 128x64 monochrome LCD on the transmitter shows settings and status at a glance
• Runs from 4 x AA batteries or a 2S LiPo pack (JST 2-pin), with USB-C firmware updates
• Receiver runs from 3–9V DC and shares the same 2.4GHz link and output protocols
• Rated for use between -10°C and 60°C

Specifications

• Channels: 7
• Frequency: 2.4GHz
• Protocol: ANT, two-way data
• RF power: under 20 dBm
• Resolution: 1024
• Outputs: PWM / PPM / i-BUS / S.BUS

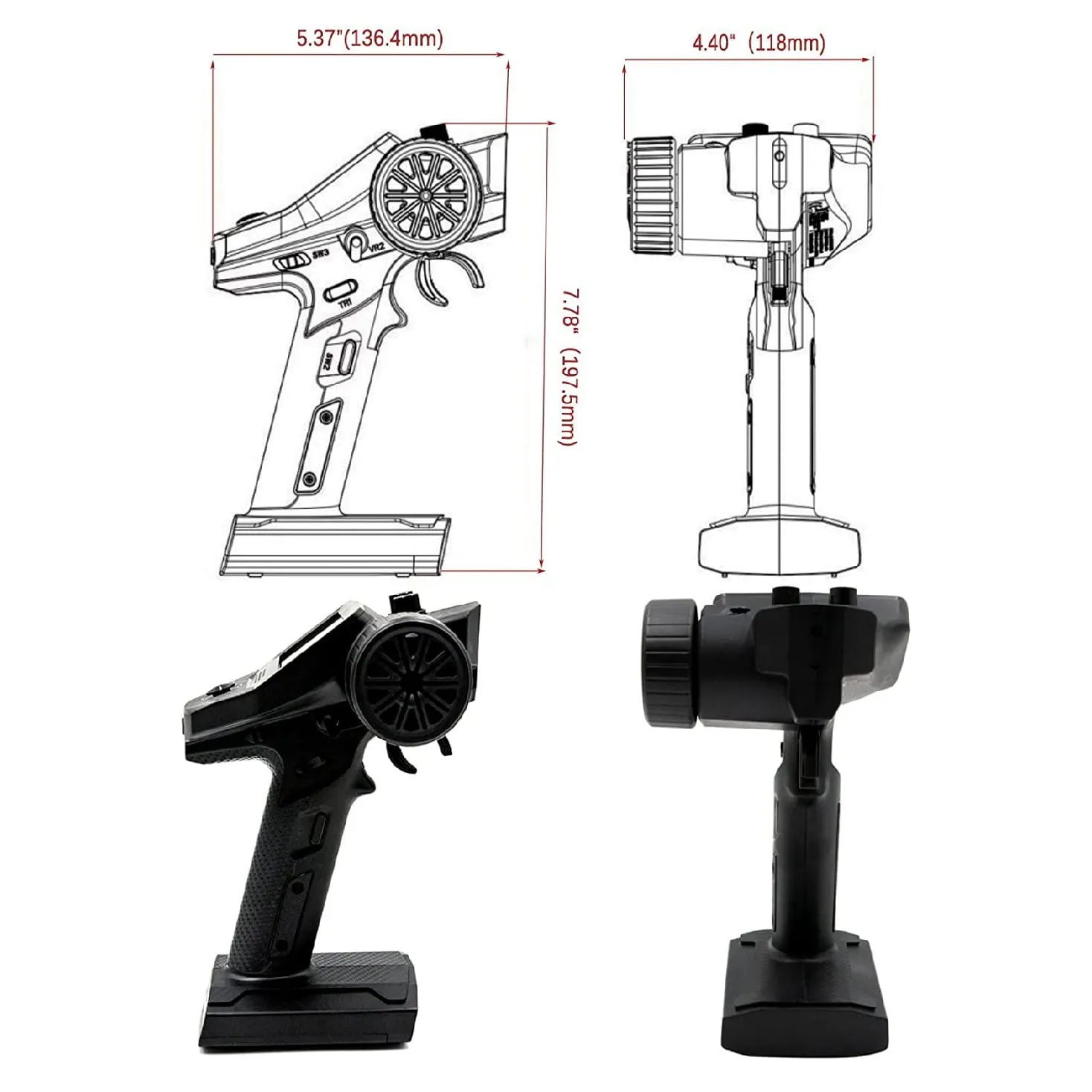

• Transmitter weight: 301g
• Transmitter power: 4 x AA or 2S LiPo
• Transmitter input: 4-9 V DC, no charging jack
• Antennas: built-in single antenna on transmitter and receiver
• In the box: FS-G7P transmitter, FS-R7P receiver, user guide (batteries not included)

Wire the receiver's PWM, i-BUS or S.BUS output to match the ESC, servos or controller on your car, boat or robot build.
