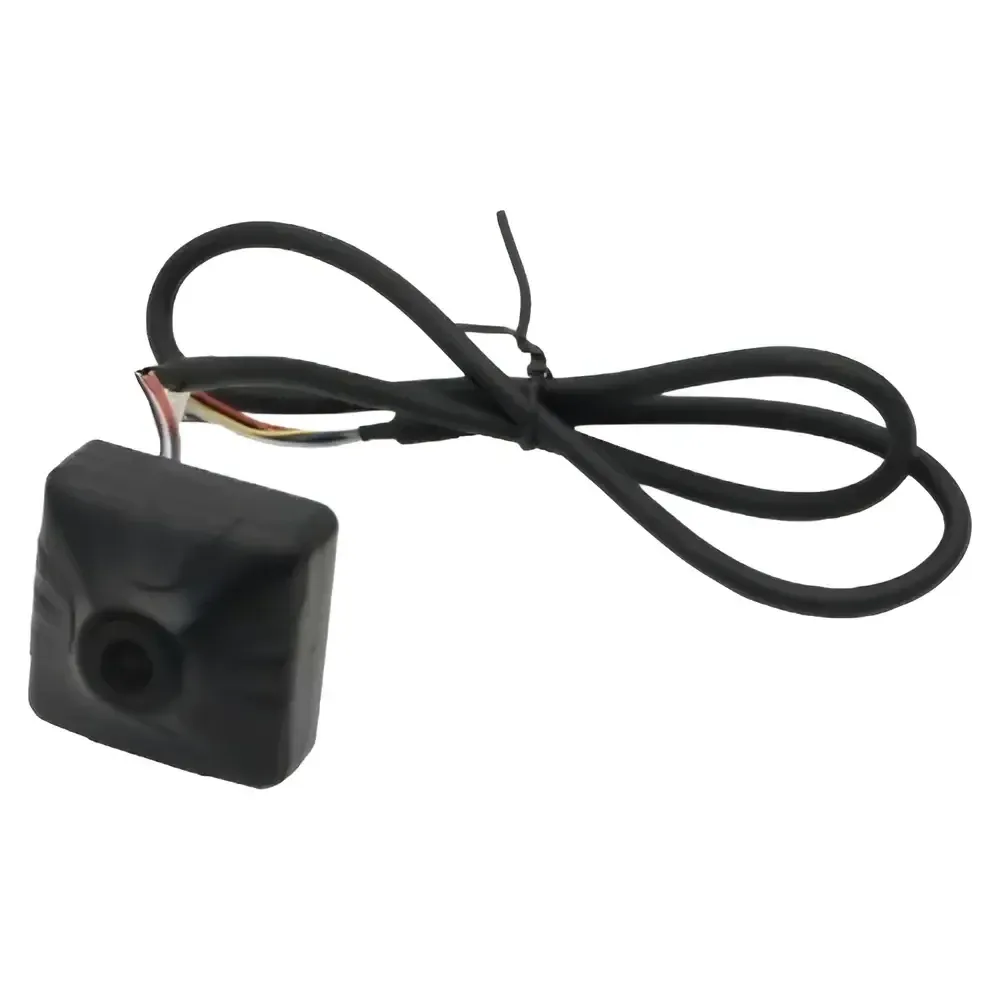

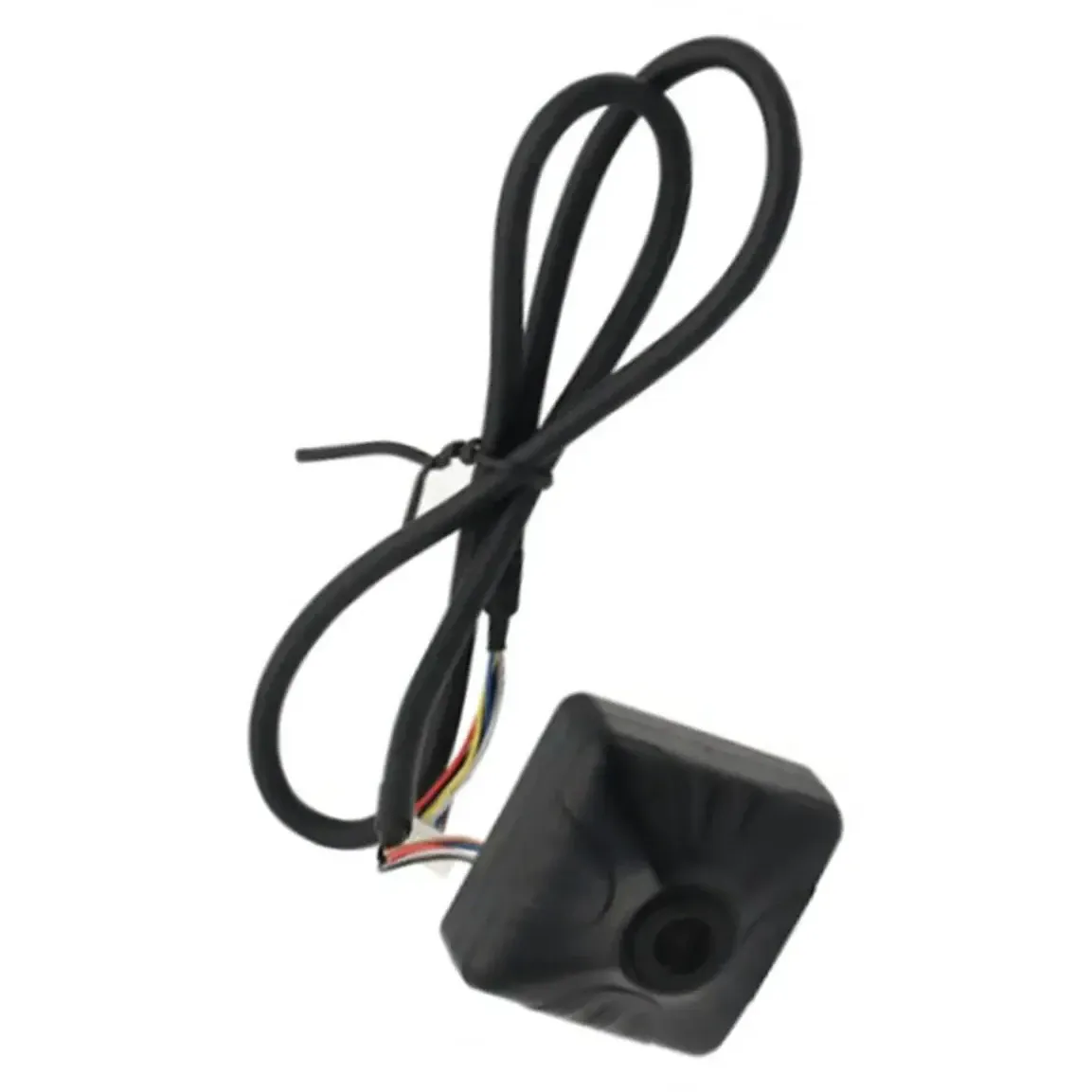

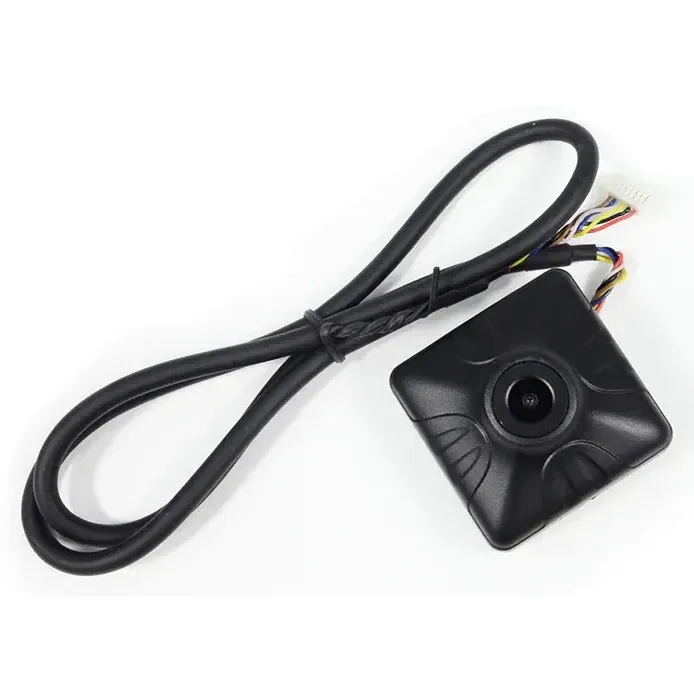

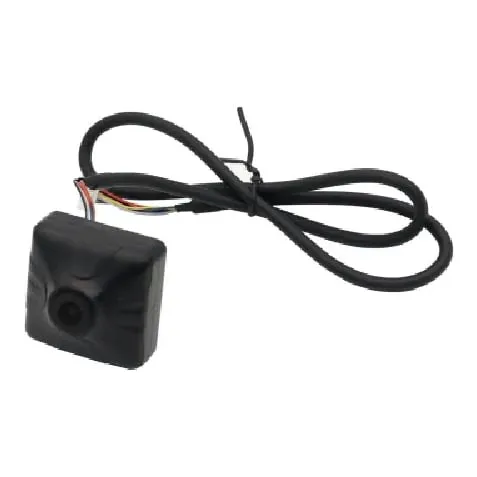

SIYI R1M Recording FPV Camera 1080 30fps with Ethernet Port

The SIYI R1M is a compact IP camera that connects to SIYI HM30, MK15 and MK15E air units over Ethernet, sending live video to the ground while recording onboard to a microSD card. It suits industrial and agricultural drones already flying an HM30 or MK15 link.

Key features

• 1/2.9-inch image sensor with a 90° diagonal and 80° horizontal field of view
• Onboard recording at 1080p or 720p, both at 30 fps, in H.264 at 12 Mbps
• Takes microSD Class 10 cards up to 32 GB, formatted FAT32
• Runs on 12 V and draws about 3 W
• Compact 42 x 42 x 25 mm body weighing 39 g, with a 60 cm cable

Specifications

• Image sensor: 1/2.9"
• Field of view: D 90°, H 80°
• Recording: 1920 x 1080 @ 30 fps, 1280 x 720 @ 30 fps
• Video format: H.264, 12 Mbps
• Storage: microSD Class 10, up to 32 GB, FAT32
• Interface: Ethernet
• Operating voltage: 12 V
• Power consumption: 3 W
• Dimensions: 42 x 42 x 25 mm
• Weight: 39 g
• Cable length: 60 cm
• Compatible air units: HM30, MK15, MK15E

Make sure your air unit has a free Ethernet port for the camera, and use a card of 32 GB or less formatted to FAT32 — larger cards are not supported.
