SEQURE M10-25Q GPS Module

The SEQURE M10-25Q is a high-performance GPS and compass module built around the 10th-generation u-blox M10 chipset. Designed for mid-to-long-range FPV wings, cinelifters, and autonomous INAV or ArduPilot builds, this module leverages a large 25x25mm ceramic patch antenna for rapid satellite acquisition and strong signal retention in challenging environments.

Key features

• Powered by the u-blox M10 architecture for concurrent multi-constellation tracking.

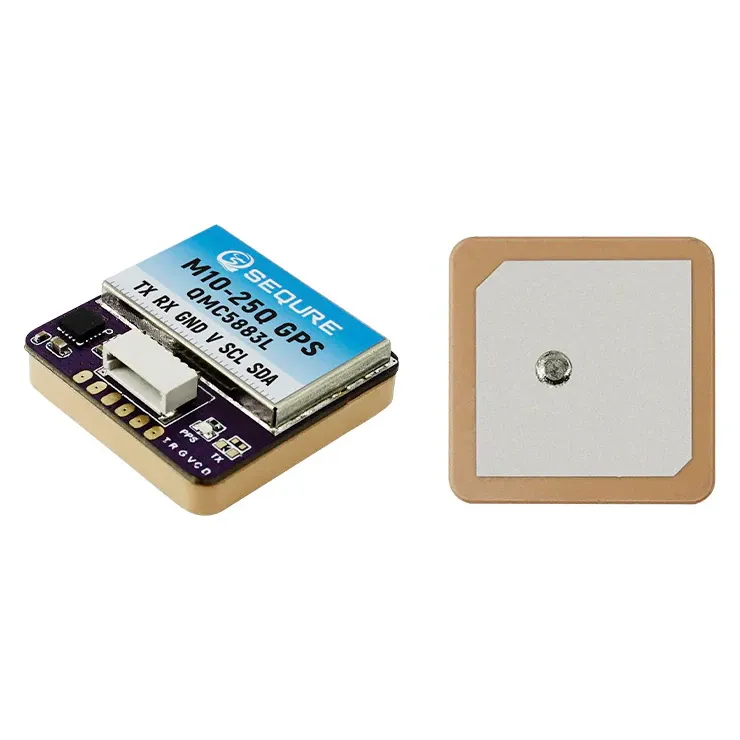

• High-gain 25x25mm ceramic patch antenna ensures robust locks and low HDOP values.
• Integrated compass delivers accurate heading data required for precise GPS rescue modes and waypoint navigation.
• Standard UART and I2C interface allows straightforward wiring to modern flight controllers.

Specifications

• GNSS Chipset: u-blox M10
• Antenna Size: 25x25mm
• Supported Constellations: GPS, Galileo, GLONASS, BeiDou
• Compass: Integrated QMC5883L
• Power supply: 5 V
• Dimensions: 25 x 25 x 8 mm

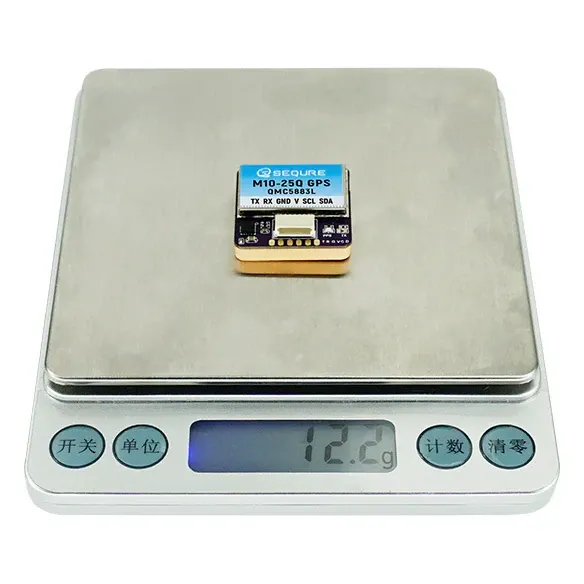

• Weight: 12.2 g
• Connector: SH1.0 6-pin plug or PCB solder pads
• Channels: 72
• Baud rate: 115200 bps
• Output protocol: NMEA / UBLOX, compass over I2C
• Update rate: 1-10 Hz (10 Hz default)

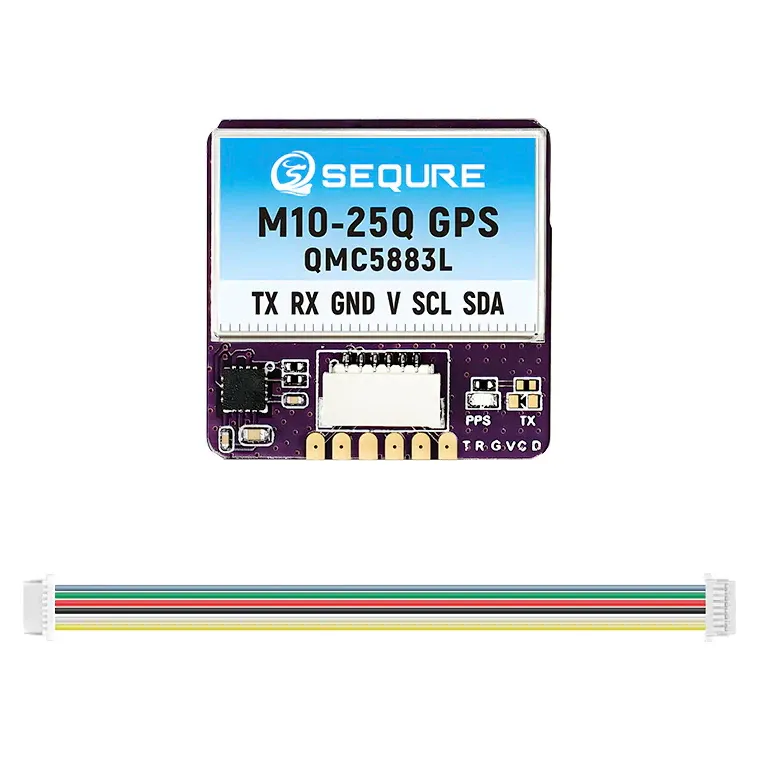

• In the box: GPS module, cable

Ideal for 5-inch to 7-inch long-range rigs and fixed-wing platforms requiring reliable autonomous features. For the most accurate heading hold, mount the module on a mast or an elevated TPU print, keeping it physically separated from high-current battery leads and video transmitters to minimise magnetic interference.
