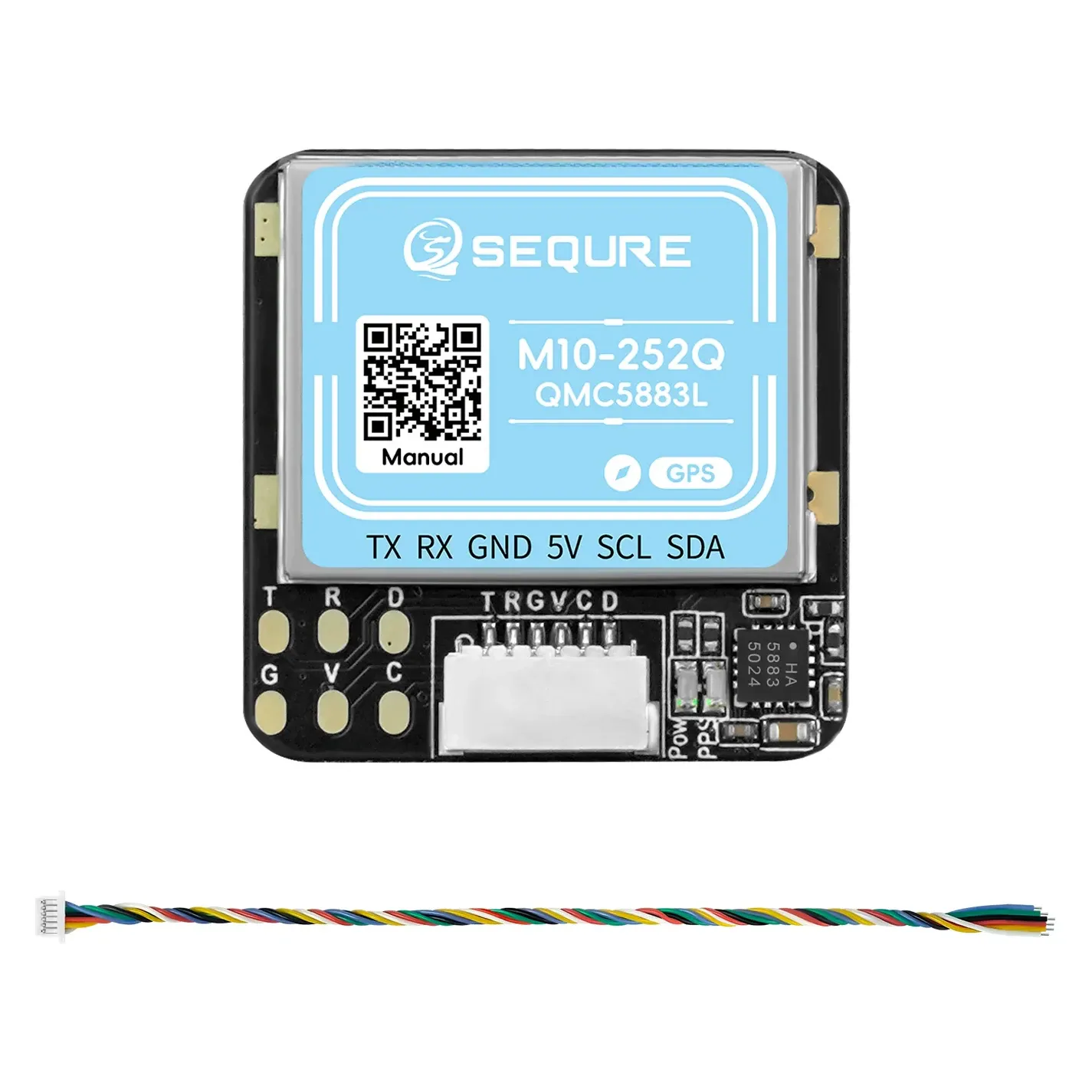

SEQURE M10-252Q GPS Module

The SEQURE M10-252Q is a GPS module built around the M10050 chipset (u-blox M10 generation), combining GPS, BeiDou and Galileo positioning with SBAS and QZSS augmentation for fast, accurate fixes on long-range and cinematic FPV builds.

Key features

• M10050 chipset tracks GPS, BeiDou and Galileo concurrently, with SBAS and QZSS augmentation for faster cold starts and tighter position accuracy.

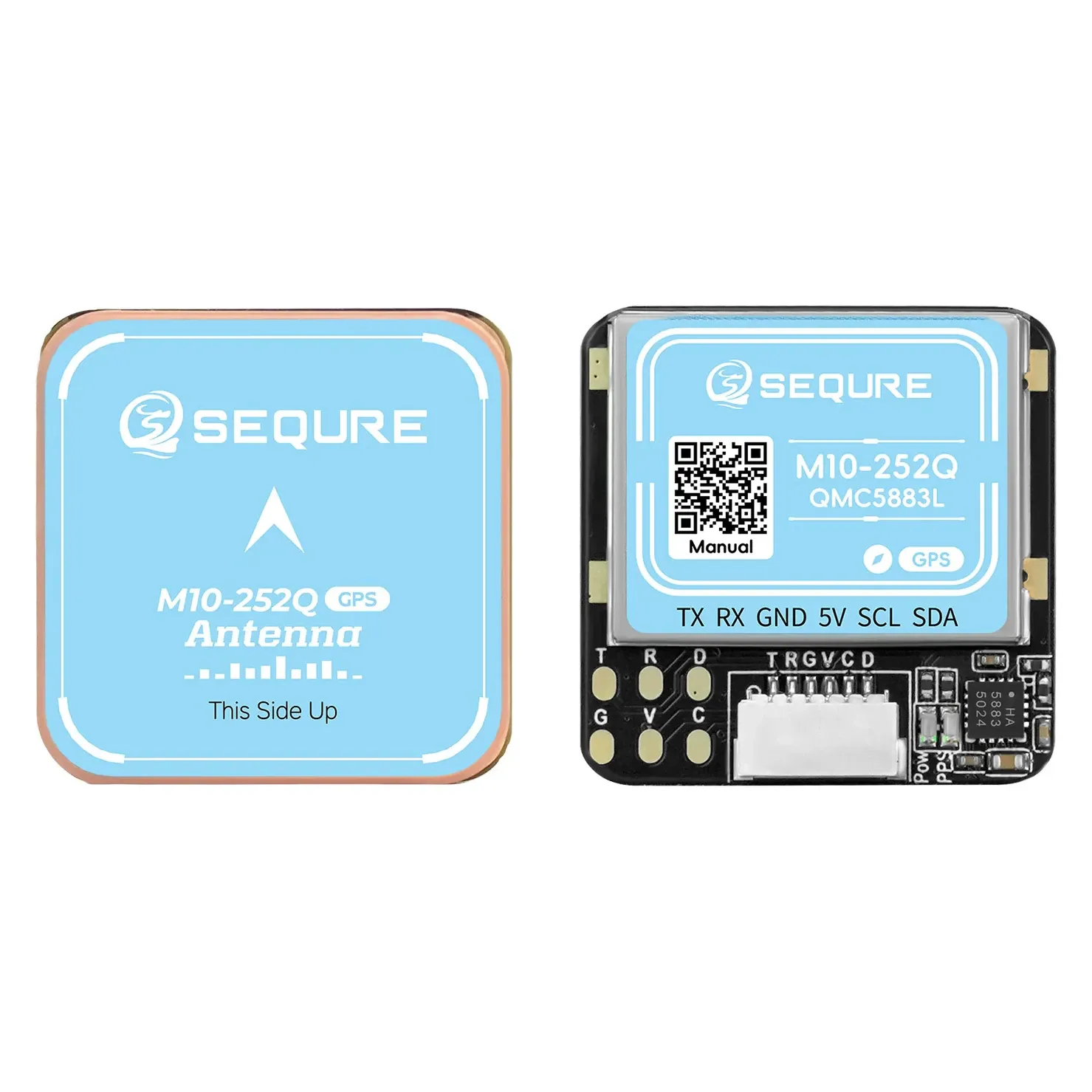

• Large 25x25mm ceramic patch antenna for stronger signal capture than smaller 18mm modules.
• Integrated QMC5883 compass, so heading data is available without a separate magnetometer.
• Runs on 3.3–5V and connects via PCB solder pads or an SH1.0 6-pin plug, fitting most flight controller UART setups.
• Compatible with Betaflight, INAV and ArduPilot firmware.

Specifications

• Chipset: M10050 (u-blox M10 generation)
• Constellations: GPS, BeiDou, Galileo + SBAS/QZSS
• Antenna: 25 x 25 mm ceramic patch
• Compass: QMC5883
• Working voltage: 3.3–5V
• Weight: 12 g
• Interface: PCB solder pad or SH1.0 6-pin
• Dimensions: 25 x 25 x 8.2 mm
• Channels: 72
• Baud rate: 115200 bps
• Output protocol: NMEA / UBLOX
• Update rate: 1-10 Hz (10 Hz default)
• In the box: GPS module, cable

With its onboard compass, this module suits multirotor builds that need heading data for GPS Rescue or autonomous waypoint missions, as well as fixed-wing INAV setups.
