GEPRC Naked Camera GP9 Kit

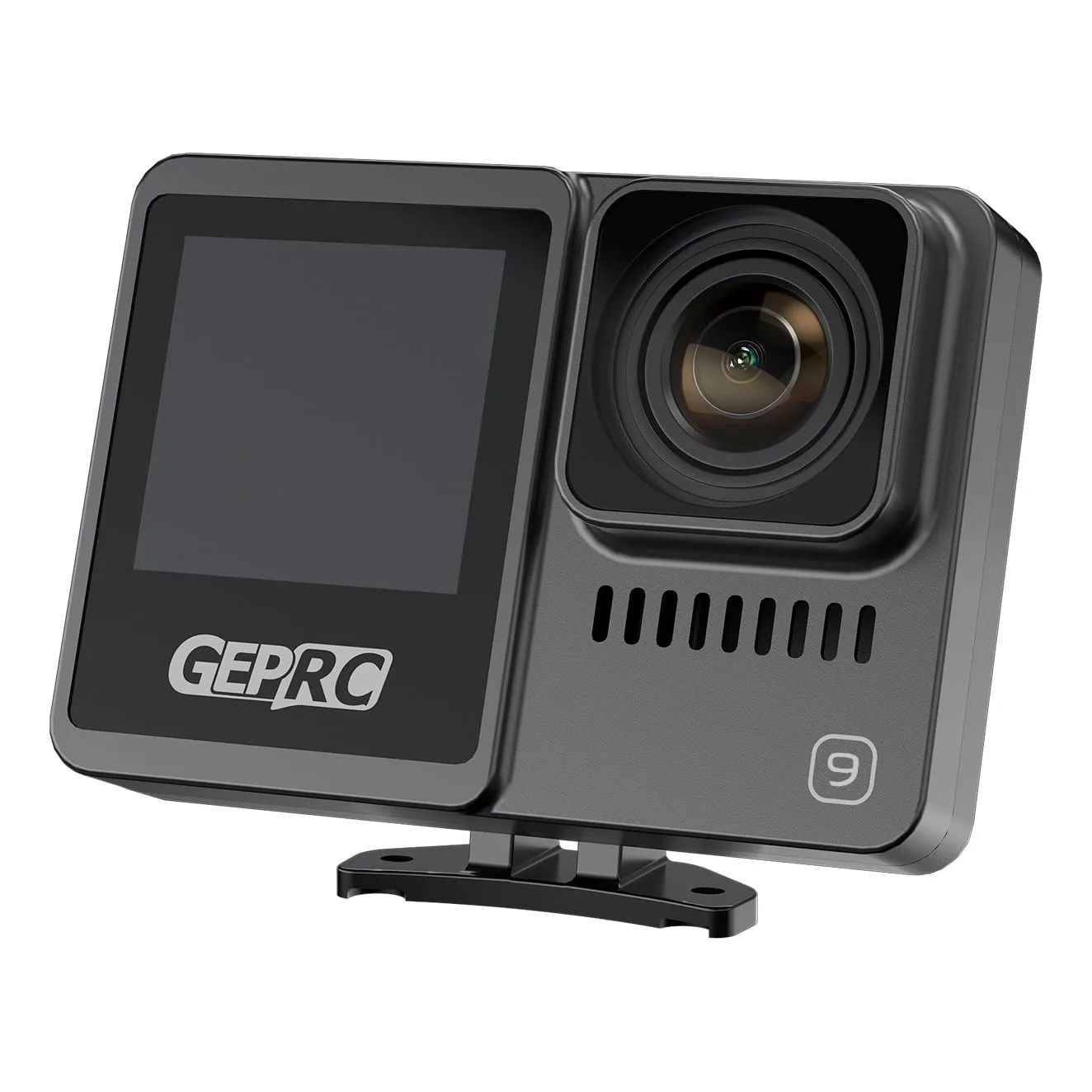

The GEPRC Naked Camera GP9 Kit is a case and power conversion kit for building a lightweight "naked" action camera around a GoPro Hero 9 Black mainboard removed from its factory shell, cutting the weight of the stock casing and battery for cinewhoops, freestyle and long-range builds. The camera board itself is not included.

Key features

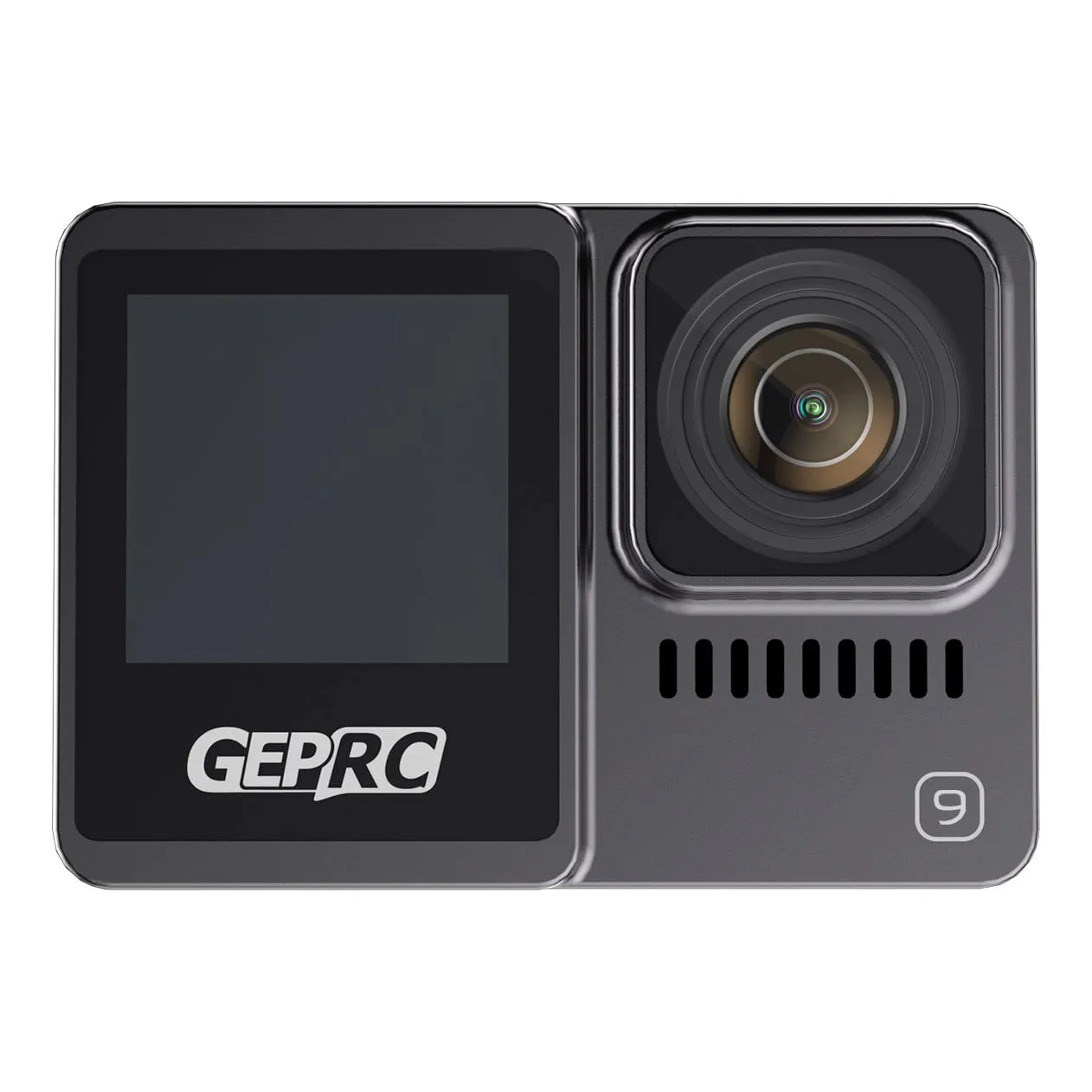

• CNC-machined aluminium 7075-T6 front case with a sandblasted, oxidised finish draws heat away from the mainboard; the rear case is ABS.

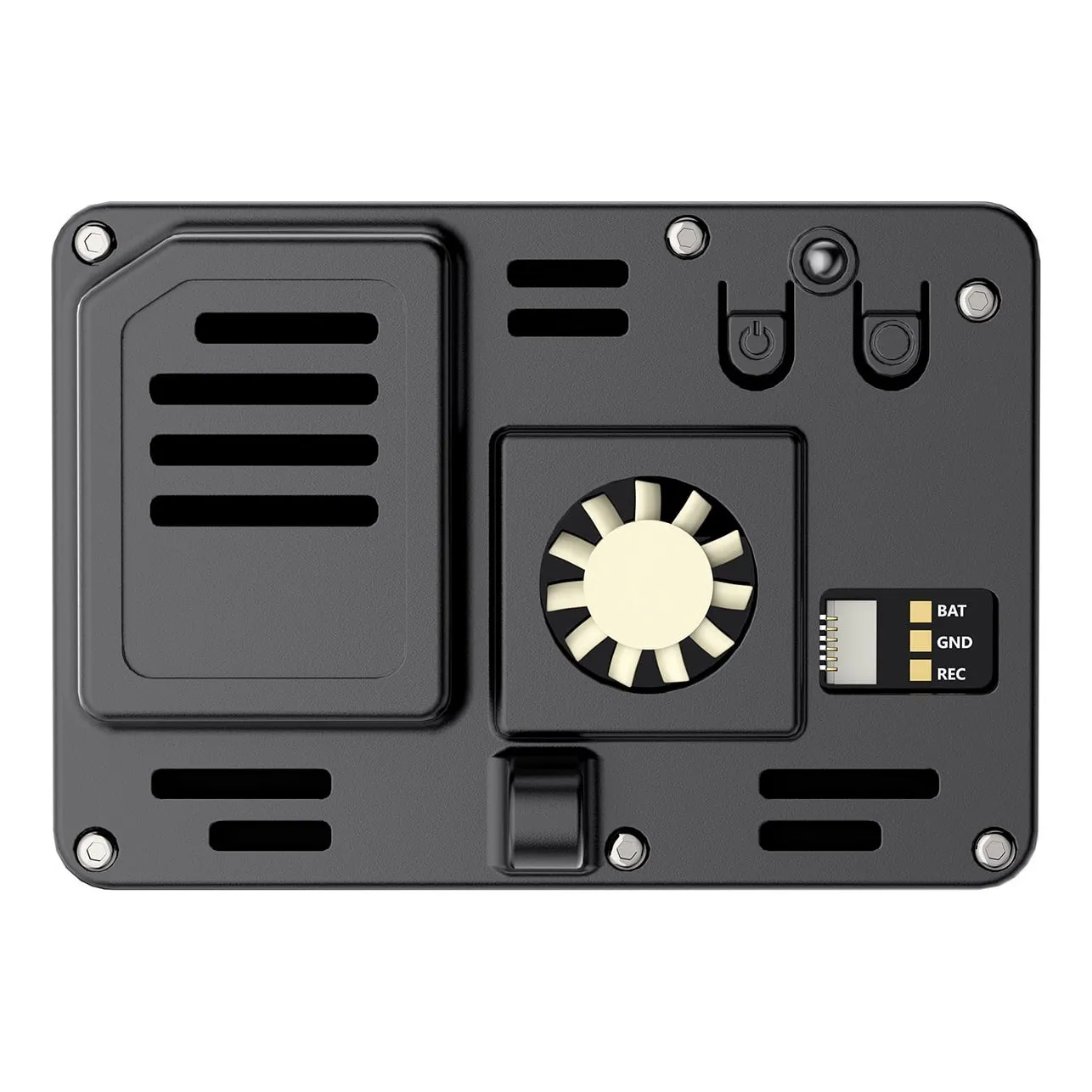

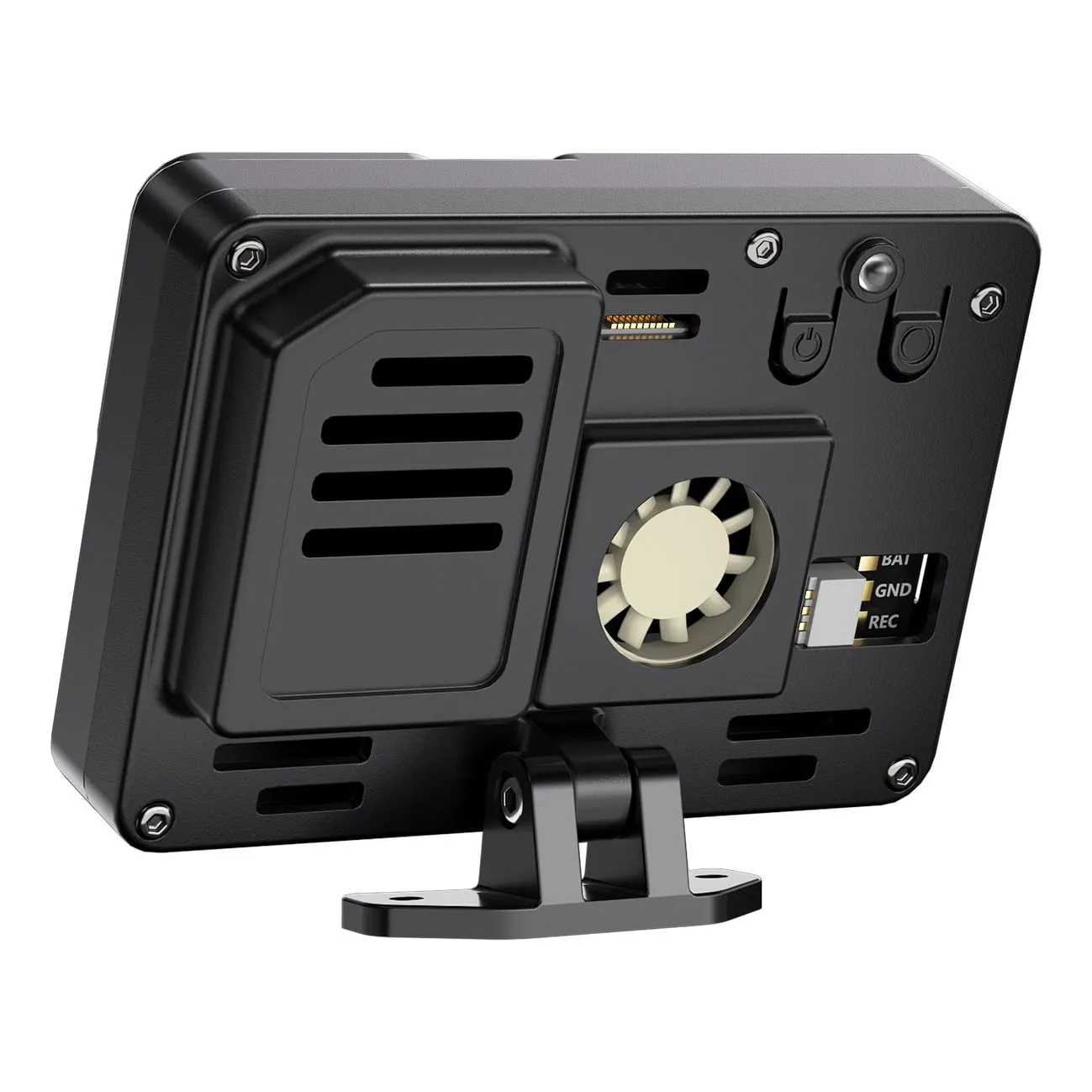

• Cooling fan plus thermal silicone pads for the main board and power module keep the camera running through long recording sessions.
• BEC module runs from a 2S-6S LiPo flight battery and outputs 5V at 2.5A plus 3.3V at 500mA over an SH1.0 3-pin connector, linked to the mainboard by an FPC flexible cable.

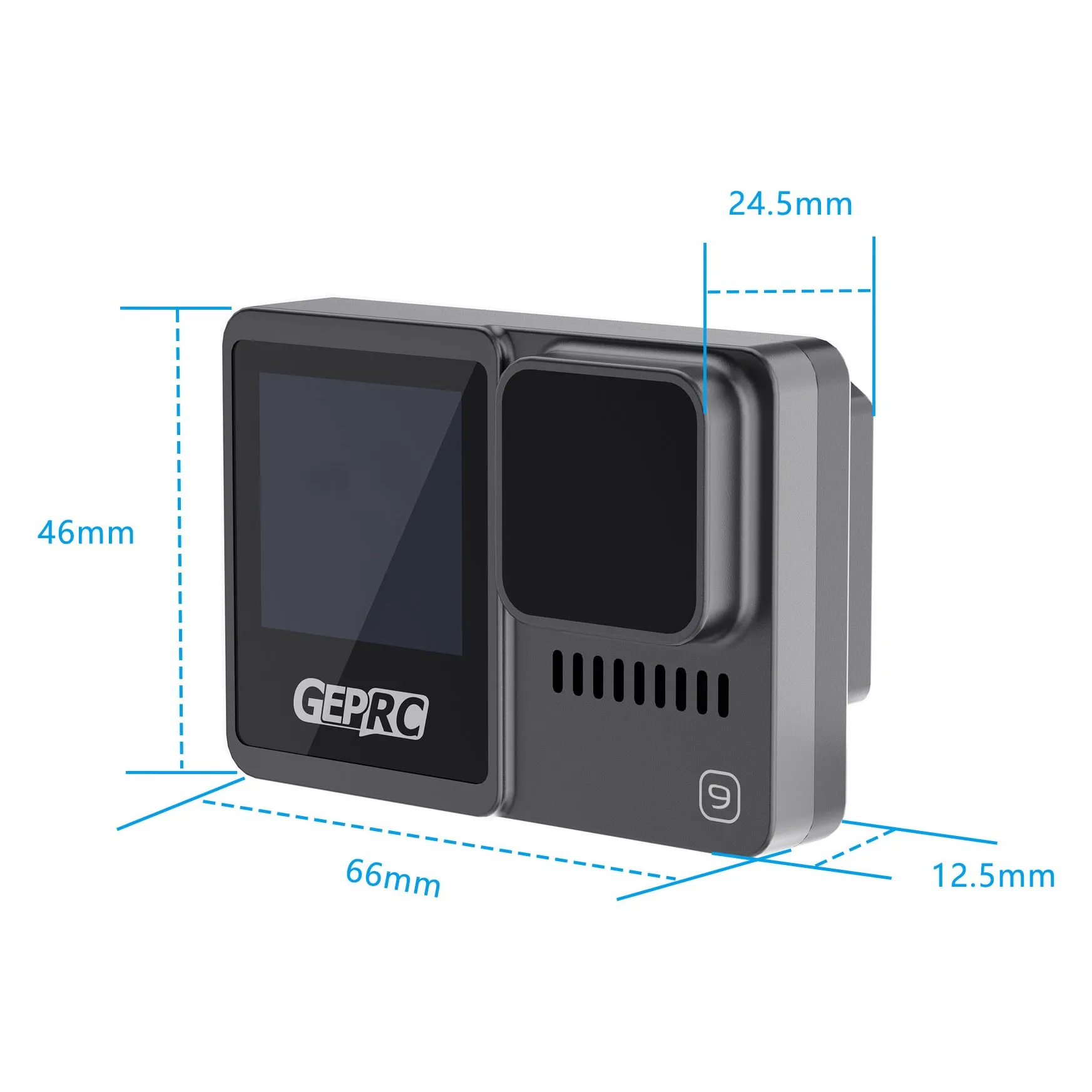

• 24.5mm mounting-base spacing fits GEPRC's Cinebot, CineLog, Crocodile, Rocket and Crown series frames.
• Takes GEPRC ND8/ND16/ND32 filters; an ND16 filter is included.

Specifications

• Compatibility: GoPro Hero 9 Black (naked GP9 mainboard)
• Input voltage: 2S-6S LiPo
• BEC output: 5V/2.5A + 3.3V/500mA
• Connector: SH1.0 3-pin
• Case material: aluminium 7075-T6 front, ABS rear
• Kit weight: 29.6 g

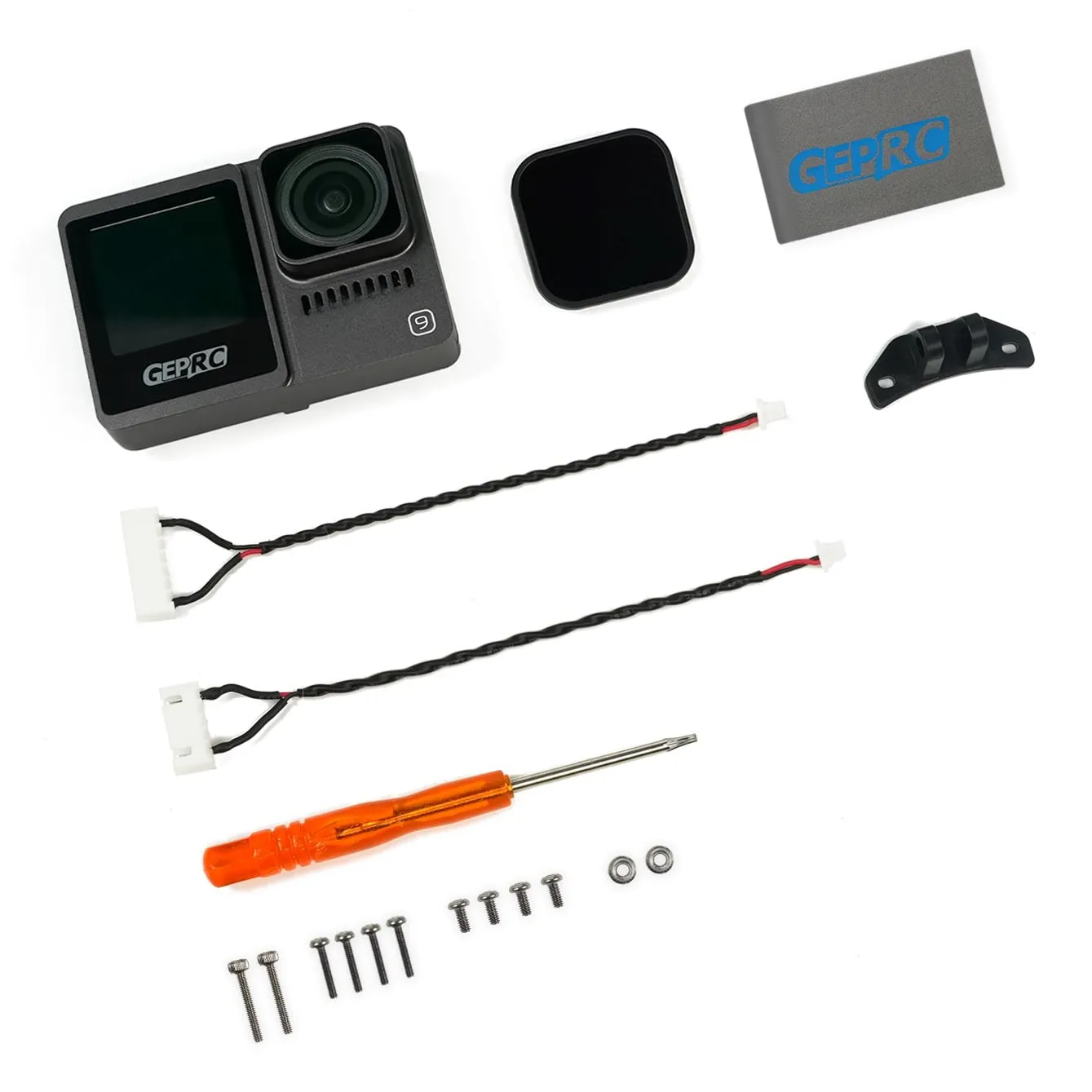

The kit includes the front and rear cases, an ND16 filter, cooling fan, thermal pads, mounting base, balance-lead power cable, screwdriver, screws and a cleaning cloth. A donor GoPro Hero 9 Black must be de-cased and fitted by the user, and its ribbon cables need careful handling during the swap.
