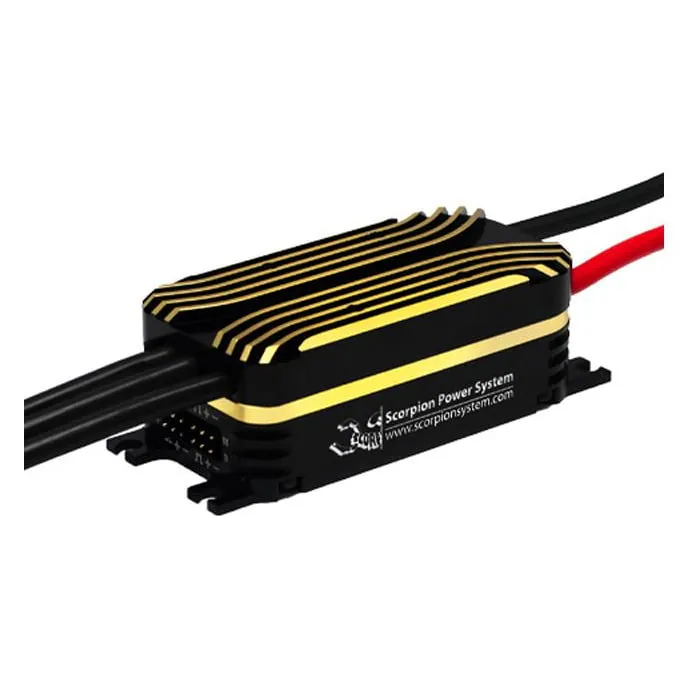

Scorpion Tribunus III 06-160A ESC with SBEC

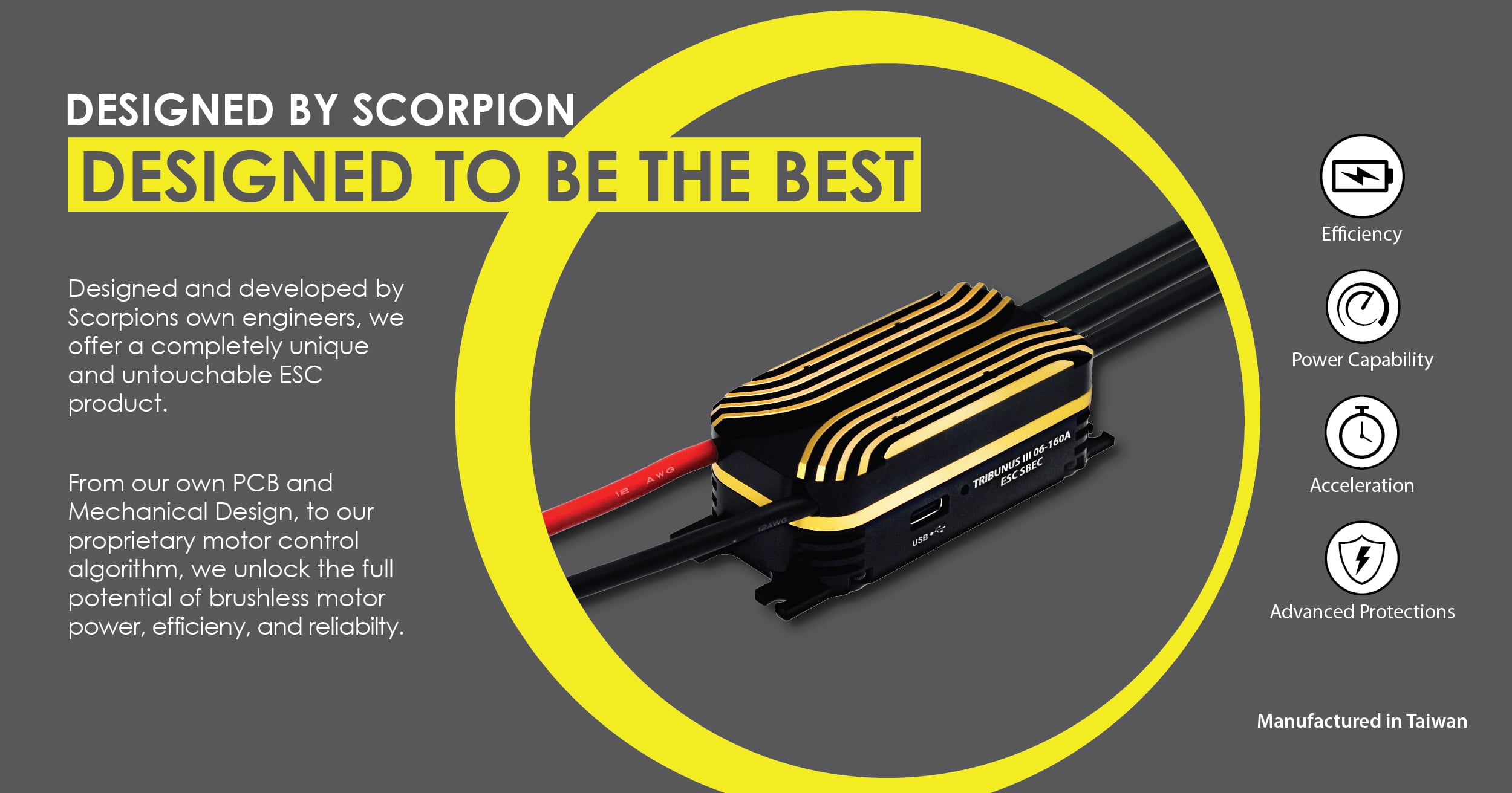

The Scorpion Tribunus III 06-160A is a single-channel electronic speed controller with an integrated switching BEC, built from Western components and assembled in Taiwan for heavy-lift multirotors, helicopters and other high-current UAV powertrains.

Key features

• Rated for 160A continuous and 200A peak current on an 11-26.1V (3-6S) input.

• Integrated SBEC delivers an adjustable 5.1-12.1V output, up to 15A continuous and 30A peak, for the flight controller and other onboard electronics.

• Logs current, voltage, temperature, RPM and power output for post-flight review.

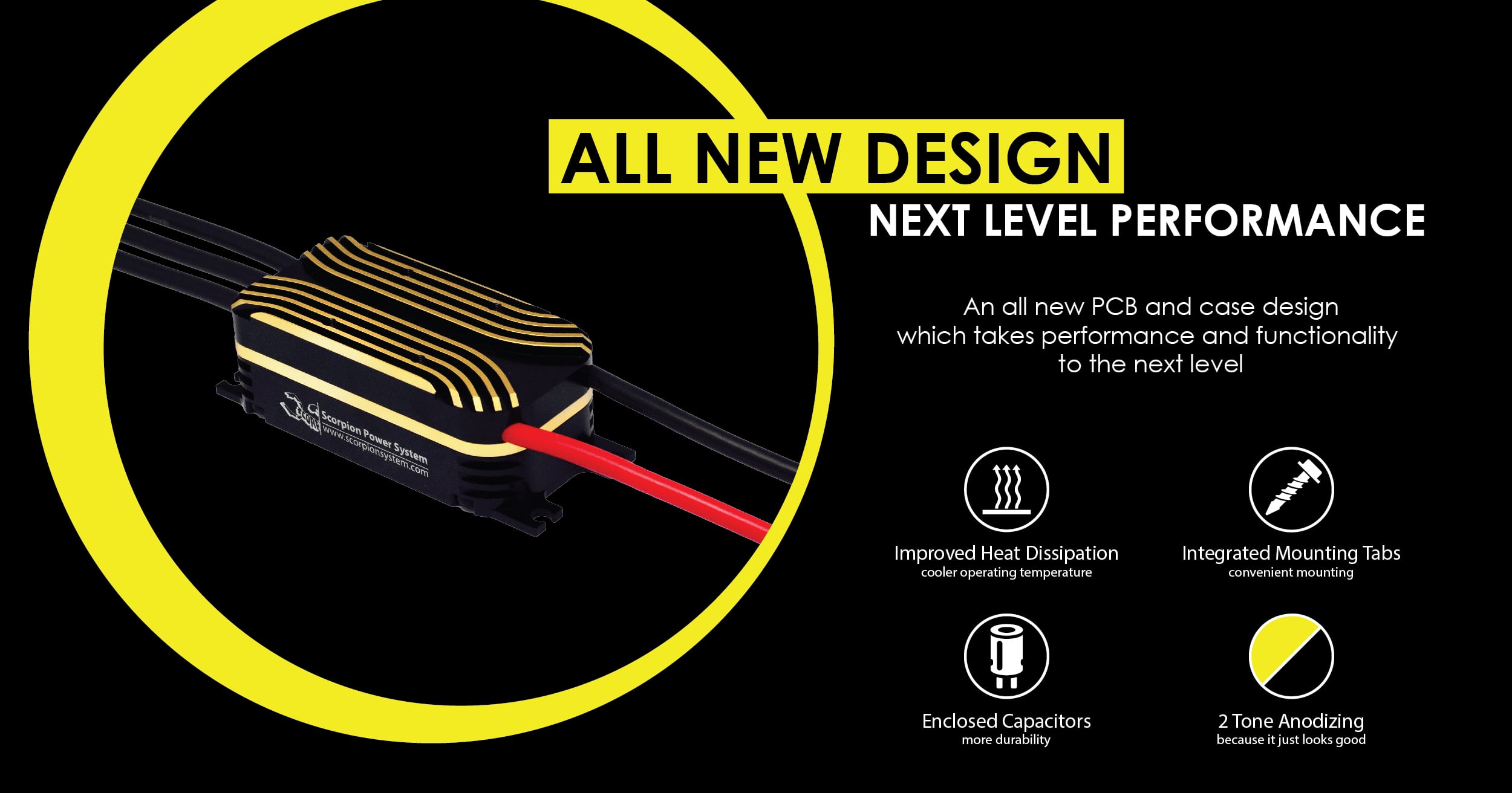

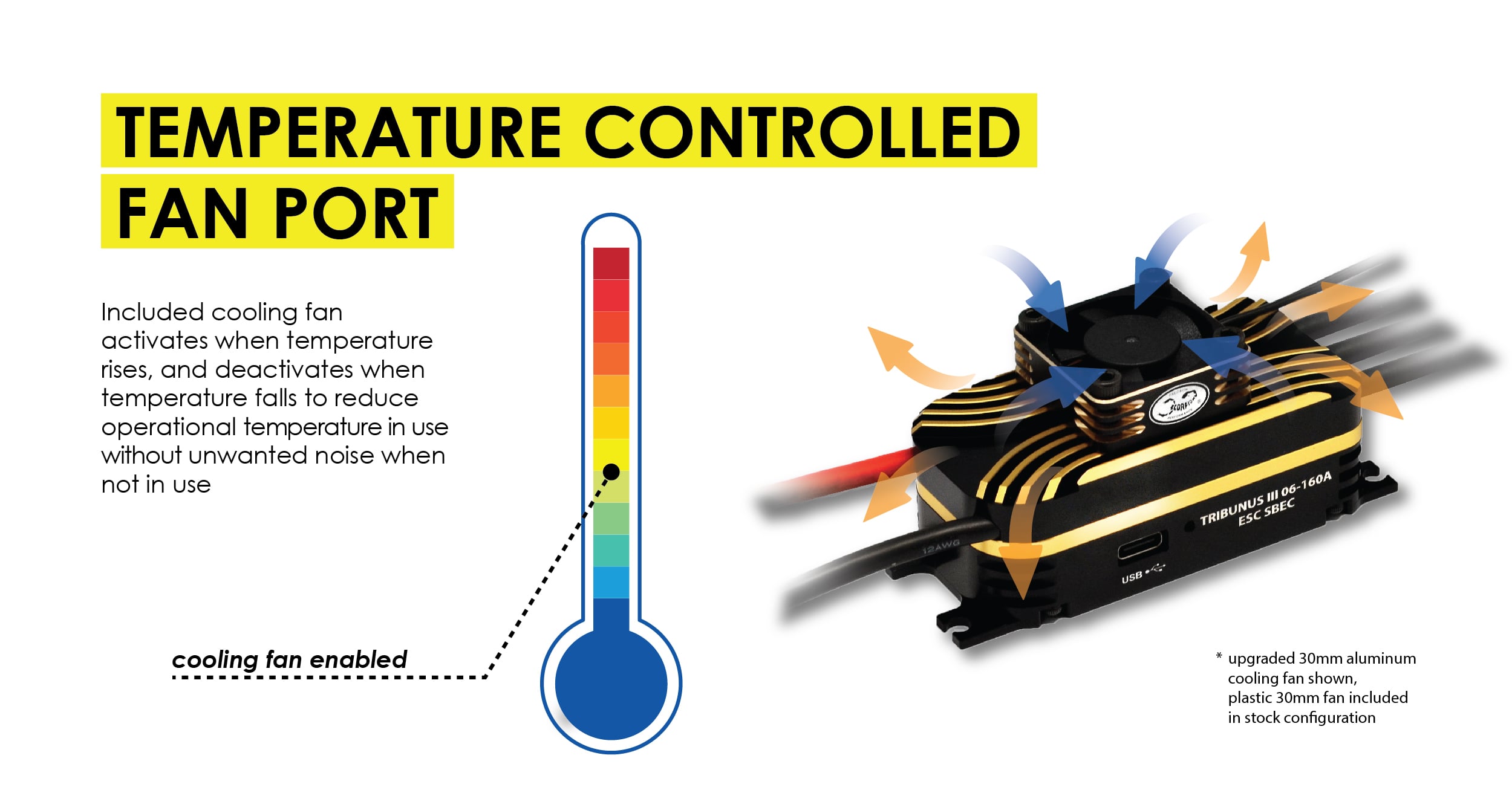

• Temperature-controlled cooling fan and enclosed capacitors keep the ESC running cool without unnecessary noise.

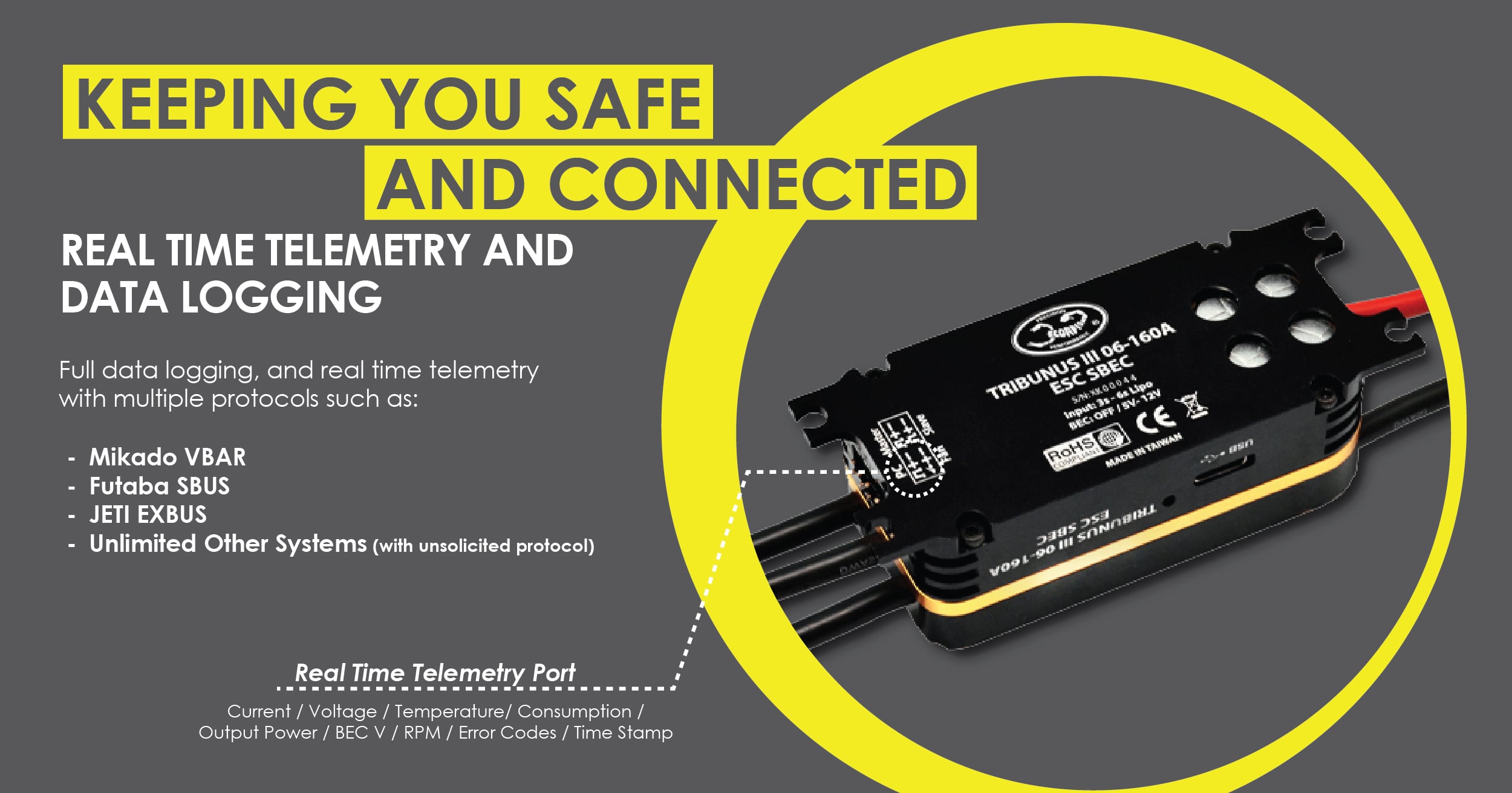

• Supports telemetry protocols including Mikado VBAR, Futaba SBUS and JETI EXBUS.

Specifications

• Max continuous current: 160 A

• Peak current: 200 A

• Operating voltage: 11-26.1 V (3-6S)

• BEC output: 5.1-12.1 V adjustable, 15 A continuous / 30 A peak

• Body size: 36.5 x 75.0 x 27.0 mm

• Weight: 155 g (without connectors)

Ships with a 30 mm cooling fan, two BEC cables and a mounting hardware pack; check the 24 x 84 mm M3 mounting tab spacing against your airframe, and confirm your battery's cell count sits within the 3-6S operating range, before fitting.
