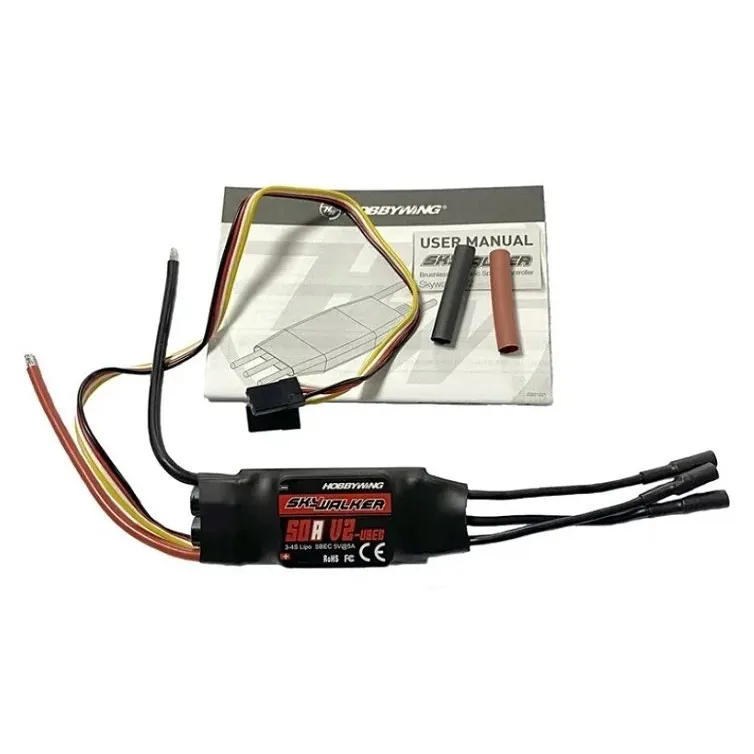

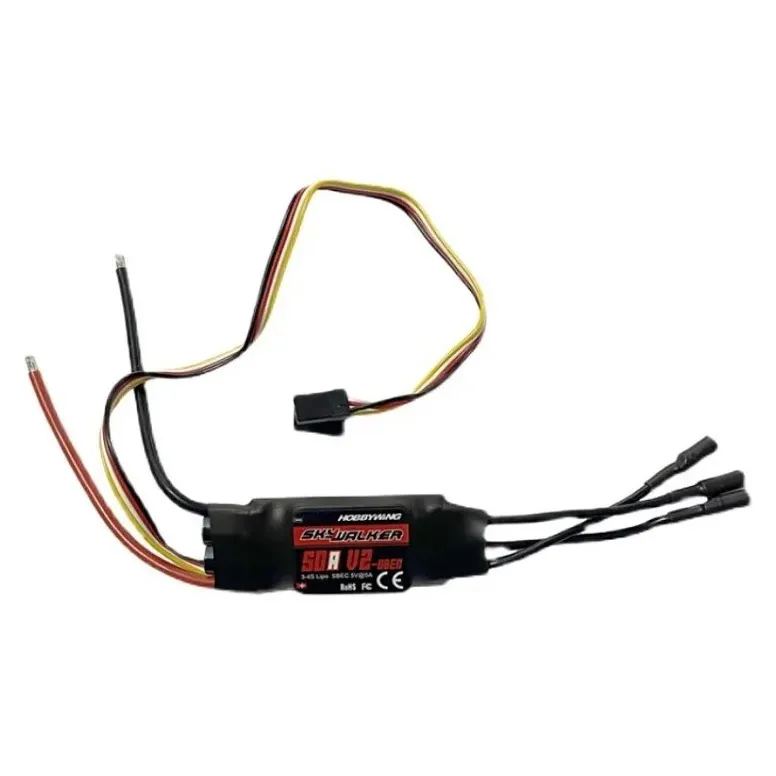

Hobbywing SkyWalker 50A V2 Fixed-Wing ESC

The Hobbywing SkyWalker 50A V2 is a brushless speed controller for 3-4S fixed-wing models, from sport planes and warbirds to FPV wings and gliders, that draw up to 50 A. Its built-in switch-mode BEC feeds the receiver and servos from the flight pack, so the airframe needs no separate regulator.

Key features

• 50 A continuous, 70 A peak for 3S and 4S power systems
• 5 V / 5 A switch-mode BEC runs the receiver and servos directly
• DEO active freewheeling (Driving Efficiency Optimisation) for linear throttle response and lower ESC temperatures
• Reverse brake and linear reverse brake modes for shorter landings, plus a Search Mode that beeps the motor to help find a downed model
• Protection against abnormal input voltage, overheating, throttle-signal loss and low battery voltage
• Programmable from the transmitter sticks or with the Hobbywing LED Program Box

Specifications

• Continuous / peak current: 50 A / 70 A
• Input: 3-4S LiPo
• BEC: Switch mode, 5 V at 5 A
• Battery leads: 14AWG, 100 mm
• Motor leads: 16AWG, 75 mm
• Connectors: 3.5 mm gold bullets (female)
• Dimensions: 60 x 25 x 8 mm
• Weight: 36 g
• Firmware: Hobbywing, not field-upgradeable

Keep it to 3S or 4S packs; a 6S power system needs a higher-voltage ESC. Size the motor and prop so full-throttle current on your pack stays comfortably below 50 A, leaving headroom for hot days and long climbs.
