DYS 40A 2-6S Brushless ESC with 5V/
₹1,849Incl. GST
SKU DYS-ESC-40A-2-6S-XT60
ESC Current: 40 AInput Voltage: 2–6SMade in India: NoBrand: DYS
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

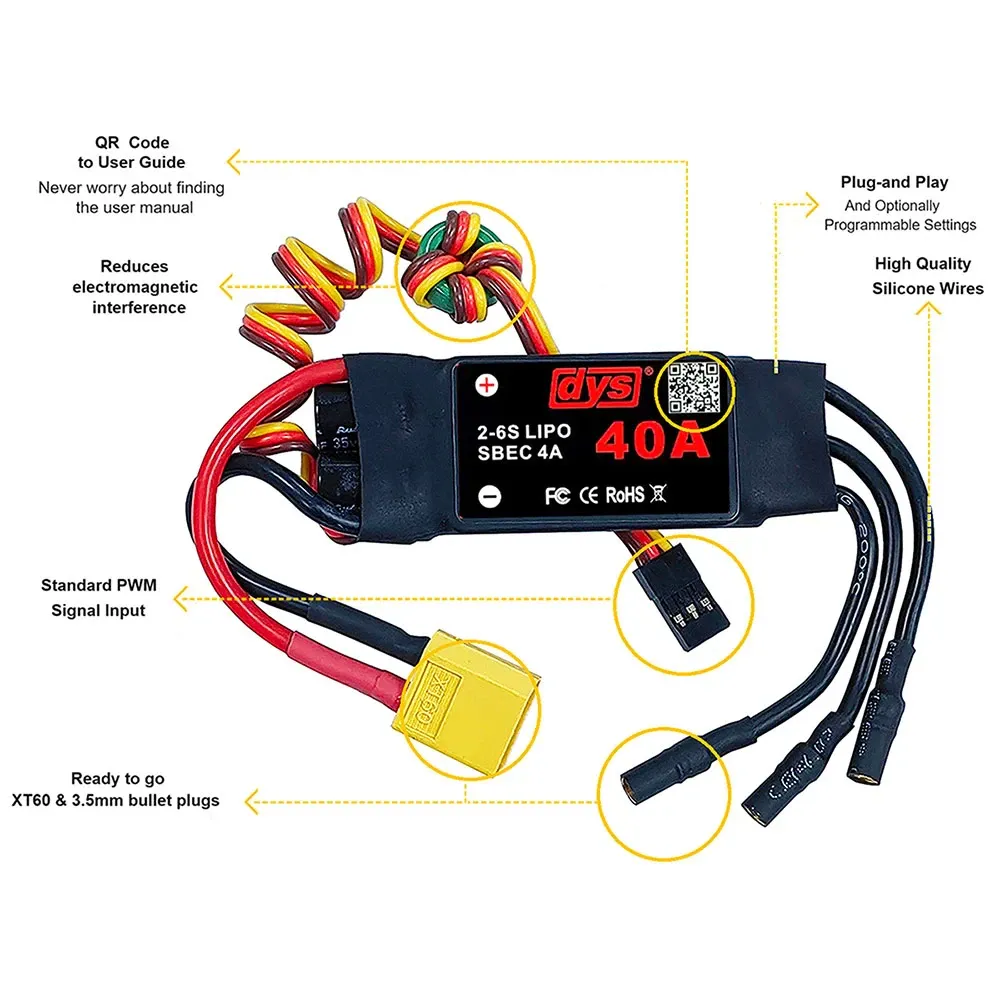

The DYS 40A brushless ESC handles larger RC fixed-wing aircraft, helicopters and medium to large drones on 2-6S LiPo. It comes with an XT60 battery plug and 3.5mm bullet connectors, and its 5V/4A switching BEC has the current to run a receiver and several servos from the flight pack.
Key features
- 40 A continuous, 50 A peak: for high-current power systems in sustained flight.
- Up to 6S: runs on 2-6S LiPo or 5-18 NiMH/NiCd cells.
- 5V/4A SBEC: feeds the receiver and servos without a separate receiver pack.
- Built-in protection: low-voltage cutoff, over-heat protection and throttle signal-loss protection.
- Normal and Soft start modes, calibratable throttle range: soft start for helicopters, and end points that match any transmitter.
Specifications
- Continuous / peak current: 40 A / 50 A
- Input: 2-6S LiPo (7.4-22.2 V nominal) or 5-18 NiMH/NiCd cells
- BEC: 5 V / 4 A switching (SBEC)
- Battery connector: XT60
- Motor connectors: 3.5 mm bullets
- Dimensions: 52 x 25 x 11 mm
- Weight: 43 g
Calibrate the throttle range with your transmitter before the first flight, and check that the motor's full-throttle current on your prop stays under 40 A.
| ESC Current | 40 A |
|---|---|
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | DYS |
| Weight | 43 g |
| BEC | Yes |
| Motor Type | Brushless |
