DYS 12A 2-4S Brushless ESC with 5V/
₹1,199Incl. GST
SKU DYS-ESC-12A-2-4S-XT30
ESC Current: 12 AInput Voltage: 2–4SMade in India: NoBrand: DYS
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The DYS 12A brushless ESC drives small motors in RC fixed-wing aircraft, helicopters and small multirotors on 2-4S LiPo. It comes with an XT30 battery plug and 2.0mm bullet connectors, and its 5V/2A BEC runs the receiver and servos straight from the flight pack.
Key features
- 12 A continuous, 15 A peak: suits small outrunners on park flyers, trainers and light helicopters.
- Built-in protection: low-voltage cutoff, over-heat protection and throttle signal-loss protection.
- Normal and Soft start modes: soft start spins the motor up gently for helicopters.
- Calibratable throttle range: set the end points to match any transmitter for a linear throttle response.
Specifications
- Continuous / peak current: 12 A / 15 A
- Input: 2-4S LiPo (7.4-14.8 V nominal) or 5-12 NiMH/NiCd cells
- BEC: 5 V / 2 A
- Battery connector: XT30
- Motor connectors: 2.0 mm bullets

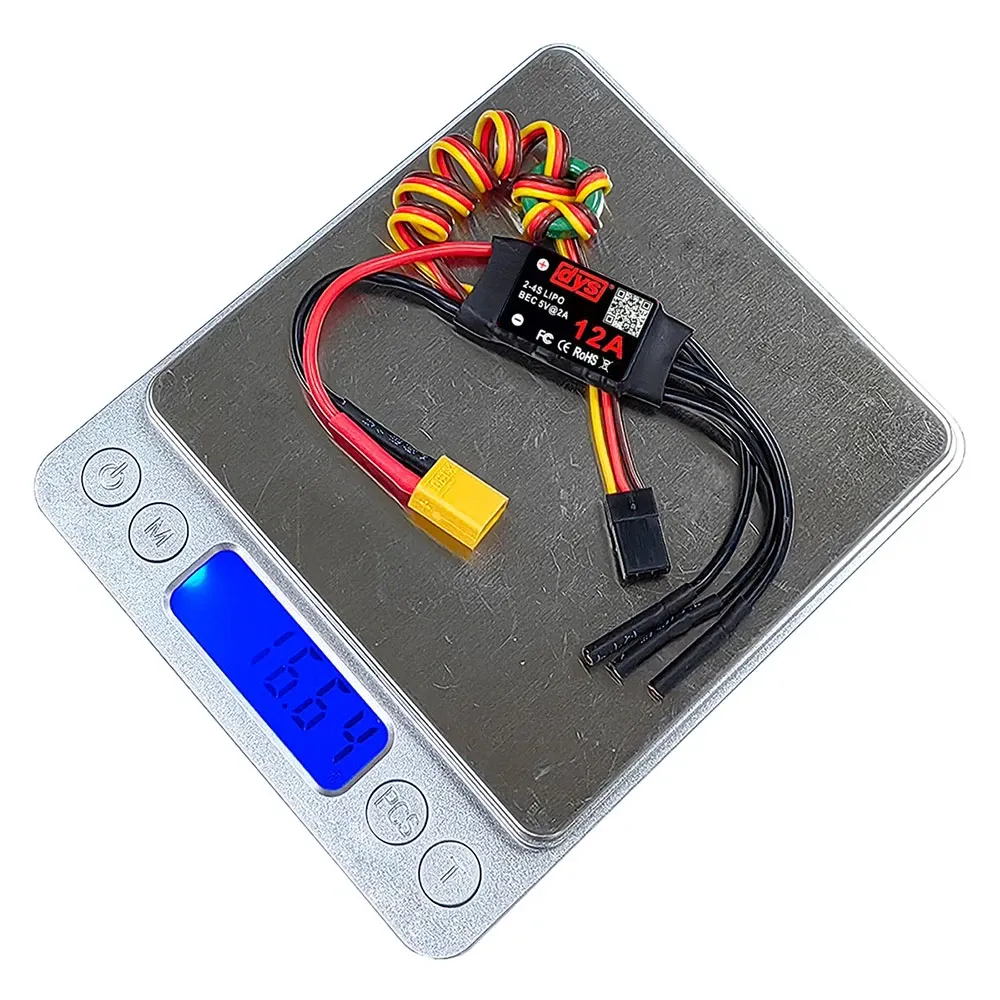

- Weight: 11 g
Calibrate the throttle range with your transmitter before the first flight, and check that the motor's full-throttle current on your prop stays under 12 A.
| ESC Current | 12 A |
|---|---|
| Input Voltage | 2–4S |
| Made in India | No |
| Brand | DYS |
| Weight | 11 g |
| BEC | Yes |
| Motor Type | Brushless |
