DYS 20A 2-4S Brushless ESC with 5V/
₹1,249Incl. GST
SKU GEN-ESC-20A-2-4S-XT60
ESC Current: 20 AInput Voltage: 2–4SMade in India: NoBrand: DYS
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

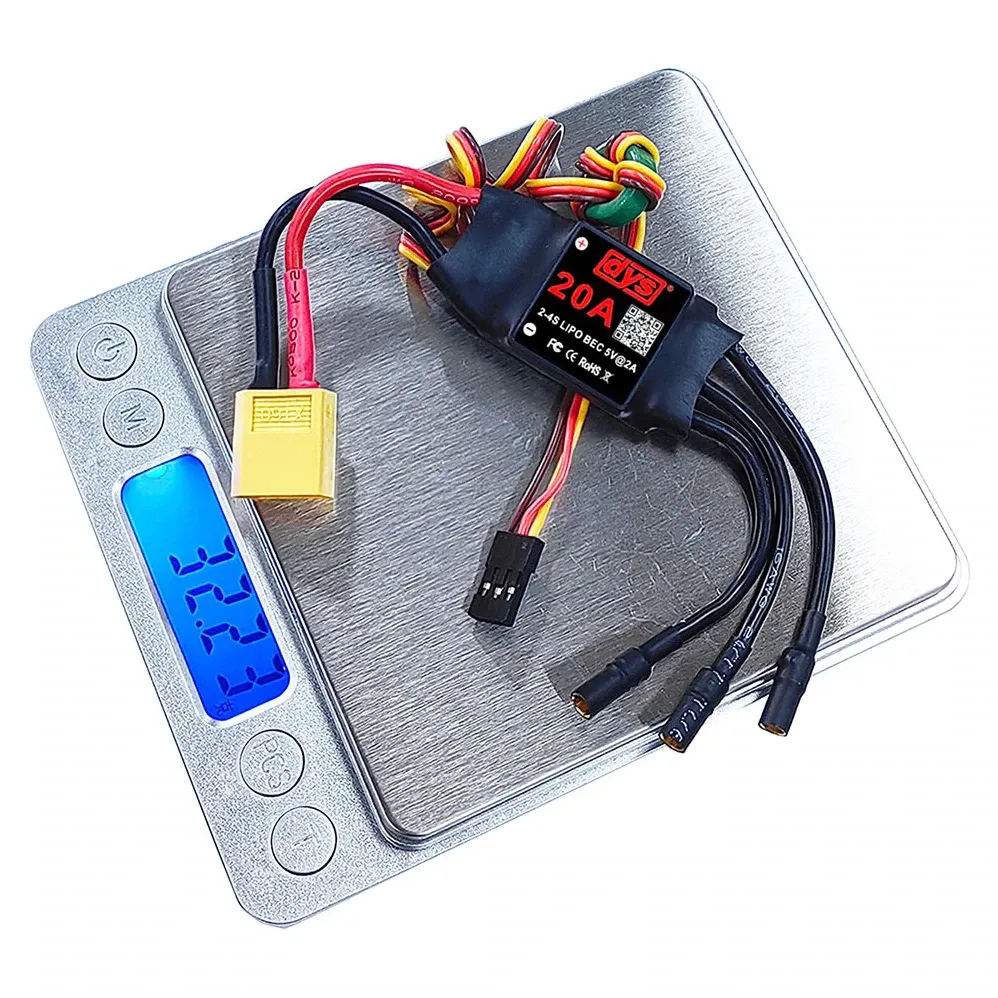

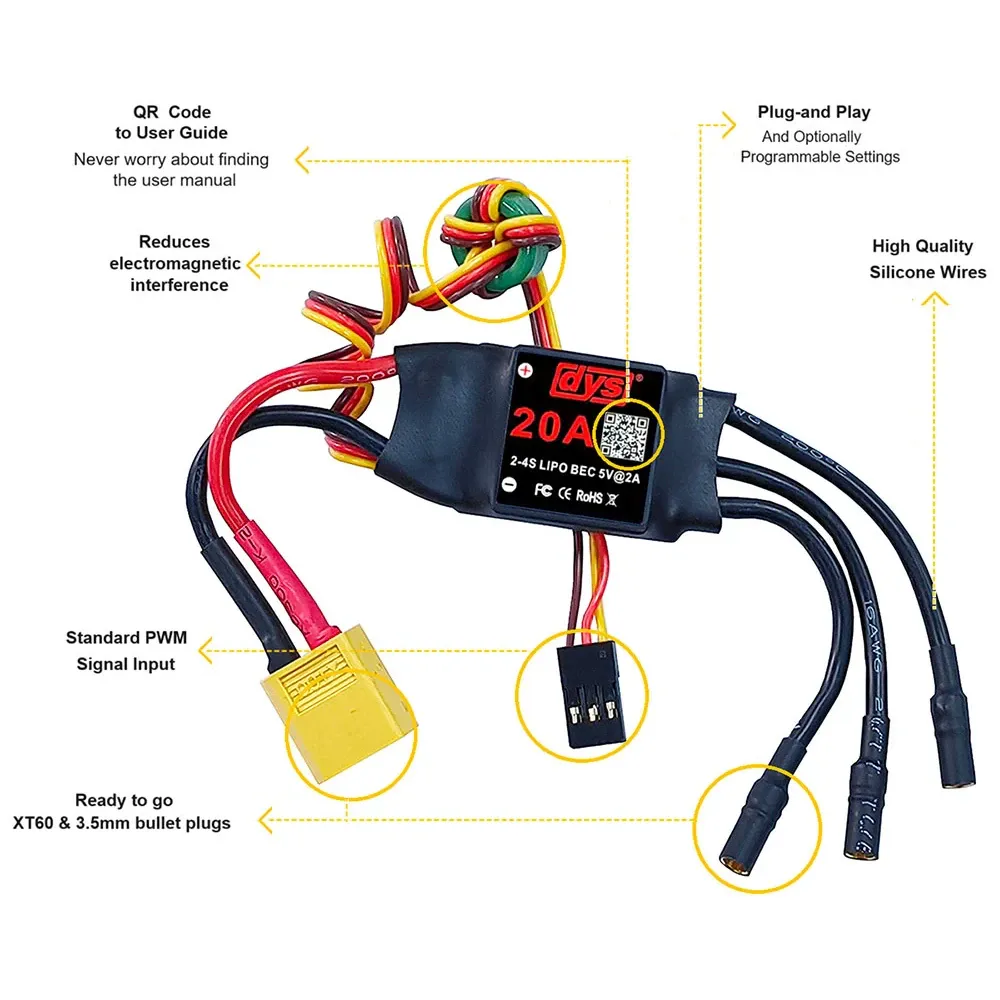

A 20A brushless ESC for 2-4S setups on small fixed-wings, helicopters and multirotors, pre-fitted with an XT60 battery plug and 3.5 mm motor bullets. The built-in 5V/2A BEC powers the receiver and servos, so light builds need no separate regulator.
Key features
- 20A continuous, 30A peak current rating.
- Runs on 2-4S LiPo or 5-12 NiCd cells.
- Low-voltage cutoff, overheat and throttle-signal-loss protection.
- Normal and soft start modes for planes and helicopters.
- Configurable throttle range that calibrates to any transmitter, with smooth, linear response.
Specifications
- Continuous / peak current: 20A / 30A
- Input: 2-4S LiPo (5-12 NiCd cells)
- BEC: 5V / 2A
- Battery connector: XT60
- Motor connectors: 3.5 mm bullets
- Size: 30 x 24 x 8.5 mm
- Weight: 21 g
Pair it with motors that draw under 20A continuous at full throttle on your chosen prop and cell count; check the motor's thrust table before you fly.
| ESC Current | 20 A |
|---|---|
| Input Voltage | 2–4S |
| Made in India | No |
| Brand | DYS |
| Weight | 21 g |
| BEC | Yes |
| Motor Type | Brushless |
