DYS 60A 2-6S Brushless ESC with 5V/
SKU DYS-ESC-60A-2-6S-XT60
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

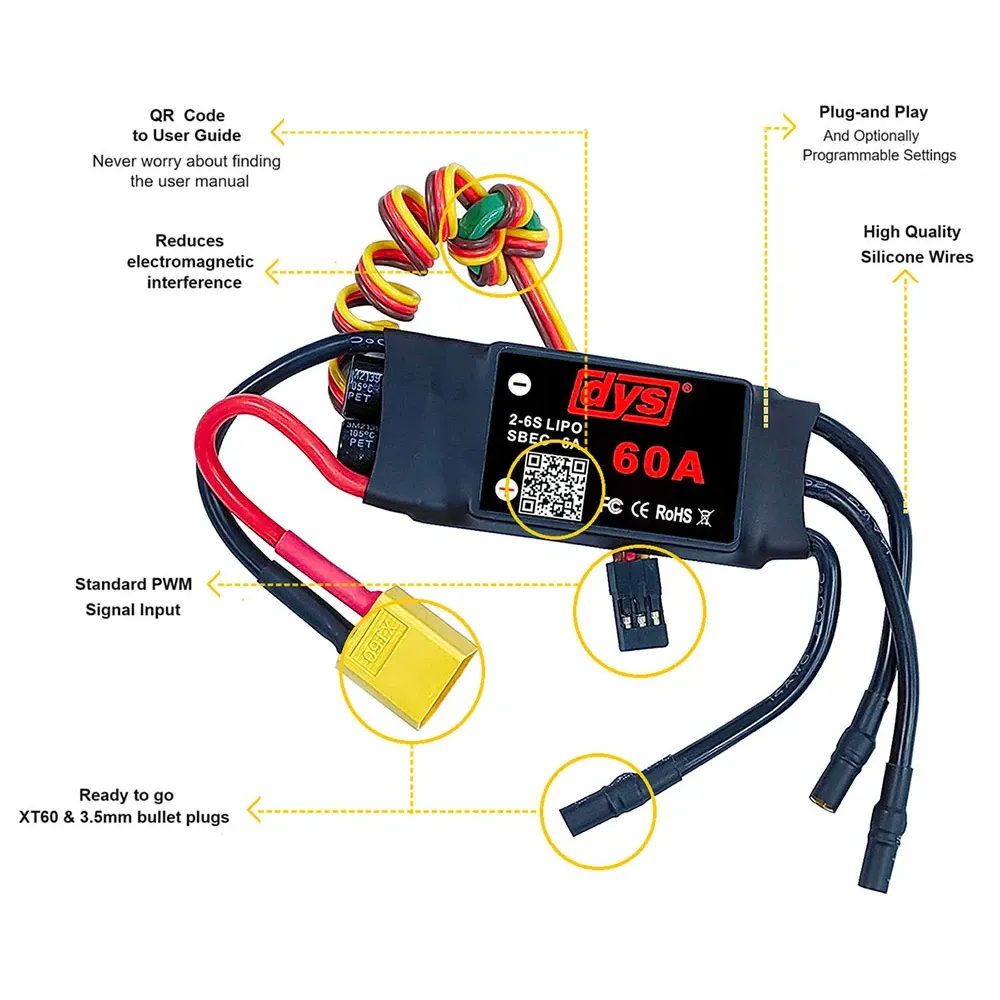

The DYS 60A is a single brushless ESC for fixed-wing aircraft, helicopters and larger multirotors running 2S to 6S LiPo. Its 5V/6A switching BEC powers the receiver and servos straight from the flight pack, and it arrives with an XT60 battery plug and 3.5mm motor bullets already soldered on.
Key features
- 60A continuous with an 80A peak rating for short bursts of full throttle
- Runs on 2-6S LiPo or 5-18 cell NiMH packs
- Switching BEC stays cooler than a linear regulator at 6S and leaves 6A of headroom for several servos
- Low-voltage cutoff, over-heat protection and throttle signal-loss protection
- Normal and Soft start modes, plus throttle range calibration to suit any transmitter
Specifications
- Continuous current: 60A
- Peak current: 80A
- Input: 2-6S LiPo / 5-18 cell NiMH
- BEC: 5V / 6A switching (SBEC)
- Battery connector: XT60
- Motor connectors: 3.5mm bullets
- Weight: 49g
- Dimensions: 56 x 29 x 11 mm
Choose this size when your motor's full-throttle draw on the chosen prop sits comfortably under 60A; treat the 80A figure as a burst limit, not a cruise rating. Use Soft start on helicopters and geared drives, and recalibrate the throttle range whenever you change transmitter or receiver.
| ESC Current | 60 A |
|---|---|
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | DYS |
| Weight | 49 g |
| BEC | Yes |
| Motor Type | Brushless |
