DYS 30A 2-4S Brushless ESC with 5V/
₹1,299Incl. GST
SKU DYS-ESC-30A-2-4S-XT60
ESC Current: 30 AInput Voltage: 2–4SMade in India: NoBrand: DYS
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

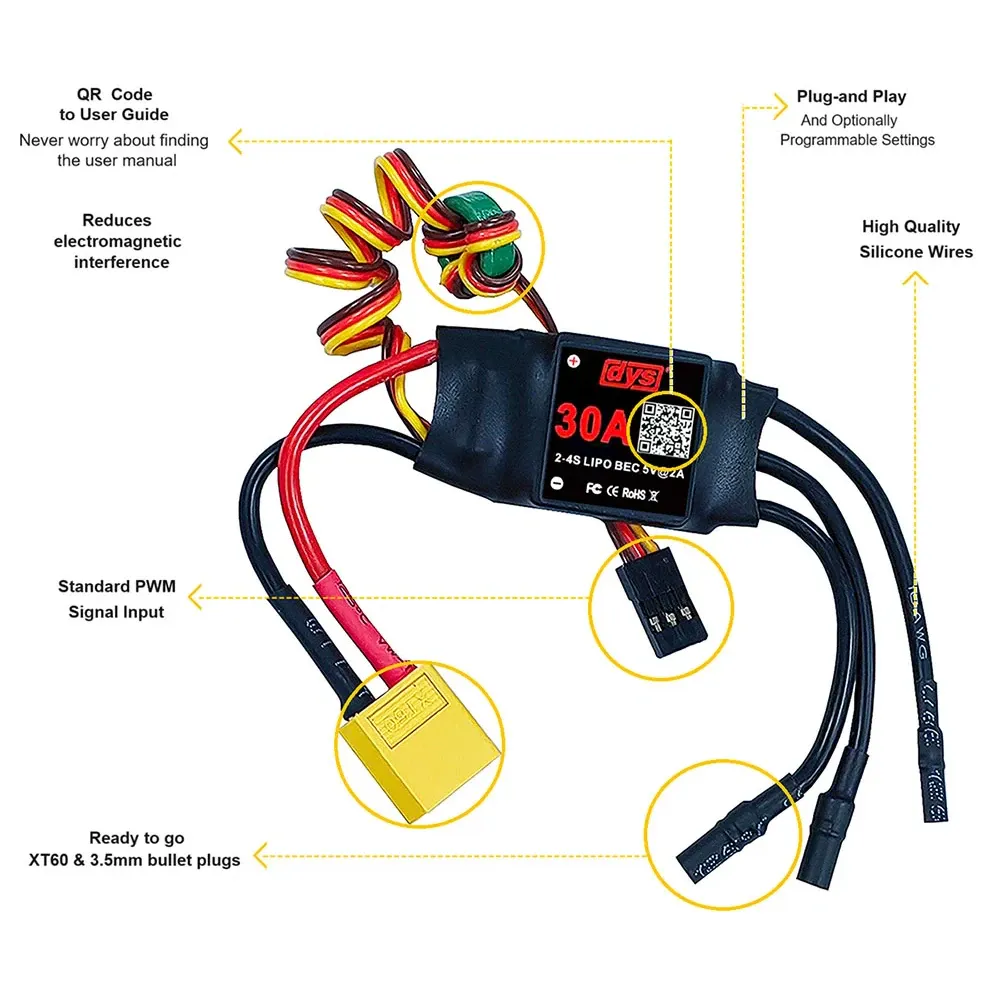

The DYS 30A brushless ESC suits mid-size RC fixed-wing aircraft, helicopters and drones on 2-4S LiPo. It comes with an XT60 battery plug and 3.5mm bullet connectors, and its 5V/2A BEC powers the receiver and servos from the flight pack.
Key features
- 30 A continuous, 40 A peak: headroom for 2-4S motors drawing up to 30 A in sustained flight.
- Built-in protection: low-voltage cutoff, over-heat protection and throttle signal-loss protection.
- Normal and Soft start modes: soft start spins the motor up gently for helicopters.
- Calibratable throttle range: matches the end points of any transmitter for a linear throttle response.
Specifications
- Continuous / peak current: 30 A / 40 A
- Input: 2-4S LiPo (7.4-14.8 V nominal) or 5-12 NiMH/NiCd cells
- BEC: 5 V / 2 A
- Battery connector: XT60
- Motor connectors: 3.5 mm bullets
- Dimensions: 30 x 24 x 8.5 mm
- Weight: 21 g
Calibrate the throttle range with your transmitter before the first flight, and check that the motor's full-throttle current on your prop stays under 30 A.
| ESC Current | 30 A |
|---|---|
| Input Voltage | 2–4S |
| Made in India | No |
| Brand | DYS |
| Weight | 21 g |
| BEC | Yes |
| Motor Type | Brushless |
