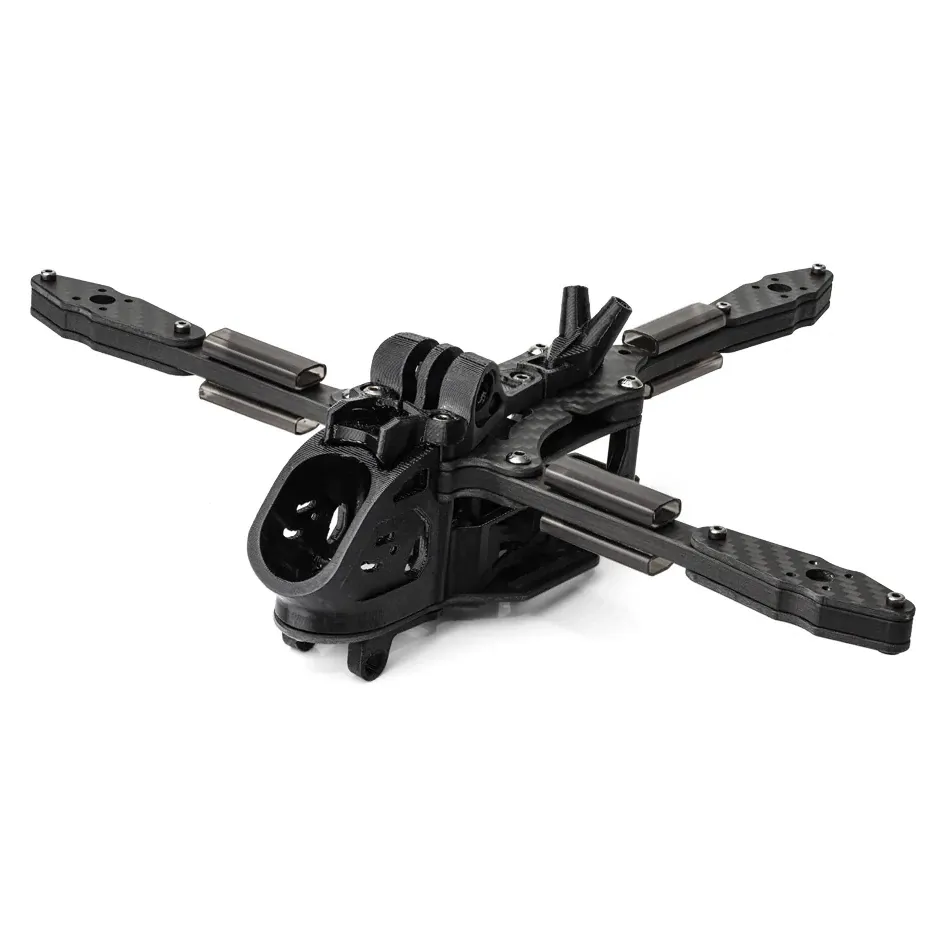

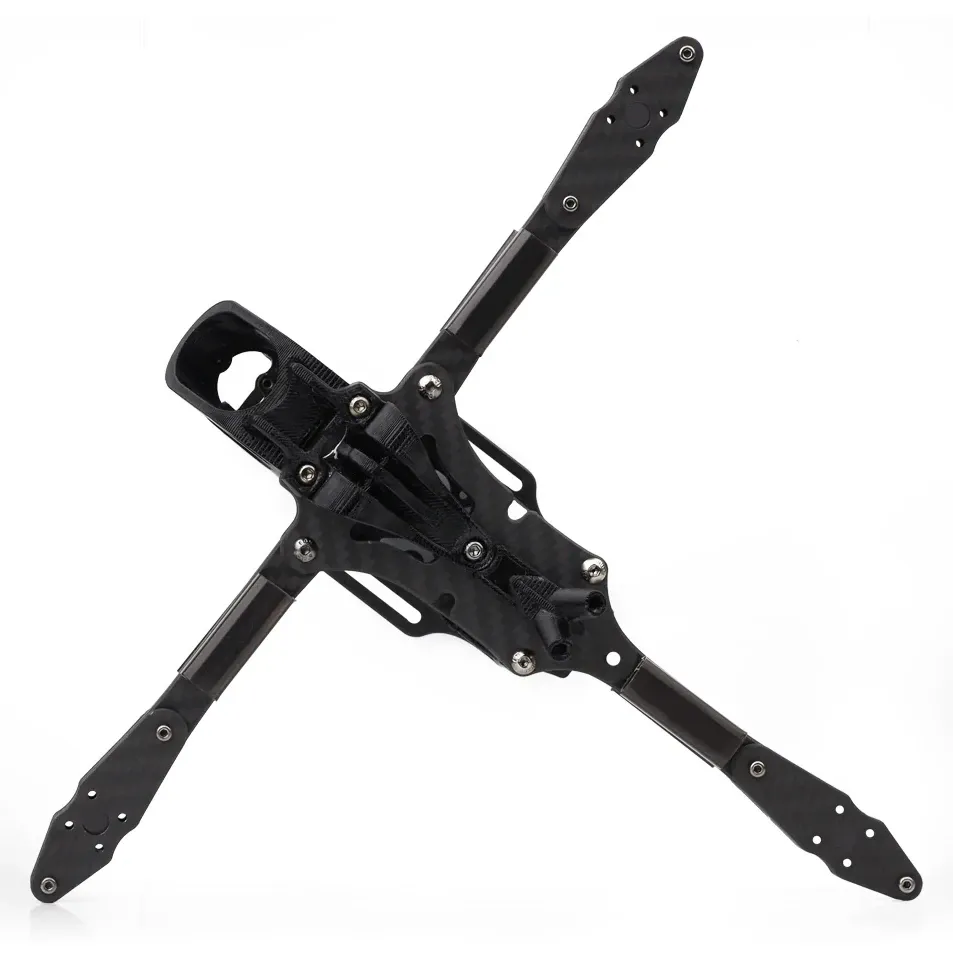

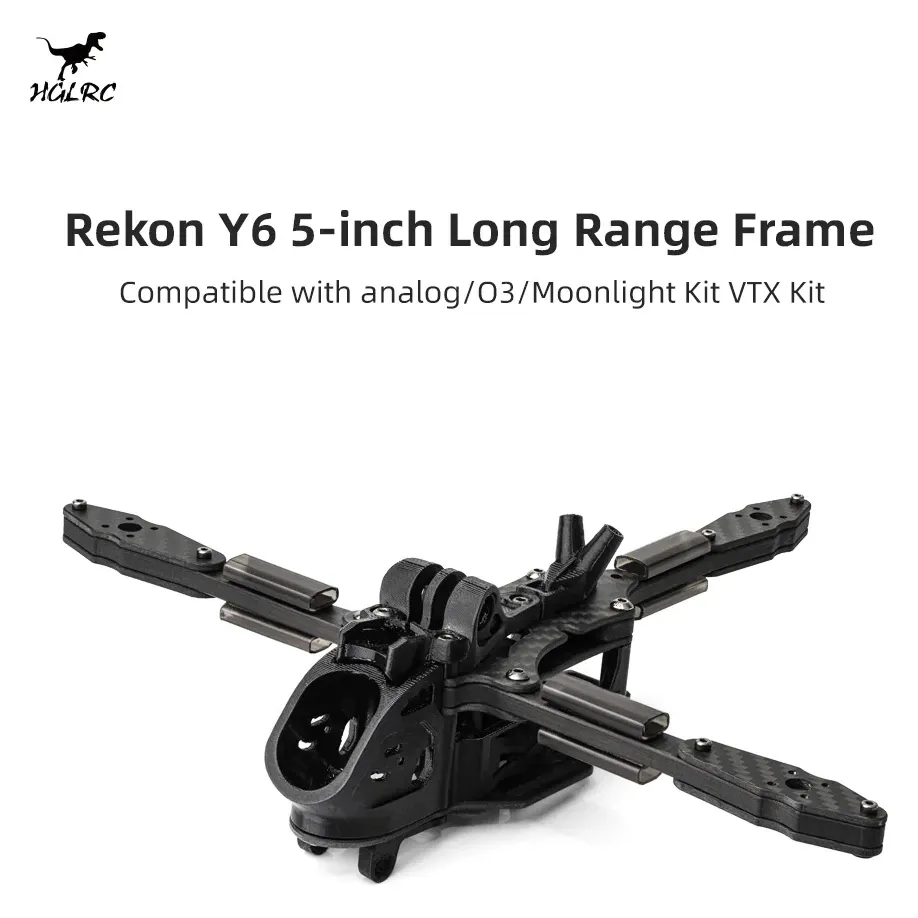

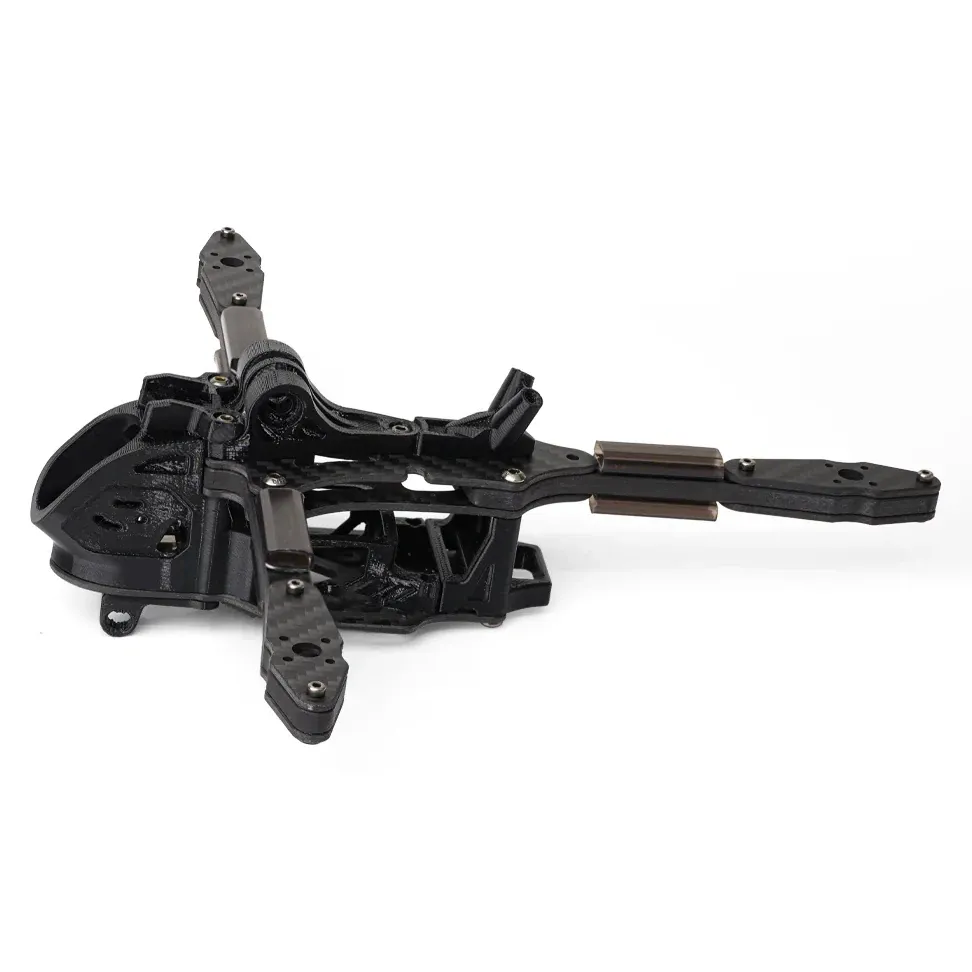

HGLRC Rekon Y6 5" Analog/O3/Moonlight Frame Kit

The HGLRC Rekon Y6 is a specialized 5-inch frame kit designed for builders exploring coaxial 6-rotor flight dynamics. By mounting two motors per arm on a three-arm chassis, this Y6 platform delivers aggressive yaw authority, high thrust-to-weight performance, and the distinctive sound of overlapping propellers. This unique layout inherently provides a completely prop-free field of view, suiting it for cinematic tracking and specialized freestyle flying where standard quadcopter frames might struggle with payload or camera framing.

Key features

• Y6 coaxial geometry mounts six motors across three arms for heavy-lift thrust and built-in hardware redundancy.

• Hybrid aluminium and carbon fibre construction ensures chassis rigidity while acting as a roll-cage for front-end electronics.

• Natively accommodates large high-definition digital video transmitters, including the DJI O3 Air Unit and Walksnail Moonlight kit.

• Three-arm swept layout keeps front propellers entirely out of your FPV feed and onboard HD camera recordings.

Specifications

• Frame layout: Y6 (coaxial 6-rotor)

• Propeller size: 5-inch

• Wheelbase: 200 mm front, 170 mm rear

• Materials: Carbon fibre plates, aluminium alloy mounts

• Plate thickness: 2 mm top, middle and bottom plates

• Top-to-middle plate spacing: 25 mm

• Flight controller mounting: 25.5x25.5 mm

• Motor mounting: 12x12 mm

• Camera size: 19 mm / 20 mm

• VTX compatibility: Analog, DJI O3 Air Unit, Walksnail Moonlight

• Other mounts: fixed power connector, side receiver antenna mount, M100 mini GPS holder, GoPro TPU mount

• Weight: 119 g

• Recommended parts: 6-in-1 40A 4-6S AIO flight controller, 2004 motors, 6S 18650 Li-ion pack
