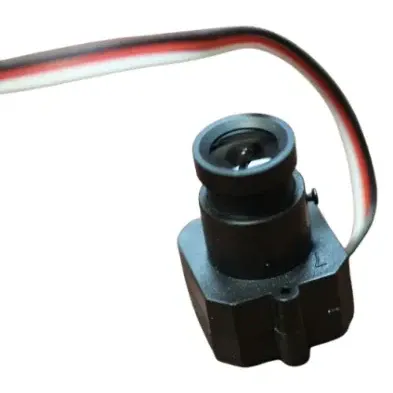

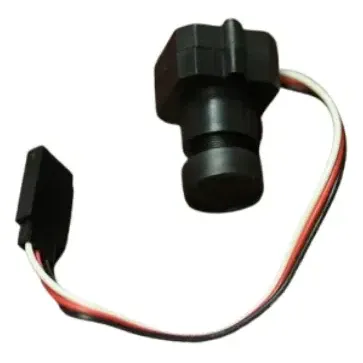

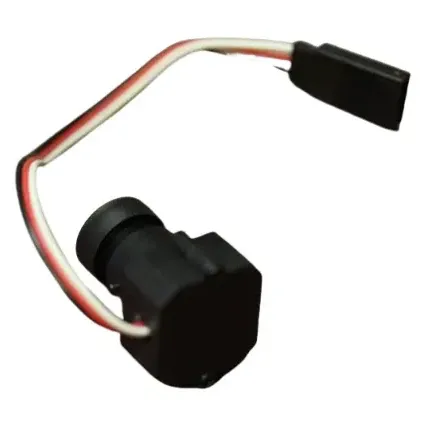

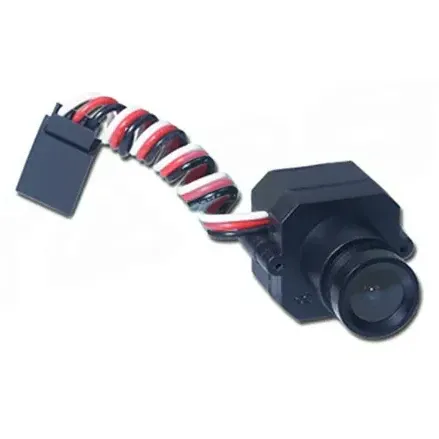

Tarot TL300MN 520TVL 12V FPV Camera, 2.8mm Wide-Angle (NTSC)

The Tarot TL300MN is an analogue FPV camera with a 520TVL 1/3" colour CMOS sensor and a 100° 2.8 mm glass lens, made for Tarot's mini 200, 250 and 300 class quads and other QAV250-size builds. It outputs NTSC video, and its built-in regulator lets it run from a 12 V rail or straight from a 3S (11.1 V) pack.

Key features

• Wide 100° view through a 2.8 mm glass lens
• Wide input range: DC 5–15 V, drawing about 40 mA
• Low-light sensitivity down to 0.008 lux
• Three-wire hookup: red 12 V in, black ground for power and video, white video out
• Internal sync with a signal-to-noise ratio above 50 dB

Specifications

• Sensor: 1/3" colour CMOS
• Resolution: 520TVL
• Video system: NTSC, 720 × 487
• Lens: 2.8 mm glass, 100°
• Video output: 1.0 Vp-p / 75 Ω
• Operating voltage: DC 5–15 V ±10%
• Current draw: 40 mA ±10%
• Minimum illumination: 0.008 lux
• SNR: above 50 dB
• Electronic shutter: 1/60 to 1/10,000 s (NTSC)
• Operating temperature: 0–45 °C

Wire the white lead to your video transmitter's video input and share the ground between camera and VTX. Confirm your goggles or monitor display NTSC before ordering.
