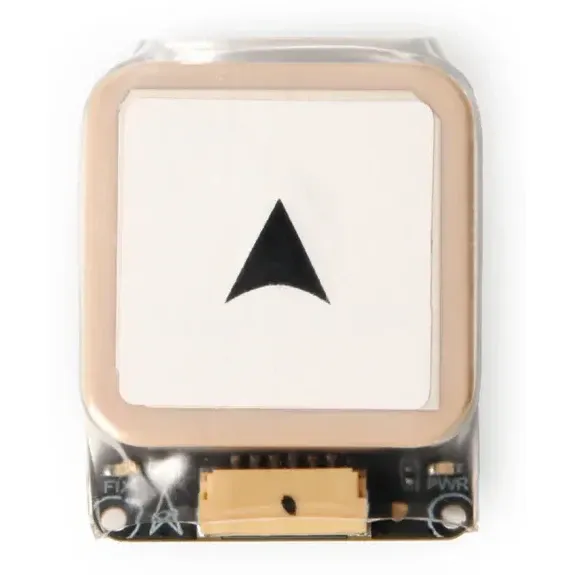

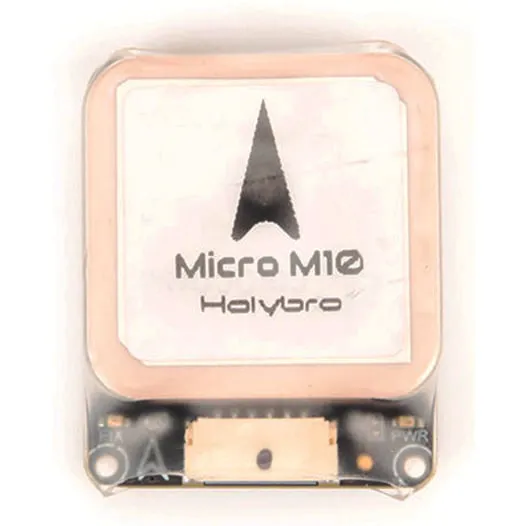

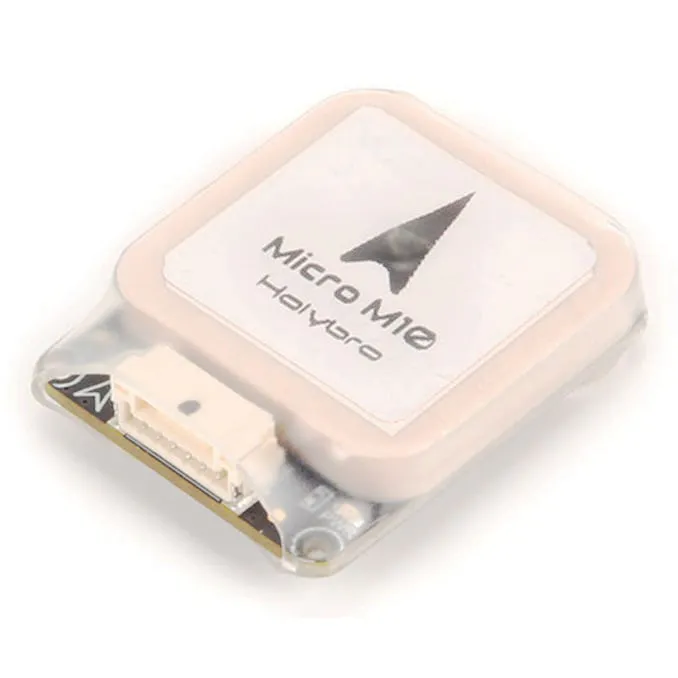

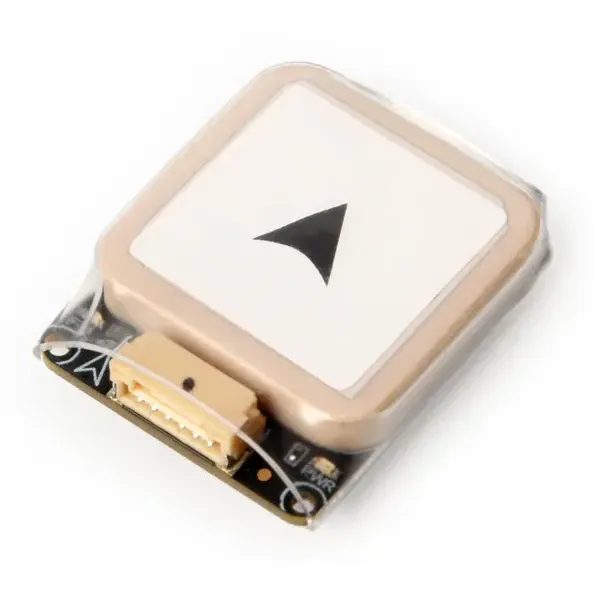

Holybro Micro M10 GPS Module (Without Case)
SKU MICRO-M10-GPS-NOCASE
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
This Holybro Micro M10 GPS module is supplied without a case, for lightweight FPV and autonomous builds that need GNSS positioning without added enclosure bulk.
Key features
u-blox M10 chipset receives GPS, Galileo, GLONASS and BeiDou concurrently for faster, more reliable position locks.
Integrated IST8310 compass removes the need for a separate magnetometer module.
High-gain 25 x 25mm patch antenna with active circuitry and a rechargeable backup battery for quicker warm starts.
Case-free design keeps weight and mounting bulk to a minimum.
Compatible with recent PX4, ArduPilot, INAV and Betaflight GPS firmware support.
Omnidirectional antenna radiation pattern gives flexibility in how the module is mounted on the airframe.
Specifications
Receiver: u-blox M10, up to four concurrent GNSS
Compass: IST8310
Antenna: 25 x 25 x 4 mm ceramic patch

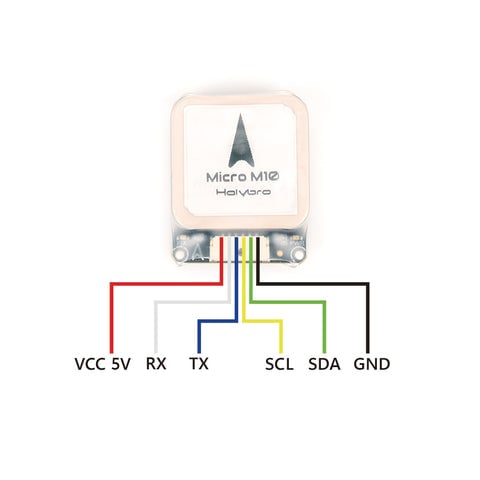

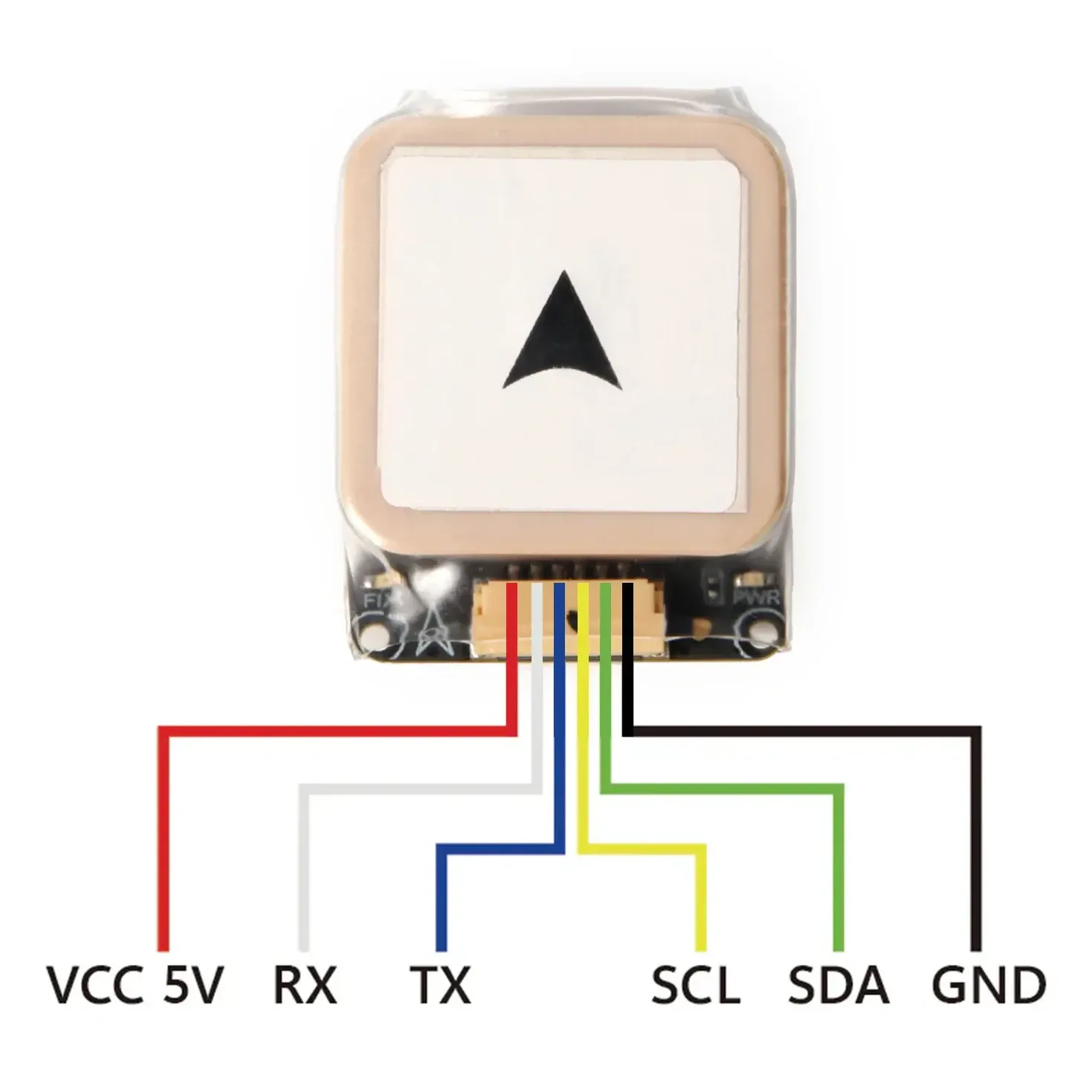

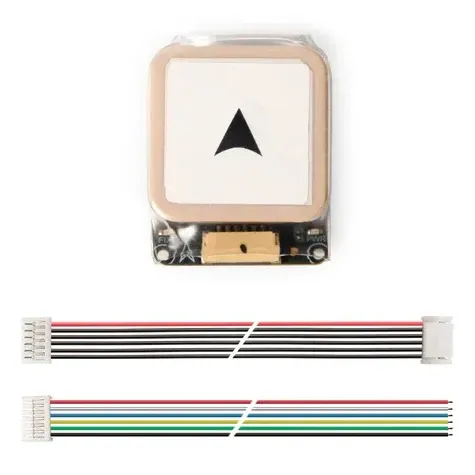

Port: JST-GH 6-pin
Current draw: under 200 mA at 5 V
Dimensions: 32 x 26 x 9 mm

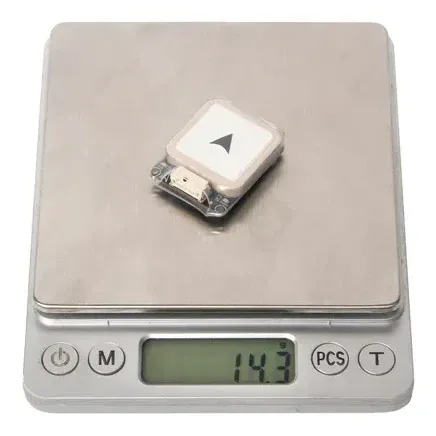

Weight: 14 g
Check your flight controller's GPS/compass wiring and firmware support before fitting, and keep the exposed module away from impacts and conductive debris once it is installed.
| Compass Included | Yes |
|---|---|
| Brand | Holybro |
| GNSS Chipset | u-blox M10 |
| Supported Firmware | INAV, Betaflight, ArduPilot, PX4 |
