Generic Mark4 V2 10" Frame Kit

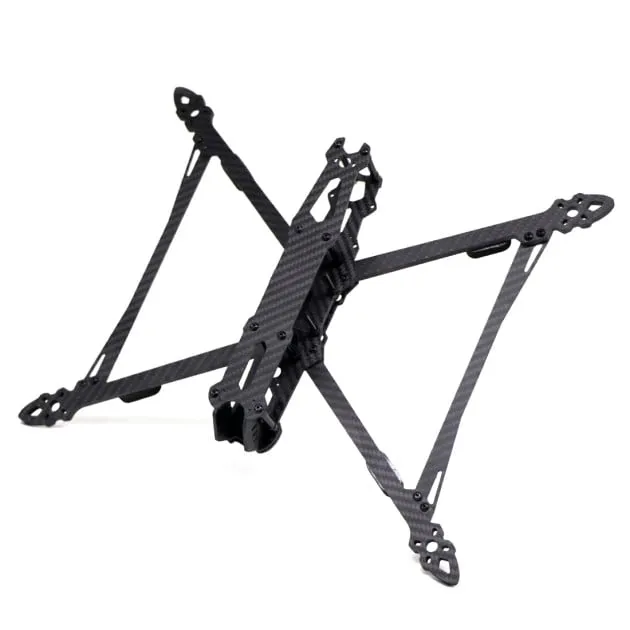

The Mark4 V2 is a 10-inch carbon-fibre FPV frame for pilots building a larger quad with a clean, open layout. It suits custom long-range or heavy-duty builds where you want a reinforced centre section, room for a flight stack, and a straightforward frame to organise components around.

Key features

• Built around a 10-inch prop setup, matching larger cruising and long-range builds rather than compact freestyle rigs.
• Carbon-fibre plates and arms give the frame a rigid structure for a tidy, no-nonsense build.
• Open-frame layout with wide arm spacing keeps the build balanced and makes component placement easier.

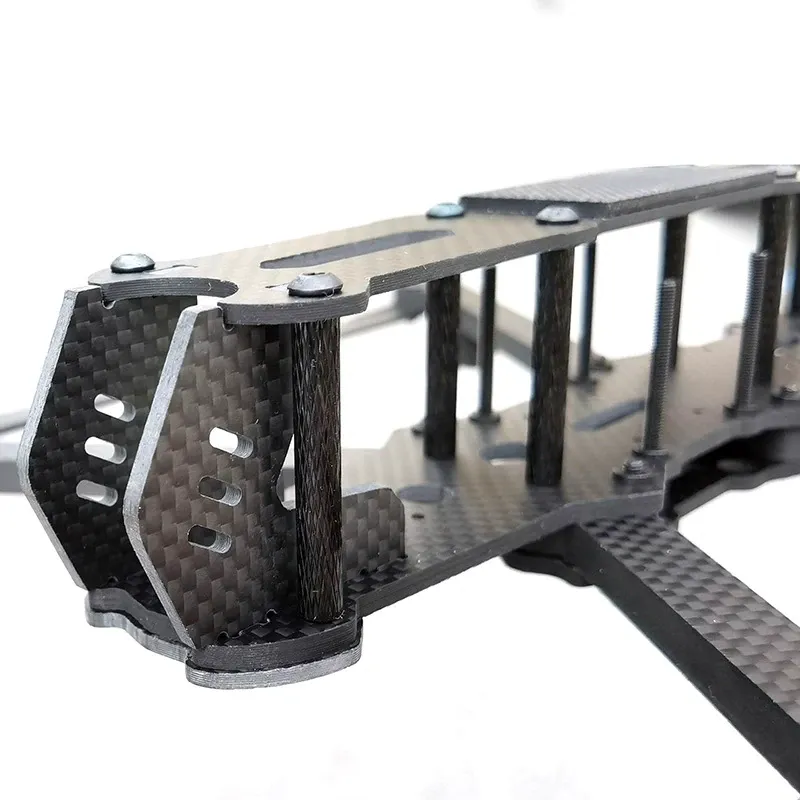

• Raised centre stack area leaves room for flight controller, ESC and accessory mounting.

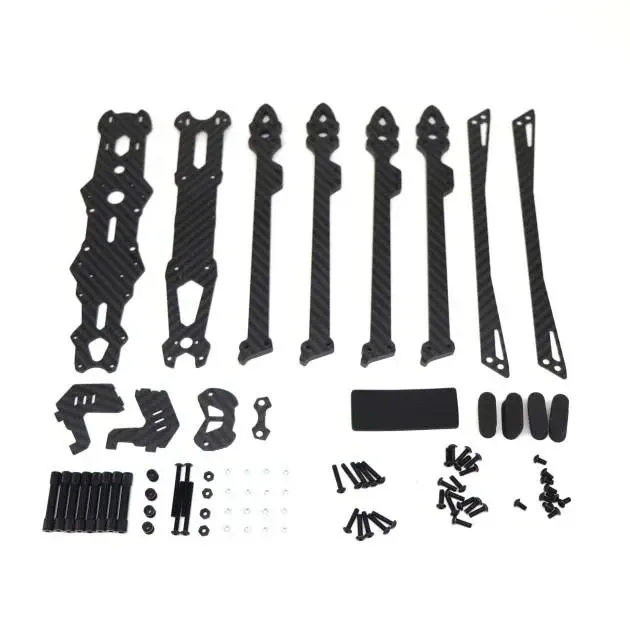

• Hardware, standoffs and mounting parts are included, so you can plan the build around the supplied kit.

Specifications

• Wheelbase: 427mm
• Stack mounting: 30.5x30.5mm (M3) / 20x20mm (M2)
• VTX mounting: 30.5x30.5mm (M3) / 20x20mm (M2)
• Motor mounting: 16mm / 19mm
• Camera size: 19mm (micro)

Check your stack height, arm clearance and 10-inch prop clearance before ordering, especially if you plan to add a large camera or GPS unit.
