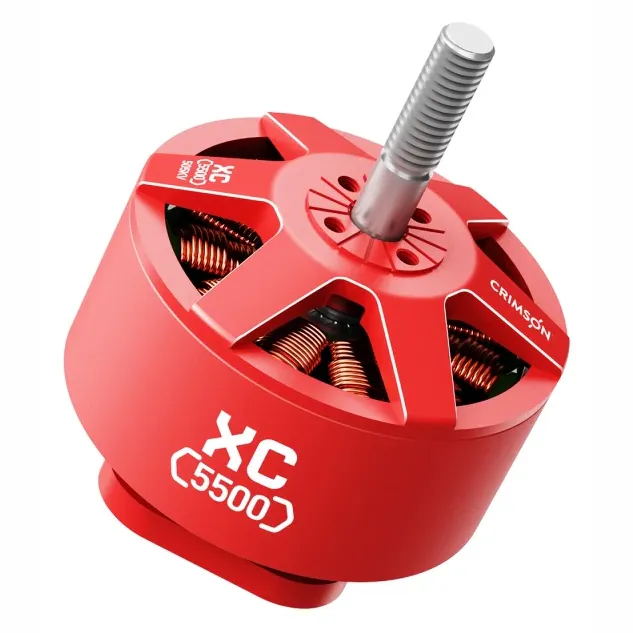

Madcomponents XC5500-635KV Crimson Brushless Motor

The MAD Components XC5500 635KV Crimson Edition is a massive, high-torque brushless motor engineered specifically for X-Class FPV racing and heavy-lift cinelifters. Designed to swing 10-inch to 13-inch propellers on a 6S powertrain, it provides the raw thrust and aggressive throttle response required to push oversized FPV rigs and heavy cinema payloads through demanding flight lines.

Key features

• High-torque electromagnetic design optimised for extreme payloads and the heavy inertia of X-Class frames.

• High-temperature single-strand copper windings maintain electrical efficiency and resist heat soak during sustained full-throttle punches.

• Oversized, heavy-duty bearings ensure vibration-free operation while handling the immense radial forces of large-diameter propellers.

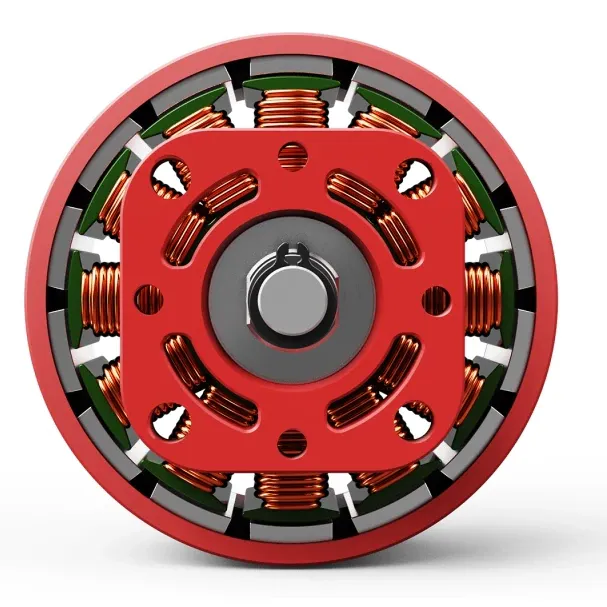

• Open-base machined architecture maximises ambient airflow and rapid heat dissipation across the stator.

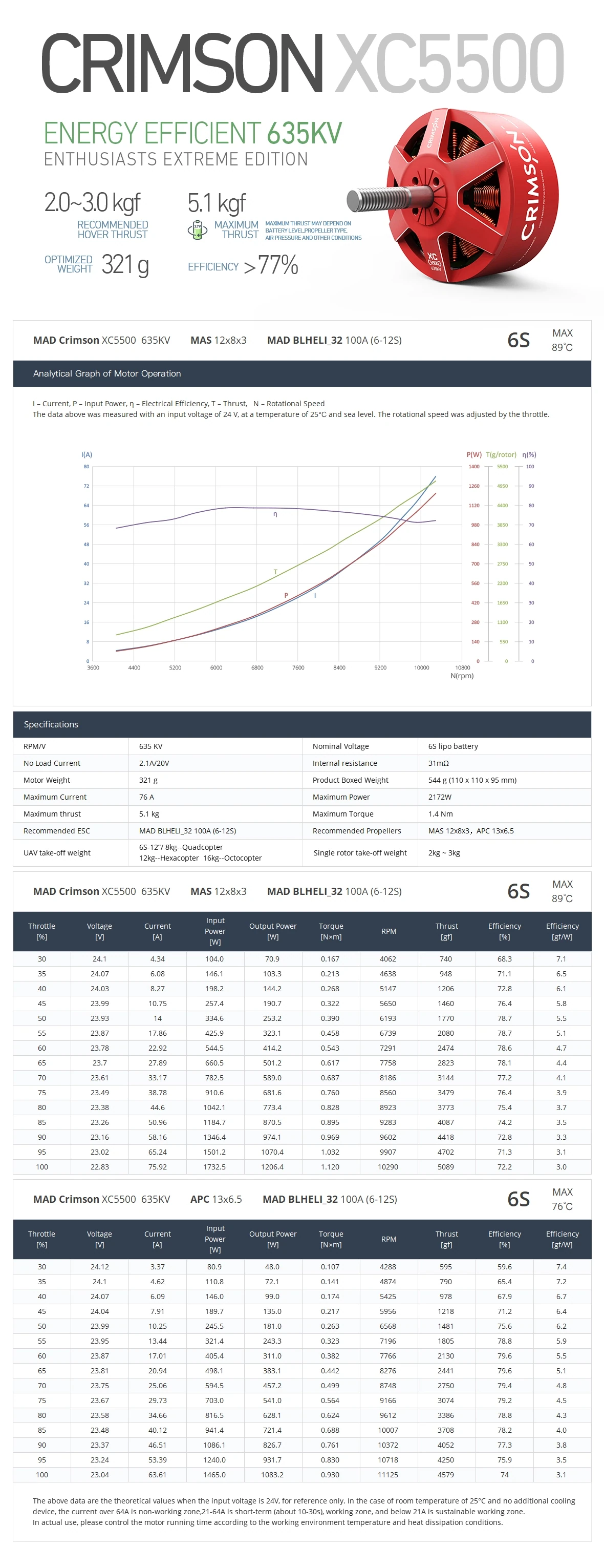

Specifications

• KV: 635

• Input voltage: 6S

• Supported propellers: 10" to 13"

• Colour: Crimson

Pair this motor with a high-amperage 6S electronic speed controller to safely manage its current draw. Ensure your frame features a heavy-duty motor mounting plate designed to accommodate large-scale X-Class stators.
