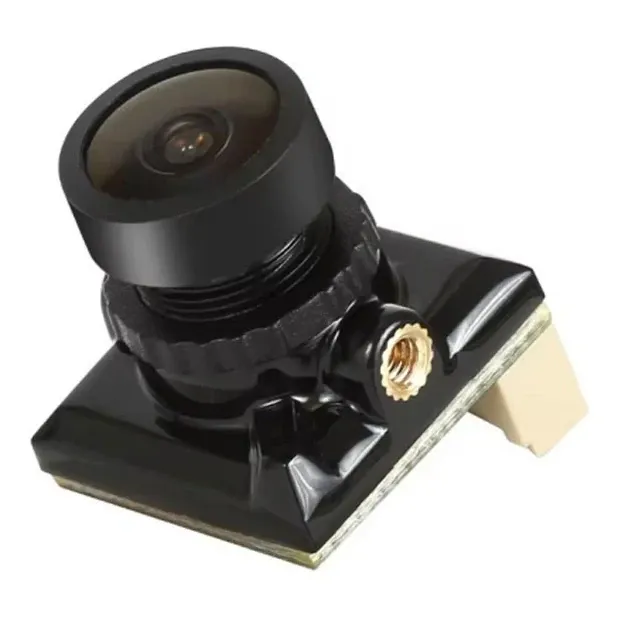

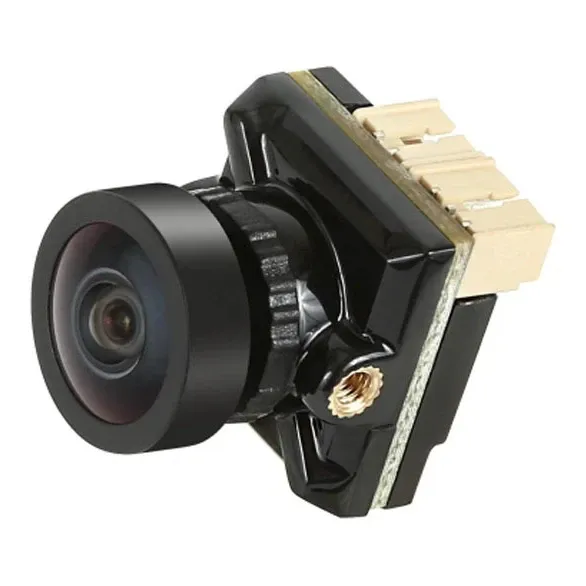

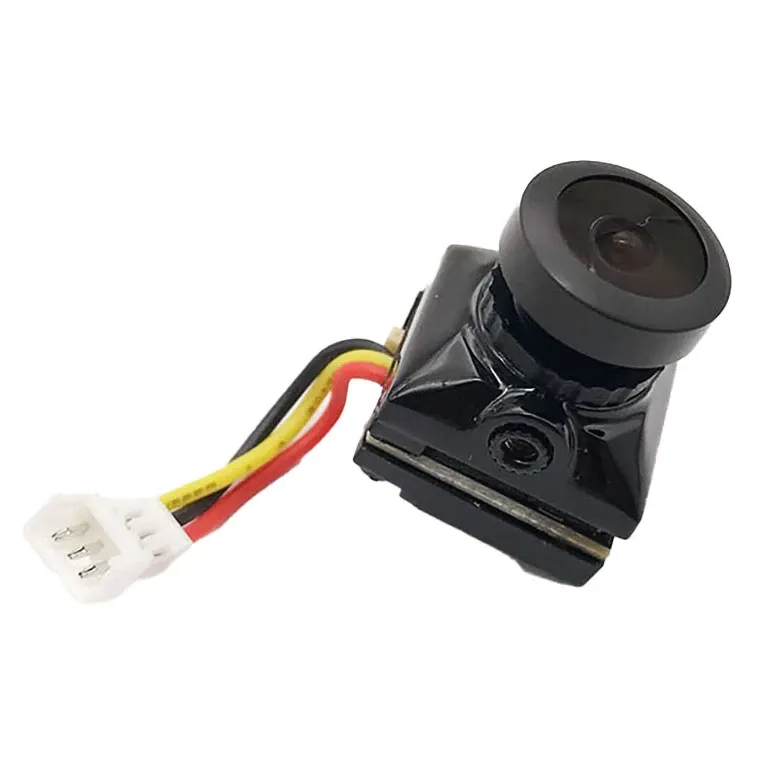

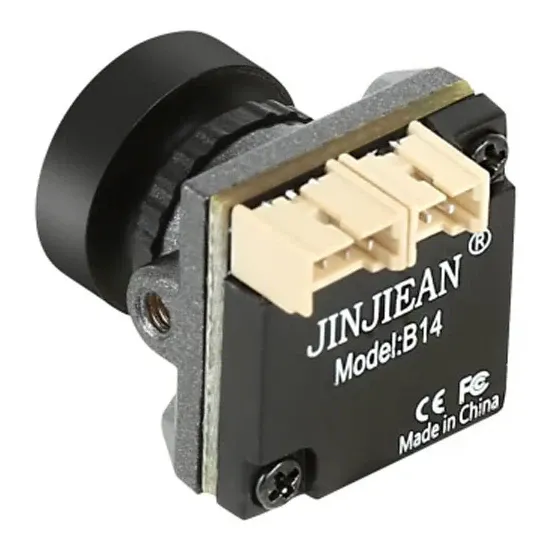

JINJIEAN B14 Nano 1200TVL Analog FPV Camera, 14mm

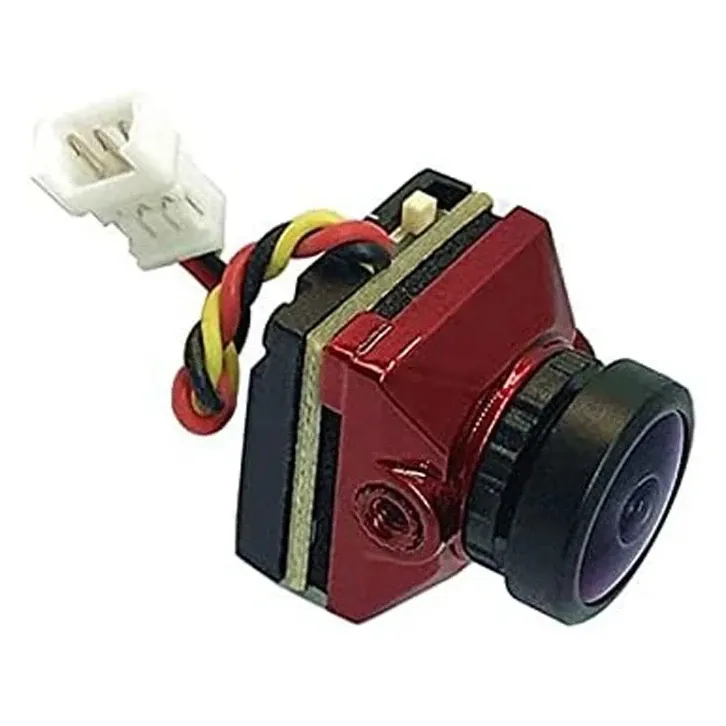

The JINJIEAN B14 is a 14 mm nano analogue FPV camera with 1200TVL resolution, for micro quads, toothpicks and racing builds where weight and space are tight. It comes in black or red.

Key features

• PAL/NTSC output with D-WDR and 3DNR noise reduction, rated down to 0.001 lux

• 1/3-inch CMOS sensor with a 2.1 mm lens

• Button to switch between PAL and NTSC

• Runs on 3.3–6 V, so power it from a 5 V pad, not straight from the battery

• 14 x 14 mm nano body fits standard nano camera mounts

Specifications

• Resolution: 1200TVL

• Image sensor: 1/3-inch CMOS

• Lens: 2.1 mm

• Video system: PAL / NTSC switchable

• S/N ratio: 60 dB, AGC off

• Electronic shutter: PAL 1/50 to 1/100,000 s; NTSC 1/60 to 1/100,000 s

• Minimum illumination: 0.001 lux

• Input voltage: 3.3–6 V

• Dimensions: 14 x 14 x 17 mm

• Weight: 3.5 g
