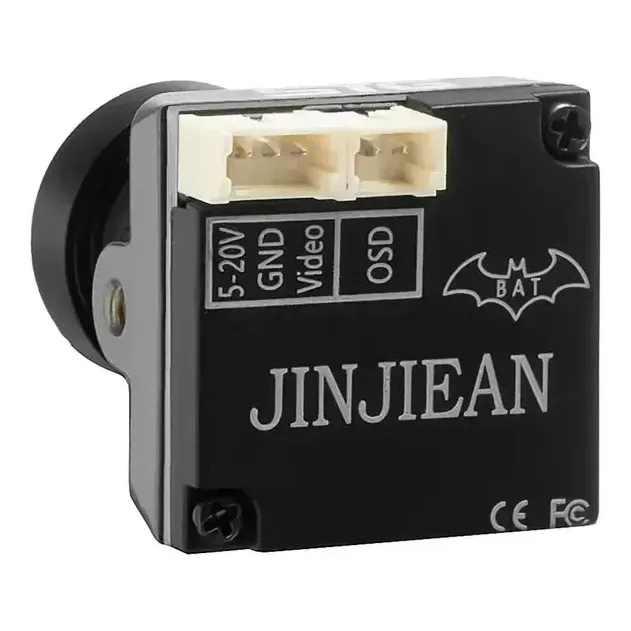

JINJIEAN B19 Pro 1500TVL Black-Light Analog FPV Camera

The JINJIEAN B19 Pro is the low-light version of the B19 analog FPV camera: the same 1500TVL resolution and 2.1 mm wide-angle lens, built around a black-light sensor that keeps the picture usable at dusk, indoors and in shaded areas. It suits racing and freestyle quads, RC cars, robots and simple analog surveillance rigs.

Key features

• Black-light sensor with 3D noise reduction and digital WDR for cleaner video in dim or high-contrast scenes
• Auto, colour and black-and-white day/night modes
• CVBS analog output with PAL/NTSC selected from the internal OSD menu
• OSD control of brightness, exposure mode, gain and a three-step AGC (low/middle/high)
• DC 5-20 V input: run it from a 5 V BEC or straight from a 2-4S pack

Specifications

• Resolution: 1500TVL
• Lens: 2.1 mm
• Video output: CVBS, PAL/NTSC switchable
• S/N ratio: above 60 dB (AGC off)
• Electronic shutter: PAL 1/50-1/100,000 s; NTSC 1/60-1/100,000 s
• Power input: DC 5-20 V

Pick the Pro over the standard B19 if you fly in the evenings or indoors; for night flying, the 1800TVL B19 Pro MAX with its larger 1/2.8-inch starlight sensor is the step up. Check that your frame's camera mount takes a 19 mm micro camera before ordering.
