iFlight XING2 1404 Toothpick Motor 3000KV

The iFlight XING2 1404 brings the smooth, responsive power of the premium XING2 line to sub-250g toothpick and ultralight micro builds. Upgraded with a reinforced 7075 aluminium bell and N52H curved arc magnets, this motor delivers excellent power-to-weight efficiency for 3-inch and 4-inch frames.

Key features

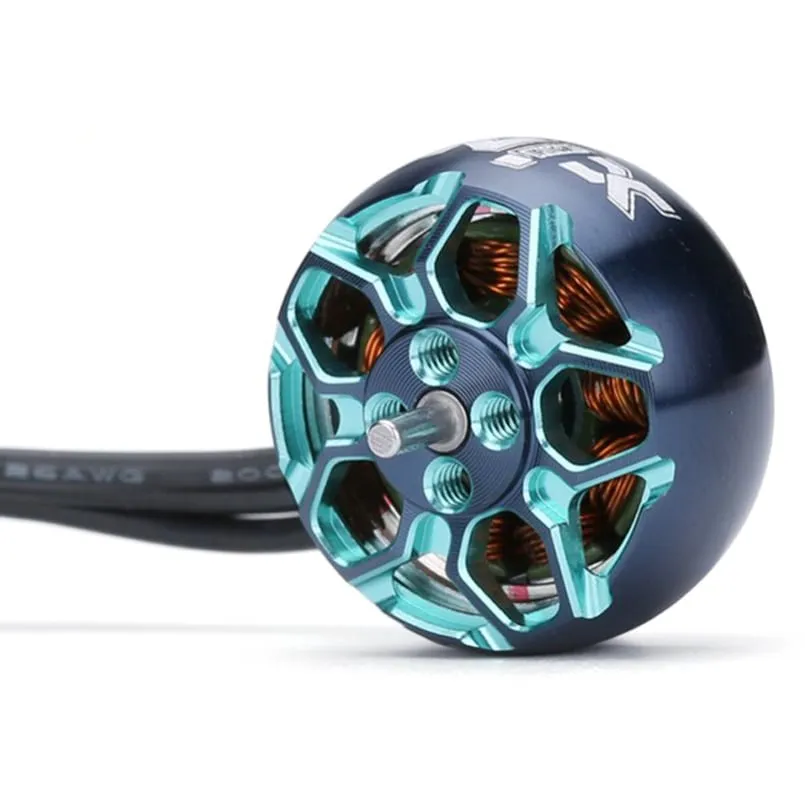

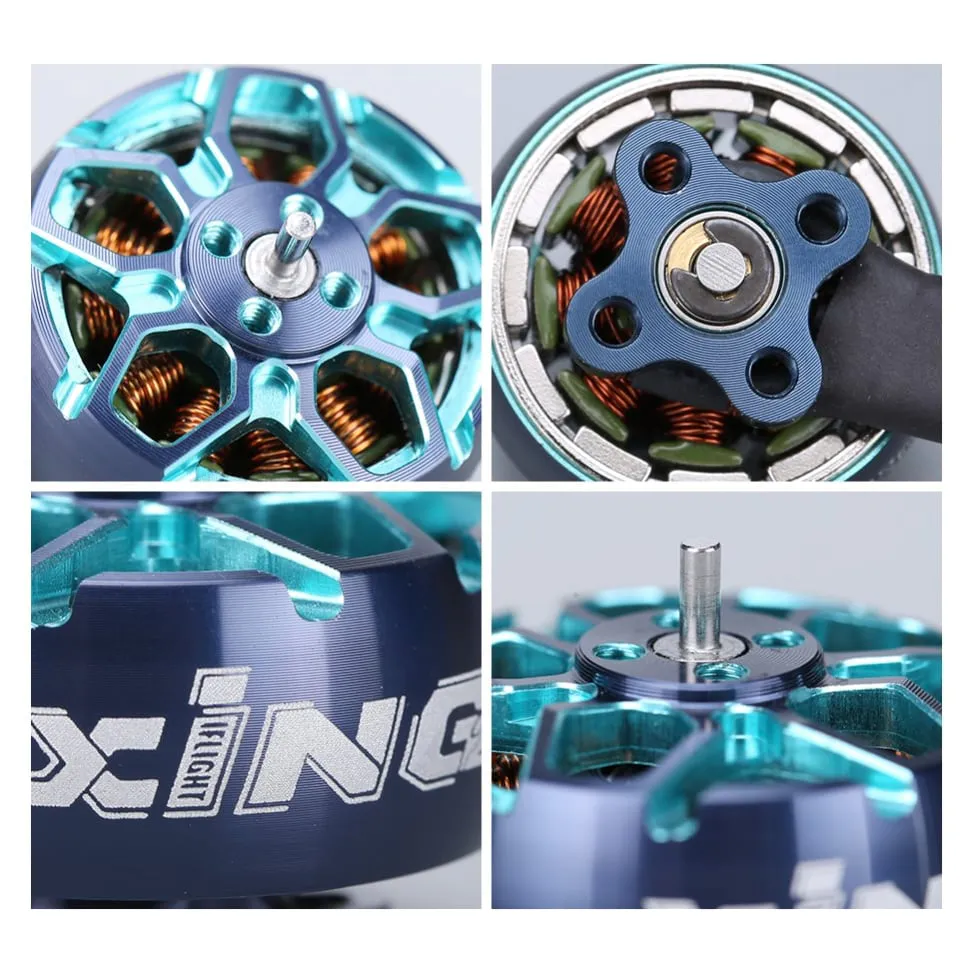

• Unibell design machined from aerospace-grade 7075 aluminium for high crash durability.
• N52H curved arc magnets reduce the stator gap, increasing torque and throttle response.
• Fitted with a rubber O-ring to protect the premium NSK bearings from dirt and impact forces.
• Standard T-mount shaft for secure, low-profile propeller installation.

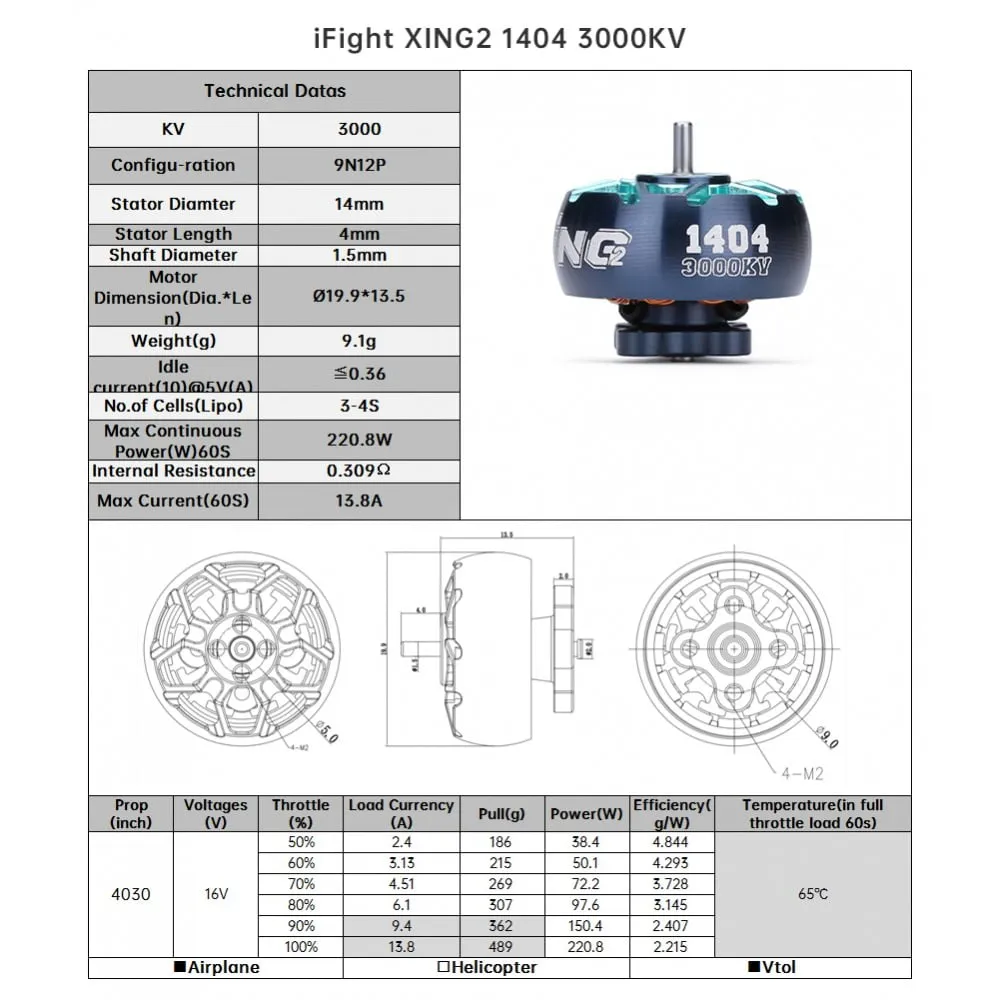

Specifications

• Stator size: 1404
• Configuration: 9N12P
• KV options: 3000KV, 3800KV, 4600KV
• Shaft diameter: 1.5mm

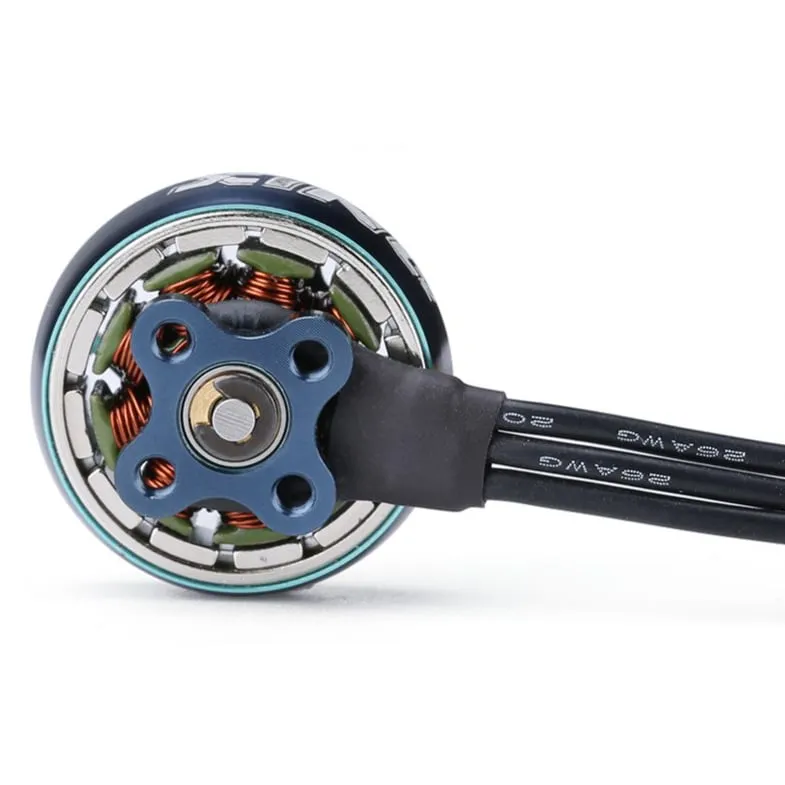

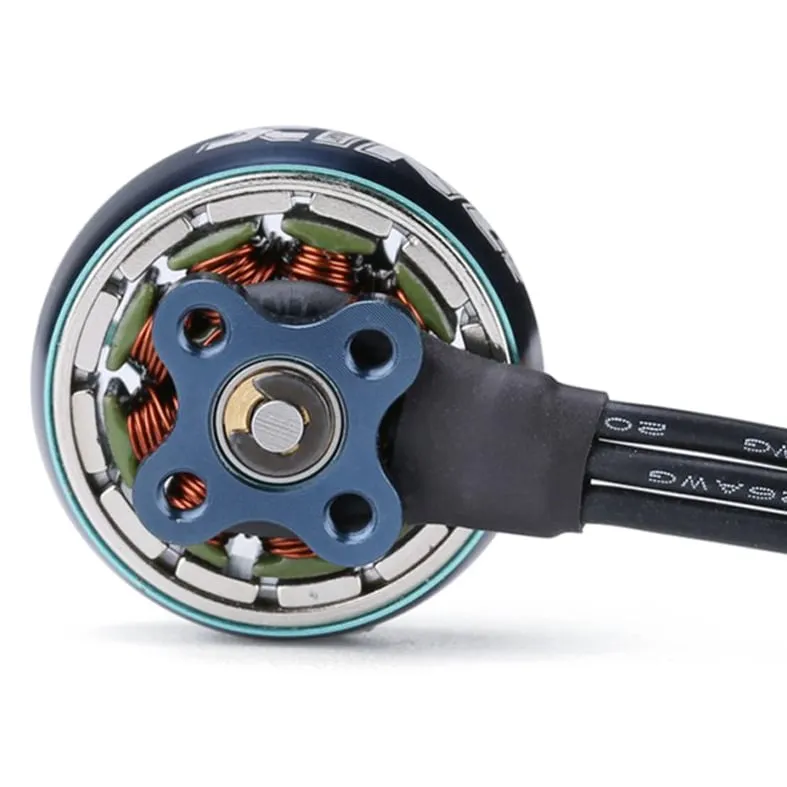

• Mounting pattern: 9x9mm (M2)
• Input voltage: 3-4S LiPo

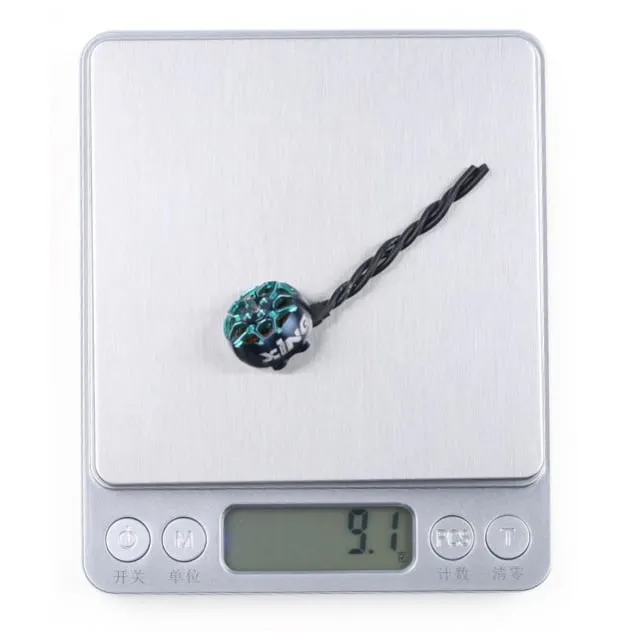

• Weight: 9.1g (including wire)

For optimal performance, pair the 4600KV variant with 3-inch propellers on a punchy 3S or 4S freestyle quad. The lower 3000KV and 3800KV options excel on 4-inch setups aimed at efficient cruising or micro long-range flights.
