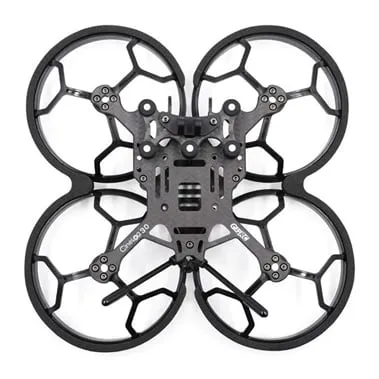

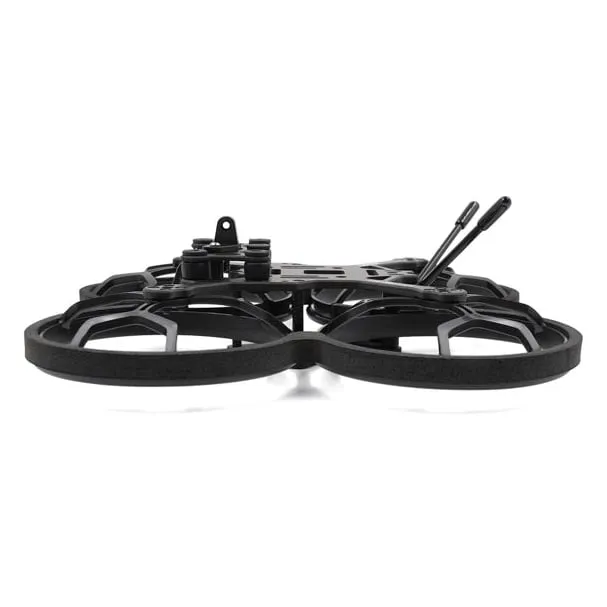

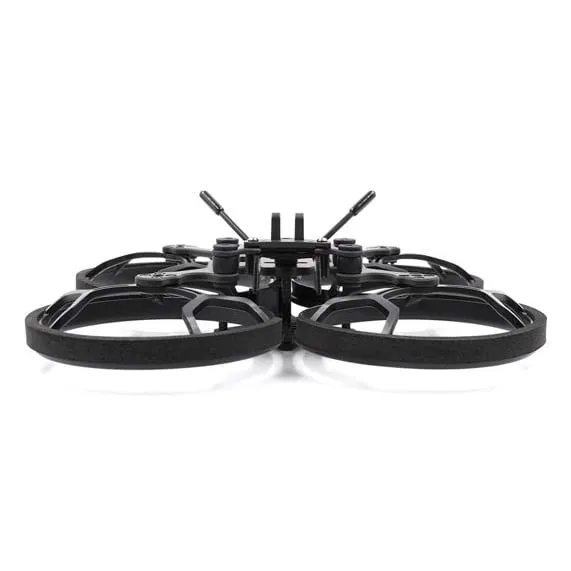

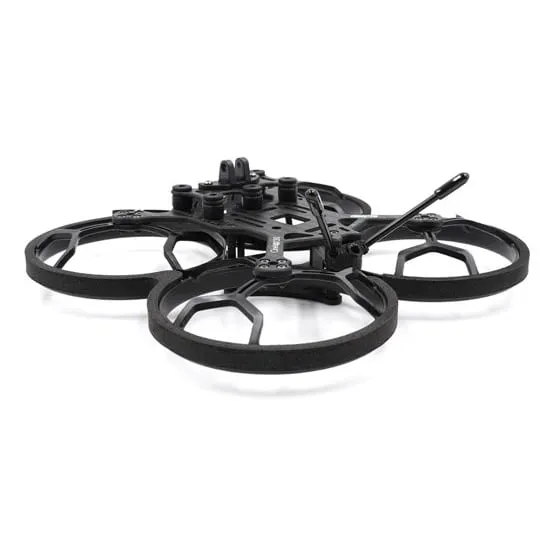

GEPRC CL30 3-Inch Cinewhoop Frame Kit

The GEPRC CL30 is an ultra-light 3-inch cinewhoop frame kit that builds on the CL25 design with a stronger damping platform and room for 1404–1408 motors. Built-in mounts take a naked GoPro 8 or an Insta360 GO 2, so it suits pilots who want a guarded 3-inch whoop carrying a lightweight action camera for stabilised cinematic footage.

Key features

• 126 mm motor-to-motor layout with six injection-moulded 3-inch prop guards
• Damping platform with rubber rings isolates the camera for steadier footage
• 25.5 × 25.5 mm FC holes and 20 × 20 mm VTX holes take mainstream whoop electronics
• 9 × 9 mm motor holes for 1404–1408 motors
• Pre-made 3D-printed parts: 19 × 19 mm camera mount, VTX antenna mount, TBS T-antenna mount, TBS Nano RX mount and camera protector
• Full M2 hardware kit, battery straps, landing pads, silicone pads and 3M tape included

Specifications

• Wheelbase: 126 mm
• Props: 3-inch
• Plate thickness: 2.0 mm top, 3.0 mm arm, 2.0 mm bottom (carbon fibre)
• FC mounting: 25.5 × 25.5 mm
• VTX mounting: 20 × 20 mm
• Motor mounting: 9 × 9 mm, for 1404–1408 motors
• Camera space: 14–19 mm (19 × 19 mm mount supplied)
• Standoffs: M2 × 3.5 × 25 mm aluminium

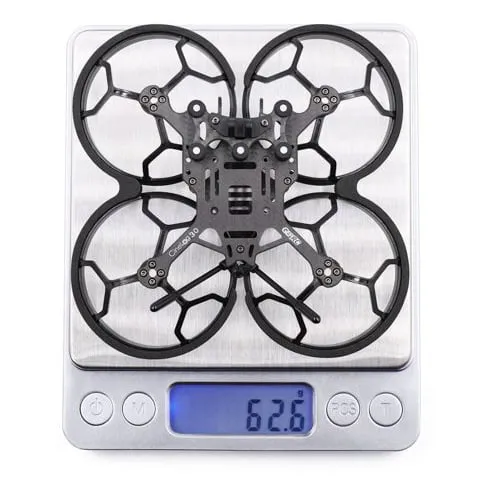

• Weight: 62.6 g including prop guards, GoPro mount and 3D-printed parts

Plan the build around a 25.5 × 25.5 mm whoop-pattern FC or AIO and 9 × 9 mm-pattern motors. The camera bay takes cameras 14–19 mm wide, with a 19 × 19 mm mount supplied in the kit.
